Daytona RAJ8 8,000 lb Rolling Bridge Jack for LFPA12 and LFPA14 Alignment Lifts
Wheels Free Without Leaving the Rack: the Daytona RAJ8 8,000 lb Rolling Bridge Jack
An alignment rack holds a vehicle by its own wheels. That is exactly right for setting toe and camber, and exactly wrong the moment the job turns into a rotor, a bearing, or a tire. Without a rolling jack the car comes off the rack and the bay stops earning.

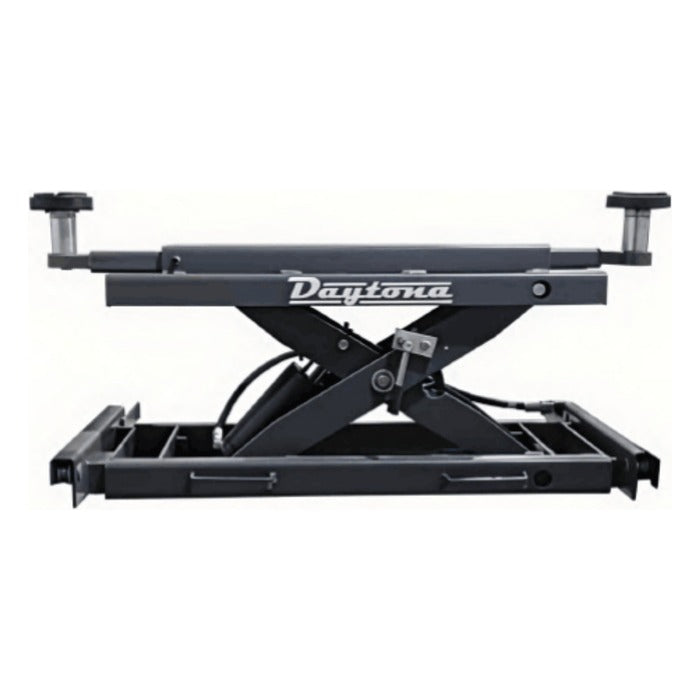

The Daytona RAJ8 is the jack Daytona builds for the LFPA12 and LFPA14. It rolls along the runways, spans the gap, and lifts 8,000 lbs clear of the deck so an axle comes free while the rack stays put. The frame adjusts 35.4" to 63.0" to match the jack rails on both lifts.
It is air powered, so there is no electrical hookup, and a mechanical safety lock engages at the 19.75" working height. Collapsed it sits at 8", low enough to roll under a vehicle already on the runways. Adjustable rubber contact pads protect the underbody and add 2-3/4" of reach when a frame rail sits high.
Most alignment shops buy two. One jack does one axle. If you regularly need both ends free, order a pair with the rack so they arrive together. Call a Pitstop Pro lift specialist to spec it. Browse every rolling bridge jack, see all alignment lifts, or view the full Daytona lineup.
Benefits of the Daytona RAJ8
Key Features of the Daytona RAJ8
• 8,000 lb capacity: A reinforced scissor mechanism raising evenly on both sides, sized for trucks and SUVs on a 12,000 or 14,000 lb alignment rack.
• Adjustable frame, 35.4" to 63.0": Sets to your runway spacing rather than dictating it, and covers both the LFPA12 and the LFPA14.
• 8" collapsed, 19.75" on the lock: The stamped drawing gives a saddle travel of 7.9" to 20.5", extending to 10.6" to 23.2" with the pad adapters fitted.
• Air operation: Pneumatic, with no electrical connection required. Any normal shop compressor runs it.
• Base adjusts 40.6" to 45.3": The rolling frame extends to suit the runway rails, and 4.7" rollers carry it along the deck under load.
• Sold individually: One jack lifts one axle. Order the quantity your shop actually works with rather than a fixed pair.
| Daytona RAJ8 8,000 lb Rolling Bridge Jack Specifications | |
| Manufacturer | Daytona |
| Model | RAJ8 |
| Type | Air operated rolling bridge jack, scissor mechanism |
| Lifting Capacity | 8,000 lbs (3,629 kg) |
| Fits | Daytona LFPA12 and LFPA14 alignment lifts |
| Collapsed Height | 8" |
| Working Height on Lock | 19.75" |
| Saddle Travel (blueprint) | 7.9" to 20.5" (200 to 520 mm), 10.6" to 23.2" with pad adapters |
| Pad Extensions | 2-3/4" adjustable rubber contact pads |
| Frame Width Adjustment | 35.4" to 63.0" (900 to 1,600 mm) |
| Base Length Adjustment | 40.6" to 45.3" (1,032 to 1,150 mm) |
| Platform Length | 36.6" (930 mm) |
| Roller Diameter | 4.7" (120 mm) |
| Power Source | Air (pneumatic). No electrical hookup required |
| Safety | Mechanical safety lock engaging at 19.75" working height |
| Shipping Dimensions | 46" x 26" x 14" | 400 lbs |
| Sold | Individually, one jack per unit |
| Warranty | 5-year structural | 2-year cylinders and seal kits | 1-year other defective parts |

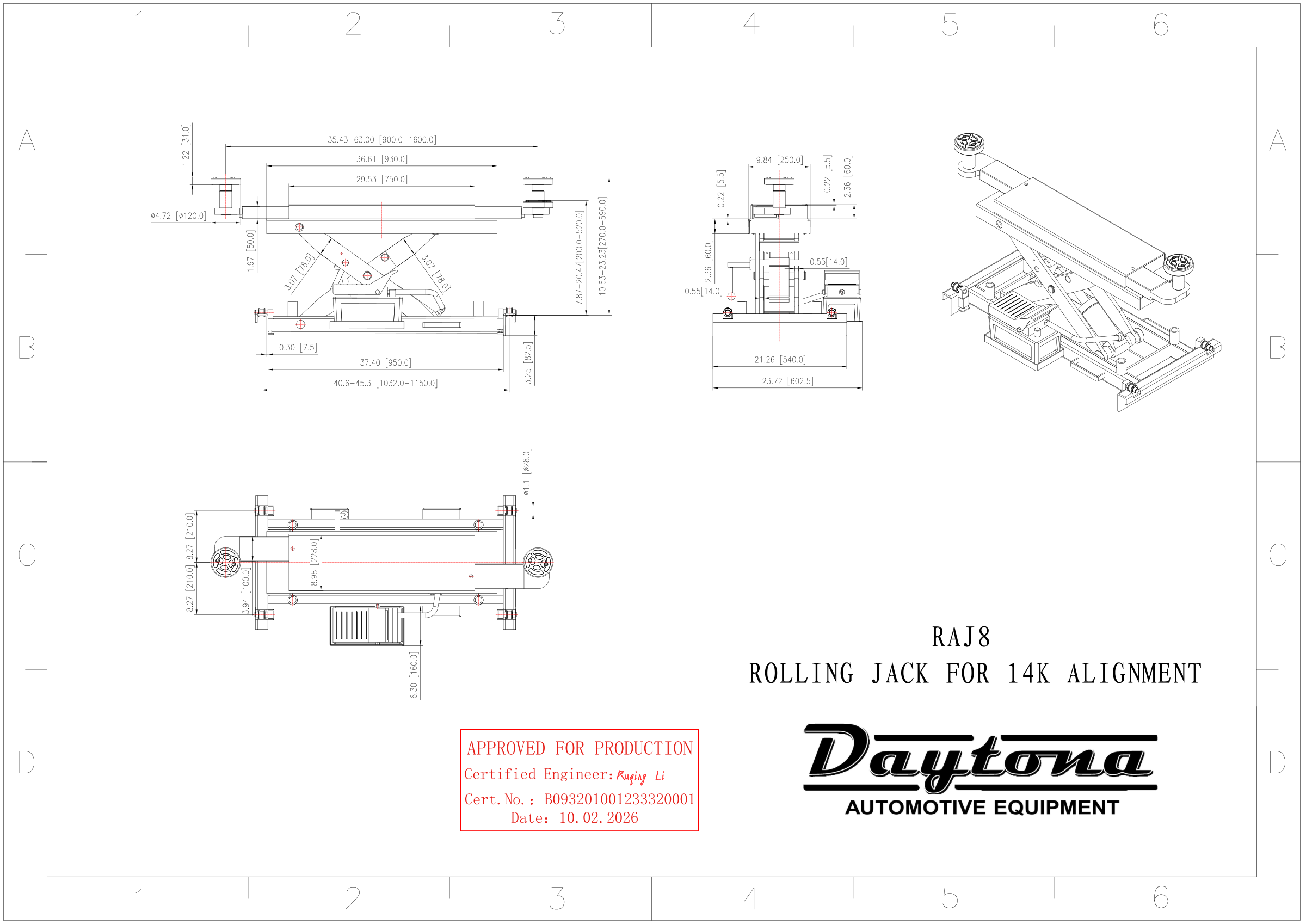

| Blueprint | View the engineer stamped dimensional drawing |
Daytona RAJ8 Frequently Asked Questions
Do I need one or two?
One jack lifts one axle. A single unit covers most brake and tire work, because you rarely need all four wheels off at once. Buy two if you routinely do four wheel jobs or suspension work at both ends. Two is the common configuration in a dedicated alignment shop.
Which Daytona jack fits my rack?
Match the jack to the rack, not to the vehicle. The RAJ8 is for the 12,000 and 14,000 lb alignment lifts. The RAJ12 is for the 24,000 lb LFPA24, and the RAJ5 is for the 9,000 and 10,000 lb parking lifts. Call us with your model number if you are unsure.
Why is an 8,000 lb jack right for a 14,000 lb lift?
Because a rolling jack lifts one axle, not the whole vehicle. Roughly half to two thirds of the rack's rated capacity is the correct match, and it keeps the jack from being the weak link when a loaded truck is on the runways.
What air supply does it need?
Ordinary shop air. There is no electrical connection at all, which is part of why a rolling jack is easy to add to an existing rack. If your bay has a compressor and a drop near the lift, you have what it needs.
Can I add it to a rack I already own?
Yes. A rolling jack is not an installed accessory. It sits on the runways and rolls into position, so there is nothing to bolt down and nothing to wire. Ordering with the lift only saves a second freight charge.
How does delivery work?
It ships as freight in a 46" x 26" x 14" crate weighing 400 lbs. Compact but dense, so a pallet jack and a level approach usually handles it. If it is going out with a lift, we can coordinate both onto the same delivery.
