Katool 4 Post Storage Lift - 9,500lb Capacity | KT-4H950
Tired of Install Guesswork? The Katool KT-4H950 9,500 lb 4-Post Lift Makes Parking and Service Simple
Shopping for a 4 post storage lift can feel like a guessing game -- capacity ratings, safety lock specs, slab requirements, and power options all blur together fast. If you're wondering whether the lift will actually be safe, fit your ceiling, and work with the power you already have, you're not the only one asking those questions. The KT-4H950 by Katool is built to remove that uncertainty with a real 9,500 lb capacity, four mechanical locks with primary and secondary catches, and a single-point manual safety release you control from one spot. It's CE certified at 115% dynamic and 150% static load testing -- the rated capacity isn't the ceiling, it's the floor.
What sets this lift apart from others in the 9,000-10,000 lb range is how much it gives you out of the box. Casters, aluminum ramps, a jack tray, and drip trays are all included -- no hunting for essentials after delivery. The power-side column installs on the left, right, front, or rear, so electrical routing fits your shop instead of the other way around. Adjustable safety lock ladders let you stop at the right working height, and the cable-and-pulley system keeps both platforms synchronized for level lifts every time. With 97-inch posts and 76.5 inches of underneath clearance, you get real headroom for storage or undercarriage work.
For home garages and light-duty shops, this lift doubles as a daily-use car storage lift and a reliable service lift. Drive on, park underneath, and stop worrying about whether the equipment is up to the job. It's engineered for free-standing use with no anchor bolts required, runs on 110V or 220V, and lifts in about 90 seconds. If you need a 4-post lift that fits right, installs clean, and doesn't cut corners on safety or accessories -- this is the one that checks every box.
If this lift isn't the right fit, compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Katool KT-4H950
Key Features of the Katool KT-4H950 4-Post Lift You'll Love:

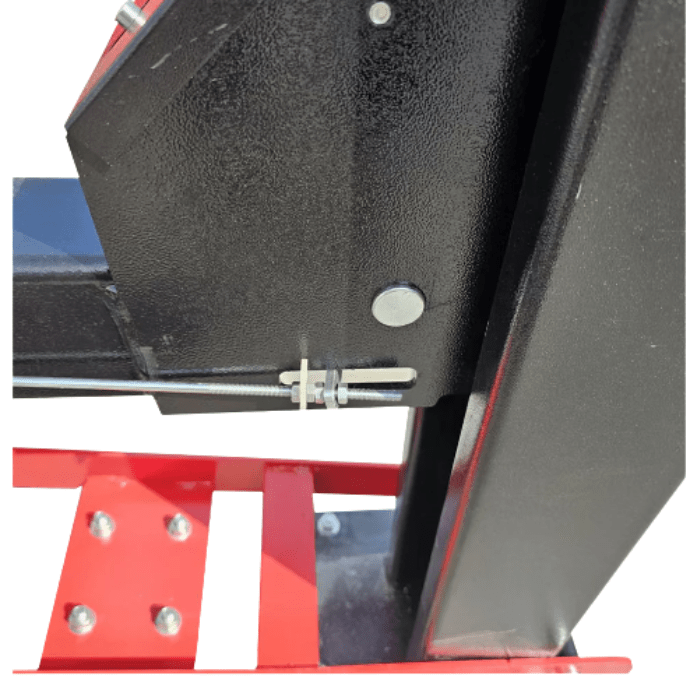

• Four Mechanical Locking Devices: Each column houses primary and secondary mechanical locks that engage automatically as the platforms rise. You're not relying on hydraulic pressure alone -- your load is physically supported at the chosen height. This redundant design adds a crucial safety margin whether you're storing a vehicle or working underneath one.
• Adjustable Safety Lock Ladders: Dial in working height to match the job and your ceiling. Multiple lock positions make quick work of anything from under-car inspections to wheel and tire tasks with a rolling jack. Because locks engage into steel ladders, you get consistent, repeatable stops every time without any guesswork.

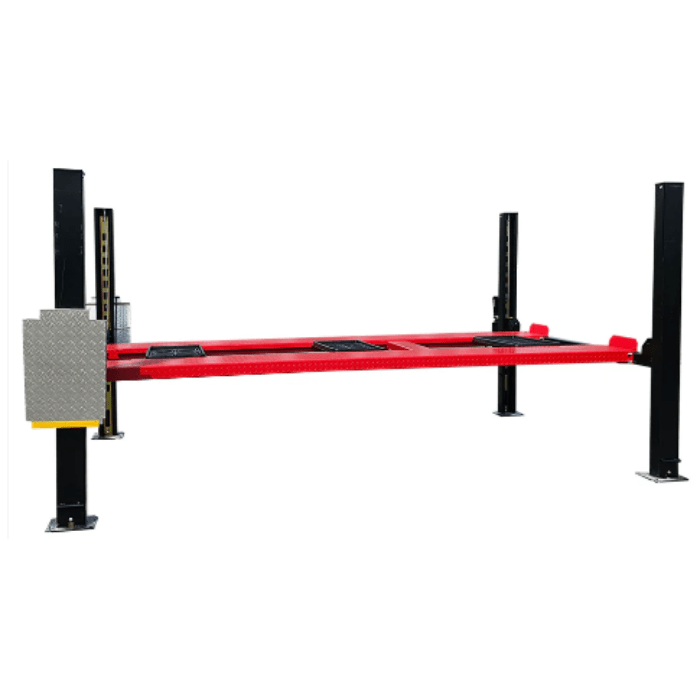

• Flexible Power-Side Column Placement: Install the power unit on the left, right, front, or rear to fit your workspace. This makes electrical routing simpler and keeps controls where they're most convenient. A cleaner install means fewer trip hazards, better shop flow, and less time spent on setup day.
• 97-Inch Posts with 76.5" Underneath Clearance: Taller posts give you real headroom for storage and service compared to shorter 4-post models. You get 76.5 inches of usable clearance under the runways when fully raised -- enough to park a sedan or SUV underneath while the top vehicle stays stored. Measure your ceiling once and know it fits.

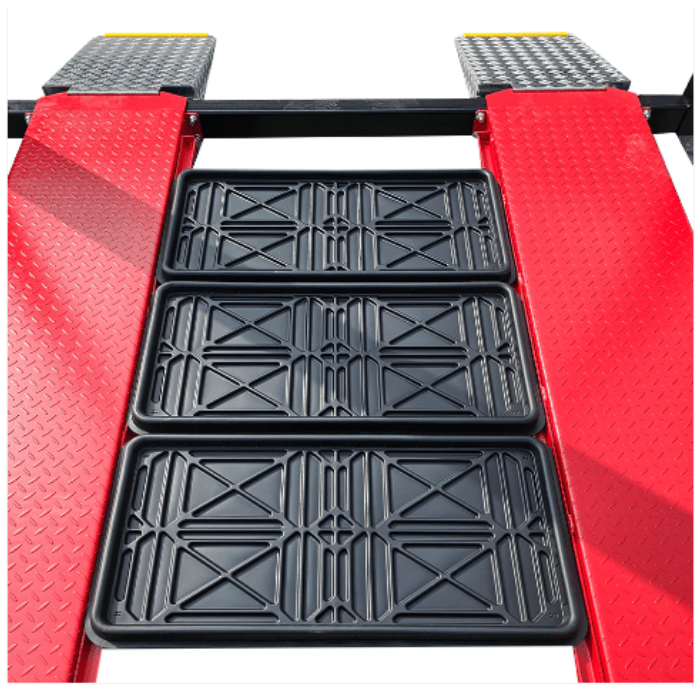

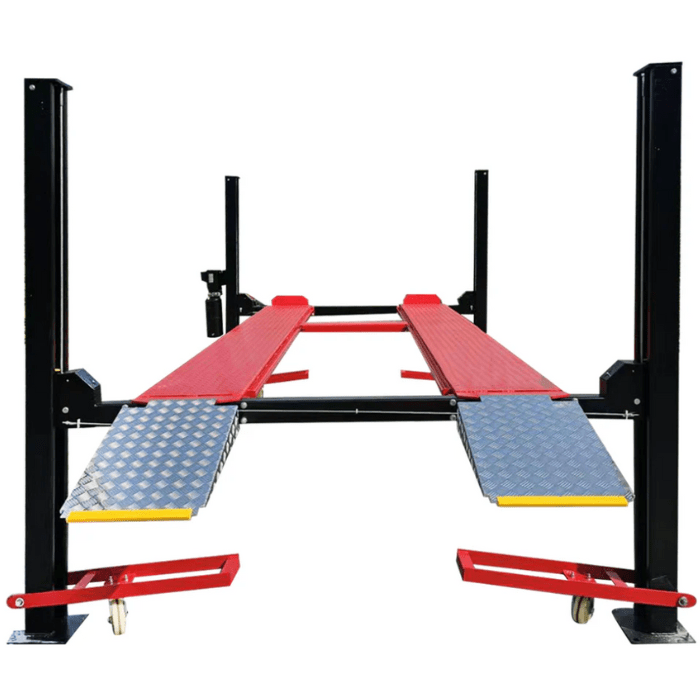

• Everything Included Out of the Box: Ships with casters for repositioning, aluminum drive-on ramps, a jack tray for bottle jacks, and drip trays to keep your floor clean. Most competitors charge extra for at least half of this or don't offer it at all. You unbox it, set it up, and start working -- nothing else to buy. When you're ready for wheels-off brake and tire work, the KT-RJ50 rolling jack (5,000 lb) drops right between the runways, or step up to the KT-RJ70 at 7,000 lb. Both are available as add-ons in Optional Accessories above.
• Free-Standing Design: Engineered for free-standing use without bolting to the floor, which means simpler installation and no drilling into your slab. Set it up, drive on, and start working -- no anchor bolts required for normal operation. Ideal for renters, seasonal garages, or anyone who might relocate the lift down the road.
Minimum Garage Requirements
✔ Ceiling Height: At least 102" (8'6") recommended ✔ Floor Space: 215" L x 113" W (17'11" x 9'5") ✔ Concrete Thickness: Minimum 4" (100 mm)
✔ Concrete Strength: Minimum 3,000 PSI, level, no cracks ✔ Electrical: 110V or 220V, 30A breaker, 10-gauge wire ✔ Post Height: 97" (8'1") -- measure before ordering
✔ Ceiling Height: At least 102" (8'6") recommended
✔ Floor Space: 215" L x 113" W (17'11" x 9'5")
✔ Concrete Thickness: Minimum 4" (100 mm)
✔ Concrete Strength: Minimum 3,000 PSI, level, no cracks
✔ Electrical: 110V or 220V, 30A breaker, 10-gauge wire
✔ Post Height: 97" (8'1") -- measure before ordering
*This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer's minimum requirements of at least 3.93" (100 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.
| Katool KT-4H950 9,500 lb 4-Post Storage Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 9,500 lb (4.3T) |
| Max. Lifting Height | 81" (2,146 mm) |
| Max. Underneath Clearance | 76.5" (1943 mm) |
| Lifting Time | 90 seconds up / ~40 seconds down |
| Height of Posts | 97" (2,464 mm) |
| Width Overall | 112.7" (2,863.5 mm) |
| Width Between Columns | 99.40" (2,525 mm) |
| Runway Length | 173" (4,394 mm) |
| Width Between Runways (Inside) | 37" (940 mm) standard, adjustable up to approximately 42.5" |
| Width Outside Runways | 79.8" (1,880 mm) |
| Overall Length (without ramps) | 189.3" (4,805 mm) |
| Overall Length (with ramps) | 214.96" (5,460 mm) |

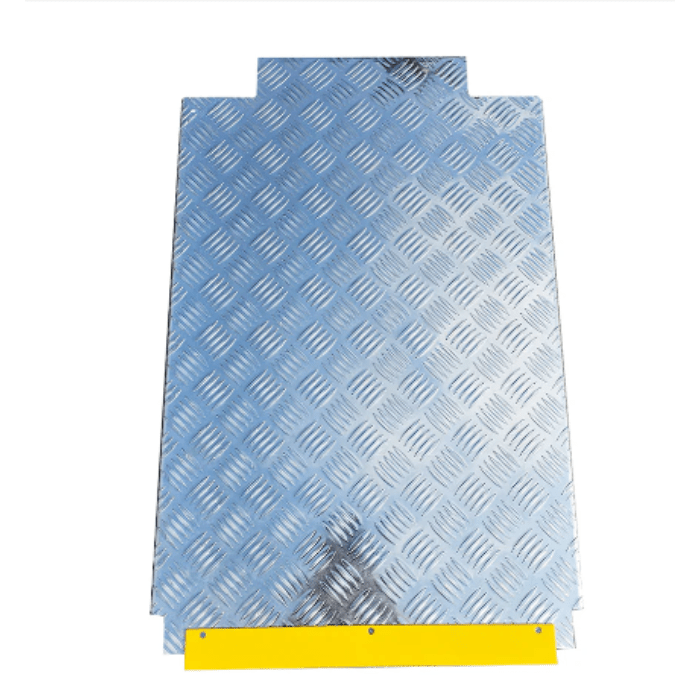

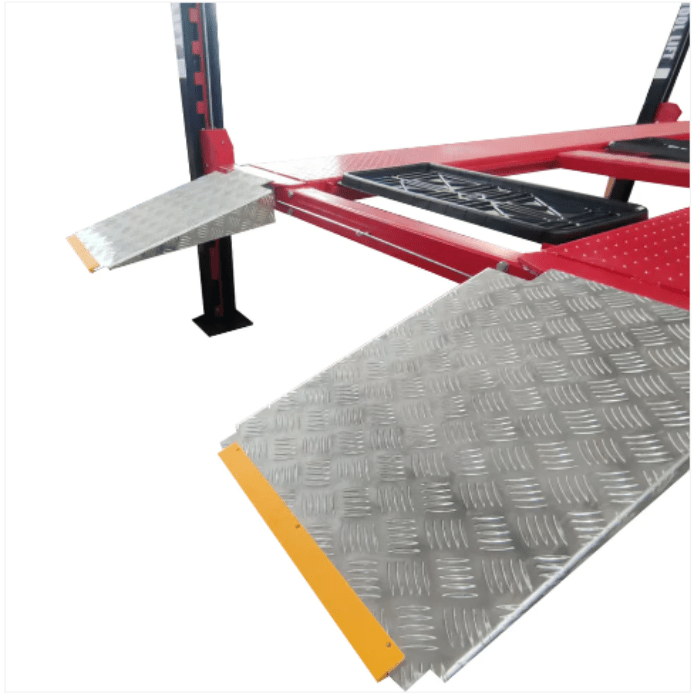

| Drive-On Ramp Length | 30.3" (770 mm) |

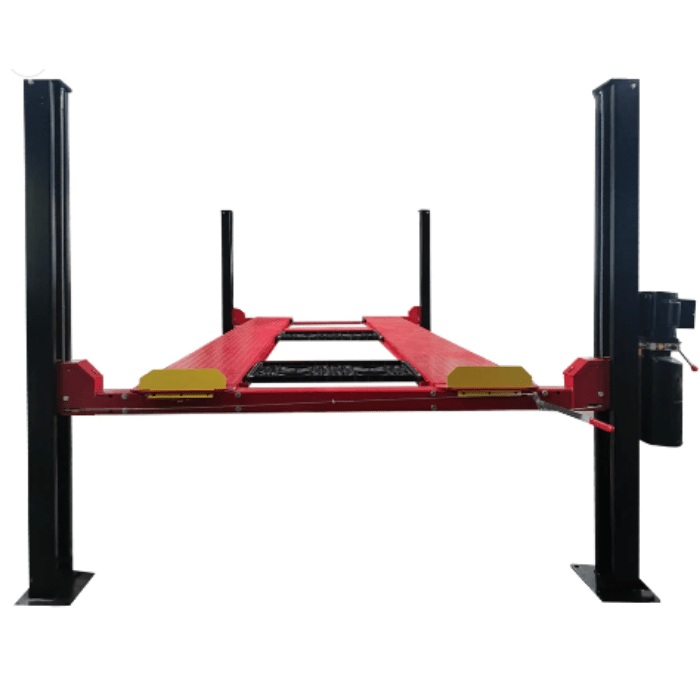

| Platform Surface | Diamond-plate, non-skid |
| Safety System | Four mechanical locks + adjustable safety ladders |

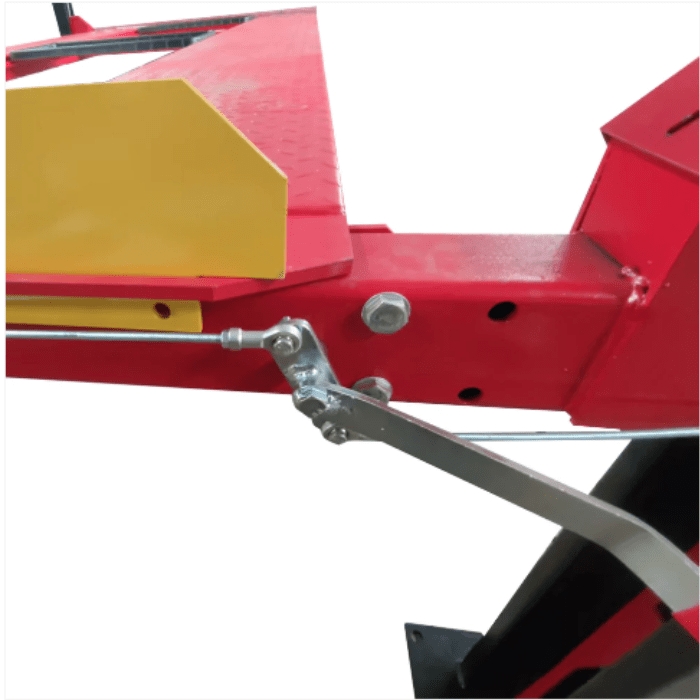

| Lock Release | Single-point manual release (operator side) |

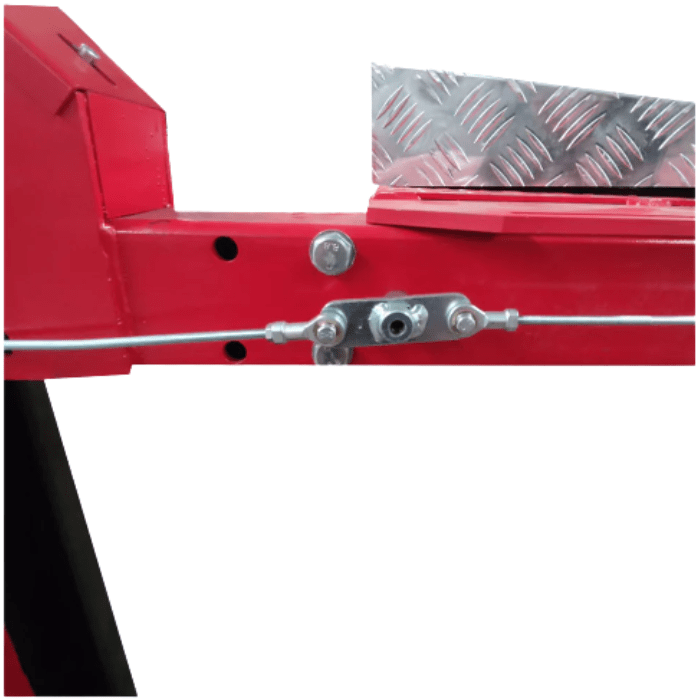

| Synchronization | Steel cables & pulleys for level lifting |

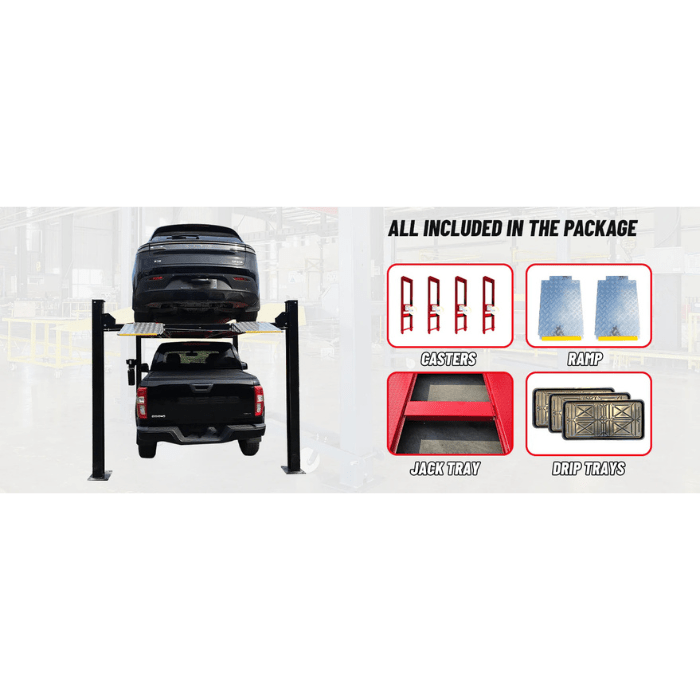

| Included Accessories | Casters, aluminum ramps, jack tray, drip trays (all included free) |
| Wider Runway Setting | Runway spacing can be set to either the standard 37" or a wider 42.5" setting. At the 42.5" setting, the jack tray and drip trays will not fit. The caster kit remains fully compatible in both configurations. |
| Optional Accessories | KT-RJ50 or KT-RJ70 rolling jack (pneumatic), extra trays |
| Motor | 110V/60Hz/3HP or 220V/60Hz/3HP (2.2 kW minimum) |
| Electrical Requirements | Dedicated circuit, 10-gauge wire, 30-amp breaker |
| Concrete Requirement | 4" (100 mm) @ 3,000 PSI, level, no cracks |
| Shipping Dimensions | 186" L x 30" W x 23" H -- 2,095 lbs |
| Warranty | 1 Year limited parts & defects | 3 Year structural |
Katool KT-4H950 Frequently Asked Questions
Will a full-size truck fit on the KT-4H950?
Yes -- the 9,500 lb rating covers every half-ton pickup with room to spare: an F-150, Silverado 1500, or RAM 1500 curbs between 4,500 and 5,800 lbs. One thing to measure first is length -- the runways are 173", a bit shorter than our 11,000 lb Katool KT-4H110. For crew-cab long-beds or 3/4-ton and heavier trucks, the KT-4H110 is the better fit.

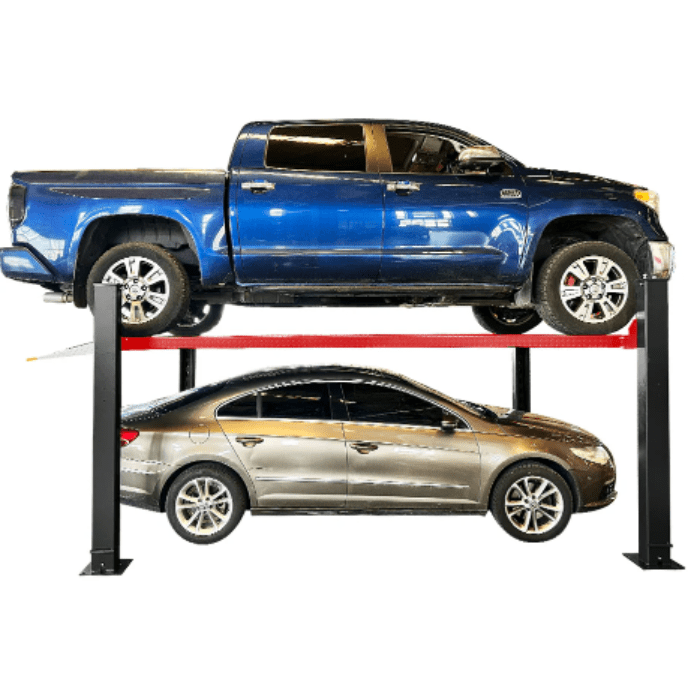

Can I park a second car underneath it?

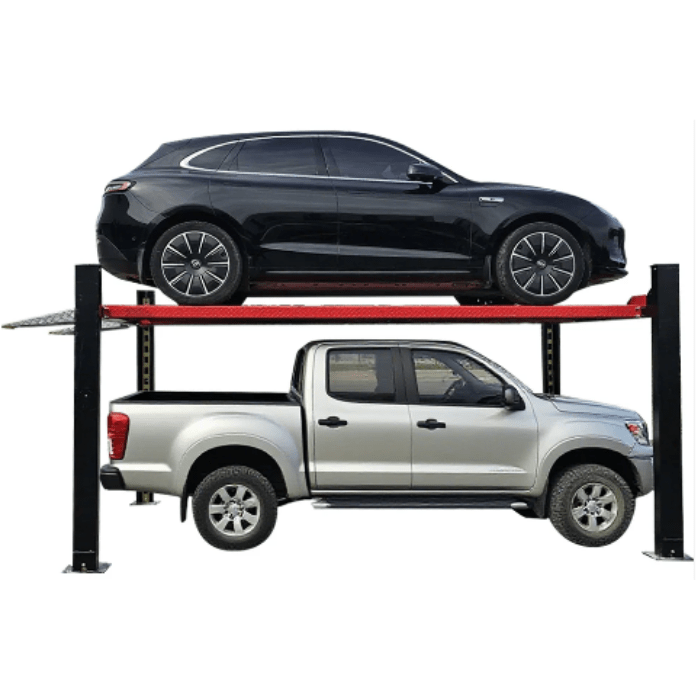

Yes -- that's what this lift does best. As a 4 post parking lift it gives you 76.5" of clearance under the runways at full height, enough to park a sedan or most SUVs underneath while another vehicle stays stored on top. You'll want at least 102" of ceiling height -- measure before ordering.
Does the KT-4H950 run on regular 110V power?
Yes -- it runs on either 110V or 220V on a dedicated circuit with a 30-amp breaker and 10-gauge wire, so most garages can power it without an electrician visit. Full lift cycle is about 90 seconds up.
Do I need to bolt it to my garage floor?
No. It's engineered for free-standing use with no anchor bolts required for normal operation -- and since casters are included, you can even reposition it in your garage. Your slab still matters: minimum 4" thick concrete at 3,000 PSI, level and free of cracks.
How does freight delivery work?
The lift ships as freight on a roughly 2,095 lb pallet. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Can I add a rolling jack for brakes and tire work?
Yes. The Katool KT-RJ50 rolling jack (5,000 lb) rides between the runways and lifts the wheels free for brakes, tires, and suspension. Both the RJ50 and the 7,000 lb RJ70 are available as add-ons in Optional Accessories above. Note: at the wider 42.5" runway setting, jack and drip trays no longer fit, but rolling jacks and casters still do.
Is the Katool KT-4H950 worth it?
Buyers consistently call out how much comes in the box -- casters, aluminum ramps, jack tray, and drip trays are all included where competitors charge extra. See the Reviews tab above for install stories, and for a deeper look at the brand read our Are Katool Car Lifts Worth It? breakdown on The Pitstop Journal.
