Katool 4-Post Car lift - 8,500lb Capacity | KT-4H850
Overwhelmed by Vehicle Maintenance? The Katool KT-4H850 4-Post Lift Makes It Simple and Secure
If you've been looking for a four-post lift that handles real-world vehicles without the price tag of a commercial unit, you've probably noticed how fast the options thin out. Most budget lifts top out around 7,000 lbs and feel like they're built to match. The KT-4H850 by Katool gives you a true 8,500 lb rated capacity with CE-approved safety certification -- tested at 115% dynamic and 150% static load -- so you're not guessing whether it can handle your SUV, your truck, or both stacked.
Safety is the part nobody wants to think about until it matters. This lift doesn't make you worry -- four mechanical locking devices, each with primary and secondary safety locks, engage across 12 positions every 4.7 inches. Non-skid diamond-plate runways keep tires planted during loading, and the single-point manual release lets you disengage all four locks from one spot. Lift time is 75 seconds up and 40 seconds down, so you're working on the vehicle instead of waiting on the equipment.
The other thing that kills most lift purchases is fit. The KT-4H850 is built for garages that don't have unlimited ceiling height -- posts stand at 83.66 inches with a max lift height of 70.87 inches, making it one of the more compact 4-post options at this capacity. The power column mounts on any side -- front, rear, left, or right -- so it adapts to your layout. It ships with a caster kit, two drip trays, and a jack tray included at no extra cost, and it's engineered for free-standing use with no anchor bolts required. If you need a lift that fits tighter spaces without cutting corners on safety or capacity, this is it.
One size doesn't fit all! Browse our Vehicle Lifts with different capacities or call us at (470) 208-2754.
Benefits of the Katool KT-4H850
Key Features of the Katool 4H850 8,500lb Four-Post Auto Lift You'll Love:
• 8,500 lb Lifting Capacity: Handles cars, SUVs, and light-duty trucks without straining. CE certified at 115% dynamic and 150% static load testing, so the rated capacity isn't a ceiling -- it's a floor. You're not pushing the limits every time you drive a heavier vehicle onto the runways.
• 12-Position Adjustable Lock Ladder: Locks engage every 4.7 inches, giving you precise height control for storage or undercarriage work. Single-point manual release lets you disengage all four locks from one location instead of walking around the lift. Faster repositioning, fewer steps, less downtime.
• Compact Post Height (83.66"): Designed for garages where ceiling height is tight. At just under 7 feet of post height, this lift fits standard residential garages that taller 4-post models can't. Max lift height of 70.87 inches still gives you full undercarriage access for repairs and inspections.
• Motor Voltage Options (110V/220V): This lift comes standard with a 110V motor and can be upgraded to a 220V motor if needed. It must be wired to a dedicated circuit with 10-gauge wire and a 30-amp breaker for proper operation. Full lift cycle is 75 seconds up and 40 seconds down.
• Included Caster Kit for Easy Mobility: Most four-post lifts are locked in place once you set them up. This one ships with a caster kit so you can reposition it in your garage without tearing anything down. Roll it out of the way when you need the floor space, roll it back when it's time to work.
• Free-Standing Design: Engineered for free-standing use without bolting to the floor, which means simpler installation and no drilling into your slab. Set it up, drive on, and start working -- no anchor bolts required for normal operation. Ideal for renters or anyone who might relocate the lift down the road.

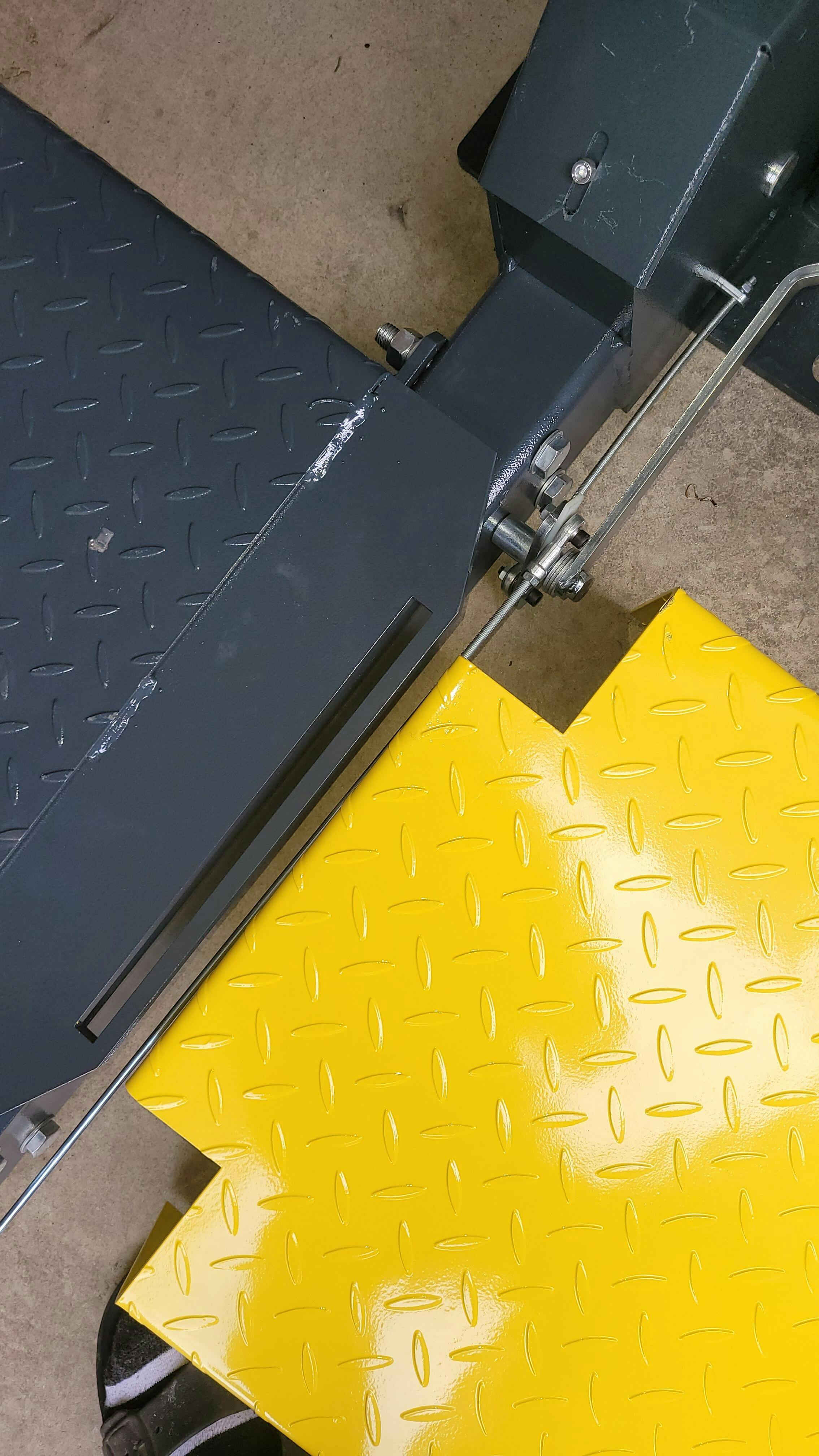

• Non-Skid Diamond-Plate Runways: Textured runway surfaces keep tires planted during loading, unloading, and while the vehicle is raised. Combined with adjustable safety lock ladders, you get a stable, secure platform whether you're storing a car long-term or rotating underneath it for a quick brake job.
Minimum Garage Requirements
✔ Ceiling Height: At least 88" (7'4") recommended ✔ Floor Space: 199" L x 108" W (16'7" x 9') ✔ Concrete Thickness: Minimum 3.93" (100 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110V or 220V, 30A breaker, 10-gauge wire ✔ Post Height: 83.66" (6'11") -- measure before ordering
✔ Ceiling Height: At least 88" (7'4") recommended
✔ Floor Space: 199" L x 108" W (16'7" x 9')
✔ Concrete Thickness: Minimum 3.93" (100 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V or 220V, 30A breaker, 10-gauge wire
✔ Post Height: 83.66" (6'11") -- measure before ordering
*This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer's minimum requirements of at least 3.93" (100 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.
| Katool 4H850 Professional-Grade Four-Post Car Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 8,500 lbs (3,850 kg) |
| Max. Lifting Height | 70.87" (1,800 mm) |
| Lifting Time | 75 seconds up / 40 seconds down |
| Lock Positions | 12 positions, every 4.7" |
| Height of Posts | 83.66" (2,125 mm) |
| Width Overall | 107.95" (2,742 mm) |
| Width Between Columns | 94.72" (2,406 mm) |
| Width Inside Runways | 37" (940 mm) |
| Overall Length (without ramps) | 172" (4,370 mm) |
| Overall Length (with ramps) | 198.43" (5,040 mm) |
| Min. Runway Height | 4.76" (121 mm) |
| Cable Thickness | 3/8" |
| Caster Kit | Included |
| Included Accessories | Caster kit + two drip trays + one jack tray (all included free) |
| Motor | 110V/60Hz/3HP or 220V/60Hz/3HP |
| Electrical Requirements | Dedicated circuit, 10-gauge wire, 30-amp breaker |
| Net Weight | 1,820 lbs (826 kg) |
| Shipping Dimensions | 167" L x 23" W x 30" H -- 1,890 lbs |
| Warranty | 1 Year limited parts & defects | 3 Year structural |
