Triumph 24,000 lb Heavy-Duty Four Post Vehicle Lift | NTR-24
Built for the Biggest Jobs. The Triumph NTR-24 4 Post Lift Offers 24,000 lb Capacity and Unmatched Stability
Buying a 4 post car lift for heavy-duty vehicles is no small decision. Many shop owners struggle with limited lifting capacity, runway instability, or frustrating setups that waste precious time. Whether you’re working on commercial trucks, RVs, or full-sized fleet vehicles, the wrong lift can cause more headaches than it solves. You need something that handles serious weight. without compromise. At 24,000 lbs, this isn't shopping for a hobbyist lift anymore. The decision becomes whether you want a true commercial-grade structure that handles fleet trucks, RVs, and heavy commercial vehicles, or whether you're going to compromise capacity to fit a budget.
That’s where the Triumph NTR-24 Vehicle Lift steps in. This heavy-duty 4 post auto lift is designed for serious automotive professionals who need safe, reliable performance day in and day out. With an industry-leading 24,000 lb. capacity, it tackles even your most demanding jobs with ease. Its massive runways and wide column spacing offer the room and confidence you need to get to work. Extra-wide column spacing accepts dually pickups, ambulances, work vans, and RVs without scraping fenders during loading. Extended runways handle long wheelbases without overhang concerns.
Built for longevity, safety, and function, this 4 post vehicle lift brings unmatched value to busy commercial garages and auto repair centers. From its precise locking system to durable construction, it’s engineered to elevate your productivity. Literally. Check your slab first, though: this lift requires a minimum of 8" of concrete at 3,000 PSI. Plus, it pairs perfectly with the Triumph RJ-9000 (9,000 lb) or RJ-15000 (15,000 lb) rolling bridge jacks, available as add-ons above, to handle wheel-off work. For commercial shops, fleet operations, and RV maintenance facilities, the NTR-24 is sized for the vehicles standard 16K lifts strain to handle and standard 4-posts can't take at all.
Need something more versatile? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NTR-24 Vehicle Lift
Key Features of the Triumph NTR-24 24,000 lb Heavy-Duty Four-Post Lift You'll Love:
• Massive 24,000 lb. Capacity: Lift the heaviest commercial vehicles with total confidence. The NTR-24’s robust build handles oversized trucks, vans, and even RVs. Making it perfect for commercial shops that need serious lifting power. 24K rating covers fleet trucks, ambulances, Class B/C RVs, and the heaviest 4-post-capable commercial vehicles.
• Extra-Wide Design for Easy Access: With 131.8" between columns and 24" wide runways, there’s ample room to maneuver around the vehicle. This extra space not only improves workflow but also minimizes the risk of accidental contact during service. Extra-wide column spacing accepts wide-body commercial vehicles without scraping fenders during loading.

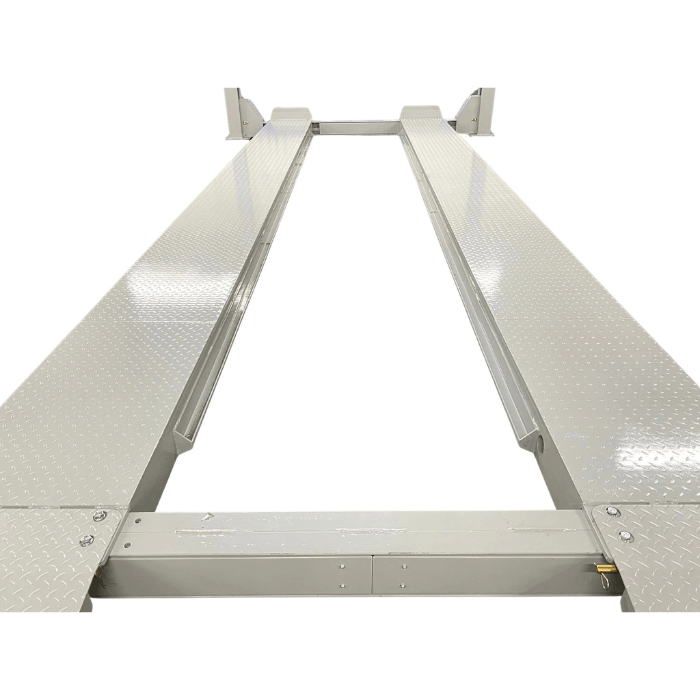

• Heavy-Duty Runways with Extended Length: At nearly 290" in runway length, you can comfortably accommodate longer vehicles without awkward positioning. The extended runways also allow more versatility for varied wheelbases. Heavy-duty extended runways distribute load across longer footprint without flex even at full 24K capacity.
• Precision Locking System: The NTR-24 features 9 locking positions for reliable, secure lifts at multiple working heights. Whether you're under the vehicle or working at mid-height, you'll always have stable support. Precision locking system engages at multiple positions with audible confirmation. Commercial-grade reliability.
• Industrial-Grade Build Quality: Engineered with commercial-grade steel, the NTR-24 is built to last. It’s ready to handle daily use in demanding shop environments without skipping a beat. Industrial-grade build quality holds up to daily commercial cycling year after year without flex or fatigue.
• Compatible with Rolling Bridge Jacks: Need wheel-free access? Add the RJ-9000 (9,000 lb) or RJ-15000 (15,000 lb) rolling bridge jack -- both available as add-ons above -- to lift from the runways and complete tire, brake, or suspension work more efficiently. Compatible with rolling bridge jacks for one-end service work. Important capability for commercial alignment and brake work.
Minimum Garage Requirements
✔ Ceiling Height: At least 100" (8'4") recommended ✔ Floor Space: 338.9" L with ramps x 150.1" W (28'3" x 12'6") ✔ Concrete Thickness: Minimum 8" (203.2 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220 Volt, Single Phase ✔ Post Height: 93.1" (7'9") (measure before ordering)
✔ Ceiling Height: At least 100" (8'4") recommended
✔ Floor Space: 338.9" L with ramps x 150.1" W (28'3" x 12'6")
✔ Concrete Thickness: Minimum 8" (203.2 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220 Volt, Single Phase
✔ Post Height: 93.1" (7'9") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. This lift requires 8 inches of concrete at 3,000 PSI, which is more than a typical shop slab. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation, and to core or otherwise confirm the slab if its depth is not documented. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Triumph NTR-24 Commercial Four-Post Vehicle Lift Specifications |
|
| Manufacturer | Triumph |
| Model | NTR-24 |
| Lift Type | 4 Post Car Lift |
| Lifting Capacity | 24,000 lbs |
| Concrete Requirement | Minimum 8" at 3,000 PSI |
| Overall Height | 93.1" |
| Overall Length (No Ramps) | 300" |
| Overall Length (With Ramps) | 338.9" |
| Overall Width | 150.1" |
| Runway Length | 289.9" |
| Runway Width | 24" |
| Minimum Runway Height | 9" |
| Maximum Lifting Height | 70.8" |
| Width Between Columns | 131.8" |
| Distance Between Runways | 45.3"-49.2" |
| Locking Positions | 9 |
| Electrical Requirements | 220 Volt, Single Phase |
| Shipping Weight | 6,614 lbs |
| Shipping Dimensions | 295" x 30" x 43" |
Triumph NTR-24 Frequently Asked Questions
Will an RV or box truck fit on the NTR-24?
That's exactly what it's built for -- as an RV lift and box-truck platform, the 24,000 lb rating covers box trucks, dump trucks, day-cab tractors, ambulances, and Class B and Class C motorhomes, and the 289.9" runways (over 24 feet) take long wheelbases without overhang. Runway spacing adjusts from 45.3" to 49.2" for wide commercial track widths. One caution on Class A motorhomes: many run a GVWR above 24,000 lbs, so check the weight plate on your specific coach rather than assuming it fits. If it is over, the 32,000 lb NTR-32 is the lift for it.
What concrete does the NTR-24 need?
A minimum of 8 inches of concrete at 3,000 PSI. That is double the 4" slab most passenger-car lifts call for, and more than many existing shop floors were poured to. If you do not have documentation for your slab depth, have it cored and verified before you order. Installing a 24,000 lb lift on an inadequate slab can result in serious injury or death.
Which NTR-series Triumph is right for me?
This NTR-24 is the RV, box-truck, and fleet workhorse. If your heaviest vehicles are dually pickups and medium-duty trucks, the NTR-16 saves money and only needs a 6" slab; for buses, loaded straight trucks, and the heaviest iron, the NTR-32 adds 8,000 lbs of headroom and wider runway spacing on the same 8" slab requirement.
Can I add a rolling jack for wheels-off work?
Yes, two options sized for this class: the Triumph RJ-9000 (9,000 lb) and the Triumph RJ-15000 (15,000 lb) for heavy axles. Both are available as add-ons in Optional Accessories above.
Does the NTR-24 run on 110V power?
No -- it requires 220V single-phase power on a dedicated circuit, which most commercial bays already have. Plan the electrical before delivery so the installer isn't waiting on wiring.
How much ceiling and floor space do I need?
The posts stand 93.1" tall with a 70.8" maximum lifting height -- plan on a ceiling of at least 100" plus your vehicle height above the runways. Total length with ramps is 338.9" (over 28 feet) at 150.1" wide, so measure the bay depth carefully.
How does freight delivery work?
This is serious freight: 6,614 lbs on a 295" skid. You can choose curbside freight delivery or free pickup at one of Triumph's 3 warehouse locations -- for a lift this size, many buyers arrange delivery straight into the shop. Call us at (470) 208-2754 and we'll help plan it.
Is the Triumph NTR-24 worth it?
Comparable 24,000 lb commercial racks routinely run well past this price before freight. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
