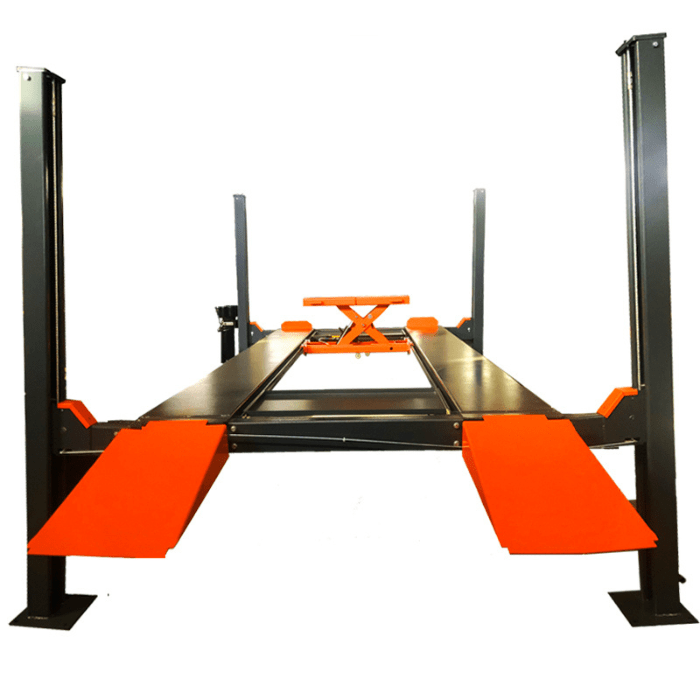

Front side view of the Katool 4H110 Car Lift not holding a car

Katool 4 Post Vehicle Lift - 11,000lb Capacity | KT-4H110

Name: Katool 4 Post Vehicle Lift - 11,000lb Capacity | KT-4H110
Brand: KATOOL
SKU: KT-4H110
Price: 3299.0 USD
Availability: InStock

by KATOOL

SKU KT-4H110

Save $700.00

$3,999.00

$3,299.00

Quantity

Standard Lifts Can’t Handle Your Truck? The Katool KT-4H110 Supports 11,000 lbs with Ease

If you're dealing with heavy vehicles like trucks and SUVs, you know how frustrating it can be to find a lift that’s both powerful and secure. Many standard car lifts struggle to handle the weight, creating safety concerns and workflow inefficiencies. The KT-4H110 4 Post Vehicle Lift by Katool is built to eliminate those worries, offering a high-capacity lifting solution with enhanced stability, advanced safety features, and flexible installation options.

With an 11,000 lbs lifting capacity, this four-post lift is engineered for serious vehicle maintenance. It meets CE-approved safety standards, ensuring maximum reliability with a 115% dynamic loading capacity and 150% static loading capacity test certification. Safety is a top priority, featuring a single-point manual safety lock release and four mechanical locking devices, each equipped with primary and secondary safety locks. Non-skid diamond platforms and adjustable safety lock ladders further enhance stability, making it a dependable choice for both professional garages and home workshops.

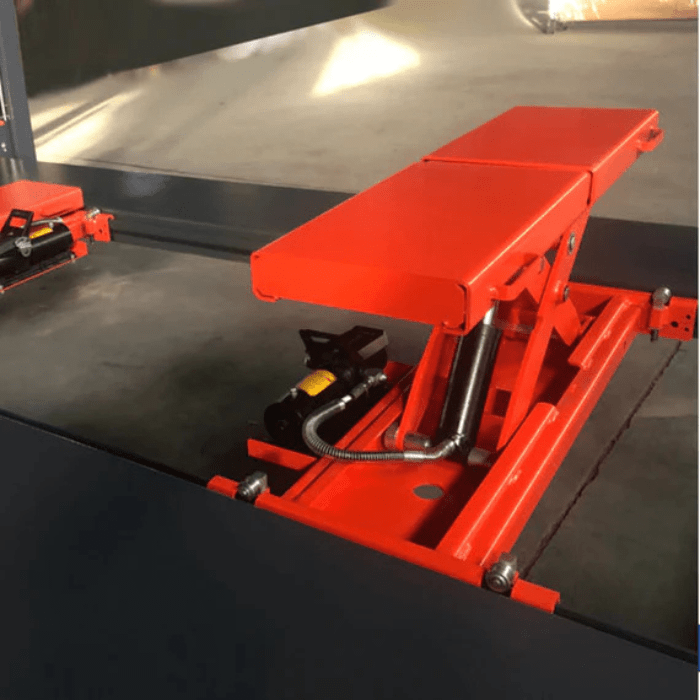

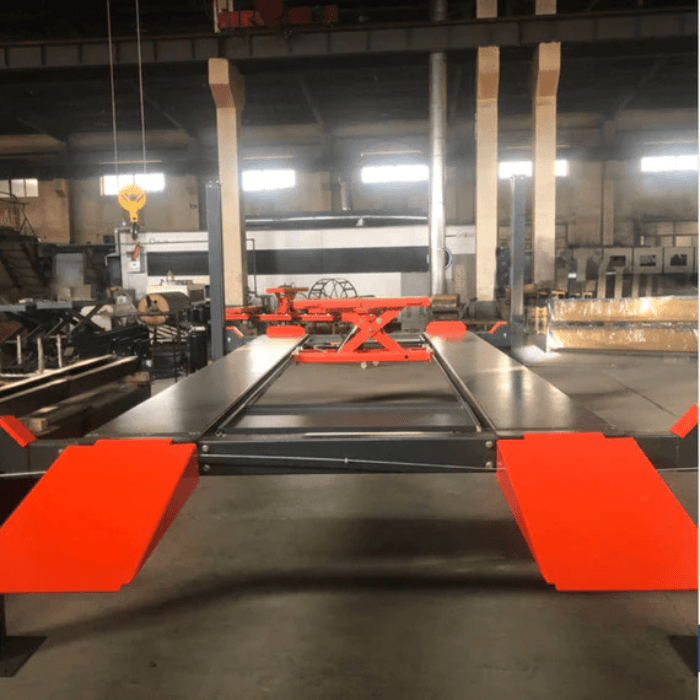

This lift is designed for convenience and adaptability. The power side column can be installed on either side, front, or rear, making it easy to fit into different garage layouts. Its smooth lifting operation (83 seconds up, 40 seconds down) ensures efficiency, while its optional accessories—such as rolling jacks and casters—offer even greater flexibility. Whether you need a space-saving storage solution or a heavy-duty maintenance lift, the Katool KT-4H110 is built to meet your needs. *This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer’s minimum requirements of at least 3.93" (100 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation.

Don’t settle for the wrong lift! Explore our Vehicle Lifts built for different vehicle weights and sizes.

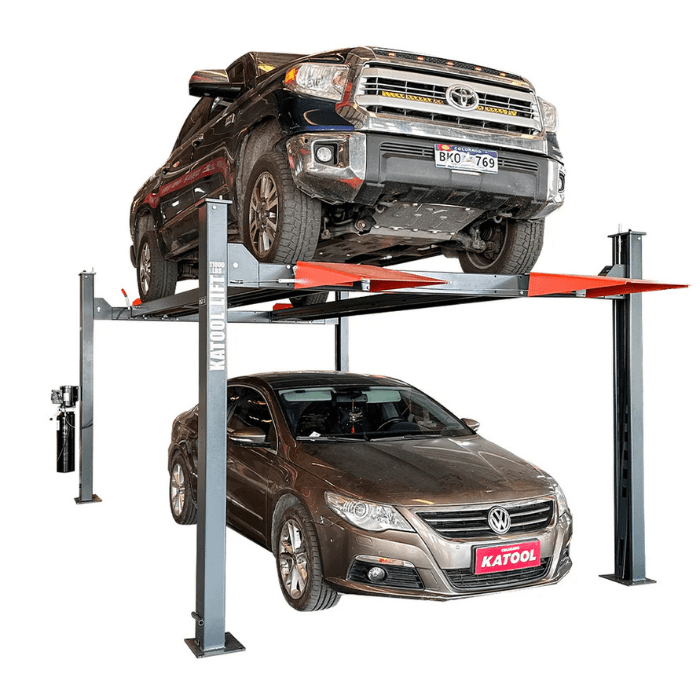

Front side view of the KT-4H110 4 Post Vehicle Lift by Katool

Benefits of the Katool 4H110 Car Lift

Increased Efficiency | Streamlines vehicle maintenance processes, reducing downtime.

Space Optimization | Maximizes garage space by allowing vertical vehicle storage.

Enhanced Safety | Incorporates multiple safety features to protect both the operator and the vehicle.

Versatile Applications | Suitable for a wide range of vehicles, from standard cars to heavy-duty trucks.

Durable Investment | Constructed with high-quality materials, ensuring long-term reliability.

Flexible Installation | Adaptable to various workshop configurations, accommodating different spatial requirements.

Key Features of the Katool 4H110 11000lb Four-Post Car Lift You'll Love:

Exceptional Lifting Capacity: With the ability to lift up to 11,000 lbs (4,990 kg), this lift is ideal for heavy-duty vehicles, including trucks and SUVs.
Certified Safety Standards: The lift meets CE approval and certification, having undergone rigorous testing with a 115% dynamic loading capacity and 150% static loading capacity.
Advanced Safety Mechanisms: Equipped with a single-point manual safety lock release and four mechanical locking devices, each featuring primary and secondary safety locks, ensuring maximum safety during operations.

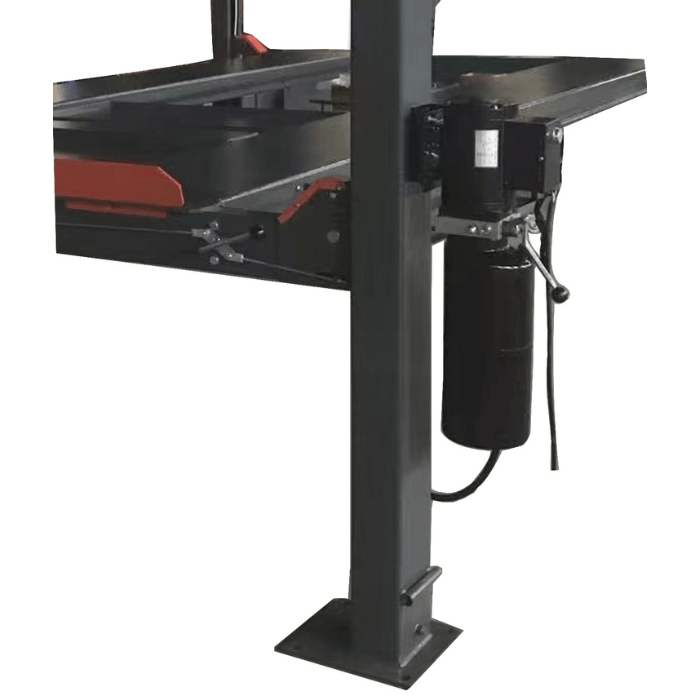

Flexible Installation Options: The power side column can be installed on either side, front, or rear, offering adaptability to various workshop layouts.
Non-Skid Platforms: Features non-skid diamond platforms and adjustable safety lock ladders, enhancing stability and adaptability during vehicle maintenance.

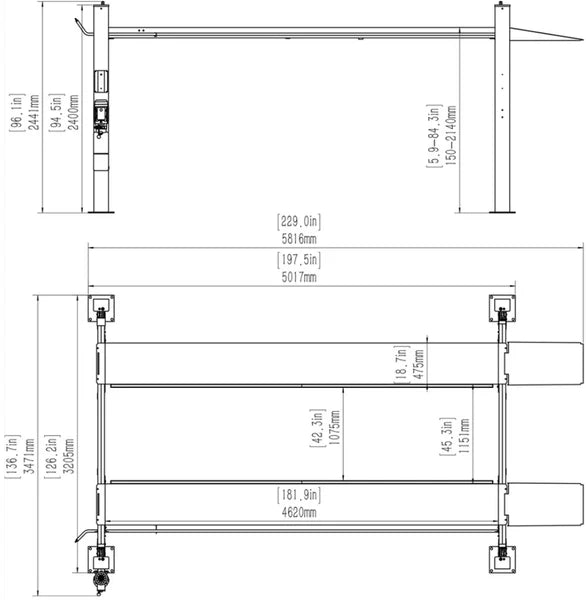

Katool 4H110 Heavy-Duty Four-Post Car Lift Specifications
Manufacturer	Katool
Lifting Capacity	11,000 lbs (4,990 kg)
Max. Lifting Height (distance to top of runways)	84.25" (2,140 mm)

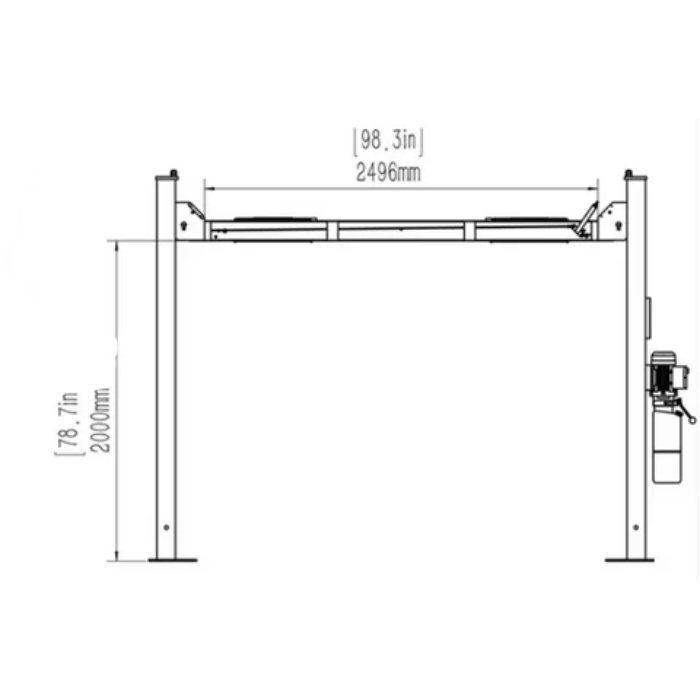

Max. Underneath Height (clearance below runways when fully raised)	78.7" (2000 mm)
Lifting Time	83 seconds Up / 40 seconds Down
Lock Position	Every 4.7" (14 Positions)
Height of Posts	94.88" (2,410 mm)
Width Overall	126" (3,200 mm)
Width Inside Columns	112.81" (2,865 mm)
Width inside Runways	45" (1143 mm)
Width of Runways	18.7" (475mm)
Length Overall (with ramps)	229.73" (5,835 mm)
Length (without ramps)	197.5” (5,016 mm)
Min. Runway Height	6.2" (157 mm)
Included Trays	Comes with two drip trays and a jack tray
Motor	110V/60HZ/3HP or 220V/60HZ/3HP \| Must be wired to a circuit with 10-gage wire and a 30-amp breaker
Net Weight	2,116 lbs (960 kg)
Shipping Dimensions	195"L x 26"W x 32" H - 2,119 lbs
Warranty	1 Year limited warranty covering all parts and defects. 3 Year structural warranty for vehicle lifts.
