Triumph 32,000 lb Heavy-Duty Four Post Vehicle Lift | NTR-32
Built for Buses, Box Trucks & Big Jobs. The NTR-32 4 Post Lift Is Commercial-Grade Through and Through
When it comes to heavy-duty vehicle servicing, not just any lift will do. Most standard car lifts simply aren’t designed to handle larger trucks, buses, or commercial vehicles. That’s where the Triumph NTR-32 4 post car lift steps in. Built for power, performance, and safety, this lift is engineered to meet the demands of professional auto shops and fleet service centers that need to raise serious weight. Up to 32,000 lbs.. With confidence. At 32,000 lbs you're firmly in the commercial fleet, transit, and heavy-equipment category, where the question isn't whether to buy a lift but which manufacturer's structural ratings you trust.
Buying a high-capacity lift can feel like a gamble. You're not just paying for steel. You’re paying for peace of mind. If you’ve ever dealt with wobbly lifts, unreliable hydraulics, or alignment issues, you know how critical a solid, stable 4 post vehicle lift really is. With the NTR-32 Four Post Lift, you’re investing in industry-proven reliability and performance that keeps vehicles elevated, your techs safer, and workflow smoother. Most lifts at this capacity carry 5-figure premiums for unbranded commercial labels and 6-figure premiums for major-brand commercial equipment. The NTR-32 brings industrial-grade structural ratings into a price band that makes sense for independent shops.
This 4 post auto lift is designed for durability and stability with generous dimensions that can handle wide-bodied commercial vehicles. Whether you're doing routine inspections or major repairs, the NTR-32 gives you the runway length, lifting height, and power you need to do the job right the first time. It’s not just a lift. It’s a long-term upgrade for your shop’s capabilities. * For shops servicing transit buses, heavy commercial trucks, and large RVs, the NTR-32 delivers genuine 32K structural capacity without the major-brand markup.
Need one for personal use? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NTR-32 Vehicle Lift
Key Features of the Triumph NTR-32 32,000 lb Heavy-Duty Four-Post Lift You'll Love:
• Heavy-Duty Capacity: The NTR-32 boasts a massive 32,000 lb lifting capacity, making it ideal for commercial fleets, RVs, buses, and heavy trucks. Whether you're lifting a school bus or a box truck, this 4 post car lift handles it all without breaking a sweat.

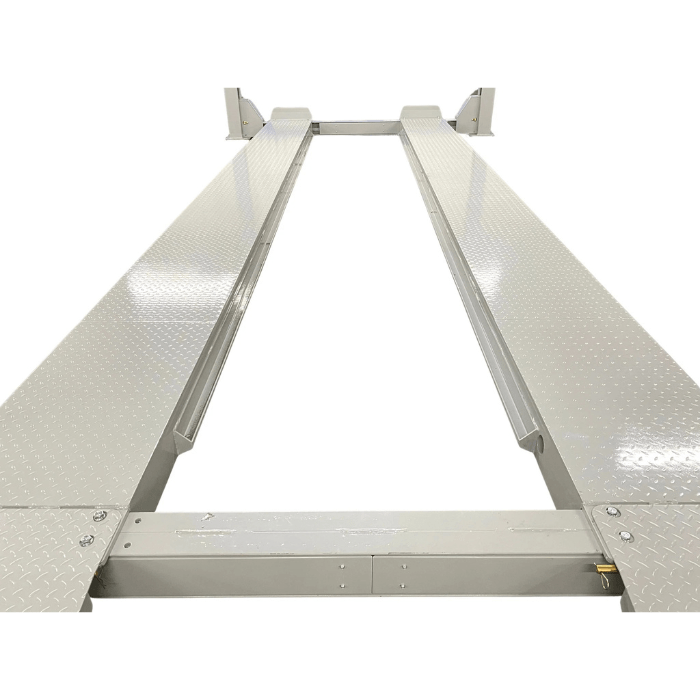

• Extra-Long Runways: At over 295 inches long, the runways provide ample support for extended-wheelbase vehicles. This means more versatility in the types of vehicles you can service, from limos to moving vans, all without compromising safety.
• Wide Column Spacing: With nearly 140 inches between the columns, technicians enjoy better maneuverability and easier access to the undercarriage of wide vehicles. The generous clearance also simplifies getting in and out of the lift with equipment and tools.
• 9 Locking Positions: Safety meets convenience with 9 different locking height positions. These let you lift vehicles to various heights depending on the task at hand, so you're never stuck working at an uncomfortable level.
• Industrial-Grade Build: Constructed with rugged steel and powder-coated for long-term protection, the NTR-32 is made for high-volume shops. It’s engineered for minimal flex and rock-solid performance under stress, year after year.
• Flexible Runway Spacing: The adjustable 48.75" to 52.7" runway spacing lets you tailor the lift to different vehicle widths, offering flexibility whether you’re working on a dually or a cargo van.
Minimum Garage Requirements
✔ Ceiling Height: At least 99" (8'3") recommended ✔ Floor Space: 305" L x 168" W (25'5" x 14'0") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V Single Phase ✔ Post Height: 93" (7'9") (measure before ordering)
✔ Ceiling Height: At least 99" (8'3") recommended
✔ Floor Space: 305" L x 168" W (25'5" x 14'0")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V Single Phase
✔ Post Height: 93" (7'9") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Triumph NTR-32 Commercial Four-Post Vehicle Lift Specifications |
|
| Manufacturer | Triumph |
| Model | NTR-32 |
| Lift Capacity | 32,000 lbs. |
| Overall Height | 93.1" |
| Overall Length (No Ramps) | 305.5" |
| Overall Length (With Ramps) | 344.6" |
| Overall Width | 168.7" |
| Minimum Runway Height | 9" |
| Maximum Lifting Height | 70.8" |
| Runway Length | 295.2" |
| Runway Width | 24" |
| Distance Between Runways | 48.75"-52.7" |
| Width Between Columns | 139.2" |
| Number of Lock Positions | 9 |
| Electrical Requirements | 220V Single Phase |
| Shipping Weight | 9,037 lbs. |
| Shipping Dimensions (LxWxH) | 301" x 30" x 43" |
Triumph NTR-32 Frequently Asked Questions
Can the NTR-32 lift a bus or semi truck?
Yes -- this is the bus lift and semi truck lift of our lineup. The 32,000 lb rating covers shuttle and transit buses, semi tractors, loaded box trucks, and Class A motorhomes, with 295.2" runways (over 24 feet) and the widest stance we sell at 168.7" overall. Runway spacing adjusts from 48.75" to 52.7" for commercial track widths.
Which NTR-series Triumph is right for me?
This NTR-32 is the top of the range for buses, semis, and the heaviest straight trucks. The NTR-24 (24,000 lb) covers RVs, box trucks, and dump trucks for thousands less; the NTR-16 (16,000 lb) handles dually and medium-duty work.
Can I add a rolling jack for wheels-off work?
Yes, two options sized for this class: the Triumph RJ-9000 (9,000 lb) and the Triumph RJ-15000 (15,000 lb) for heavy commercial axles. Both are available as add-ons in Optional Accessories above.
Does the NTR-32 run on 110V power?
No -- it requires 220V single-phase power on a dedicated circuit, standard in commercial shops. Plan the electrical before delivery so installation isn't held up on wiring.
How much ceiling and floor space do I need?
The posts stand 93.1" tall with a 70.8" maximum lifting height -- plan on a ceiling of roughly 100"+ plus the height of the vehicle above the runways (a transit bus needs real overhead room). Total length with ramps is 344.6" (nearly 29 feet) at 168.7" wide, so this is a dedicated-bay machine.
How does freight delivery work?
At 9,037 lbs on a 301" skid, this is the heaviest lift we ship. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- but for a lift this size we recommend calling (470) 208-2754 so we can help plan delivery and rigging into your bay.
Is the Triumph NTR-32 worth it?
Comparable 30,000 lb-class platform lifts from premium brands run tens of thousands more. If your fleet includes buses or semis and your bay has the room, this is the value pick of the class. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
