Triumph 8,000 lb Four Post Automotive Lift - Service Storage | NSS-8
Stop Choosing Between Vehicle Storage and a Service Lift. The Triumph NSS-8 Does Both at 8,000 lbs
If you're shopping for a 4-post lift to free up garage space (stack a project car on top of your daily driver, store a seasonal vehicle vertically, or do light service work without juggling jack stands), most options force a hard choice. Either you're paying commercial-grade prices for capacity you don't need, or you're stuck with a budget lift that leaves out the accessories you'll end up buying separately anyway. The NSS-8 by Triumph splits the difference: a true 8,000 lb capacity, 110V plug-in operation, and a complete out-of-the-box package (caster kit, jack tray, and three drip trays) at a price point built for home garages and side-work shops.

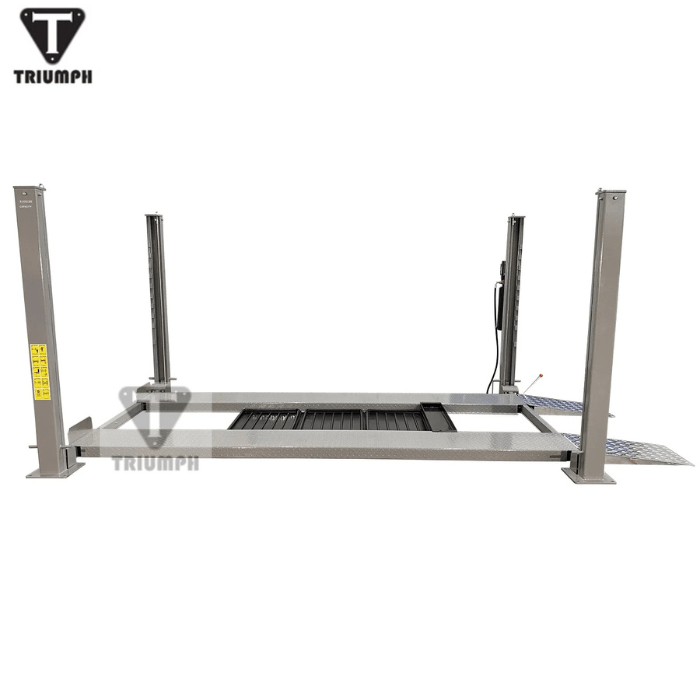

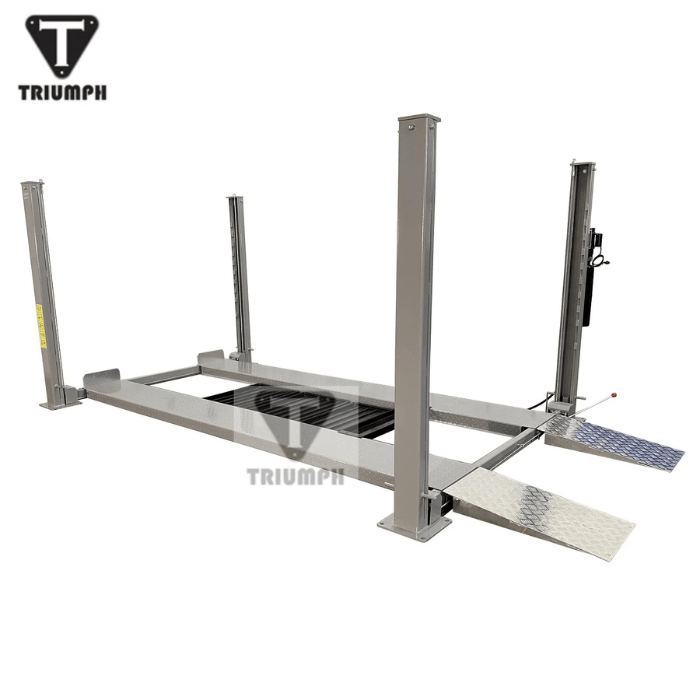

Safety is the first thing buyers should ask about, and the NSS-8 doesn't cut corners. Ten locking positions across the lift's 72-inch travel give you precise height control whether you're storing a vehicle or working underneath one. A single-point manual release disengages all four locks from one location, so you're not walking around the lift to reset each post. Diamond-plate runways keep tires planted during loading, and the platform has been refined across more than 20 years of field deployment, which means the design is past its growing pains and into proven-reliability territory.
Where the NSS-8 stands out is flexibility. The included caster kit means it doesn't have to live in one spot. Roll it across the garage to clear floor space, move it to a different bay, or stash it against a wall when you need the room. The jack tray accepts a standard bottle or floor jack to lift one end of the vehicle off the runways for tire rotations, brake jobs, or suspension work. Three drip trays catch fluids before they hit the lower vehicle. It's the rare 4-post that does both jobs (vertical storage and weekend service) without forcing you to compromise on either.
Need more capacity or lifting height? Step up to the Triumph NSS-11000, compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NSS-8 Vehicle Lift
Key Features of the Triumph NSS-8 8,000 lb Four-Post Car Lift You'll Love:

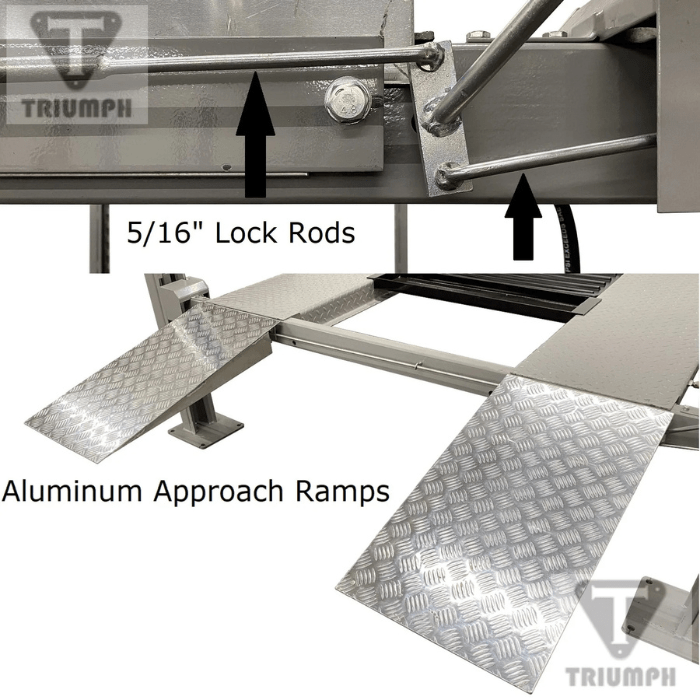

• 10-Position Adjustable Lock Ladder: Locks engage across the lift's 72-inch travel for precise height control whether you're storing a vehicle or working underneath. A single-point manual release disengages all four locks from one location instead of walking around the lift to reset each post. That means fewer steps, faster repositioning, and less time between jobs.

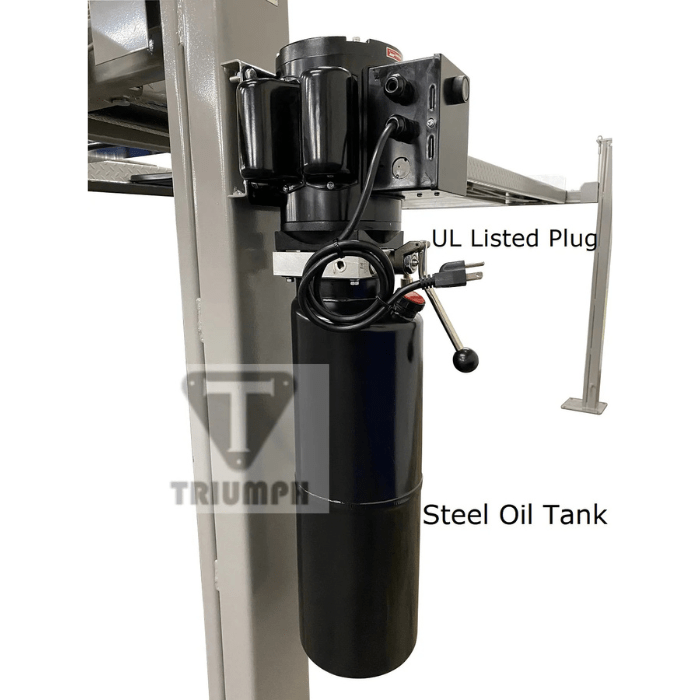

• 110V Plug-In Operation: Runs on standard 110V household power. No electrician, no 220V circuit, no hardwiring. Full lift cycle is 40 seconds, so you're not waiting on the lift between vehicle moves. Relocate the lift later and just plug back in anywhere with a 110V outlet.

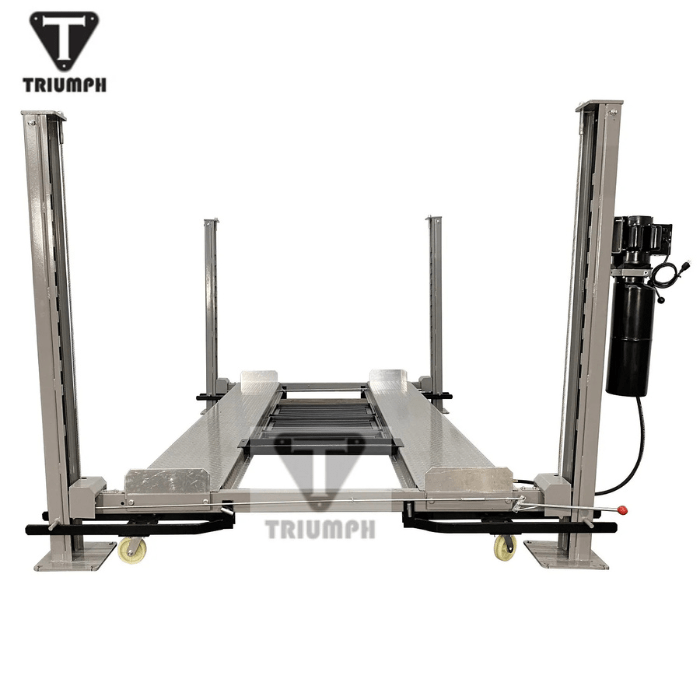

• Caster Kit Included Standard: Roll the lift across the garage, push it against a wall to free up floor space, or move it between bays. The caster kit ships in the box, and when you're ready for wheels-off brake and tire work, the Triumph SJ-35 rolling bridge jack (3,500 lb) is available as an add-on in Optional Accessories above. Most lifts in this capacity class charge extra for it or don't offer it at all.

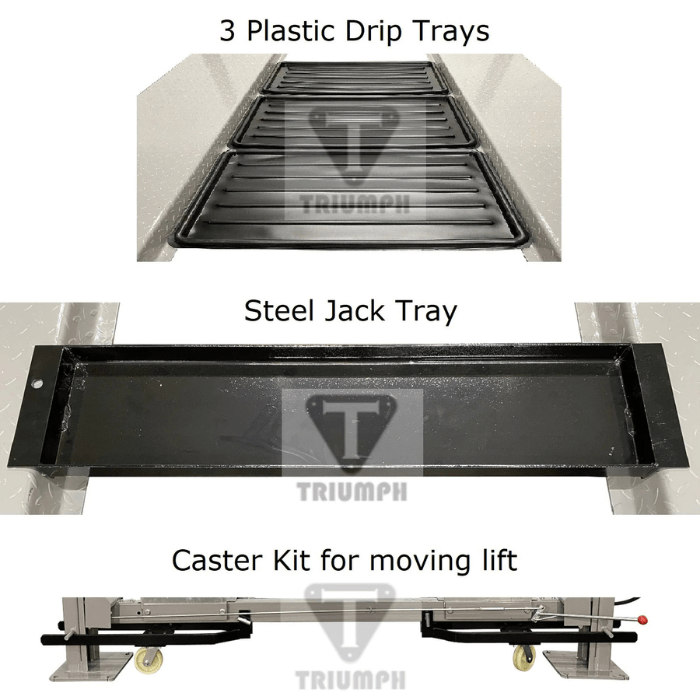

• Three Drip Trays Included: Captures oil, coolant, brake fluid, and other drips before they reach the vehicle parked underneath. Three trays cover the full underside footprint, not just one section. Saves your lower vehicle's paint and saves you garage cleanup time.
• Jack Tray for One-End Service: Accepts a standard bottle jack or floor jack to lift one end of the vehicle off the runways. That gives you brake service, tire rotation, and suspension access without juggling jack stands or buying a second lift. One piece of equipment, two jobs.
• 20+ Years of Field-Proven Design: This isn't a v1 product. The NSS-8 platform has been refined across two decades of installations in home garages and pro shops, so you're buying a design that's already had its growing pains worked out. Ten locking positions give you redundancy you can trust.
Minimum Garage Requirements
✔ Ceiling Height: At least 90" (7'6") recommended ✔ Floor Space: 195" L x 106" W (16'3" x 8'10") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110V standard outlet (no special wiring) ✔ Post Height: 84" (7'0") (measure before ordering)
✔ Ceiling Height: At least 90" (7'6") recommended
✔ Floor Space: 195" L x 106" W (16'3" x 8'10")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V standard outlet (no special wiring)
✔ Post Height: 84" (7'0") -- measure before ordering
*Concrete must be a minimum of 4" (101.6 mm) thick with at least 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Triumph NSS-8 Four-Post Vehicle Lift Specifications |
|
| Manufacturer | Triumph |
| Lifting Capacity | 8,000 lbs |
| Lift Height | 72" |
| Height Under Runway | 69" |
| Lift Time | 40 seconds |
| Locking Positions | 10 positions |
| Lock Release | Single Point |
| Overall Height | 84" |
| Overall Width | 106" |
| Drive-Thru Width | 93" |
| Between Runways | 37" |
| Runway Width | 18" |
| Runway Length | 165" |
| Overall Length (with ramps) | 195" |
| Overall Length (without ramps) | 175" |
| Lowered Height | 5" |
| Base Plate Size | 12" x 12" |
| Included Accessories | Caster kit + jack tray + three drip trays (all included) |
| Voltage | 110V |
| Shipping Weight | 1,600 lbs |
Triumph NSS-8 Frequently Asked Questions
Will my vehicle fit on the Triumph NSS-8?
The 8,000 lb rating covers sedans, SUVs, and most half-ton pickups -- an F-150 or Silverado 1500 curbs between 4,500 and 5,800 lbs. The 165" runways handle most wheelbases, though crew-cab long-beds are a better match for the longer NSS-8XLT. For 3/4-ton and heavier trucks, step up to the 11,000 lb Triumph NSS-11000.
Which 8,000 lb Triumph 4-post is right for me?
This NSS-8 is the all-rounder: 165" runways, 72" of rise, and the full accessory bundle. The NSS-8 Classic is the short version (175" total length) for compact garages; the NSS-8XLT is extra long and tall for trucks and maximum clearance; the NSS8X-1 Easy Park is this same footprint with free liftgate delivery; and the USA8000 is the American-made version.

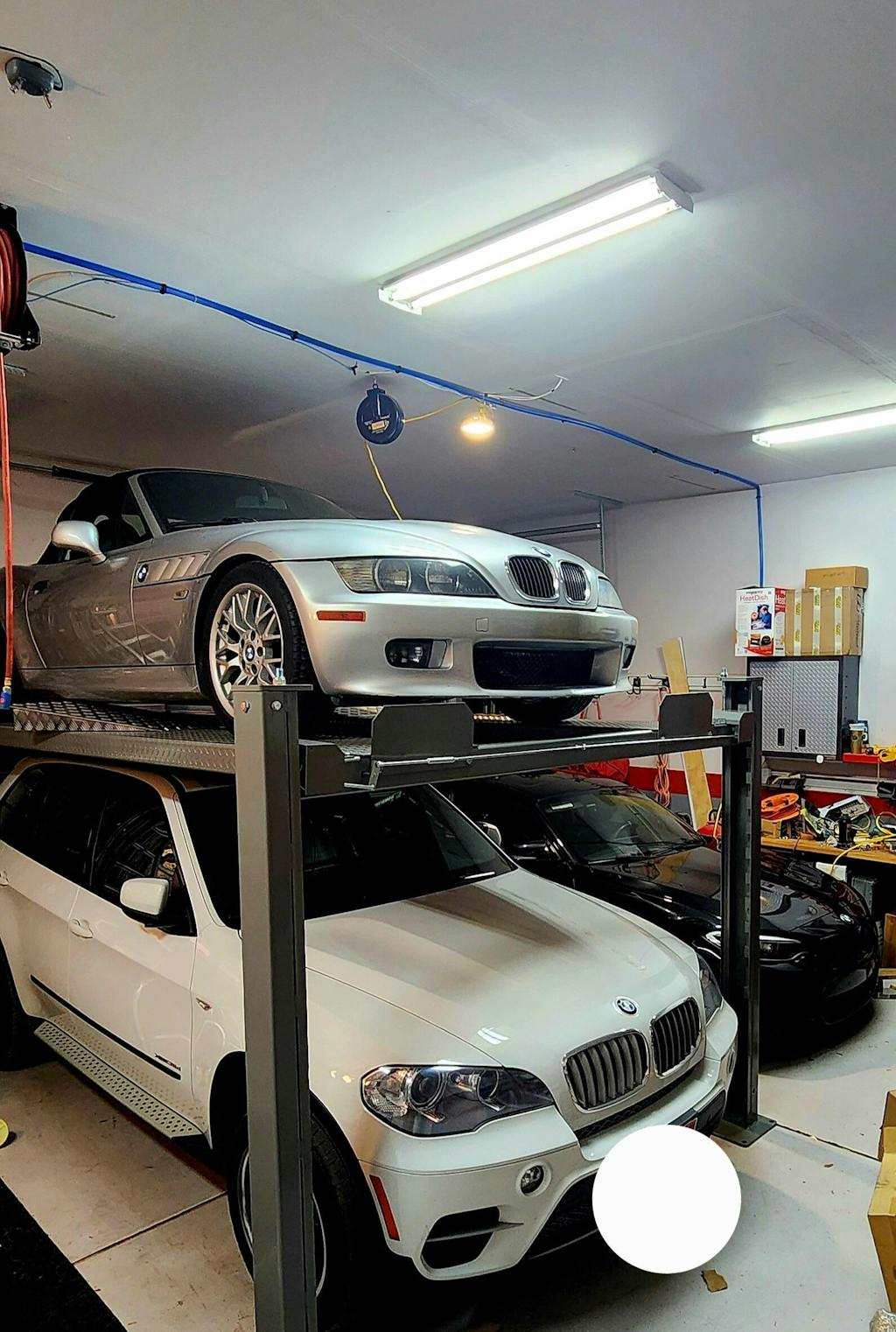

Can I park a second car underneath it?

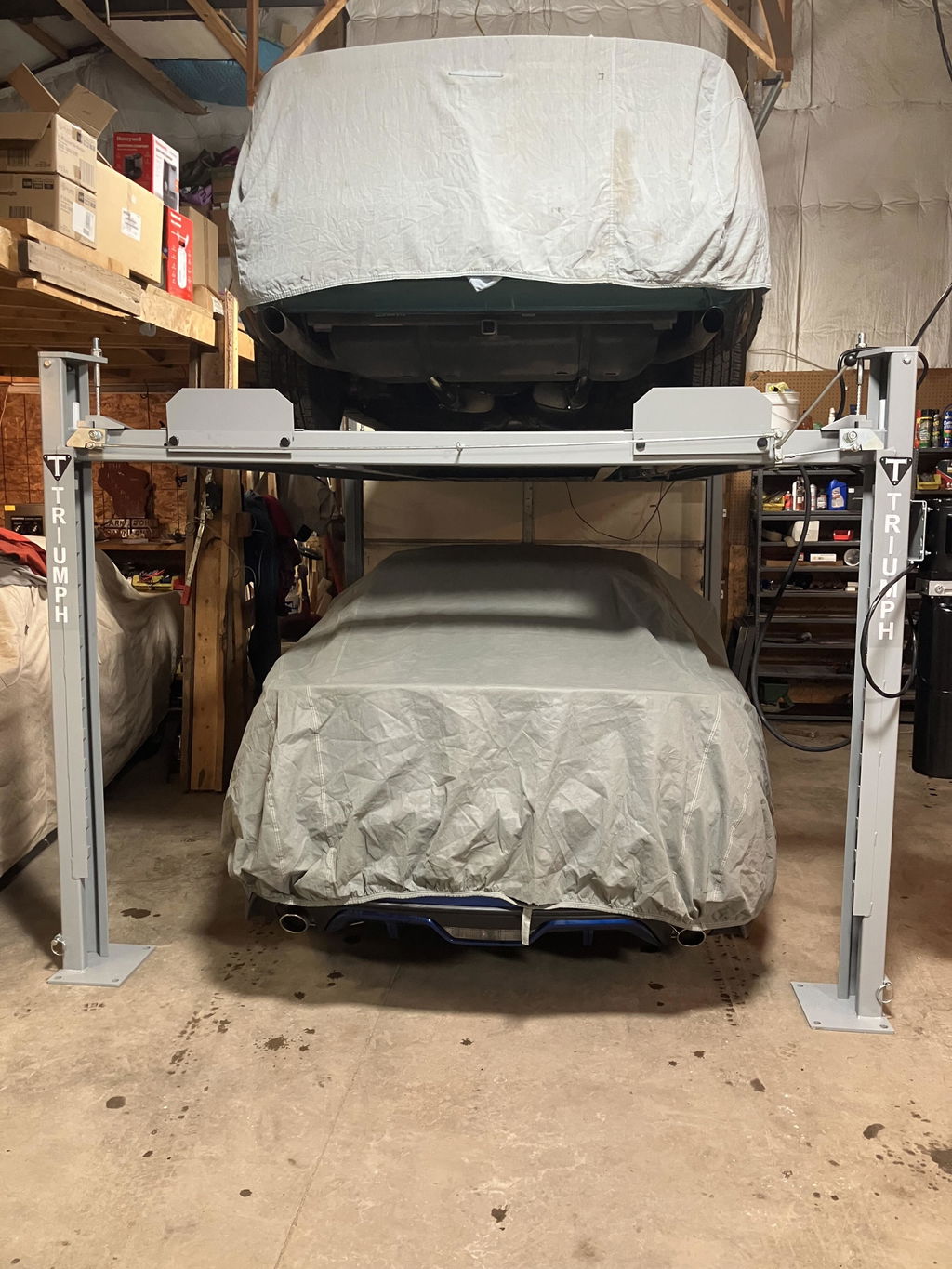

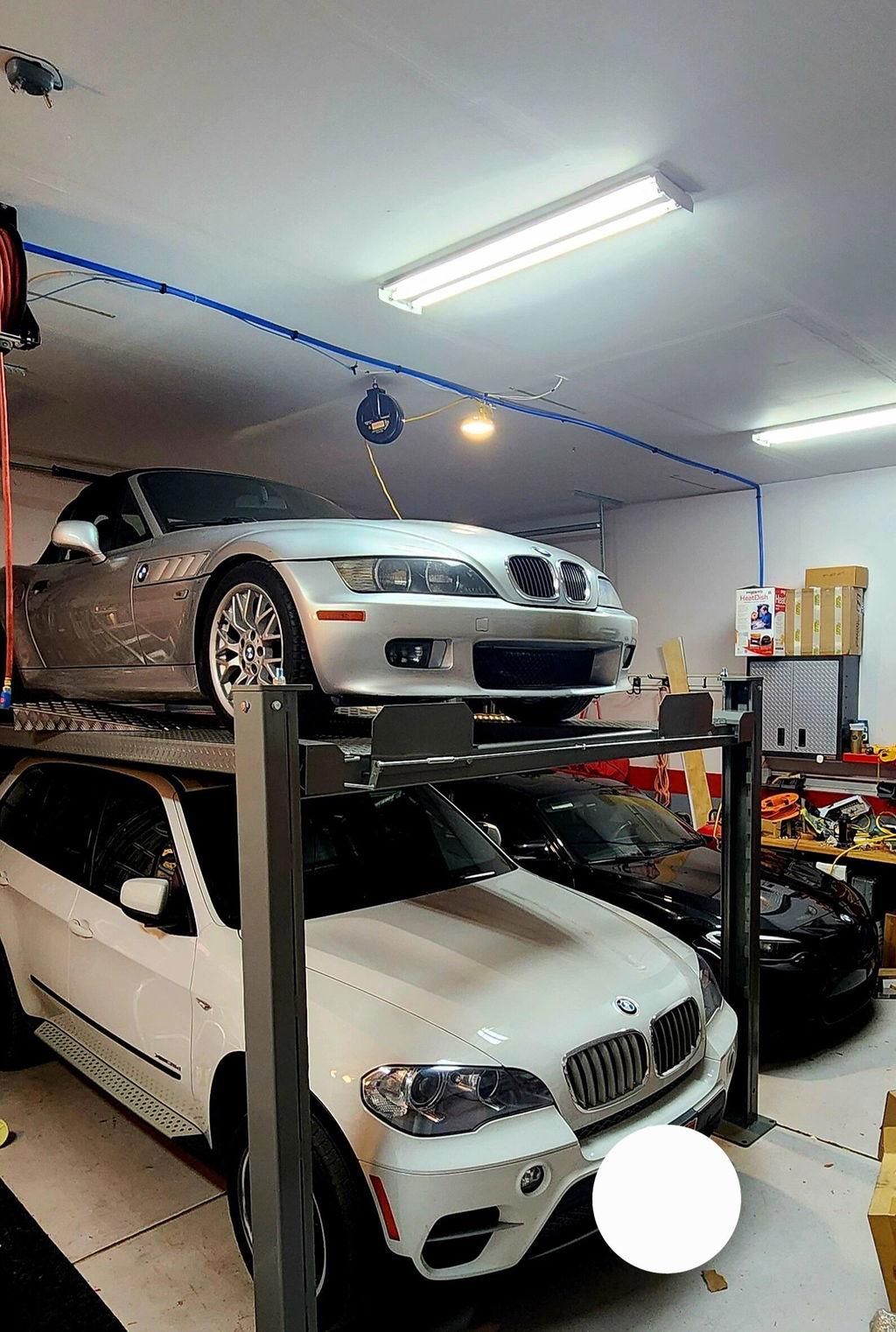

Yes -- that's the classic use. You get 69" of clearance under the runways at full rise, enough for a sedan or most crossovers underneath while another car stores on top. The posts stand 84" tall, so it fits under standard 9-foot garage ceilings with room to spare.
Does the NSS-8 run on regular 110V power?
Yes -- it runs on standard 110V household power. No 220V circuit, no electrician visit; the lift cycles to full height in about 40 seconds.
Can I add a jack for wheels-off work?
Yes. The Triumph SJ-35 rolling bridge jack (3,500 lb) rides between the runways and lifts one end of the vehicle for brake, tire, and suspension work. You can add it in Optional Accessories above, and the included jack tray also accepts a standard floor or bottle jack.

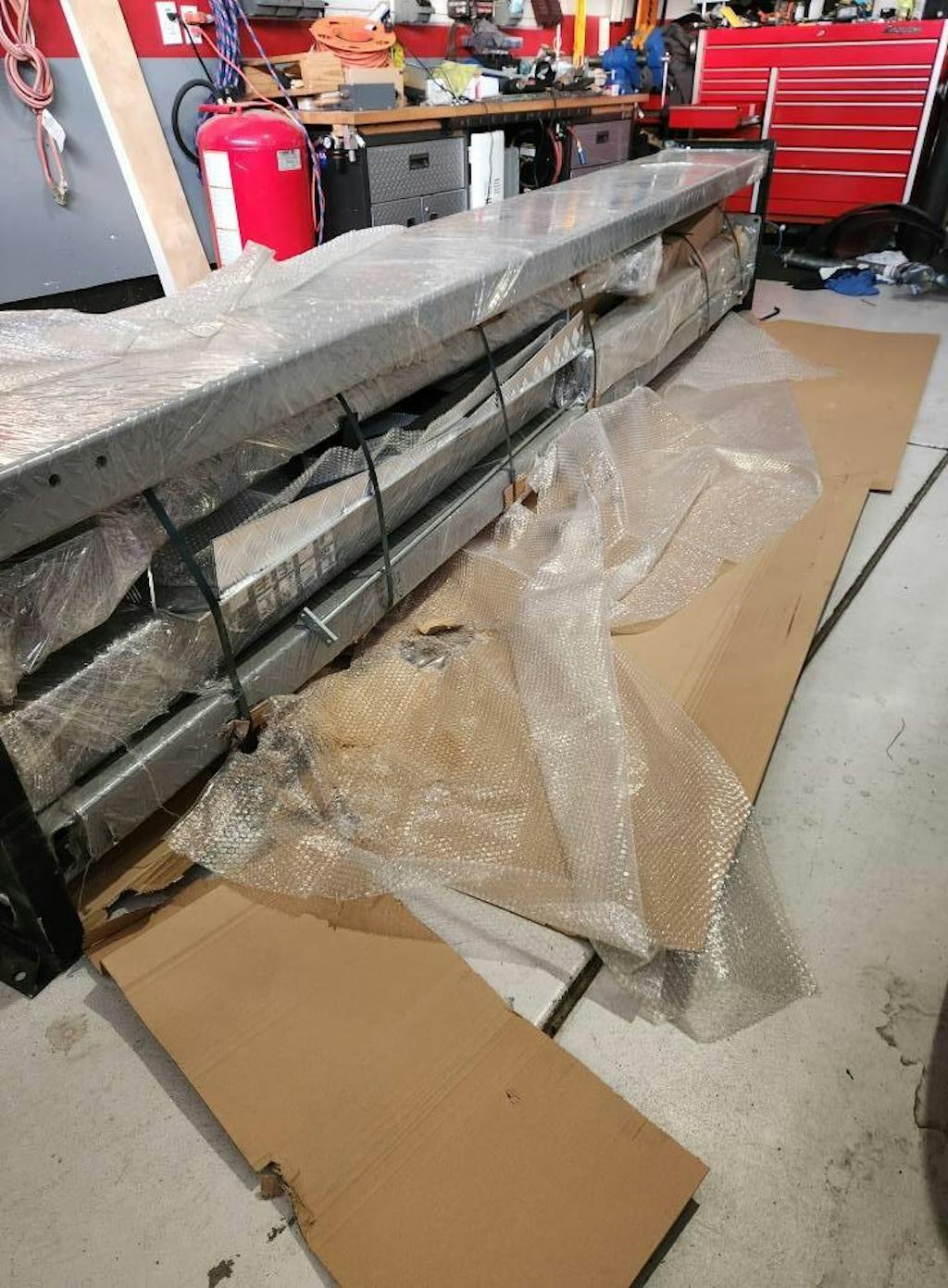

How does freight delivery work?
The lift ships as freight at about 1,600 lbs. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Triumph NSS-8 worth it?
It's one of the most affordable ways to get a real 4-post in a home garage, and the caster kit, jack tray, and drip trays that competitors sell separately ship in the box. See the Reviews tab above for buyer feedback, and for a deeper look at the brand read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
