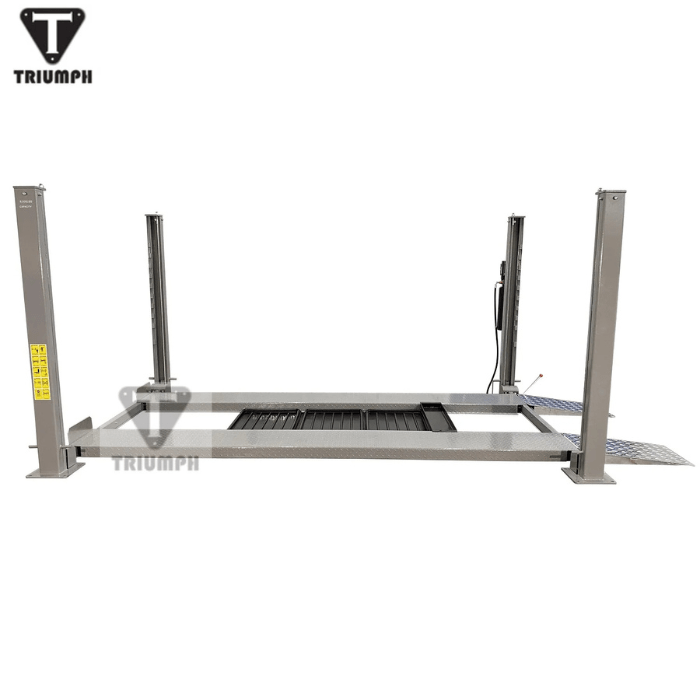

Triumph's Classic 8,000 lb Four Post Vehicle Lift - Shorter Length | NSS-8 Classic
Need a 4 Post Lift for Home Use? The NSS-8 Classic Lift Packs Pro Features into a Garage-Friendly Frame
Tired of struggling with cramped garage space and limited service options at home? A reliable 4 post car lift can be the game-changer you're looking for. Especially when you're juggling multiple vehicles or want to protect a prized car from wear. The Classic 8,000 lb lift Shorter Length takes the headache out of home storage and gives you peace of mind with safe, secure lifting for both storage and service. That's especially true if you have a shorter garage where standard 4-post lifts don't quite fit, or if you're storing compact and mid-size vehicles and don't need full-size truck dimensions.
The Triumph NSS-8 4 post auto lift is engineered with convenience in mind. It comes complete with a caster kit, jack tray, and three drip trays. Everything you need to operate like a pro right in your garage. The drip trays catch any pesky fluid from the top car, the jack tray lets you lift one end of your vehicle with ease, and the caster kit makes the lift completely portable. It’s built for those who want a serious tool without needing a commercial setup. Shorter overall length fits garages where standard 4-posts won't, while still accommodating sedans, mid-size SUVs, and shorter pickups. The included caster kit, jack tray, three drip trays, and 110V plug-in operation make this a complete out-of-the-box package.
Designed with a time-tested structure used successfully for over 20 years, the NSS-8 Classic Lift delivers dependable performance every time. It locks in 10 different positions for safety and flexibility, and it’s easy to set up even if you’ve never used a 4 post vehicle lift before. Whether you're maintaining your car, storing it long-term, or just trying to free up space, this lift fits the job. And your garage. For owners with shorter bays or mostly mid-size vehicles, the NSS-8 Classic delivers full storage and service capability without forcing a garage extension.
Need something stronger? Check out our heavy-duty Vehicle Lifts built for larger vehicles.
Benefits of the Triumph NSS-8 Classic Vehicle Lift
Key Features of the Triumph NSS-8 Classic 8,000 lb Four-Post Car Lift You'll Love:
• Portable Caster Kit Included: Easily move the lift around your garage with the included caster kit. Perfect for tight spaces or flexible layouts. A great choice for home users needing maximum mobility. Caster kit ships standard, eliminating the $100-200 add-on most competing 8K lifts charge for portability features.
• Jack Tray for Easy Maintenance: Use a floor jack or bottle jack on the integrated tray to lift one end of your vehicle for brake jobs, tire rotations, and quick repairs without needing a full pit setup. Jack tray accepts standard floor or bottle jacks, letting one lift cover both storage and service workflows.
• Drip Trays Prevent Mess: Three included drip trays catch oil, coolant, and other fluids to protect the lower vehicle when stacking. Keeps your garage and vehicles clean and leak-free. Three trays cover the full underside footprint, protecting the lower vehicle from oil, coolant, and brake fluid drips.
• Automatic Locking System with 10 Positions: The safety lock engages at 10 preset heights, ensuring secure positioning and peace of mind during every lift operation. 10 lock positions give you precise height control during storage cycles, useful for matching to specific vehicle clearances.
• Time-Tested Design with a 20-Year Track Record: Built on a proven platform used for over two decades, this lift delivers reliable, long-lasting performance trusted by thousands of users. 20-year design heritage means the platform's reliability is established across thousands of real-world installations.

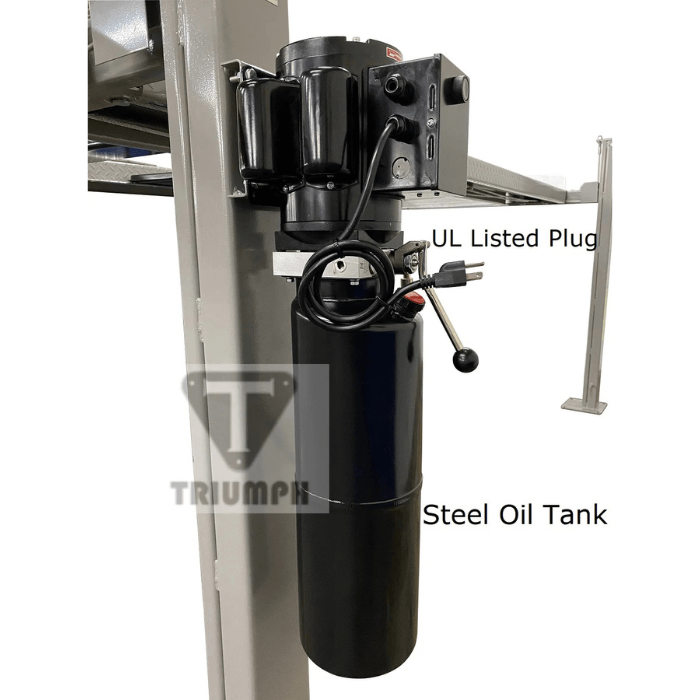

• Runs on Standard 110V Power: No special wiring required. Just plug it into a regular outlet. Quick and easy setup makes it ideal for home garages and hobby shops. Standard 110V plug-in operation means no electrician on the install. Residential garages work without commercial wiring.
Minimum Garage Requirements
✔ Ceiling Height: At least 90" (7'6") recommended ✔ Floor Space: 175" L x 106" W (14'7" x 8'10") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110 Volts ✔ Post Height: 84" (7'0") (measure before ordering)
✔ Ceiling Height: At least 90" (7'6") recommended
✔ Floor Space: 175" L x 106" W (14'7" x 8'10")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110 Volts
✔ Post Height: 84" (7'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Triumph NSS-8 Classic Four-Post Auto Lift Specifications |
|
| Manufacturer | Triumph |
| Capacity | 8,000 lbs. |
| Overall Height | 84" |
| Overall Length (with ramps) | 175" |
| Overall Length (without ramps) | 141" |
| Overall Width | 106" |
| Lift Height | 72" |
| Height Under Runway | 69" |
| Runway Length | 132" |
| Drive Thru Width | 93" |
| Runway Width | 18" |
| Space Between Runways | 37" |
| Lowered Height | 5" |
| Locking Positions | 10 |
| Base Plate Size | 12" x 12" |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 1,600 lbs. |
