Triumph Heavy-Duty 10,000 lb 4 Post Lift | NOS10000
Triumph NOS10000 10,000 lb 4 Post Lift for Safe, Stable, Everyday Shop Use
Shopping for a lift can feel risky when you’re worried about stability, safety, and long-term reliability. You want something that won’t flex under load, that locks solidly every time, and that doesn’t eat your shop space. The Triumph NOS10000 solves those headaches with a stout outside-slider design, 4.75 in posts, and 6.5 in slide collars that keep everything planted. You get confident lock engagement with manual deadbolts and a secondary redundant safety system that backs you up. Rated at 10,000 lb with 20 in runways and 109 in drive-thru width, it’s built to handle daily duty without drama. The choice gets sharper at 10,000 lbs, where lifts either thin out the structural metal to hit a price point or oversize the cost to commercial-grade levels. Neither serves the daily-shop owner who needs 10K capacity for full-size trucks.

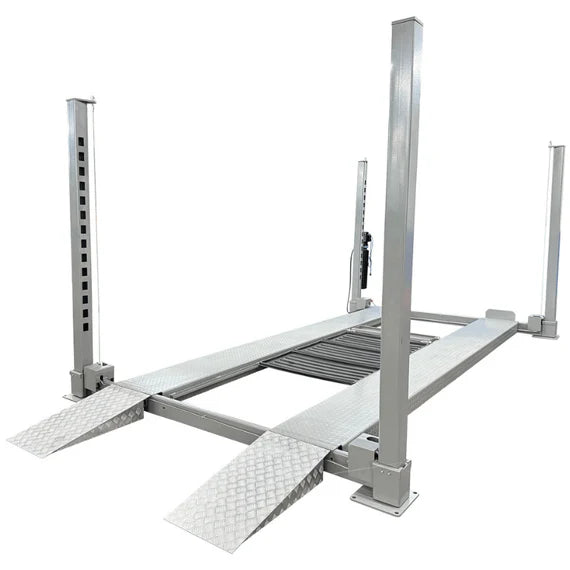

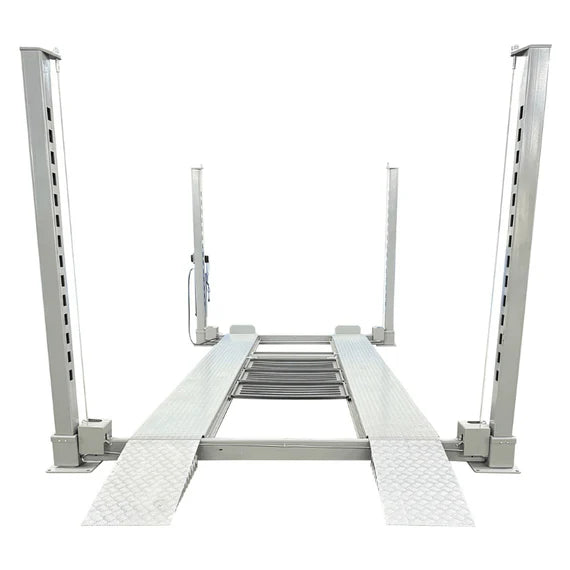

Beyond safety, everyday usability matters. Lightweight 36 in aluminum ramps weigh just 29 lb each, so you can place or stow them without wrestling. A single-point lock release speeds your workflow, while a 60-second rise keeps cars moving. The lift height reaches 87 in with 81.5 in of clearance under the runways, so you can store or work comfortably. Power is straightforward too, using a 110V motor that’s easy to locate near a standard circuit. Boxed tracks add rigidity, so the platform feels solid under tires. The outside-slider architecture with 4.75-inch big-body posts and boxed tracks resists flexing under sustained load. 14 manual deadbolt lock positions, 20-inch runways, a 109-inch drive-thru width, and a complete accessory pack including caster kit and drip trays all ship standard.

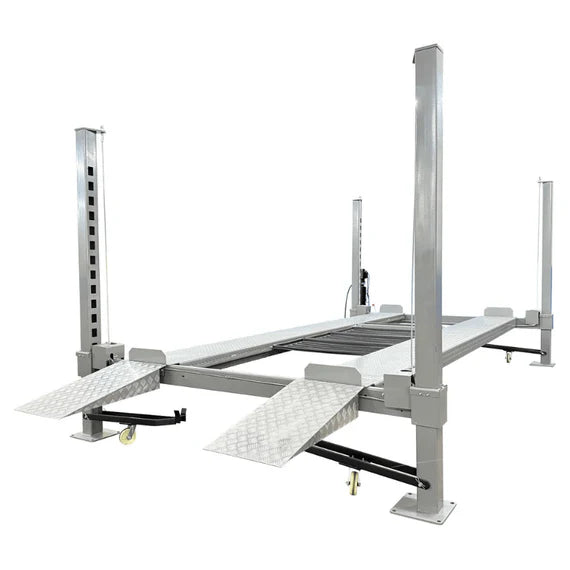

Storage and shop flexibility are the final piece. Heavy-duty poly-coated casters are included, letting you reposition the lift when layouts change or more floor space is needed. You also get drip trays to keep vehicles below clean, plus a rolling jack tray for bottle or floor jacks. The overall footprint is 123 in wide by 210.5 in long, fitting most garages with smart planning. With Triumph 4 post lifts, you’re getting proven engineering that feels stable from the first raise. If you’ve been searching for a 4 Post Lift that’s equal parts safe, strong, and simple, NOS10000 is the straightforward, heavy-duty vehicle lift you can trust. For shops handling daily volume of full-size trucks and SUVs, or owners with heavier vehicles than standard 8,000 lb lifts can handle, the NOS10000 hits the structural and capacity sweet spot without commercial-grade pricing.
If this one's not right, compare all 4 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NOS10000 4 Post Lift
Key Features of the Triumph NOS10000 You'll Love:
• Outside-Slider Architecture with Big-Body Posts: This 10000 lb 4 post lift uses an outside-slider design with 4.75 in posts and 6.5 in slide collars to keep the structure tight and true under load. The geometry resists sway and twist, so the platform feels planted when a vehicle climbs the runways. That added stability translates into smoother loading, less flex, and confidence during storage or service.
• Manual Deadbolt Locks with Oversized Release: Positive-engagement deadbolts bite into place at 14 positions to secure the lift mechanically. The oversized release linkage makes unlocking deliberate and obvious, so you can feel the system disengage cleanly. Backed by a secondary redundant safety system, lock integrity stays high even in demanding shop cycles.
• Boxed Tracks and 20-Inch Runways: Boxed tracks increase torsional rigidity, helping the lift resist deflection when vehicles are parked for long periods. The 20 in runway width suits a wide range of tire sizes while keeping approach simple. That combination creates a solid, predictable platform for both storage and frequent up-down cycles.

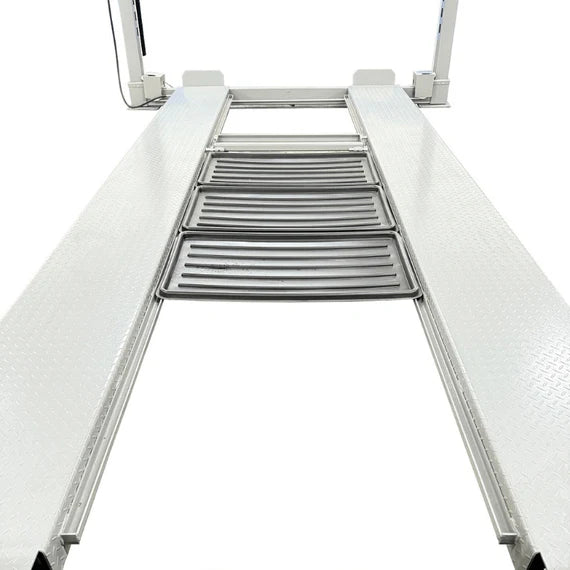

• Complete Accessory Pack, Ready on Day One: Heavy-duty poly-coated casters let you reposition the lift when your layout changes or you need extra bay space. Drip trays help protect lower vehicles and keep floors cleaner, cutting cleanup time at closing. A rolling jack tray supports bottle or floor jacks, and you can add the RJ-5000 rolling jack for quick wheels-off work on a 4 post car lift.
Minimum Garage Requirements
✔ Ceiling Height: At least see specifications below recommended ✔ Floor Space: see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110V ✔ Post Height: see specifications below (measure before ordering)
✔ Ceiling Height: At least see specifications below recommended
✔ Floor Space: see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V
✔ Post Height: see specifications below (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

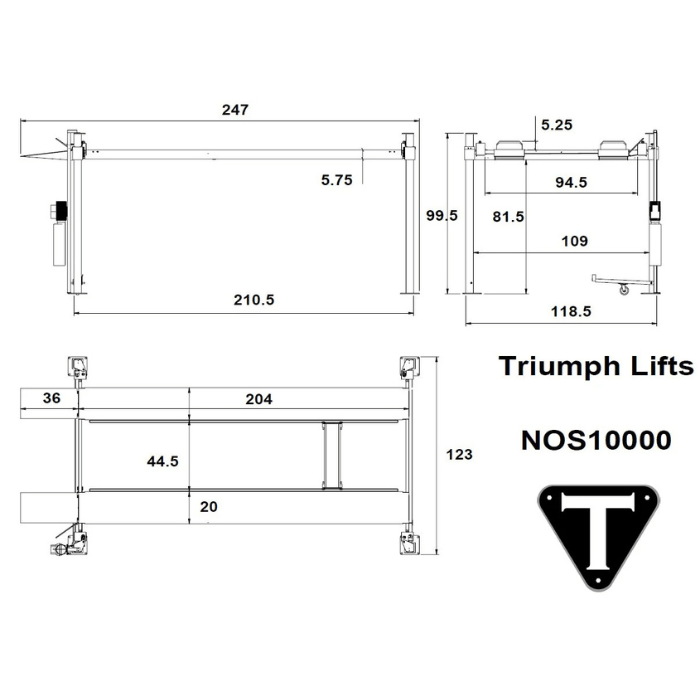

Triumph NOS10000 Four Post Lift Specifications |
|
| Manufacturer | Triumph |
| Model | NOS10000 |
| Capacity | 10,000 lbs |
| Overall Height | 99.5 in |
| Overall Length | 210.5 in |
| Overall Width | 123 in |
| Lift Height | 87 in |
| Height Under Runway | 81.5 in |
| Runway Length | 204 in |
| Runway Width | 20 in |
| Drive Thru Width | 109 in |
| Lowered Height | 5.5 in |
| Locking Positions | 14 |
| Lock Release | Single point |
| Lift Time | 60 seconds |
| Voltage | 110V |
| Post Size | 4.75 in x 4.75 in |
| Slide Collar Size | 6.5 in x 6.5 in |
| Ramps | 36 in aluminum, 29 lb each |
| Track Construction | Boxed tracks |
| Safety System | Secondary redundant safety system |
| Cable Management | Cable keepers to prevent run-off |
| Base Plate Size | 12 in x 12 in, 5/8 in reinforced |
| Includes | Heavy-duty poly-coated casters, drip trays, rolling jack tray |
| Optional Accessory | RJ-5000 5,000 lb rolling jack (available as an add-on above) |
| Shipping Weight | 2,535 lbs |
| Warranty | 1 year parts only |
Triumph NOS10000 Frequently Asked Questions
Will a full-size truck fit on the NOS10000?

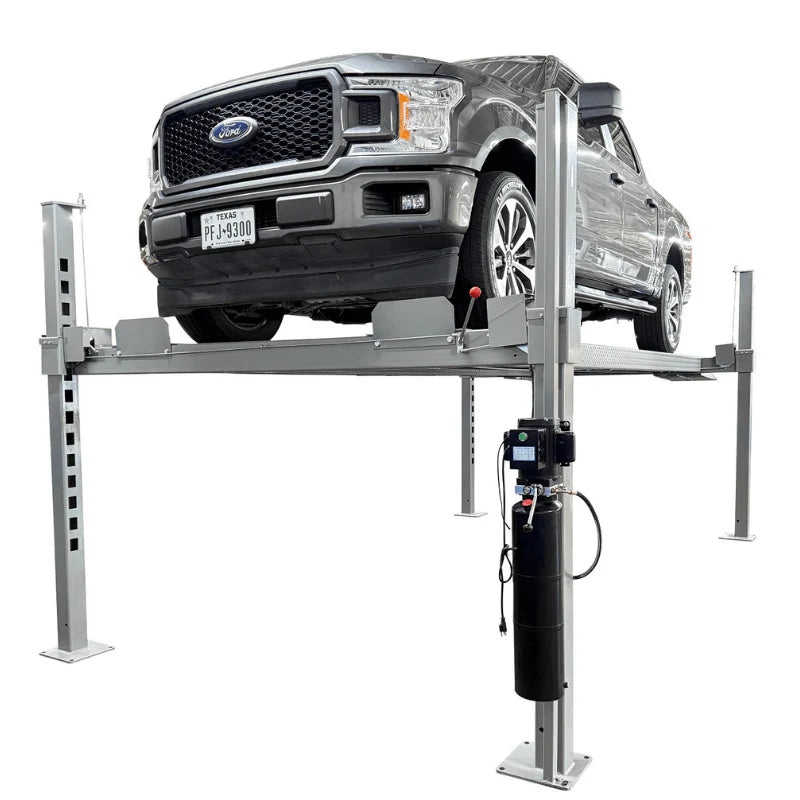

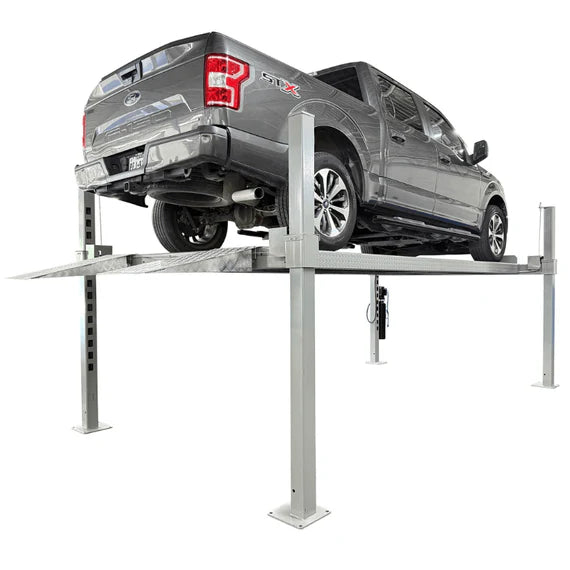

Yes -- as a true 10,000 lb car lift it covers every half-ton and 3/4-ton pickup with margin, and the 204" runways are among the longest in our Triumph lineup, so crew-cab long-beds fit without overhang. For 1-ton duallys and anything heavier, look at the Triumph NSS-11000 or the 16,000 lb NTR-16.
How is this different from the NSS-11000?
They're close cousins: the NSS-11000 carries 1,000 lbs more and has adjustable runway spacing, while this NOS10000 rises higher (87" vs 86.5"), runs longer 204" runways, and uses boxed-track construction with a secondary redundant safety system. If you regularly load near the limit, take the NSS-11000; for taller vehicles and maximum walk-under room, this one.
Can I park a second vehicle underneath it?

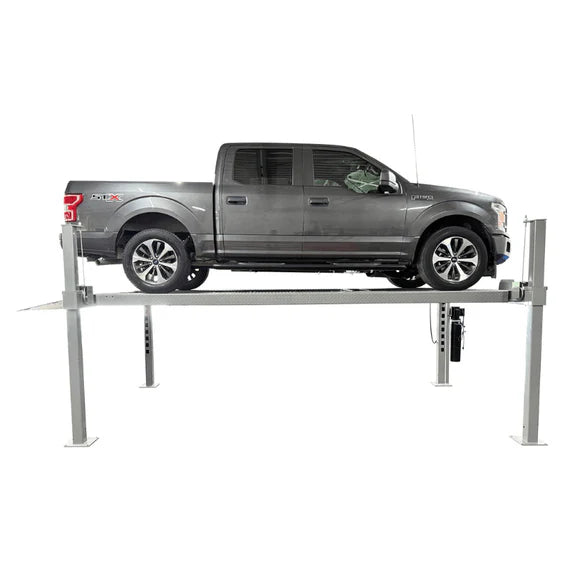

Yes -- 81.5" of clearance under the runways at full rise takes a full-size SUV underneath. The posts stand 99.5" tall, so plan on a ceiling of roughly 105" or more to use the full height.
Does the NOS10000 run on regular 110V power?
Yes -- 10,000 lbs of capacity on a standard 110V circuit, with a full rise in about 60 seconds. No 220V wiring required.
Can I add a rolling jack for wheels-off work?
Yes. The Triumph RJ-5000 rolling bridge jack (5,000 lb) rides between the runways and lifts one end for brake, tire, and suspension work -- add it in Optional Accessories above. A rolling jack tray is already included.
How does freight delivery work?
The lift ships as freight at about 2,535 lbs. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Triumph NOS10000 worth it?
Boxed-track construction, a redundant secondary safety system, and 110V operation at 10,000 lbs -- that combination usually costs well more. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
