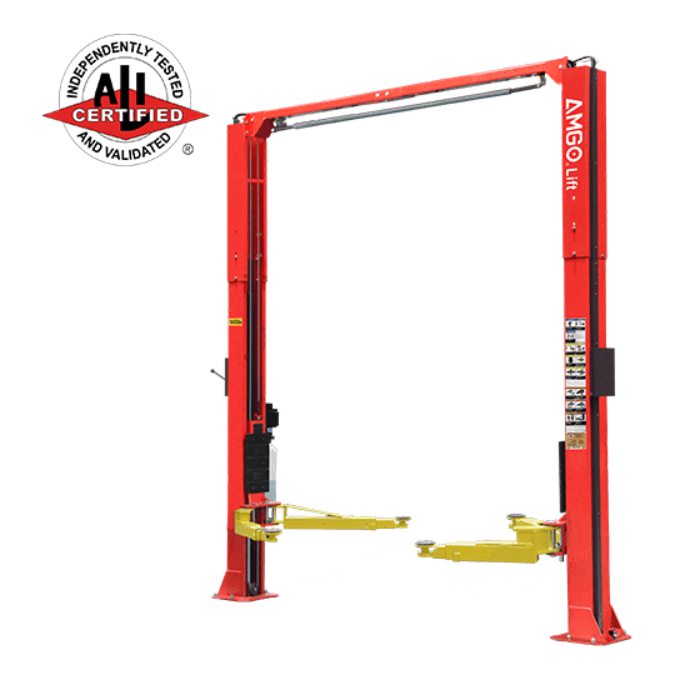

AMGO OH-10 ALI Certified 10,000 lb 2-Post Clear-Floor Lift (Super Asymmetric)
Buying a lift can feel risky when you are not sure it will fit your bay, reach your lift points, or stand up to daily use. Ceiling height and door swing are common worries, along with concrete requirements and electrical specs that are easy to miss. The OH-10 addresses those pain points with a clear-floor design, adjustable column height at 142-1/2 inches or 150-1/2 inches, and Super Asymmetric arms that protect doors while loading. You also get a wide 99-1/2 inch drive-thru plus ~112-1/4 inches between columns for everyday sedans, SUVs, and light trucks. If you want a dependable 2 Post Lift that installs cleanly and works the way a real shop expects, this model is built for it. ALI certification (Automotive Lift Institute) is the gold standard for 2-post lift safety verification, and most 10K lifts in this price band haven't gone through the third-party testing. AMGO's OH-10 is one of the few 10K lifts that has.
Power, speed, and safety matter when your lift runs all day. Dual direct-drive cylinders eliminate chains and reduce wear while delivering a smooth ~56-57 second rise to 71-1/2 inches. The overhead shut-off keeps roofs and antennas safe, and the single-point manual lock release lets you disengage both columns from one side. UHMW sliders and bronze bushings keep column travel quiet and consistent under a 10,000 lb rated load. With a 3-1/2 inch minimum pad height and stackable 1.5, 2.5, and 5 inch adapters, you can hit tricky lift points without drama. ALI certification covers structural design, manufacturing tolerances, and lifecycle testing. The kind of validation commercial shops need for insurance and compliance reasons. Two column-height settings (142-1/2" or 150-1/2") let you size to your ceiling.
Install is straightforward when the site is dialed in. Plan for 220V single-phase power at 20A on a dedicated, grounded circuit. Concrete needs to be 4 inches thick at 3,000 psi minimum, cured at least 15 days, level within 3/8 inch, and anchored with 3/4 x 5-1/2 inch wedges torqued to roughly 150 N·m. The lift ships with tool trays, toe guards, anchors, and aero sync cables to simplify setup and operation. For shops searching for an ALI Certified two post lift that balances safety, speed, and serviceability, the OH-10 checks every box. For commercial shops, fleet operations, or home garages that want the highest level of independent safety verification, the OH-10 is one of the few ALI-certified 10K lifts in the consumer-friendly price band.
Need a better fit? Check out our full range of 2-post lifts.
Benefits of the AMGO OH-10 Two Post Lift

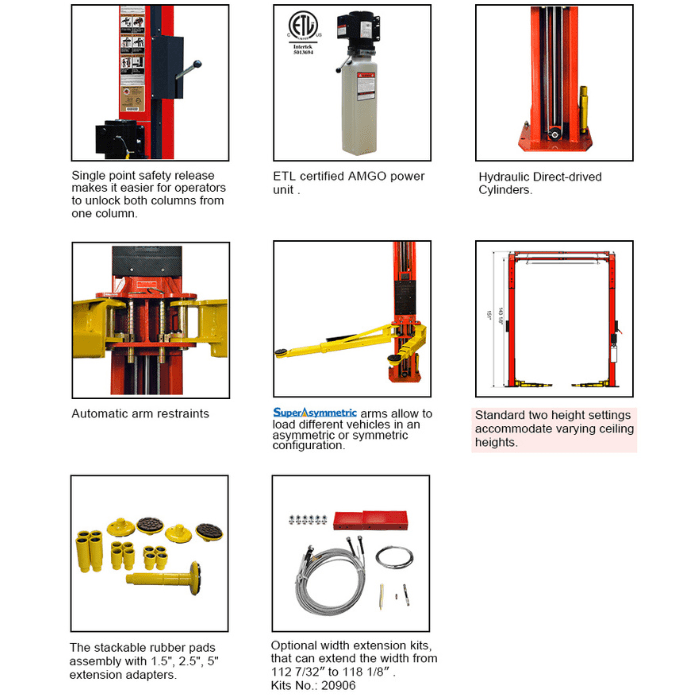

Key Features of the AMGO OH-10 2-Post Lift You'll Love:
• Direct-Drive Hydraulics (No Chains): Direct-drive cylinders move the carriage without the added complexity of chains, which cuts down on wear parts and routine replacement. You get smoother lifting and fewer points of failure under a full 10,000 lb load. Over the life of the lift, that means less maintenance time and more billable hours on the floor.
• Super Asymmetric Arms for Real-World Loading: The Super Asymmetric design lets you load vehicles symmetrically or asymmetrically to improve door clearance and access. Techs can open doors wider, position lift points accurately, and move faster around the bay. It’s a practical advantage for a 2 post vehicle lift that sees everything from compact sedans to light-duty trucks.
• Single-Point Safety Lock Release: Unlock both columns from one side to save steps and reduce turn time between jobs. The mechanical locks hold securely at multiple positions, and the overhead shut-off protects tall vehicles as they rise. Together, these systems deliver confidence, repeatability, and safer workflows all day long.
• Low Pad Height and Stackable Adapters: With a 3-1/2 inch minimum pad height, you can get under lower vehicles without resorting to homemade cribbing. The included 1.5, 2.5, and 5 inch pads help you level lift points and reach challenging frames safely. That flexibility keeps inspection time down and lift-point contact solid.
Minimum Garage Requirements
✔ Ceiling Height: At least 148" (12'4") recommended ✔ Footprint: 99" drive-thru x 135" overall (8'3" x 11'3") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60 Hz, 20A, single phase ✔ Overall Lift Height: 142" (11'10") (measure before ordering)
✔ Ceiling Height: At least 148" (12'4") recommended
✔ Footprint: 99" drive-thru x 135" overall (8'3" x 11'3")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60 Hz, 20A, single phase
✔ Overall Lift Height: 142" (11'10") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

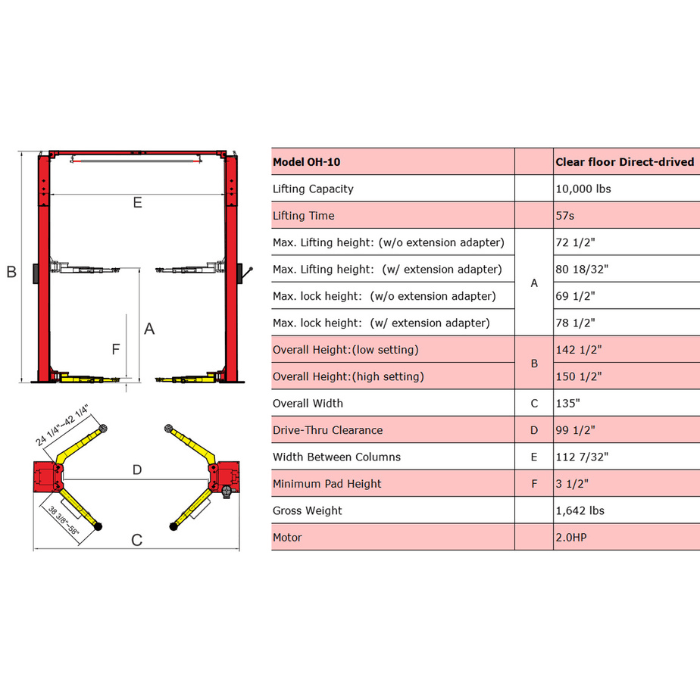

AMGO OH-10 10,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | OH-10 |
| Certification | ALI Certified two post lift |
| Capacity | 10,000 lb (4,500 kg) |
| Lift Type | Clear-floor, dual direct-drive 2 post car lift |
| Arm Design | Super Asymmetric (symmetric or asymmetric loading) |
| Rise Height (no adapters) | 71-1/2 in |
| Lock Height (no adapters) | 69-1/2 in |
| Rise Height (with adapters) | 80-9/16 in |
| Lock Height (with adapters) | 78-1/2 in |
| Minimum Pad Height | 3-1/2 in |
| Overall Height Settings | 142-1/2 in or 150-1/2 in |
| Overall Width | 135 in |
| Width Between Columns | 112-1/4 in |
| Drive-Thru Clearance | 99-1/2 in |
| Power Unit | 2.0 HP, 220V, 60 Hz, 20A, single phase |
| Hydraulic Pressure (max) | ~3045 psi (21 MPa) |
| Lifting Time | ~56-57 s |
| Weight | 1650 lb |
| Safety Systems | Single-point manual lock release, overhead shut-off, toe guards |
| Sliders/Bushings | UHMW self-lubricating sliders, bronze bushings |
| Synchronization | Aero cable synchronization |
| Included Adapters | Stackable rubber pads: 1.5 in, 2.5 in, 5 in |
| Included Hardware | Anchors, overhead bar with limit switch, tool trays, hardware kit |
| Concrete Requirement | 4 in thickness, 3,000 psi, cured ≥15 days, ≤3/8 in level variation |
| Anchor Spec | 3/4 x 5-1/2 in wedge anchors, ~150 N·m re-torque monthly |
| Electrical Requirement | Dedicated grounded 220V/60Hz/20A circuit, indoor use |
| Shipping Dimensions | Length: 2800 mm (110") Width: 450 mm (17.7") Height: 825 mm (32.5") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
