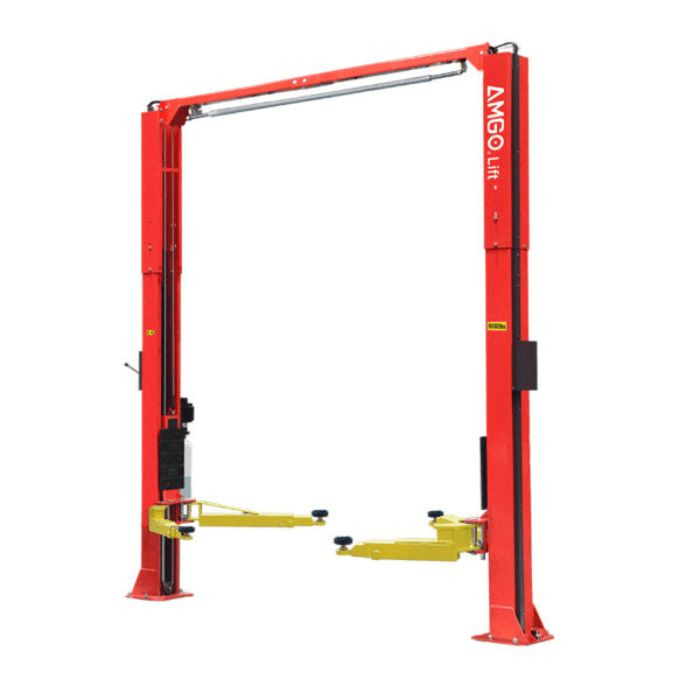

AMGO 9,000 lb 2-Post Lift - Super Asymmetric | OH-9
Why the AMGO OH-9 2 Post Lift Is the Smart Choice for Modern Garages
Buying a lift can feel risky when you are not sure it will fit your bay, reach your lift points, or stand up to daily use. Ceiling height and door swing are common worries, along with concrete requirements and electrical specs that are easy to miss. The AMGO OH-9 tackles those pain points with a clear-floor design, dual direct-drive cylinders, and Super-Asymmetric arms that let you load symmetrically or asymmetrically for better door clearance. With a 9,000 lb capacity, a 3-3/4 inch minimum pad height, and a 99-1/2 inch drive-thru, it is built for real shops that service sedans, SUVs, and light trucks. If you need a dependable 2 Post Lift that fits modest bays without compromises, this model checks the boxes. Super asymmetric arm geometry where the vehicle sits slightly rotated off the lift's centerline gives techs measurably more space to swing doors open during service. In high-volume commercial shops, that translates to faster cycles and less door-edge damage.
Power, speed, and safety all matter when your lifts run all day. The OH-9 raises in about 57 seconds and uses a single-point manual lock release so you can unlock both columns from one side. An overhead shut-off bar helps protect roofs and antennas, while automatic arm restraints and UHMW polyethylene sliders keep motion smooth and predictable. The overall height can be set at 142-1/2 inches or 150-1/2 inches to match your building, and the 112-3/16 inches between columns gives generous door swing. For teams pricing a 2 Post Lift upgrade, these details translate into faster setups and fewer headaches. Two factory-set column heights (142-1/2" or 150-1/2") let you match the lift to your bay ceiling without overspending on capacity you don't need. The 2.0 HP power unit delivers consistent cycles at 9K full capacity.
Fitment is straightforward with clear ceiling rules. If your ceiling is over 151-1/2 inches, either height setting works; between 143-3/4 and 151-1/2 inches, use the low setting; below 143-3/4 inches, choose a different model. Concrete needs to be at least 4 inches thick at 3,000 psi, fully cured, level, and free of cracks or rebar at anchor points. The 2.0 HP single-phase power unit must be wired by a licensed electrician on a properly grounded circuit per the manual. Optional 6 inch extension adapters, a height extension kit to about 174-7/16 inches, width extensions, and saddle adapters round out the package so this 9000 lb 2 post lift grows with your shop. Many buyers search for a “super symmetric car lift” and land here, and they appreciate that AMGO’s Super-Asymmetric arms deliver the flexibility they were actually after. For commercial shops where door clearance matters and ceiling-height flexibility matters, the OH-9 brings asymmetric ergonomics into the 9K capacity tier where most lifts are just symmetric afterthoughts.
Looking for something different? See our complete selection of 2-post lifts.
Benefits of the AMGO OH-9 Two Post Lift

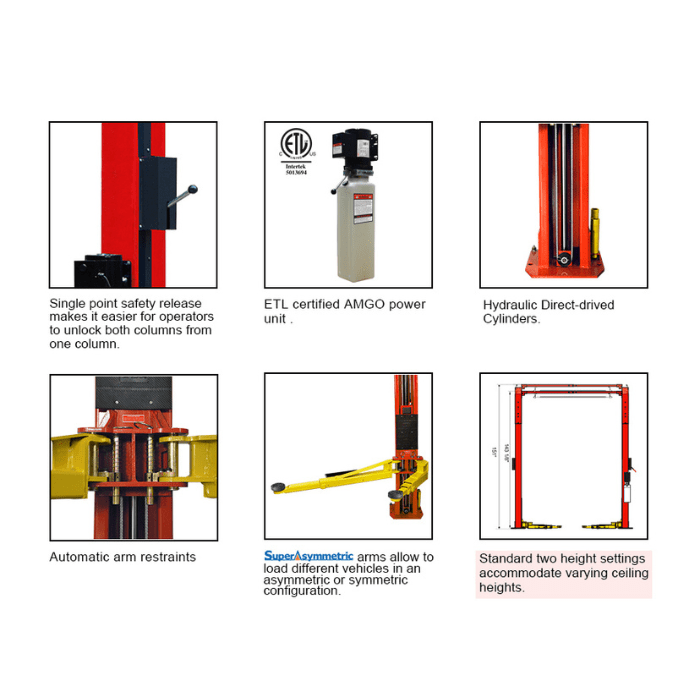

Key Features of the AMGO OH-9 2-Post Lift You'll Love:
• Super-Asymmetric 3-Stage Arms: Load vehicles symmetrically for balance or swing the arms asymmetrically for better door clearance and easier entry. The 3-stage reach on all four arms improves lift-point access across compact sedans, crossovers, and light trucks. Automatic arm restraints lock engagement during the rise, reducing the risk of arm drift and improving technician confidence.
• Dual Direct-Drive Hydraulic Cylinders: A direct-drive layout eliminates chains and many wear items, which means fewer parts to service over the life of the lift. The result is smoother column motion and more consistent rise times bay to bay. With fewer moving parts to stretch or slacken, you spend less time re-leveling and more time turning wrenches.
• Single-Point Manual Lock Release: Unlock both posts from one side to speed up your workflow when vehicles roll in and out all day. This simple, reliable mechanism reduces walk time around the lift and shortens cycle time between jobs. Fewer steps per job adds up to real throughput gains in busy shops.
• Generous Bay Fit With Clear-Floor Design: With 112-3/16 inches between columns and 99-1/2 inches of drive-thru, vehicles spot quickly and doors open wider. The clear-floor design keeps the work area open for jacks, stands, and trans jacks without a floor plate in the way. A 3-3/4 inch minimum pad height makes low-clearance spotting easier and cuts down on block stacking.
Minimum Garage Requirements
✔ Ceiling Height: At least 148" (12'4") recommended ✔ Footprint: 99" drive-thru x 135" overall (8'3" x 11'3") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, single-phase ✔ Overall Lift Height: 142" (11'10") (measure before ordering)
✔ Ceiling Height: At least 148" (12'4") recommended
✔ Footprint: 99" drive-thru x 135" overall (8'3" x 11'3")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, single-phase
✔ Overall Lift Height: 142" (11'10") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

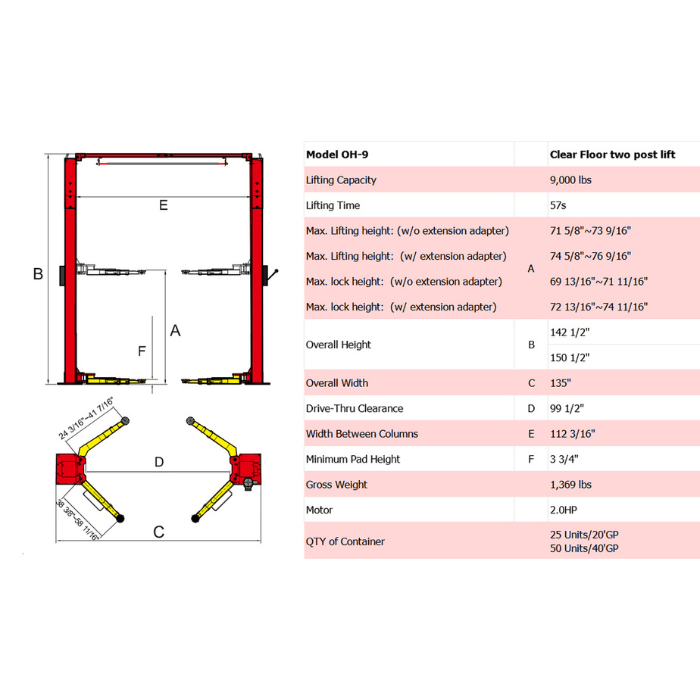

AMGO OH-9 9,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | OH-9 |
| Product Type | 2-post clear-floor lift |
| Capacity | 9,000 lb |
| Lift Time | ~57 s |
| Arm Type | Super-Asymmetric, 3-stage on all four arms; supports symmetric or asymmetric loading |
| Minimum Pad Height | 3-3/4 in |
| Max Lifting Height (without adapters) | 71-5/8 in to 73-9/16 in |
| Max Lifting Height (with 3 in adapters) | 74-5/8 in to 76-9/16 in |
| Max Lock Height (without adapters) | 69-13/16 in to 71-11/16 in |
| Max Lock Height (with 3 in adapters) | 72-13/16 in to 74-11/16 in |
| Overall Height Settings | 142-1/2 in (low) or 150-1/2 in (high) |
| Overall Width | 135 in |
| Width Between Columns | 112-3/16 in |
| Drive-Thru Clearance | 99-1/2 in |
| Power Unit | 2.0 HP, single-phase |
| Weight | 1,369 lbs |
| Electrical | Single-phase supply, properly grounded; installation by a licensed electrician required; follow manual wiring diagrams and local code |
| Safety Systems | Mechanical locks on both posts with single-point release; overhead shut-off bar; automatic arm restraints; UHMW polyethylene sliders; toe guards; tool trays |
| Included Adapters | Double-screw rubber pads with 3 in stackable adapters (pin Ø 1/2 in) |

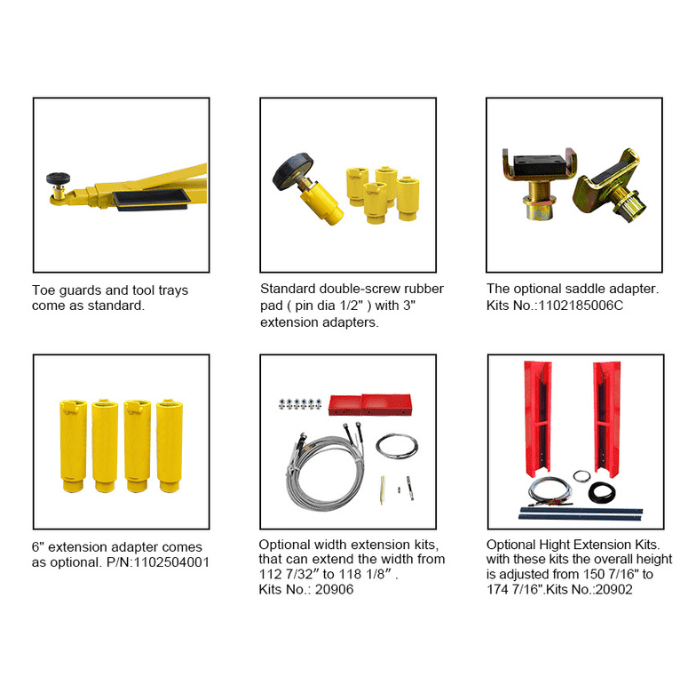

| Popular Options | 6 in extension adapters; height extension kit to ~174-7/16 in overall; width extension kit; saddle adapter set |
| Ceiling Guidance | >151-1/2 in: low or high setting OK; 143-3/4 to 151-1/2 in: low setting only; <143-3/4 in: not suitable for this model |
| Concrete Requirements | Minimum 4 in thick at 3,000 psi, fully cured, level, and free of cracks or rebar crossing anchor locations |
| Maintenance | Monthly: torque anchors, inspect fasteners, hoses, locks, lube rollers and pins; 6-month: check cable tension, column plumb, oil level, limit switch, arm-lock gears; Oil: ISO-46, first change ~3 months then annually |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
