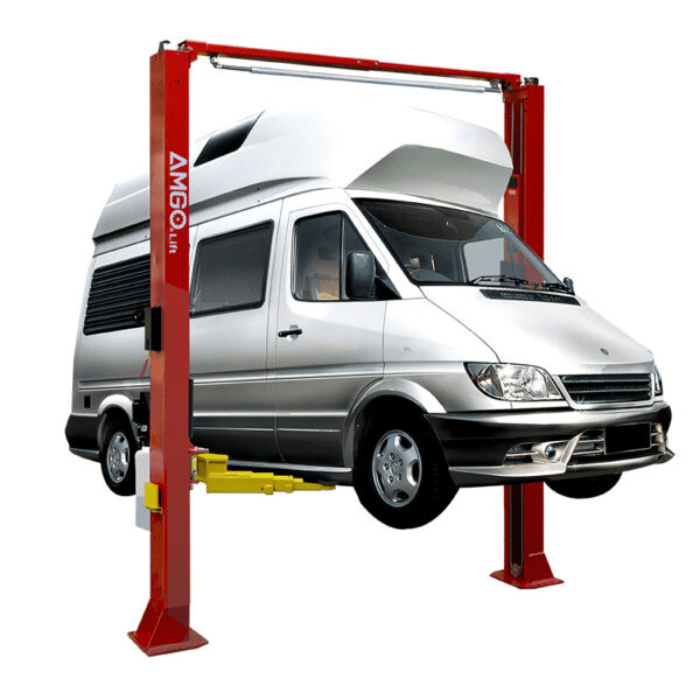

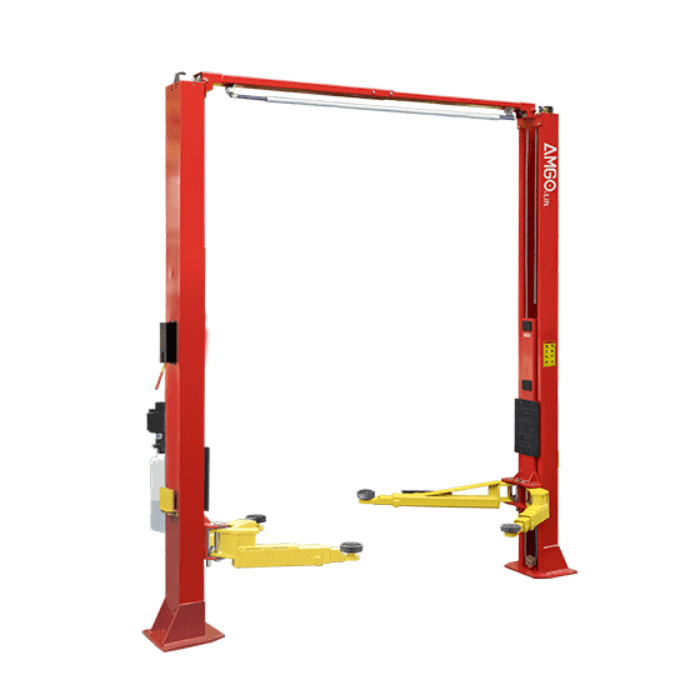

AMGO 10,000 lb 2-Post Lift - Super Asymmetric | OHX-10
AMGO 10,000 lb 2-Post Lift - Super Asymmetric | OHX-10
Buying a lift can feel risky if you are not sure it will fit your bay, reach your lift points, or stand up to daily use. Ceiling height, door swing, and concrete thickness are common pain points that slow decisions. The AMGO OHX-10 addresses those concerns with a clear-floor design, single-piece columns, and Super Asymmetric arms that give you door clearance when you need it. With a true 10,000 lb capacity and a quick rise of about 57 seconds, it is built for real shops that service sedans, SUVs, and light trucks. If you need a dependable 2 Post Lift that fits modest bays without compromises, this model checks the boxes. Super asymmetric arm geometry rotates the vehicle slightly off-center on the lift, which gives more door-clearance space when techs swing doors open during service. That matters more in tight commercial bays than most buyers realize.

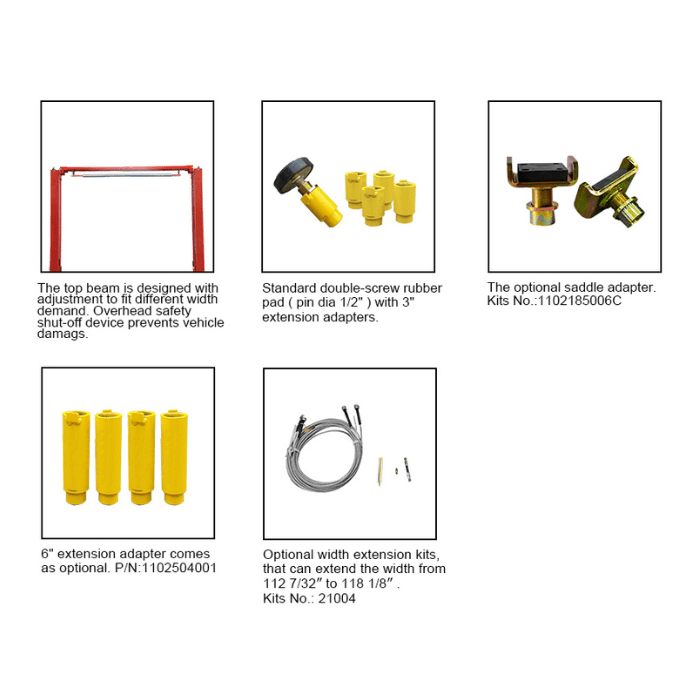

Versatility matters on busy days. The OHX-10 lets you load vehicles symmetrically for balance or asymmetrically for better door access, thanks to AMGO’s Super Asymmetric 3-stage arms. You get generous geometry with 99 13/16 to 105 11/16 inches of drive-thru clearance and up to 118 1/2 inches between columns when you use the width kit. Minimum pad height is 3 3/4 inches to help with lower vehicles, while stackable pads at 1.5, 2.5, and 5 inches make trucks and SUVs easy. The overhead limit switch protects roofs and antennas so techs can work with confidence. 144-inch overall height fits most commercial bay ceilings, the 2.0 HP 220V power unit delivers steady cycle times at full 10K capacity, and the wide-kit option future-proofs the lift for changing fleet mixes.
Day-to-day reliability is baked in. Dual direct-drive hydraulic cylinders deliver smooth lifting with fewer wear parts than chain-drive systems. Single-point manual lock release unlocks both columns from one side, and automatic arm restraints keep the arms positively engaged when the vehicle is raised. UHMW polyethylene sliders and bronze bushings keep movement precise over time, supported by aero sync cables that keep the carriages in sync. With a 144 inch overall height requirement and 3,000 psi 4 inch concrete minimum, the OHX-10 installs cleanly in most 12 foot shops and delivers the balanced performance customers expect from a 2 Post Lift. For shops handling sedan and light-truck mixes where door swing matters during service, the OHX-10 keeps techs efficient by reducing the door-banging that costs real time on every cycle.
If this isn’t the one, browse all our 2-post lifts to find your match.
Benefits of the AMGO OHX-10 Two Post Lift
Key Features of the AMGO OHX-10 2-Post Lift You'll Love:
• Super Asymmetric 3-Stage Arms: These arms let you choose symmetric loading for balance or asymmetric loading for easy door access. The geometry improves tech ergonomics by moving door edges clear of posts during entry and exit. That flexibility captures searches for a super symmetric car lift while accurately describing how your shop can handle more vehicles in less time.
• Dual Direct-Drive Hydraulic Cylinders: Direct drive means fewer wear parts than chain and pulley systems, which reduces maintenance over the life of the lift. The result is smoother starts and stops that feel controlled, even with heavier vehicles. Fewer service interruptions help your bay stay profitable.

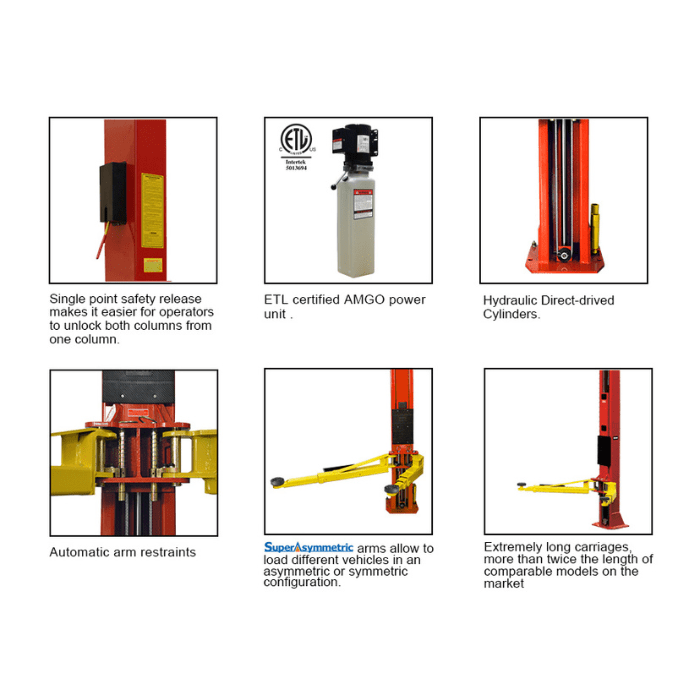

• Single-Point Manual Lock Release and Automatic Arm Restraints: Unlock both columns from one side to speed transitions between vehicles and reduce steps around the shop. Automatic arm restraints engage as the lift rises to keep the arms positively locked. Together, these systems make daily operation predictable and safe for new and experienced techs.
• Single-Piece Columns and Extra-Long Carriages: One-piece columns simplify installation and add rigidity under load compared to multi-piece stacks. Extra-long carriages spread forces over a taller surface area for better stability and less wear. The net effect is tight, consistent movement that inspires confidence at full height.
Minimum Garage Requirements
✔ Ceiling Height: At least 150" (12'6") recommended ✔ Footprint: 105" drive-thru x 140" overall (8'9" x 11'8") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V, single-phase ✔ Overall Lift Height: 144" (12'0") (measure before ordering)
✔ Ceiling Height: At least 150" (12'6") recommended
✔ Footprint: 105" drive-thru x 140" overall (8'9" x 11'8")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V, single-phase
✔ Overall Lift Height: 144" (12'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

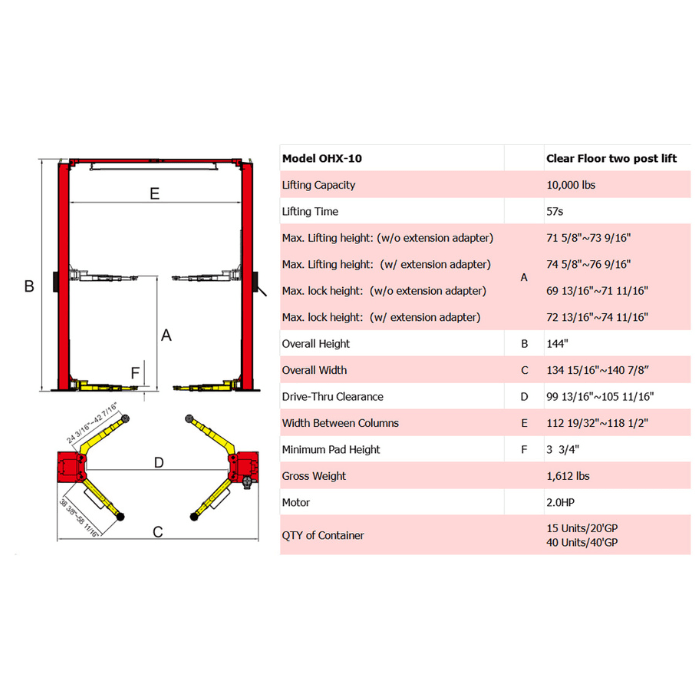

AMGO OHX-10 10,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | OHX-10 |
| Lift Type | 2 post car lift, clear-floor |
| Capacity | 10,000 lb |
| Lift Time | ~57 s |
| Max Lift Height, pads to locks (no extensions) | 71 5/8 to 73 9/16 in (locks at 69 13/16 to 71 11/16 in) |
| Max Lift Height, pads to locks (with extensions) | 74 5/8 to 76 9/16 in (locks at 72 13/16 to 74 11/16 in) |
| Minimum Pad Height | 3 3/4 in |
| Overall Height | 144 in |
| Overall Width (field set) | 134 15/16 to 140 7/8 in |
| Width Between Columns | 112 19/32 to 118 1/2 in with width kit |
| Drive-Thru Clearance | 99 13/16 to 105 11/16 in |
| Power Unit | 2.0 HP, 220V, single-phase |
| Hydraulics | Dual direct-drive cylinders |
| Arms | Super Asymmetric 3-stage, symmetric or asymmetric loading |
| Safety | Single-point manual lock release, automatic arm restraints, overhead limit switch |
| Sliders/Bushings | UHMW polyethylene sliders, bronze bushings |
| Sync | Aero sync cables |
| Anchors | 3/4 x 5 1/2 in, 12 included |
| Shipping Weight | ~1,612 lb |
| Ceiling Requirement | 144 in minimum (higher if using height options) |
| Concrete Requirement | 4 in thick, 3,000 psi rated, sound and level |
| Installation Location | Indoor use only |
| Included Pads | Stackable rubber pads: 1. In, 2.5 in, 5 in |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
