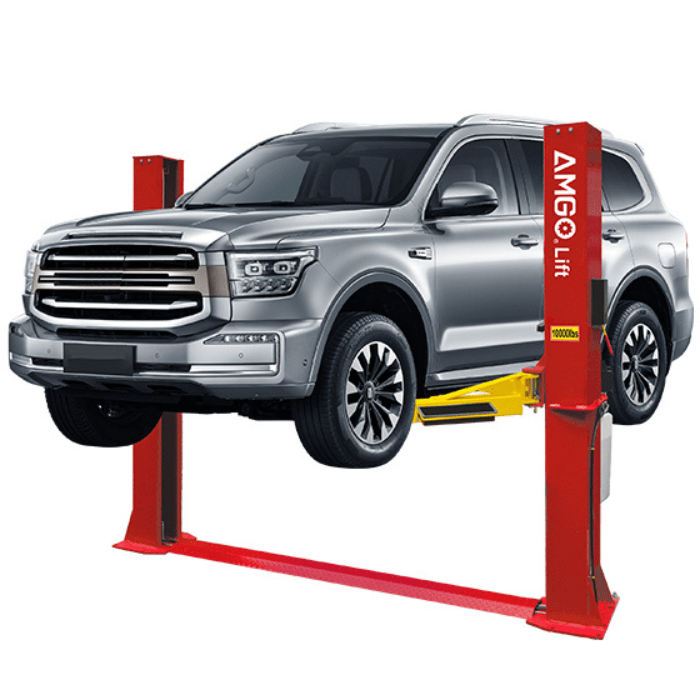

AMGO 10,000 lb 2-Post Lift - Symmetric | BP-10
How the AMGO BP-10 2 Post Lift Combines Strength, Safety, and Smart Design
Buying a lift can feel risky when you’re not sure it will fit your bay, reach your lift points, or meet safety standards day after day. The AMGO BP-10 solves those pain points with a base-plate design that fits modest ceilings and a symmetric layout that keeps vehicles balanced and easy to position. With a 10,000 lb rating and all four 3-stage retractable arms, it handles sedans, SUVs, and light trucks without drama. A low 3-3/4" pad height makes spotting simple and reduces ramp block hassles. If you’ve been searching for a reliable 2 Post Lift that won’t fight your space, this one’s built for real shops. And once you start filtering for 10K capacity AND baseplate (no overhead beam), the field shrinks to just a few options. Most 10K lifts default to overhead because that's easier to engineer, but residential garages can't accommodate the 12-13 foot ceilings overheads need.
Ceiling height worries are common, especially in mixed-use bays. The BP-10’s overall height is 111-7/8", which works in many standard garages while keeping service comfort high. The 100-13/16" drive-thru clearance and 112-1/4" between columns give generous door swing and spotting room. Dual cylinders with chain equalization and aero sync cables keep lifts level so you’re not chasing arms during setups. Expect a brisk ≈62 second rise and a smooth descent with a single-point lock release. 111-7/8" overall height fits a standard residential 9-10 foot ceiling without forcing modification. Symmetric arm geometry handles full-size trucks and SUVs at 100-13/16" drive-thru width.
Durability and uptime matter more than spec sheets alone. UHMW self-lubricating sliders cut friction and wear in the carriages, while imported hydraulic seals help the system hold pressure under daily use. Automatic arm restraints engage as you lift, and a dual-safety lock structure provides redundant protection at work height. Power is straightforward with a 2.0 HP single-phase 220V motor, and ISO 46 hydraulic oil is recommended for clean, consistent operation. If you need a symmetric car lift that works hard without fuss, AMGO’s BP-10 is a smart long-term pick for any shop. For home-shop owners or commercial bays with limited ceiling height, the BP-10 brings true 10K capacity into a footprint and clearance profile that residential garages can actually use.
Looking for something different? See our complete selection of 2-post lifts.
Benefits of the AMGO BP-10 Two Post Lift
Key Features of the AMGO BP-10 2-Post Lift You'll Love:

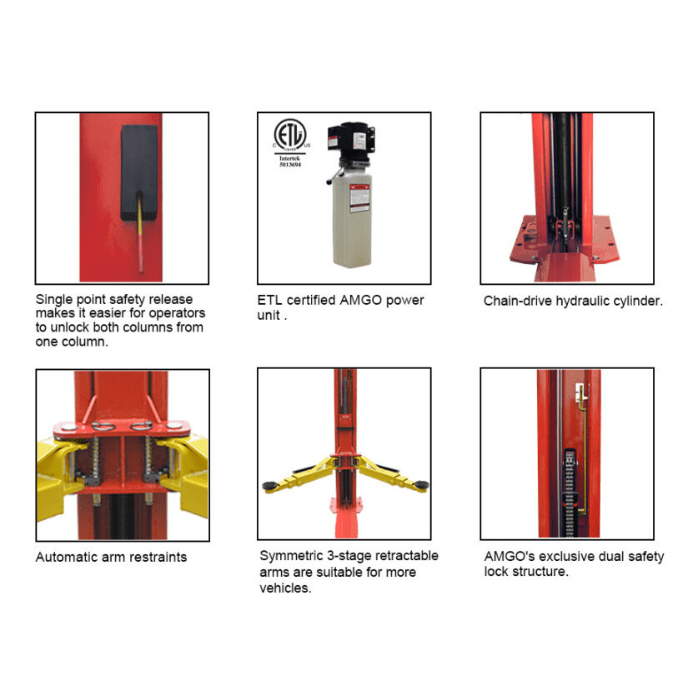

• 10,000 lb symmetric capacity with 3-stage arms: This 10000 lb 2 post lift is built for daily use on sedans, SUVs, and light trucks. All four arms are 3-stage and retractable, so you can reach short and long lift points without awkward spotting. The symmetric layout centers mass between columns, improving balance and door clearance while you set adapters.
• Dual cylinders, chain drive, and aero sync cables: Paired cylinders and chain equalization deliver steady rise and level platforms across the entire stroke. Aero sync cables help maintain column-to-column harmony, reducing re-leveling time. Imported seals keep the hydraulics tight, supporting long service intervals and consistent performance.
• Dual-safety locks with single-point release: A mechanical lock system engages at multiple positions as you rise, giving you a solid work height. The single-point manual release lets you control descent from one column, saving time during turnarounds. Automatic arm restraints lock as the lift leaves the ground, so arms stay put during work.
• Shop-ready power and straightforward maintenance: The 2.0 HP single-phase 220V motor is easy for a licensed electrician to install and ground correctly. Use ISO 46 oil for reliable operation, then change it after the first three months and yearly thereafter. Quick daily checks of anchor torque, hoses, cable tension, and lock function keep uptime high.
Minimum Garage Requirements
✔ Ceiling Height: At least 117" (9'9") recommended ✔ Footprint: 100" drive-thru x 139" overall (8'4" x 11'7") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, single-phase, 220V, 60 Hz ✔ Overall Lift Height: 111" (9'3") (measure before ordering)
✔ Ceiling Height: At least 117" (9'9") recommended
✔ Footprint: 100" drive-thru x 139" overall (8'4" x 11'7")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, single-phase, 220V, 60 Hz
✔ Overall Lift Height: 111" (9'3") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

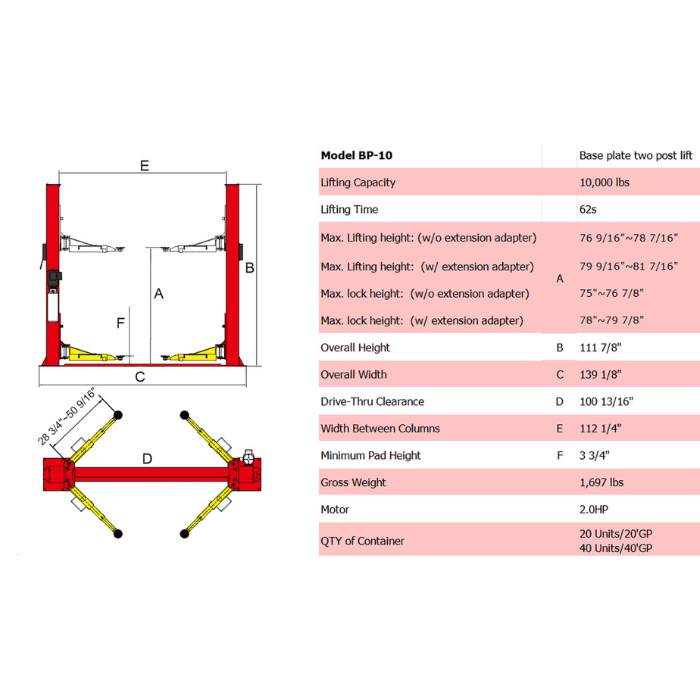

AMGO BP-10 10,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | BP-10 |
| Lift Type | Symmetric 2-post, base-plate (floor-plate) |
| Rated Capacity | 10,000 lb |
| Arm Configuration | Four 3-stage retractable arms, automatic arm restraints |
| Lifting Time | ≈ 62 seconds |
| Minimum Pad Height | 3-3/4" |
| Max Lifting Height (pads only) | 76-9/16" to 78-7/16" |
| Max Lifting Height (with extensions) | 79-9/16" to 81-7/16" |
| Max Lock Height (pads only) | 75" to 76-7/8" |
| Max Lock Height (with extensions) | 78" to 79-7/8" |
| Overall Height | 111-7/8" |
| Overall Width | 139-1/8" |
| Width Between Columns | 112-1/4" |
| Drive-Thru Clearance | 100-13/16" |
| Power Unit | 2.0 HP, single-phase, 220V, 60 Hz |
| Hydraulic System | Dual cylinders, chain drive, aero sync cables |
| Weight | 1,700 lbs |
| Sliders | UHMW self-lubricating |
| Safety System | Dual-safety lock structure, single-point manual lock release |

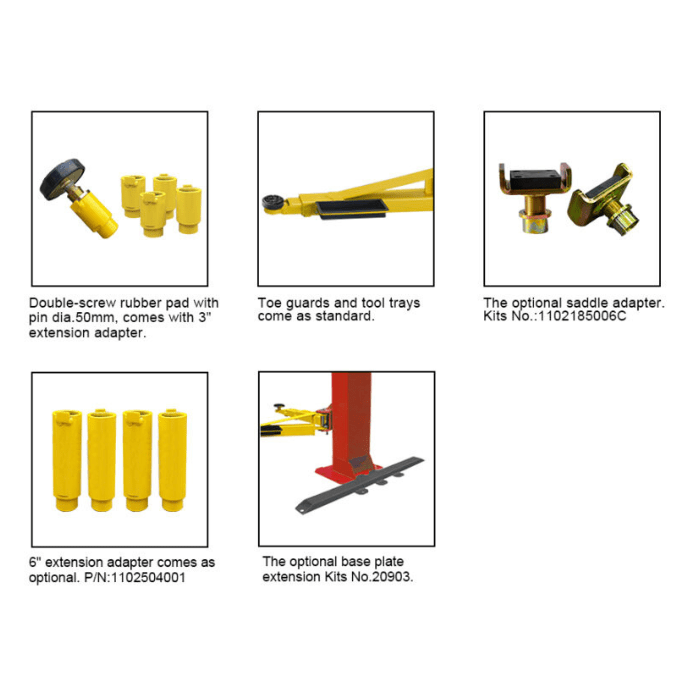

| Included Pads | Double-screw rubber pads, 1/2" pin |
| Included Extensions | (4) 3" pad extensions |
| Optional Accessories | 6" pad extensions, saddle adapters, base-plate extension kit |
| Concrete Requirement | 4" thick, 3,000 PSI, sound condition, no rebar in anchor zone |
| Anchor Torque | 150 N·m |

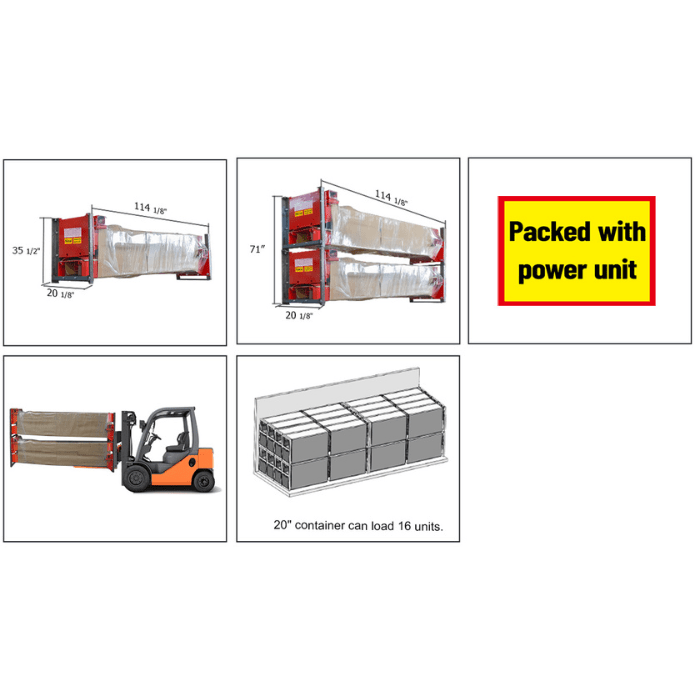

| Shipping Dimensions | Length: 114 1/8" Width: 20 1/8" Height: 35 1/2" |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
