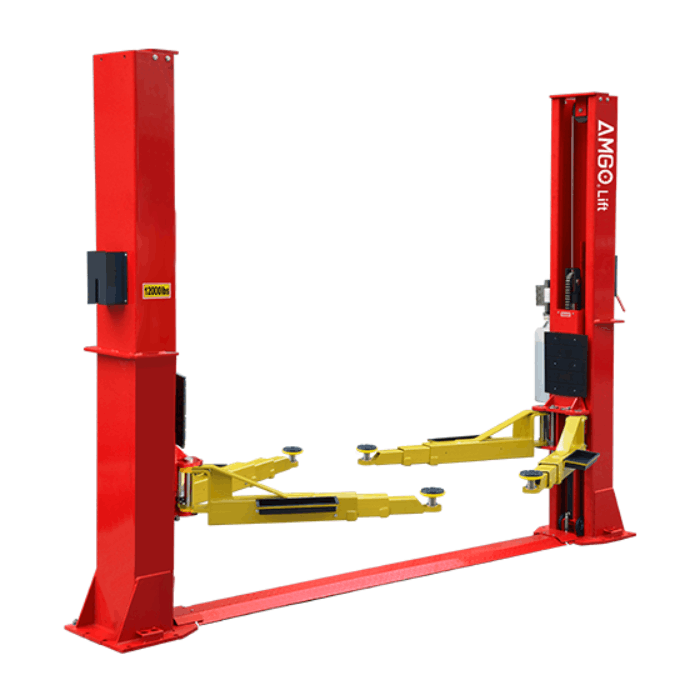

AMGO BP-12 two post car lift with red columns and yellow adjustable swing arms

AMGO 12,000 lb 2-Post Car Lift | BP-12

by AMGO
SKU BP-12
Save $550.00
$5,500.00
$4,950.00
No Sales Tax Outside GA & IL
Free Warehouse Pickup Available
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Find Your Nearest Pickup Warehouse

Notify me when back in stock

Trust badges for AMGO Trust badges for AMGO

Built to Just Work: AMGO BP-12 12,000 lb 2-Post Base-Plate Lift

Buying a lift can feel risky when you’re juggling ceiling height, slab requirements, and whether the arms will actually reach your vehicles. The AMGO BP-12 takes that stress off your plate by pairing a true 12,000 lb capacity with extra-long 3-stage arms that grab everything from sedans to ¾-ton pickups with confidence. With a low 4.5 inch pad height, you won’t fight to get under lower vehicles, and the open-top floorplate design keeps the bay clear for tall roofs and open doors. Two install widths let you fit the posts to your shop, not the other way around. If you’ve been searching for a dependable 2 Post Lift that just works, this one’s designed to make setup and daily use simple. 12K baseplate options are even rarer than 10K because most manufacturers won't engineer the structural load path for 12K through floor-routed cables. AMGO's BP-12 is one of the few that does it cleanly with a heavier-spec hydraulic and structural design.

Shops choose the BP-12 because it blends muscle with efficiency. Lift time is about 65 seconds, so you’re in the air quickly without stressing the hydraulic system. You’ll get 72.5 to 73 7/8 inches of pad height with standard pads, or up to 81 9/16 to 82 7/8 inches with the included 3 inch and 6 inch extensions. Drive-thru clearance adjusts to roughly 104 7/16 to 109 13/16 inches depending on which width you pick, so big trucks aren’t squeezing through a bottleneck. The single-point lock release lets you drop from both columns on one side, speeding up workflows during busy days. It’s a professional, commercial vehicle lift that still fits a lot of home shops with 10.2 foot ceilings or higher. Width options of 145-3/8 or 150-3/4 inches let you size the bay layout to your fleet, with drive-thru clearance from 104-7/16 to 109-13/16 inches. The 5" concrete requirement is heavier than baseplate norms but appropriate for the 12K rating.

Durability is baked in, not bolted on. Chain-drive cylinders with UHMW sliders and bronze bushings handle daily cycles smoothly and stand up to wear. Synchronized Aero cables keep columns in step, and automatic arm restraints lock in position once you start lifting. Anchors, pads, saddle adapters, 3 inch and 6 inch stackable extensions, toe guards, and tool trays are all in the box, so you aren’t piecing together a kit after delivery. AMGO backs it with a 5-year steel, 3-year hydraulic, and 2-year electrical warranty, which is exactly what you want on a 12000 lb 2 post lift built for real shop work. Whether you call it a 2 post car lift or simply your next revenue driver, the BP-12 is ready for the grind. For shops handling crew cabs, lifted SUVs, and light commercial vehicles in a residential or low-ceiling commercial bay, the BP-12 fills a niche most other manufacturers don't address.

Need something different? Explore all our 2-post lift options.

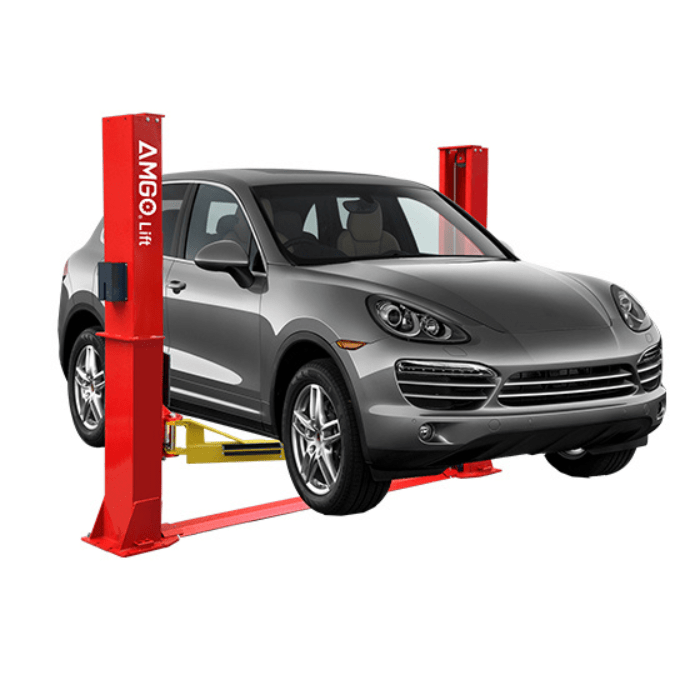

Front side view of the AMGO BP-12 12,000 lb 2-Post Car Lift holding up a car

Benefits of the AMGO BP-12 Two Post Lift

Maximize vehicle coverage
12,000 lb capacity at baseplate height covers crew cabs, lifted trucks, and most light commercial vehicles. No need to commit to a 13-foot ceiling for an overhead lift.
Faster bay throughput
Two width options let you size the lift to your fleet's drive-thru needs. Single-point release cuts cycle time in busy commercial bays.
Fit more shops
Baseplate design fits residential and low-ceiling commercial bays where overhead 12K lifts won't install. 122.5" overall height works in most existing bay layouts.
Work around tall roofs
Width options of 145-3/8" or 150-3/4" handle wide-body vehicles like dually pickups and crew cabs. Drive-thru up to 109-13/16" for the widest fleet vehicles.
Safer daily lifting
Heavier-duty structural rating at 12K means the lift handles full-capacity loads with appropriate margin. Mechanical locks engage at multiple positions.
Lower ownership costs
Direct-drive hydraulics and sealed lubrication reduce the maintenance schedule that lighter-duty 12K lifts require. Years of cycling with minimal upkeep.

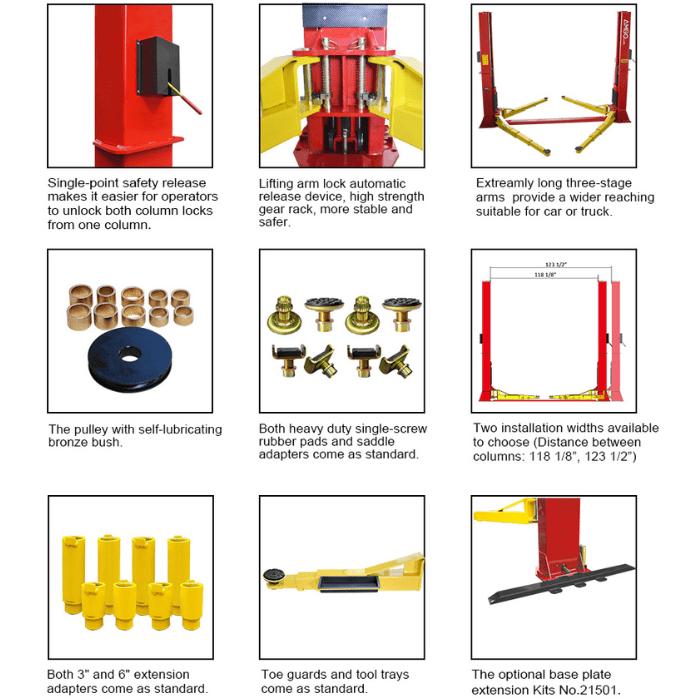

Key Features of the AMGO BP-12 2-Post Lift You'll Love:

• Extra-Long 3-Stage Arms: These arms extend and retract to reach a wide mix of wheelbases without awkward spotting. The three-stage design gives you more front-to-rear reach to hit proper lift points on sedans, SUVs, and ¾-ton trucks. In practice, that means fewer re-spots, faster setups, and safer, more stable lifts with less hassle throughout the day.

• Two Install Widths for Flexible Bay Fit: Choose 118 1/8 or 123 1/2 inches between posts to match your space and vehicles. The adjustable drive-thru clearance, roughly 104 7/16 to 109 13/16 inches, helps larger trucks enter comfortably. You’ll optimize door swing and arm reach while keeping traffic flowing through your shop.

• Dual-Safety, Heavy-Duty Construction: Synchronized Aero cables keep columns balanced, while chain-drive cylinders with UHMW sliders and bronze bushings deliver smooth motion. The structure is engineered for a true 12,000 lb rating, not just marketing copy. It’s built to handle daily commercial cycles as a reliable commercial vehicle lift.

• Complete Kit with Adapters and Hardware: Pads, saddle adapters, 3 inch and 6 inch extensions, anchors, toe guards, tool trays, and protective covers are included. You won’t chase extra parts or wait on add-ons to finish your install. That means faster commissioning and fewer hidden costs after delivery.

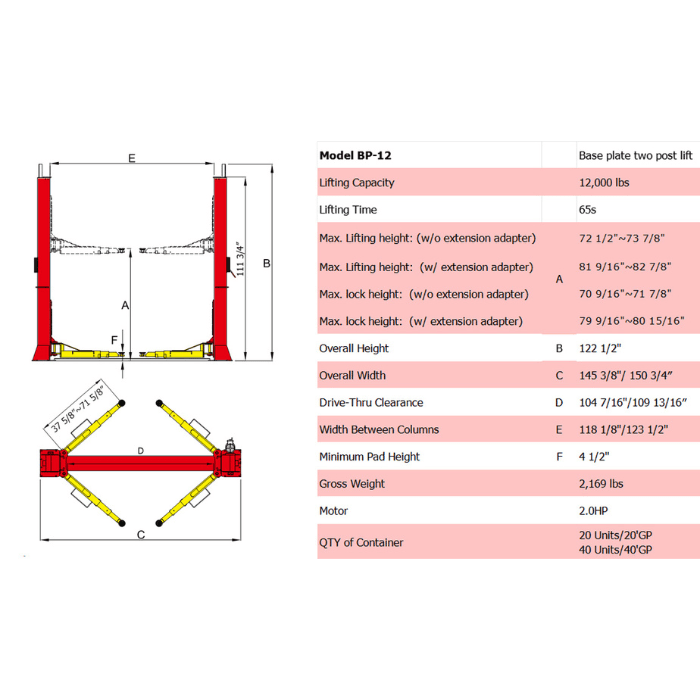

Tech diagram of the BP-12 two post lift

Minimum Garage Requirements

✔ Ceiling Height: At least 128" (10'8") recommended ✔ Footprint: 109" drive-thru x 145" overall (9'1" x 12'1") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60Hz, single-phase ✔ Overall Lift Height: 122" (10'2") (measure before ordering)

✔ Ceiling Height: At least 128" (10'8") recommended
✔ Footprint: 109" drive-thru x 145" overall (9'1" x 12'1")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60Hz, single-phase
✔ Overall Lift Height: 122" (10'2") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

AMGO BP-12 12,000 lb 2-Post Car Lift Specifications
Manufacturer AMGO
Capacity 12,000 lb
Lift Time ~65 seconds
Max Lifting Height at Pads 72.5 to 73 7/8 in (no extensions)
Max Lifting Height at Pads with Extensions 81 9/16 to 82 7/8 in (with 3 in and 6 in extensions)
Max Lock Height at Pads 70 9/16 to 71 7/8 in (no extensions)
Max Lock Height at Pads with Extensions 79 9/16 to 80 15/16 in
Overall Height 122.5 in
Overall Width Options 145 3/8 in or 150 3/4 in
Width Between Columns 118 1/8 in or 123 1/2 in
Drive-Thru Clearance 104 7/16 to 109 13/16 in
Minimum Pad Height 4.5 in
Power Unit 2.0 HP, 220V, 60Hz, single-phase
Anchors Included 3/4 in × 6.5 in, qty 12
Shipping/Gross Weight ~2,169 lb
Concrete Requirements Indoor, level slab ≥ 5 in thick, ≥ 3,500 psi, no rebar in anchor zone, cure ≥ 15 days
Electrical Requirements Dedicated 220V single-phase circuit, proper grounding by qualified electrician
Ceiling Requirement Greater than 10.2 ft
Safety Systems Single-point manual lock release, automatic arm restraints, synchronized Aero cables
Arms Four extra-long 3-stage arms, moon-gear locks
Included Adapters Heavy-duty single-screw rubber pads, saddle adapters, 3 in and 6 in stackable extensions
Included Accessories Toe guards, tool trays, protective safety-device covers, complete hardware
Recommended Hydraulic Oil ISO 46 AW
Maintenance Highlights Monthly anchor torque and hose checks, lube sliders and cables; 6-month cable tension check
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts
Overview

Built to Just Work: AMGO BP-12 12,000 lb 2-Post Base-Plate Lift

Buying a lift can feel risky when you’re juggling ceiling height, slab requirements, and whether the arms will actually reach your vehicles. The AMGO BP-12 takes that stress off your plate by pairing a true 12,000 lb capacity with extra-long 3-stage arms that grab everything from sedans to ¾-ton pickups with confidence. With a low 4.5 inch pad height, you won’t fight to get under lower vehicles, and the open-top floorplate design keeps the bay clear for tall roofs and open doors. Two install widths let you fit the posts to your shop, not the other way around. If you’ve been searching for a dependable 2 Post Lift that just works, this one’s designed to make setup and daily use simple. 12K baseplate options are even rarer than 10K because most manufacturers won't engineer the structural load path for 12K through floor-routed cables. AMGO's BP-12 is one of the few that does it cleanly with a heavier-spec hydraulic and structural design.

Shops choose the BP-12 because it blends muscle with efficiency. Lift time is about 65 seconds, so you’re in the air quickly without stressing the hydraulic system. You’ll get 72.5 to 73 7/8 inches of pad height with standard pads, or up to 81 9/16 to 82 7/8 inches with the included 3 inch and 6 inch extensions. Drive-thru clearance adjusts to roughly 104 7/16 to 109 13/16 inches depending on which width you pick, so big trucks aren’t squeezing through a bottleneck. The single-point lock release lets you drop from both columns on one side, speeding up workflows during busy days. It’s a professional, commercial vehicle lift that still fits a lot of home shops with 10.2 foot ceilings or higher. Width options of 145-3/8 or 150-3/4 inches let you size the bay layout to your fleet, with drive-thru clearance from 104-7/16 to 109-13/16 inches. The 5" concrete requirement is heavier than baseplate norms but appropriate for the 12K rating.

Durability is baked in, not bolted on. Chain-drive cylinders with UHMW sliders and bronze bushings handle daily cycles smoothly and stand up to wear. Synchronized Aero cables keep columns in step, and automatic arm restraints lock in position once you start lifting. Anchors, pads, saddle adapters, 3 inch and 6 inch stackable extensions, toe guards, and tool trays are all in the box, so you aren’t piecing together a kit after delivery. AMGO backs it with a 5-year steel, 3-year hydraulic, and 2-year electrical warranty, which is exactly what you want on a 12000 lb 2 post lift built for real shop work. Whether you call it a 2 post car lift or simply your next revenue driver, the BP-12 is ready for the grind. For shops handling crew cabs, lifted SUVs, and light commercial vehicles in a residential or low-ceiling commercial bay, the BP-12 fills a niche most other manufacturers don't address.

Need something different? Explore all our 2-post lift options.

 Front side view of the AMGO BP-12 12,000 lb 2-Post Car Lift holding up a car

Benefits of the AMGO BP-12 Two Post Lift

Maximize vehicle coverage 12,000 lb capacity at baseplate height covers crew cabs, lifted trucks, and most light commercial vehicles. No need to commit to a 13-foot ceiling for an overhead lift. Faster bay throughput Two width options let you size the lift to your fleet's drive-thru needs. Single-point release cuts cycle time in busy commercial bays. Fit more shops Baseplate design fits residential and low-ceiling commercial bays where overhead 12K lifts won't install. 122.5" overall height works in most existing bay layouts. Work around tall roofs Width options of 145-3/8" or 150-3/4" handle wide-body vehicles like dually pickups and crew cabs. Drive-thru up to 109-13/16" for the widest fleet vehicles. Safer daily lifting Heavier-duty structural rating at 12K means the lift handles full-capacity loads with appropriate margin. Mechanical locks engage at multiple positions. Lower ownership costs Direct-drive hydraulics and sealed lubrication reduce the maintenance schedule that lighter-duty 12K lifts require. Years of cycling with minimal upkeep.

Key Features of the AMGO BP-12 2-Post Lift You'll Love:

• Extra-Long 3-Stage Arms: These arms extend and retract to reach a wide mix of wheelbases without awkward spotting. The three-stage design gives you more front-to-rear reach to hit proper lift points on sedans, SUVs, and ¾-ton trucks. In practice, that means fewer re-spots, faster setups, and safer, more stable lifts with less hassle throughout the day.

• Two Install Widths for Flexible Bay Fit: Choose 118 1/8 or 123 1/2 inches between posts to match your space and vehicles. The adjustable drive-thru clearance, roughly 104 7/16 to 109 13/16 inches, helps larger trucks enter comfortably. You’ll optimize door swing and arm reach while keeping traffic flowing through your shop.

• Dual-Safety, Heavy-Duty Construction: Synchronized Aero cables keep columns balanced, while chain-drive cylinders with UHMW sliders and bronze bushings deliver smooth motion. The structure is engineered for a true 12,000 lb rating, not just marketing copy. It’s built to handle daily commercial cycles as a reliable commercial vehicle lift.

• Complete Kit with Adapters and Hardware: Pads, saddle adapters, 3 inch and 6 inch extensions, anchors, toe guards, tool trays, and protective covers are included. You won’t chase extra parts or wait on add-ons to finish your install. That means faster commissioning and fewer hidden costs after delivery.

 Tech diagram of the BP-12 two post lift

Minimum Garage Requirements

✔ Ceiling Height: At least 128" (10'8") recommended ✔ Footprint: 109" drive-thru x 145" overall (9'1" x 12'1") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60Hz, single-phase ✔ Overall Lift Height: 122" (10'2") (measure before ordering)

✔ Ceiling Height: At least 128" (10'8") recommended
✔ Footprint: 109" drive-thru x 145" overall (9'1" x 12'1")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60Hz, single-phase
✔ Overall Lift Height: 122" (10'2") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

AMGO BP-12 12,000 lb 2-Post Car Lift Specifications
Manufacturer AMGO
Capacity 12,000 lb
Lift Time ~65 seconds
Max Lifting Height at Pads 72.5 to 73 7/8 in (no extensions)
Max Lifting Height at Pads with Extensions 81 9/16 to 82 7/8 in (with 3 in and 6 in extensions)
Max Lock Height at Pads 70 9/16 to 71 7/8 in (no extensions)
Max Lock Height at Pads with Extensions 79 9/16 to 80 15/16 in
Overall Height 122.5 in
Overall Width Options 145 3/8 in or 150 3/4 in
Width Between Columns 118 1/8 in or 123 1/2 in
Drive-Thru Clearance 104 7/16 to 109 13/16 in
Minimum Pad Height 4.5 in
Power Unit 2.0 HP, 220V, 60Hz, single-phase
Anchors Included 3/4 in × 6.5 in, qty 12
Shipping/Gross Weight ~2,169 lb
Concrete Requirements Indoor, level slab ≥ 5 in thick, ≥ 3,500 psi, no rebar in anchor zone, cure ≥ 15 days
Electrical Requirements Dedicated 220V single-phase circuit, proper grounding by qualified electrician
Ceiling Requirement Greater than 10.2 ft
Safety Systems Single-point manual lock release, automatic arm restraints, synchronized Aero cables
Arms Four extra-long 3-stage arms, moon-gear locks
Included Adapters Heavy-duty single-screw rubber pads, saddle adapters, 3 in and 6 in stackable extensions
Included Accessories Toe guards, tool trays, protective safety-device covers, complete hardware
Recommended Hydraulic Oil ISO 46 AW
Maintenance Highlights Monthly anchor torque and hose checks, lube sliders and cables; 6-month cable tension check
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.

⛟Shipping and Returns

Shipping

  • Freight shipping only within the lower 48 states and Canada.
  • Orders typically arrive within 2–7 business days, but may take up to 21 days depending on item size, quantity, and destination.
  • Delivery dates are estimates only and not guaranteed.
  • Customer is responsible for unloading freight shipments from the delivery truck. If no forklift or loading dock is available, the order must be shipped to a freight terminal for customer pickup or collected directly from an AMGO warehouse.
  • Liftgate service is available for an additional fee on qualifying products (not available for vehicle lifts).
  • Customer is responsible for re-delivery charges if delivery is missed, shipment is redirected, or storage fees are incurred.
  • Inspect all shipments immediately upon arrival. You have the right to inspect before signing. Note any damage or suspected damage on the Bill of Lading.
  • Hidden damage or missing parts must be reported to AMGO and the freight carrier within 48 hours of delivery.
  • AMGO is not responsible for downtime or costs incurred due to shipping delays.

Returns

  • 30-day return window from the invoice date for eligible items.
  • All returns require prior authorization from AMGO; unauthorized returns will be refused.
  • Items must be unused, in original packaging, and include all manuals, accessories, and packing material.
  • Non-returnable items: Used, damaged, or missing components.
  • 25% restocking fee applies to non-defective returns. Additional fees may apply for opened or incomplete products.
  • Customer is responsible for return freight costs.
  • Defective or incorrectly shipped merchandise will be replaced or refunded at no cost.
  • Cancelled orders before shipment are subject to a 3% processing fee. Orders cancelled after shipment will be subject to shipping costs and restocking fees.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
