OH-12 by AMGO, 12,000 lb commercial 2 post lift

AMGO Commercial 12,000 lb 2-Post Lift | OH-12

by AMGO
SKU OH-12
Save $300.00
$5,750.00
$5,450.00
No Sales Tax in Most States
Free Warehouse Pickup Available
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Find Your Nearest Pickup Warehouse

Notify me when back in stock

Trust badges for AMGO Trust badges for AMGO

The AMGO OH-12 2 Post Lift: Built for Commercial Power and Everyday Reliability

Buying a lift can feel risky when you’re worried about ceiling height, door swing, and whether the arms will actually reach your lift points. If you run a busy shop, you also need predictable safety locks, real under-car clearance for trucks and vans, and a clear floor that keeps jacks and creepers moving. The AMGO OH-12 solves those pain points with a 12,000 lb capacity, dual direct-drive hydraulics, and an overhead limit switch that protects taller vehicles. Three selectable overall heights. 174 in, 186 in, or 198 in. Make it easier to match buildings with 14.5 to 16.5 ft ceilings. With a quick rise time of about 69 seconds and a minimum pad height of 4 1/2 in, it’s built for real-world bays that see everything from low cars to commercial pickups. Commercial 12K lifts at this capacity tier typically cost 30-50% more for the same structural rating because of the engineering required to handle commercial-vehicle service cycles. AMGO's OH-12 brings commercial-tier capability into a price band independent shops can actually afford.

This model gives you space where it counts. Maximum lifting height is roughly 72 1/2 to 73 7/8 in on pads only, or about 81 9/16 to 82 7/8 in with adapters, which means comfortable standing room for most techs. A wide 150 3/4 in overall width with 123 1/2 in between columns creates a roomy work area, and the 109 3/4 in drive-thru clearance helps keep traffic moving. Four 3-stage arms reach short wheelbase cars and longer trucks without awkward repositioning. The result is a consistent workflow, fewer re-spots, and less time lost to setup. Three factory column-height settings (174", 186", 198") cover bay ceilings from standard commercial to high-bay industrial. The 5" / 3,500 PSI concrete requirement reflects the heavier-duty structural rating compared to consumer-grade 12K lifts.

You also get pro-grade touches that cut maintenance and protect uptime. The OH-12’s single-point safety lock release lets you unlock both columns from one side. Self-lubricating UHMW sliders and bronze bushings keep motion smooth and service intervals simple. Standard hardware includes heavy-duty round pads, saddle adapters, plus 3 in and 6 in extensions, so you can set height quickly for SUVs, trucks, or commercial vans. If you’re searching for a dependable 2 Post Lift, the AMGO OH-12 is a smart, future-proof pick for commercial bays that need a true 2 Post Lift with commercial capacity. For commercial shops handling crew cabs, work vans, fleet trucks, and other 12K-capable vehicles, the OH-12 is sized for the daily commercial cycling that most consumer-tier 12K lifts can't sustain.

Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.

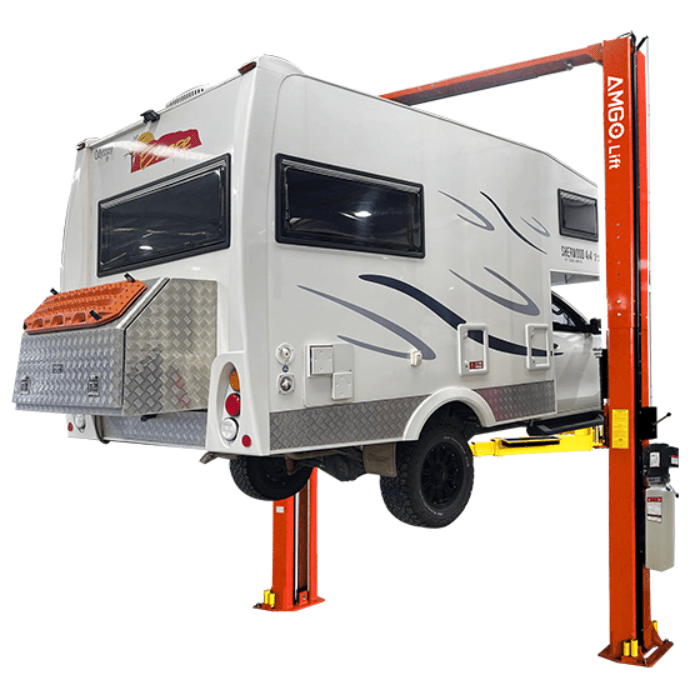

AMGO OH-12 12k two post lift raising camper

Benefits of the AMGO OH-12 Two Post Lift

Faster bay turns
Single-point lock release and overhead cable routing cut cycle time in high-volume commercial bays. Fewer wasted seconds per vehicle compounds across a full day.
Real height flexibility
Three factory column-height settings (174", 186", 198") let you size the lift to your bay ceiling. No overspending on commercial-grade columns you don't need.
Confident vehicle protection
Heavy-duty rubber lifting blocks protect frame finish during contact. The structural rating is verified at 12K with appropriate commercial-grade margin.
Lower maintenance load
Direct-drive hydraulic cylinders eliminate the secondary cable systems that fail first in cheaper 12K lifts. Sealed lubrication extends service intervals.
True mixed-fleet coverage
12K capacity covers crew cabs, work vans, light commercial trucks, and fleet vehicles at the upper end of typical 2-post requirements.
Professional uptime
Built for commercial-grade daily cycling, not just occasional residential use. The kind of structure that holds up to pro-shop volume year after year.

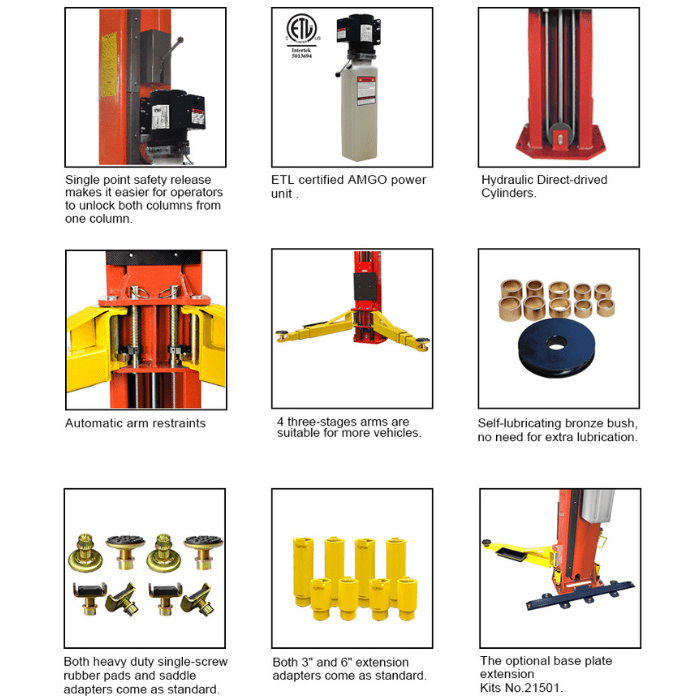

Key Features of the AMGO OH-12 2-Post Lift You'll Love:

• Direct-drive dual hydraulic cylinders (no chains): Direct-drive delivers smooth lifting without the chain maintenance that slows shops down. Fewer wear points mean fewer adjustments and less downtime across busy weeks. You get consistent performance that helps techs trust the lift at every stop height.

• Four 3-stage arms for real coverage: All four arms telescope through three stages to handle compact cars, full-size SUVs, and commercial pickups. This range lets you choose symmetric or asymmetric approaches as your jobs demand. Result: fewer re-spots and faster bay turns on mixed fleets.

• Three selectable column heights with overhead safety shut-off: Pick 174 in, 186 in, or 198 in overall height to match 14.5 to 16.5 ft ceilings. The overhead bar integrates a limit switch that protects tall roofs and roof racks from accidental contact. You get flexibility during install and peace of mind during daily use.

• Single-point lock release with automatic arm restraints: Unlock both columns from one side to speed transitions between lock positions. Automatic arm restraints engage during lift to help keep arms locked where you set them. Together, they support predictable safety and reduce unintended arm drift.

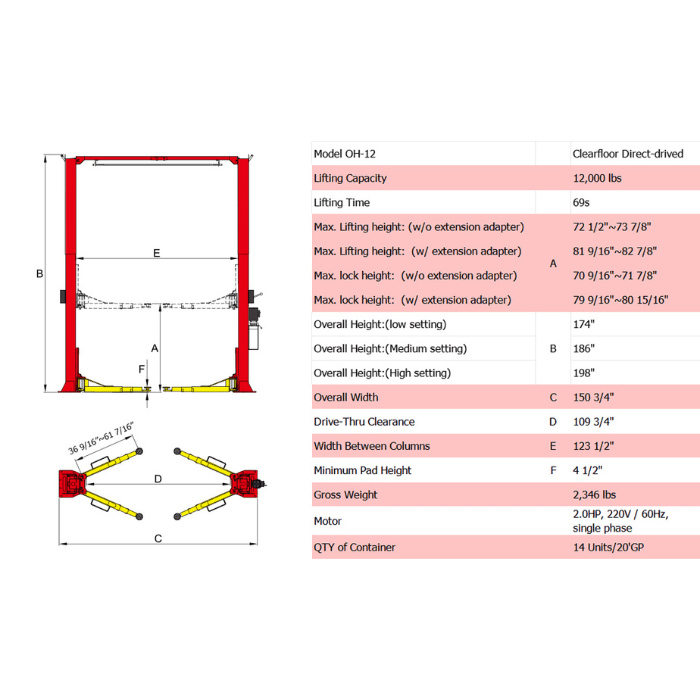

OH-12 two post lift measurements and specs, 12,000 lb

Minimum Garage Requirements

✔ Ceiling Height: At least 180" (15'0") recommended ✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6") ✔ Concrete Thickness: Minimum 5" (127.0 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP hydraulic power unit ✔ Overall Lift Height: 174" (14'6") (measure before ordering)

✔ Ceiling Height: At least 180" (15'0") recommended
✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6")
✔ Concrete Thickness: Minimum 5" (127.0 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP hydraulic power unit
✔ Overall Lift Height: 174" (14'6") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

AMGO OH-12 12,000 lb 2-Post Car Lift Specifications
Manufacturer AMGO
Capacity 12,000 lb
Lift Time ~69 seconds
Max Lift Height — Pads Only 72 1/2 to 73 7/8 in
Max Lift Height — With Adapters 81 9/16 to 82 7/8 in
Max Lock Height — Pads Only 70 9/16 to 71 7/8 in
Max Lock Height — With Adapters 79 9/16 to 80 15/16 in
Overall Height Settings 174 in, 186 in, 198 in
Overall Width 150 3/4 in
Width Between Columns 123 1/2 in
Drive-Thru Clearance 109 3/4 in
Minimum Pad Height 4 1/2 in
Power Unit 2.0 HP hydraulic power unit
Electrical 220 V, 60 Hz, single-phase
Gross Weight 2,436 lb
Safety Systems Single-point lock release, automatic arm restraints, overhead safety shut-off
Arm Configuration 4 arms. All 3-stage
Included Adapters Heavy-duty round pads, saddle adapters, 3 in and 6 in extensions
Sliding/Bushings Self-lubricating UHMW sliders with bronze bushings
Concrete Requirement 5 in thick, 3,500 psi, sound and level (indoor only)
Minimum Ceiling Guidance 180 in (15 ft) recommended; choose column height to suit, 174 in overall requires about 14.5 ft clear ceiling
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

AMGO OH-12 Frequently Asked Questions

What vehicles is the OH-12 built for?

Commercial truck work: a 12,000 lb 2 post lift for 3/4-ton and 1-ton pickups, work vans, and boxed service bodies. The 109 3/4" drive-thru and 123 1/2" between columns take wide duallys, and adapters push pad height to 82 7/8" for tall-frame trucks.

How much ceiling height do I need?

The columns install at 174", 186", or 198" -- plan on 180" (15'0") minimum. That triple height setting is the point: set it tall for vans and lifted trucks. Lower bay? The OH-12S installs from 143-1/8" (12'5" ceilings), and the floor-plate BP-12 fits under 11 feet.

OH-12 or OH-12S -- which 12K is right?

Same 12,000 lb capacity. This OH-12 is the tall-bay version (174"-198" settings) for shops lifting tall vehicles high. The OH-12S covers standard commercial bays with settings from 143-1/8" to 167-1/8".

What accessories does it take?

AMGO lists the 21501 base extension kit for this lift, and stackable pad adapters are included for frame-height flexibility.

Do I need to bolt it to the floor?

Yes -- every 2-post must be anchored. The OH-12 calls for concrete at least 5" thick at 3,500 PSI compressive strength -- note the heavier slab spec at this capacity. Verify your slab before ordering.

Should I get a 2-post or a 4-post lift?

Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. For heavy trucks that mostly need wheels-supported underbody access, a 4-post can be the better call. Our 2-Post vs 4-Post guide walks through the decision.

Is the AMGO OH-12 worth it?

Triple-height installation flexibility at a true 12,000 lb rating, backed by 5-year structure / 3-year hydraulics / 2-year electrical coverage. Need more? The OH-15 shares this frame at 15,000 lbs. See the Reviews tab above for buyer feedback.
