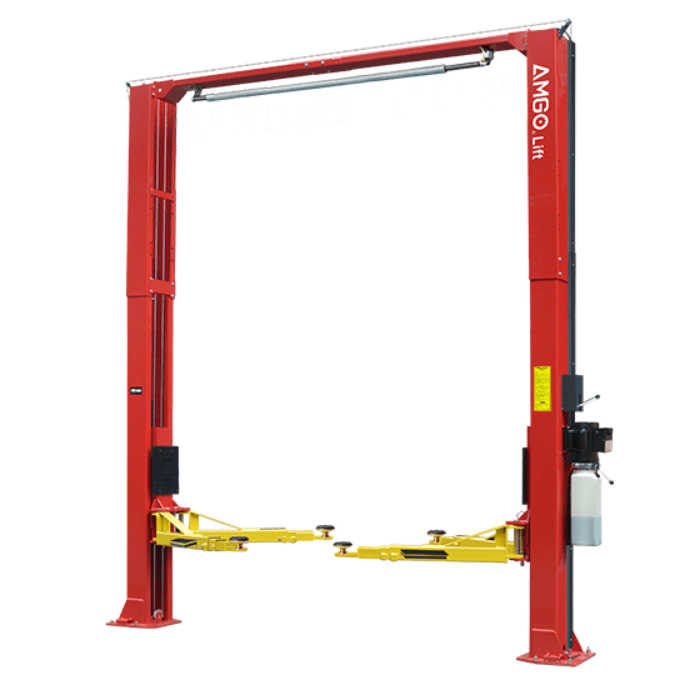

AMGO Heavy-Duty 12,000 lb 2-Post Lift | OH-12S
AMGO 12,000 lb 2-Post Lift - Adjustable Height | OH-12S
Buying a 2 Post Lift can feel risky when you are worried about ceiling height, door swing, and whether the arms will actually reach your lift points. If you run a busy shop, you also need predictable safety locks, real under-car clearance for trucks and vans, and a clear floor to keep jacks and creepers moving. The AMGO OH-12S answers those pain points with a 12,000 lb capacity, dual direct-drive hydraulics, and an overhead limit bar that protects taller vehicles. With three selectable overall heights to fit 12-14 ft ceilings, it drops into more buildings without costly modifications. If you are searching for a dependable 2 Post Lift, this model is a smart, future-proof pick for commercial bays. Heavy-duty 12K with shorter column options is a niche the market mostly ignores. Most heavy-duty 12K lifts assume commercial 14-15 foot ceilings, leaving shops with 12-foot ceilings forced to either downgrade to consumer-grade construction or fly into commercial-grade pricing.
This OH-12S gives you room to breathe under the vehicle without stretching your building limits. Choose overall heights of 143 1⁄8", 155 1⁄8", or 167 1⁄8" to match your shop. A clear-floor design and a wide 109 3⁄4" drive-thru keep the bay open for tool carts and transmissions. Four 3-stage arms cover short and long wheelbases, while heavy-duty rubber pads with 2" pins and included 3" and 6" adapters help you hit the right contact points. Aero sync cables maintain carriage balance for smooth, even lifting. Three column heights (143-1/8", 155-1/8", 167-1/8") put the lift in the right ceiling envelope for most commercial bays. The reinforced structural design and 5" concrete requirement match the 12K capacity rating with appropriate margin.

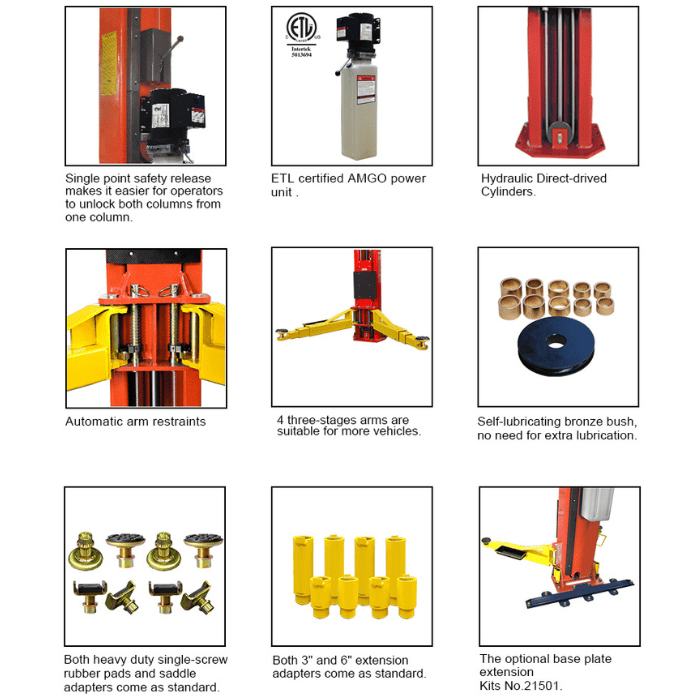

Day-to-day reliability is baked in. UHMW polyethylene sliders and bronze bushings reduce wear and maintenance. A single-point manual safety lock release and automatic arm restraints add simple, mechanical confidence your techs will trust. The 2.0 HP, 220V single-phase power unit delivers a 69-second rise, so you stay on schedule. With a 5-3-2 factory warranty and clear installation requirements for concrete, power, and oil, the OH-12S is the practical commercial vehicle lift that just works. For commercial shops working in standard commercial-bay heights (12-14 feet) but needing true 12K commercial-grade capability, the OH-12S threads the needle between consumer-tier and full commercial-tier equipment.
If this model doesn’t work for you, see our complete lineup of 2-post lifts.
Benefits of the AMGO OH-12S Two Post Lift
Key Features of the AMGO OH-12S 2-Post Lift You'll Love:
• 12,000 lb capacity with dual direct-drive cylinders: This 12000 lb 2 post lift uses two direct-drive hydraulic cylinders, so there are no chains to stretch or maintain. Direct-drive gives you smoother motion and fewer moving parts to service over time. The result is predictable lifting on heavier trucks that keeps your schedule moving.
• Three adjustable overall heights for 12-14 ft ceilings: Choose low, medium, or high settings at 143 1⁄8", 155 1⁄8", or 167 1⁄8" to match your building. This flexibility lets you maximize rise height without cutting or moving obstructions. It makes the OH-12S a fit for more shops, especially remodels where ceiling height varies bay to bay.
• Safety systems your team can trust: A single-point manual safety lock release lets one tech lower from one column with confidence. The overhead safety shut-off bar protects roofs and racks, and aero sync cables keep both carriages level. Automatic arm restraints lock in position as you raise, which helps prevent arm drift during service.
• Versatile reach with four 3-stage arms and included adapters: Four 3-stage arms let you hit compact and long-wheelbase lift points without awkward repositioning. Heavy-duty pads with 2" pins plus stackable 3" and 6" adapters help you dial in the right contact height. That means faster setups and fewer callbacks on tough chassis.
Minimum Garage Requirements
✔ Ceiling Height: At least 149" (12'5") recommended ✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6") ✔ Concrete Thickness: Minimum 5" (127.0 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60 Hz, 1-phase ✔ Overall Lift Height: 143" (11'11") (measure before ordering)
✔ Ceiling Height: At least 149" (12'5") recommended
✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6")
✔ Concrete Thickness: Minimum 5" (127.0 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60 Hz, 1-phase
✔ Overall Lift Height: 143" (11'11") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

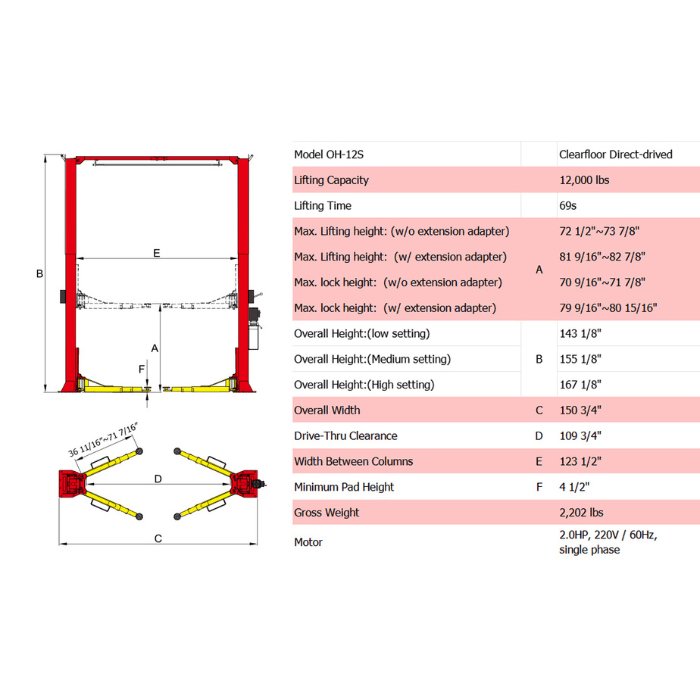

AMGO OH-12S 12,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | OH-12S |
| Product Type | Clear-floor two-post lift, adjustable height |
| Capacity | 12,000 lbs |
| Lift Time | 69 s |
| Max Lifting Height (pads only) | 72 1⁄2" to 73 7⁄8" |
| Max Lifting Height (with adapters) | 81 9⁄16" to 82 7⁄8" |
| Max Lock Height (pads) | 70 9⁄16" to 71 7⁄8" |
| Max Lock Height (with adapters) | 79 9⁄16" to 80 15⁄16" |
| Overall Height Settings | 143 1⁄8" or 155 1⁄8" or 167 1⁄8" |
| Overall Width | 150 3⁄4" |
| Drive-Thru Clearance | 109 3⁄4" |
| Width Between Columns | 123 1⁄2" |
| Min Pad Height | 4 1⁄2" |
| Power Unit / Motor | 2.0 HP, 220V, 60 Hz, 1-phase |
| Hydraulic System | Dual direct-drive cylinders, no chains |
| Safety Systems | Single-point lock release, overhead shut-off bar, automatic arm restraints, aero sync cables |
| Arm Type | Four 3-stage arms |
| Pad/Adapter Interface | 2" pin, heavy-duty pads with 3" and 6" stackable adapters included |
| Sliders/Bushings | UHMW sliders with bronze bushings |
| Shipping Weight | 2,202 lbs |
| Installation Height Guidance | For 12-14 ft ceilings; choose one of the three height settings |
| Concrete Requirement | Flat, sound slab ≥ 5" thick, ≥ 3,500 psi; no rebar in anchor zone; anchor torque 150 N·m |
| Electrical Requirement | 220V single-phase, properly grounded; wiring by licensed electrician |
| Hydraulic Oil | ISO-46 anti-wear; initial fill, then replace yearly after first 3-month change |
| Included in Crate | Power unit, columns, overhead beam and limit bar, four 3-stage arms, pads, (4) 3" and (4) 6" adapters, anchor kit & shims, toe guards, tool trays, hardware |
| Options | Base-plate extension kit No. 21501 |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
