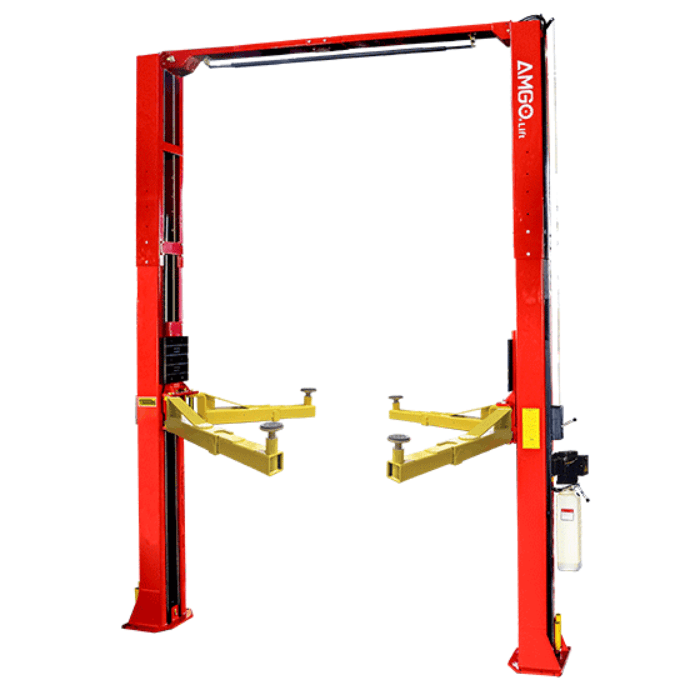

Red AMGO OH-15 2 post vehicle lift with overhead beam and three stage arms for auto shop bays

AMGO Heavy-Duty 15,000 lb 2-Post Lift | OH-15

by AMGO
SKU OH-15
Save $1,150.00
$7,250.00
$6,100.00
No Sales Tax Outside GA & IL
Free Warehouse Pickup Available
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save
Find Your Nearest Pickup Warehouse

Notify me when back in stock

Trust badges for AMGO Trust badges for AMGO

Heavy-Duty, Clear-Floor Power: AMGO OH-15 15,000 lb 2-Post Lift

If you’re shopping for a serious 2 Post Lift, you’re probably juggling a few pain points right now: not enough capacity for HD pickups, clutter on the floor that slows you down, and uncertainty about ceiling height and concrete requirements. The AMGO OH-15 solves those headaches with a true heavy-duty 15,000 lb rating, a clear-floor design that keeps the bay open, and three column height settings to fit more shops. Direct-drive hydraulic cylinders deliver smooth lifting without the extra wear parts that chain-drive systems add. Automatic arm restraints lock in as you rise, and a single-point safety release keeps daily operation simple. Key numbers you’ll care about right away include a ~84 second lift time, 109-3/4 in drive-thru clearance, and a minimum pad height of 6-7/8 in. 15K is the inflection point where most lifts cross from consumer-grade construction into true commercial structural rating. The OH-15 sits firmly in the commercial tier with 5" / 3,500 PSI concrete requirements and reinforced structural design.

Versatility is the OH-15’s sweet spot. It’s built to handle 3/4 and 1-ton trucks, vans, and many utility bodies while still being easy to position thanks to super-asymmetric capable two-stage arms. You get 123-1/2 in between the columns for easier door swing and access, plus an overall width of 150-3/4 in that plays nicely with standard bays. The max lift height with adapters reaches 83-7/8 to 85-1/4 in for more under-vehicle working room. If you’ve been searching for a 2 post car lift that isn’t maxed out by HD work, this is it. The OH-15 gives you big-truck ability without giving up everyday efficiency. Three column-height settings (174", 186", 198") cover commercial bay ceiling heights from standard to high-bay. The 2.0 HP 220V power unit cycles consistently at full 15K capacity, with reinforced columns and aircraft-grade equalization cables.

Ownership details matter, too. AMGO includes the stuff others upcharge for: stackable 3 in and 6 in pad extensions, heavy-duty saddle adapters, rubber pads, toe guards, and tool trays. The overhead shut-off bar protects tall roofs and antennas, and the carriages ride on self-lubricating bronze bushings with UHMW sliders for long life. Installation is straightforward if your site is ready: at least 14.5 ft of ceiling height, 5 in of 3,500 PSI reinforced concrete, and a dedicated 220V single-phase circuit. Among AMGO 2 post lifts, the OH-15 is the Heavy-Duty vehicle lift that balances capacity, uptime, and shop flow without nickel-and-diming you on essentials. Keep anchors torqued and change AW-46 hydraulic oil annually and you’re set. For commercial shops handling fleet trucks, work vans, RVs, and other 15K-capable commercial vehicles, the OH-15 delivers genuine commercial-grade structural rating in a price band that doesn't require fleet contract economics to justify.

Looking for alternatives? See our complete 2-post lift selection.

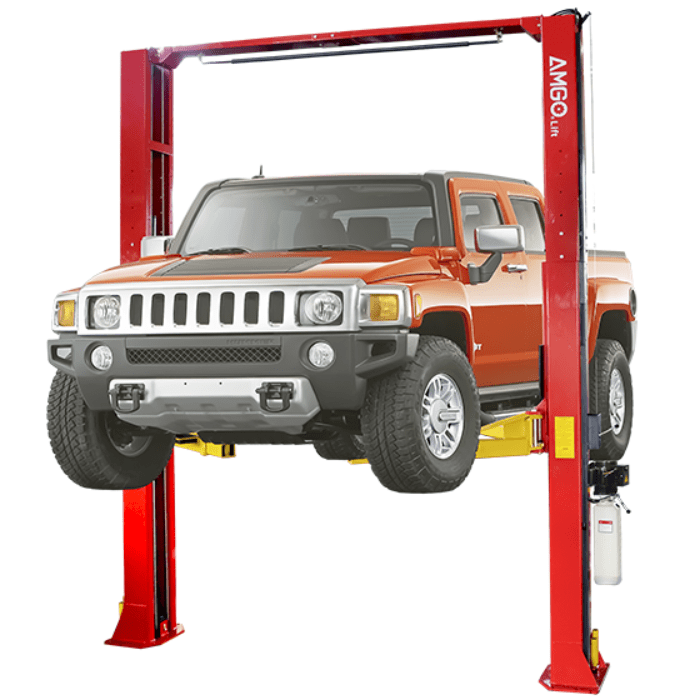

AMGO OH-15 15k two post lift raising SUV

Benefits of the AMGO OH-15 Two Post Lift

Lift bigger vehicles
15,000 lb structural rating covers fleet trucks, work vans, ambulances, and most light commercial vehicles. Built for the daily commercial-fleet workload.
Work faster
Single-point release and direct-drive hydraulics cut wasted motion per cycle. The 2.0 HP 220V motor cycles consistently at full 15K capacity.
Fit more shops
Three column-height settings (174", 186", 198") accommodate bay ceilings from standard commercial to high-bay. Flexibility without overspending on dimensions you don't need.
Easy positioning
Three-stage asymmetric arms accommodate short and long wheelbases without swapping equipment. Drive-thru clearance of 109-3/4" handles wide commercial vehicles.
Lower upkeep
Direct-drive hydraulic cylinders and aircraft-grade equalization cables. Self-lubricating bushings extend the service interval schedule across years of commercial cycling.
Safer operation
Heavy-duty mechanical locks engage at multiple positions during the lift cycle. The 15K structural rating is verified with commercial-grade margin.

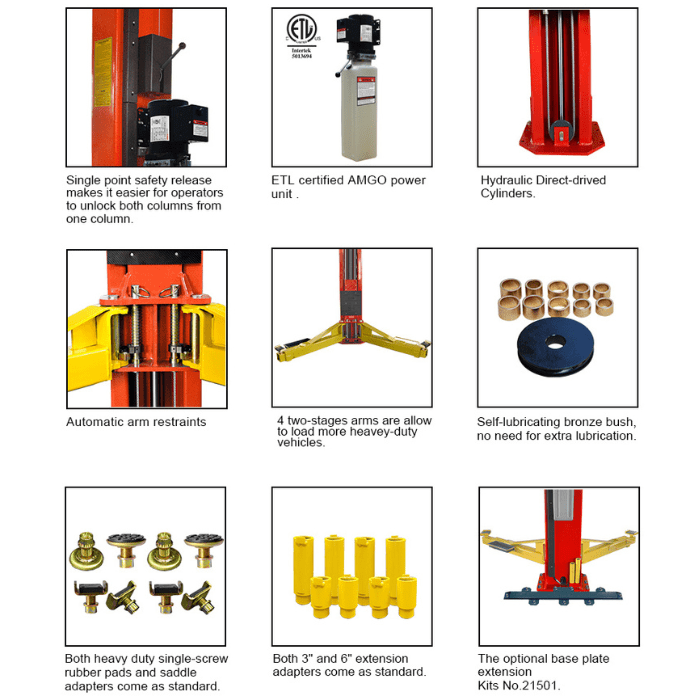

Key Features of the AMGO OH-15 2-Post Lift You'll Love:

• 15,000 lb Heavy-Duty Capacity: This lift is purpose-built for HD pickups, vans, and service trucks that outgrow light-duty gear. A true 15K rating gives you headroom for toolboxes, racks, and upfit gear without stressing components. That means fewer capacity compromises and more confident, profitable jobs.

• Direct-Drive Hydraulic Cylinders: Direct-drive removes chains and extra pulleys, cutting down on wear parts and service calls. You get smoother starts and stops, consistent lift speed, and predictable control as the locks engage. Less complexity in the power path means more uptime over the lift’s life.

• Built for Durability and Low Maintenance: Carriages ride on bronze bushings and UHMW sliders that self-lubricate for long service life. Long, stout carriages resist twist under heavy asymmetric loads, protecting your investment. Fewer adjustments and less wear keep your maintenance calendar light.

• Safety-First Controls and Protection: Automatic arm restraints lock as you lift to keep the geometry secure under load. A single-point manual safety release makes lowering intuitive, and a dual-safety design adds redundancy. The overhead shut-off bar protects roofs and antennas from surprises on the way up.

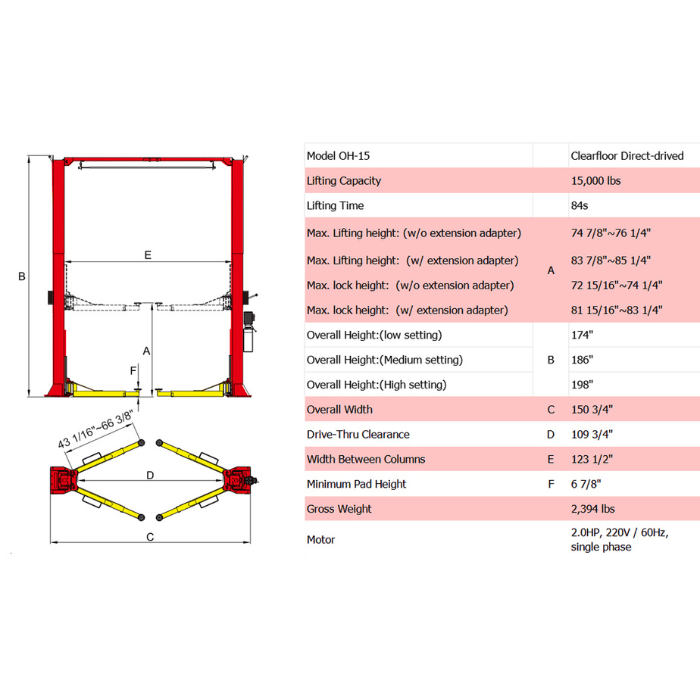

OH-15 measurements and specs table, 15,000 lb

Minimum Garage Requirements

✔ Ceiling Height: At least 180" (15'0") recommended ✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60 Hz, single-phase ✔ Overall Lift Height: 174" (14'6") (measure before ordering)

✔ Ceiling Height: At least 180" (15'0") recommended
✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60 Hz, single-phase
✔ Overall Lift Height: 174" (14'6") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

AMGO OH-15 15,000 lb 2-Post Car Lift Specifications
Manufacturer AMGO
Model OH-15
Lift Type Clear-floor 2-post, super-asymmetric capable
Capacity 15,000 lbs
Lift Time ~84 s
Max Lift Height - Pads 74-7/8 in to 76-1/4 in
Max Lift Height - With Adapters 83-7/8 in to 85-1/4 in
Max Lock Height - Pads 72-15/16 in to 74-1/4 in
Max Lock Height - With Adapters 81-15/16 in to 83-1/4 in
Overall Height - 3 Settings 174 in / 186 in / 198 in
Overall Width 150-3/4 in
Drive-Thru Clearance 109-3/4 in
Width Between Columns 123-1/2 in
Minimum Pad Height 6-7/8 in
Power Unit 2.0 HP, 220V, 60 Hz, single-phase
Hydraulic System Dual direct-drive cylinders
Safety System Single-point manual lock release, dual-safety design
Overhead Device Limit switch shut-off bar
Arms Four heavy-duty two-stage arms, super-asymmetric capable
Arm Restraints Automatic
Included Adapters 3 in and 6 in stackable pad extensions, heavy-duty saddle adapters, rubber pads
Included Accessories Toe guards, tool trays
Carriage Guidance Bronze-bushed, self-lubricating with UHMW sliders
Equalizer/Sync Cables Included
Shipping Weight ~2,394 lbs
Recommended Ceiling Height 14.5 ft minimum, or use 15.5 ft/16.5 ft settings if available
Concrete Requirement 5 in, 3,500 PSI, reinforced, level surface
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts
Overview

Heavy-Duty, Clear-Floor Power: AMGO OH-15 15,000 lb 2-Post Lift

If you’re shopping for a serious 2 Post Lift, you’re probably juggling a few pain points right now: not enough capacity for HD pickups, clutter on the floor that slows you down, and uncertainty about ceiling height and concrete requirements. The AMGO OH-15 solves those headaches with a true heavy-duty 15,000 lb rating, a clear-floor design that keeps the bay open, and three column height settings to fit more shops. Direct-drive hydraulic cylinders deliver smooth lifting without the extra wear parts that chain-drive systems add. Automatic arm restraints lock in as you rise, and a single-point safety release keeps daily operation simple. Key numbers you’ll care about right away include a ~84 second lift time, 109-3/4 in drive-thru clearance, and a minimum pad height of 6-7/8 in. 15K is the inflection point where most lifts cross from consumer-grade construction into true commercial structural rating. The OH-15 sits firmly in the commercial tier with 5" / 3,500 PSI concrete requirements and reinforced structural design.

Versatility is the OH-15’s sweet spot. It’s built to handle 3/4 and 1-ton trucks, vans, and many utility bodies while still being easy to position thanks to super-asymmetric capable two-stage arms. You get 123-1/2 in between the columns for easier door swing and access, plus an overall width of 150-3/4 in that plays nicely with standard bays. The max lift height with adapters reaches 83-7/8 to 85-1/4 in for more under-vehicle working room. If you’ve been searching for a 2 post car lift that isn’t maxed out by HD work, this is it. The OH-15 gives you big-truck ability without giving up everyday efficiency. Three column-height settings (174", 186", 198") cover commercial bay ceiling heights from standard to high-bay. The 2.0 HP 220V power unit cycles consistently at full 15K capacity, with reinforced columns and aircraft-grade equalization cables.

Ownership details matter, too. AMGO includes the stuff others upcharge for: stackable 3 in and 6 in pad extensions, heavy-duty saddle adapters, rubber pads, toe guards, and tool trays. The overhead shut-off bar protects tall roofs and antennas, and the carriages ride on self-lubricating bronze bushings with UHMW sliders for long life. Installation is straightforward if your site is ready: at least 14.5 ft of ceiling height, 5 in of 3,500 PSI reinforced concrete, and a dedicated 220V single-phase circuit. Among AMGO 2 post lifts, the OH-15 is the Heavy-Duty vehicle lift that balances capacity, uptime, and shop flow without nickel-and-diming you on essentials. Keep anchors torqued and change AW-46 hydraulic oil annually and you’re set. For commercial shops handling fleet trucks, work vans, RVs, and other 15K-capable commercial vehicles, the OH-15 delivers genuine commercial-grade structural rating in a price band that doesn't require fleet contract economics to justify.

Looking for alternatives? See our complete 2-post lift selection.

 AMGO OH-15 15k two post lift raising SUV

Benefits of the AMGO OH-15 Two Post Lift

Lift bigger vehicles 15,000 lb structural rating covers fleet trucks, work vans, ambulances, and most light commercial vehicles. Built for the daily commercial-fleet workload. Work faster Single-point release and direct-drive hydraulics cut wasted motion per cycle. The 2.0 HP 220V motor cycles consistently at full 15K capacity. Fit more shops Three column-height settings (174", 186", 198") accommodate bay ceilings from standard commercial to high-bay. Flexibility without overspending on dimensions you don't need. Easy positioning Three-stage asymmetric arms accommodate short and long wheelbases without swapping equipment. Drive-thru clearance of 109-3/4" handles wide commercial vehicles. Lower upkeep Direct-drive hydraulic cylinders and aircraft-grade equalization cables. Self-lubricating bushings extend the service interval schedule across years of commercial cycling. Safer operation Heavy-duty mechanical locks engage at multiple positions during the lift cycle. The 15K structural rating is verified with commercial-grade margin.

Key Features of the AMGO OH-15 2-Post Lift You'll Love:

• 15,000 lb Heavy-Duty Capacity: This lift is purpose-built for HD pickups, vans, and service trucks that outgrow light-duty gear. A true 15K rating gives you headroom for toolboxes, racks, and upfit gear without stressing components. That means fewer capacity compromises and more confident, profitable jobs.

• Direct-Drive Hydraulic Cylinders: Direct-drive removes chains and extra pulleys, cutting down on wear parts and service calls. You get smoother starts and stops, consistent lift speed, and predictable control as the locks engage. Less complexity in the power path means more uptime over the lift’s life.

• Built for Durability and Low Maintenance: Carriages ride on bronze bushings and UHMW sliders that self-lubricate for long service life. Long, stout carriages resist twist under heavy asymmetric loads, protecting your investment. Fewer adjustments and less wear keep your maintenance calendar light.

• Safety-First Controls and Protection: Automatic arm restraints lock as you lift to keep the geometry secure under load. A single-point manual safety release makes lowering intuitive, and a dual-safety design adds redundancy. The overhead shut-off bar protects roofs and antennas from surprises on the way up.

 OH-15 measurements and specs table, 15,000 lb

Minimum Garage Requirements

✔ Ceiling Height: At least 180" (15'0") recommended ✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,500 PSI compressive ✔ Electrical: 2.0 HP, 220V, 60 Hz, single-phase ✔ Overall Lift Height: 174" (14'6") (measure before ordering)

✔ Ceiling Height: At least 180" (15'0") recommended
✔ Footprint: 109" drive-thru x 150" overall (9'1" x 12'6")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,500 PSI compressive
✔ Electrical: 2.0 HP, 220V, 60 Hz, single-phase
✔ Overall Lift Height: 174" (14'6") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

AMGO OH-15 15,000 lb 2-Post Car Lift Specifications
Manufacturer AMGO
Model OH-15
Lift Type Clear-floor 2-post, super-asymmetric capable
Capacity 15,000 lbs
Lift Time ~84 s
Max Lift Height - Pads 74-7/8 in to 76-1/4 in
Max Lift Height - With Adapters 83-7/8 in to 85-1/4 in
Max Lock Height - Pads 72-15/16 in to 74-1/4 in
Max Lock Height - With Adapters 81-15/16 in to 83-1/4 in
Overall Height - 3 Settings 174 in / 186 in / 198 in
Overall Width 150-3/4 in
Drive-Thru Clearance 109-3/4 in
Width Between Columns 123-1/2 in
Minimum Pad Height 6-7/8 in
Power Unit 2.0 HP, 220V, 60 Hz, single-phase
Hydraulic System Dual direct-drive cylinders
Safety System Single-point manual lock release, dual-safety design
Overhead Device Limit switch shut-off bar
Arms Four heavy-duty two-stage arms, super-asymmetric capable
Arm Restraints Automatic
Included Adapters 3 in and 6 in stackable pad extensions, heavy-duty saddle adapters, rubber pads
Included Accessories Toe guards, tool trays
Carriage Guidance Bronze-bushed, self-lubricating with UHMW sliders
Equalizer/Sync Cables Included
Shipping Weight ~2,394 lbs
Recommended Ceiling Height 14.5 ft minimum, or use 15.5 ft/16.5 ft settings if available
Concrete Requirement 5 in, 3,500 PSI, reinforced, level surface
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. Consumables), electrical, power units: 2 Years

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.

⛟Shipping and Returns

Shipping

  • Freight shipping only within the lower 48 states and Canada.
  • Orders typically arrive within 2–7 business days, but may take up to 21 days depending on item size, quantity, and destination.
  • Delivery dates are estimates only and not guaranteed.
  • Customer is responsible for unloading freight shipments from the delivery truck. If no forklift or loading dock is available, the order must be shipped to a freight terminal for customer pickup or collected directly from an AMGO warehouse.
  • Liftgate service is available for an additional fee on qualifying products (not available for vehicle lifts).
  • Customer is responsible for re-delivery charges if delivery is missed, shipment is redirected, or storage fees are incurred.
  • Inspect all shipments immediately upon arrival. You have the right to inspect before signing. Note any damage or suspected damage on the Bill of Lading.
  • Hidden damage or missing parts must be reported to AMGO and the freight carrier within 48 hours of delivery.
  • AMGO is not responsible for downtime or costs incurred due to shipping delays.

Returns

  • 30-day return window from the invoice date for eligible items.
  • All returns require prior authorization from AMGO; unauthorized returns will be refused.
  • Items must be unused, in original packaging, and include all manuals, accessories, and packing material.
  • Non-returnable items: Used, damaged, or missing components.
  • 25% restocking fee applies to non-defective returns. Additional fees may apply for opened or incomplete products.
  • Customer is responsible for return freight costs.
  • Defective or incorrectly shipped merchandise will be replaced or refunded at no cost.
  • Cancelled orders before shipment are subject to a 3% processing fee. Orders cancelled after shipment will be subject to shipping costs and restocking fees.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
