AMGO 9,000 lb 2-Post Lift - Extra Wide, Extra Tall | BP-9X

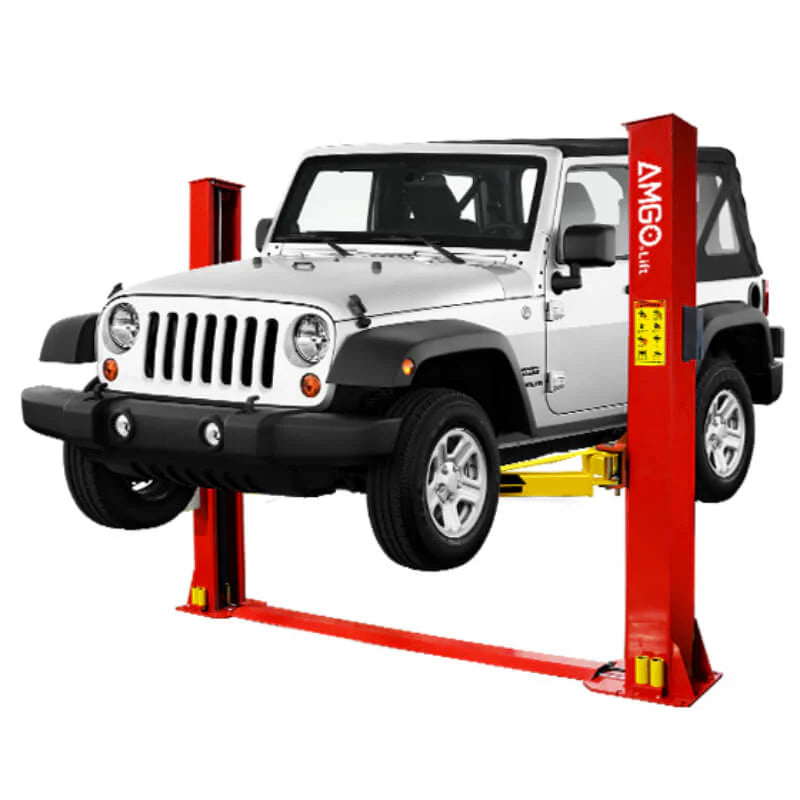

Built for Taller Ceilings: AMGO BP-9X 9,000 lb 2-Post Base-Plate Lift
Choosing the right 2 post lift can be overwhelming. Many shop owners face issues with limited ceiling clearance, uneven lifting, or unreliable safety features. The AMGO BP-9X eliminates those worries with a reinforced base plate design, dual-safety locks, and a structure built for taller ceilings. With a 9,000 lb lifting capacity, it’s strong enough to handle cars, SUVs, and light-duty trucks while still fitting comfortably in shops with ceilings just over 9.5 feet. 9K capacity with extra-wide drive-thru and extra-tall column geometry combined is rare even at higher capacities, much less at the 9K residential tier. Most 9K baseplate lifts default to a tighter footprint to save on shipping costs.
Unlike standard lifts that wear down over time, the AMGO 2 post lift is engineered with commercial-grade reliability. Its symmetric 3-stage arms give you the flexibility to lift a wide range of vehicles, while automatic arm restraints lock everything securely in place. Features like UHMW polyethylene sliders for smooth operation, aero sync cables for synchronized lifting, and a detachable toe guard and tool tray make this lift not only durable but also convenient for everyday use. Drive-thru clearance of 100-13/16" handles full-size trucks and lifted SUVs that won't fit standard 9K lifts. The taller column setting clears taller vehicles without forcing buyers up to 11K capacity for the extra room.
Designed for both professional workshops and serious DIY garages, the BP-9X blends performance with practicality. Its 49-second lifting time keeps jobs moving efficiently, while extension adapters expand compatibility for different vehicle sizes. Whether you’re upgrading your current setup or starting fresh, the 9000 lb 2 post lift from AMGO is a dependable choice for maximizing shop space without sacrificing lifting power. For home-shop owners working on lifted trucks, full-size SUVs, or work vans at the 9K weight class, the BP-9X gives you the dimensional headroom commercial 11K lifts charge a premium for.
If this model isn’t quite right, browse all of our 2-post lifts for more options.
Benefits of the AMGO BP-9X Two Post Lift

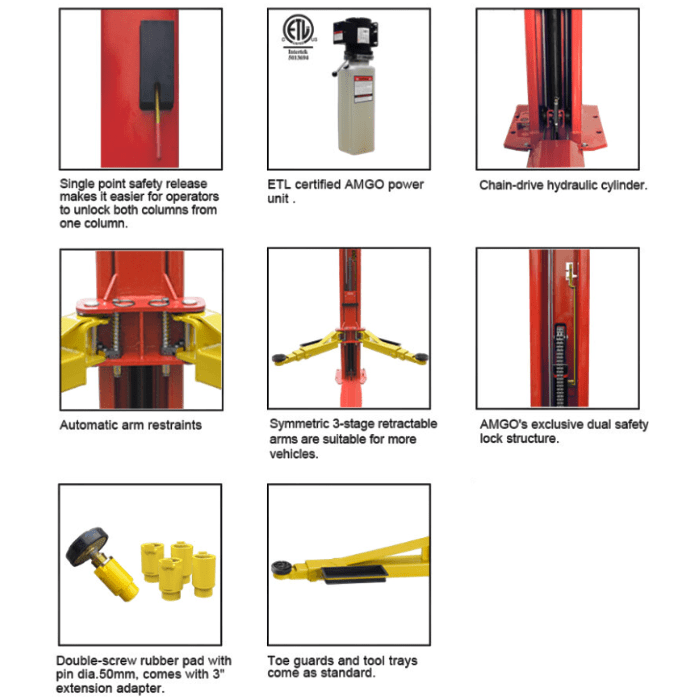

Key Features of the AMGO BP-9X 2-Post Lift You'll Love:
• 9,000 lb Lifting Capacity: The BP-9X delivers heavy-duty performance with a 9,000 lb capacity, making it ideal for compact cars, SUVs, and light trucks. This strength ensures your shop can handle a broad range of vehicles without pushing the lift to its limits, boosting safety and reliability with every job.

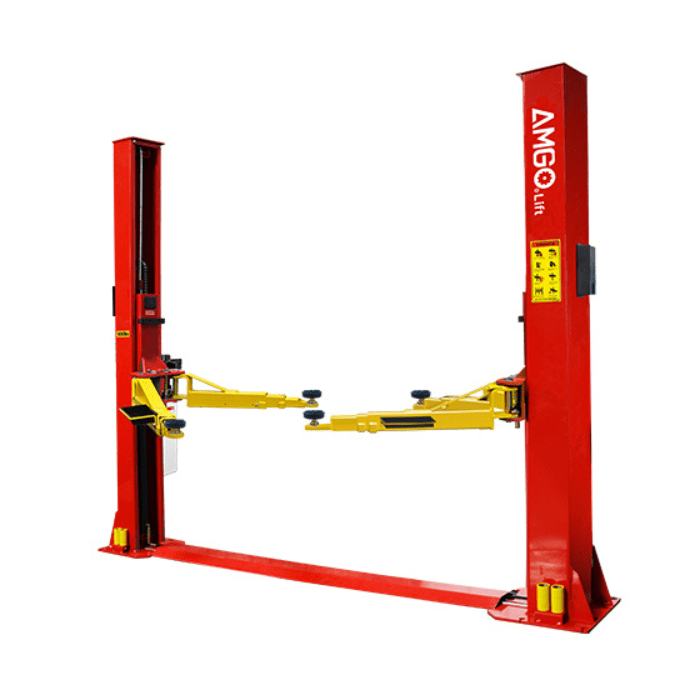

• Wider & Taller Structure: Built with a reinforced frame and taller columns than the BP-9, this model offers added stability and reach. The design is perfect for garages with ceilings over 9.5 feet, giving you more room to maneuver and making it a better fit for larger vehicles.
• Symmetric 3-Stage Arms: The arms adjust easily to accommodate a variety of vehicle sizes, from sedans to light trucks. With three extension stages, you’ll have the flexibility to position the lift points exactly where you need them, ensuring safe and balanced lifts every time.
• Automatic Arm Restraints: Once the lift is raised, the arms lock into place automatically, reducing the risk of slippage. This built-in safety feature helps technicians work with confidence, knowing vehicles stay secure without constant adjustments.
• Dual-Safety Lock System: The BP-9X includes both mechanical and hydraulic safety locks, offering an extra layer of protection. With this dual system, you’ll have peace of mind knowing the lift is built to keep vehicles secure during every service.
Minimum Garage Requirements
✔ Ceiling Height: At least 117" (9'9") recommended ✔ Footprint: 100" drive-thru x 136" overall (8'4" x 11'4") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0HP, 220V, 60Hz, single phase ✔ Overall Lift Height: 111" (9'3") (measure before ordering)
✔ Ceiling Height: At least 117" (9'9") recommended
✔ Footprint: 100" drive-thru x 136" overall (8'4" x 11'4")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0HP, 220V, 60Hz, single phase
✔ Overall Lift Height: 111" (9'3") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

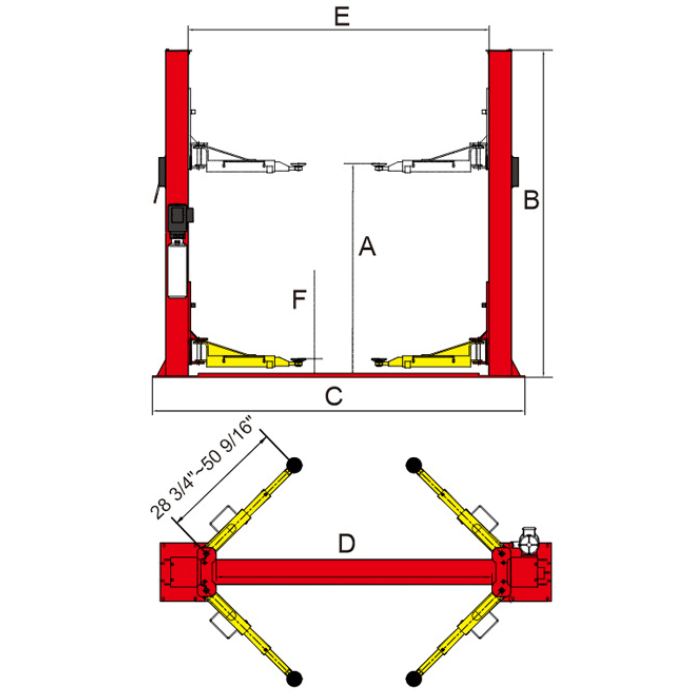

AMGO BP-9X 9,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | AMGO |
| Model | BP-9X |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 49 seconds |
| Max. Lifting Height (w/o adapter) | 76 9/16”. 78 7/16” |
| Max. Lifting Height (w/ adapter) | 79 9/16”. 81 7/16” |
| Max. Lock Height (w/o adapter) | 75”. 76 7/8” |
| Max. Lock Height (w/ adapter) | 78”. 79 7/8” |
| Overall Height | 111 7/8” |
| Overall Width | 136 1/4” |
| Drive-Thru Clearance | 100 13/16” |
| Width Between Columns | 112 1/4” |
| Minimum Pad Height | 3 3/4” |
| Gross Weight | 1,581 lbs |
| Motor | 2.0HP, 220V, 60Hz, single phase |
| Shipping Dimensions | Length: 115 1/2" Width: 20 1/8" Height: 32 7/8" |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
