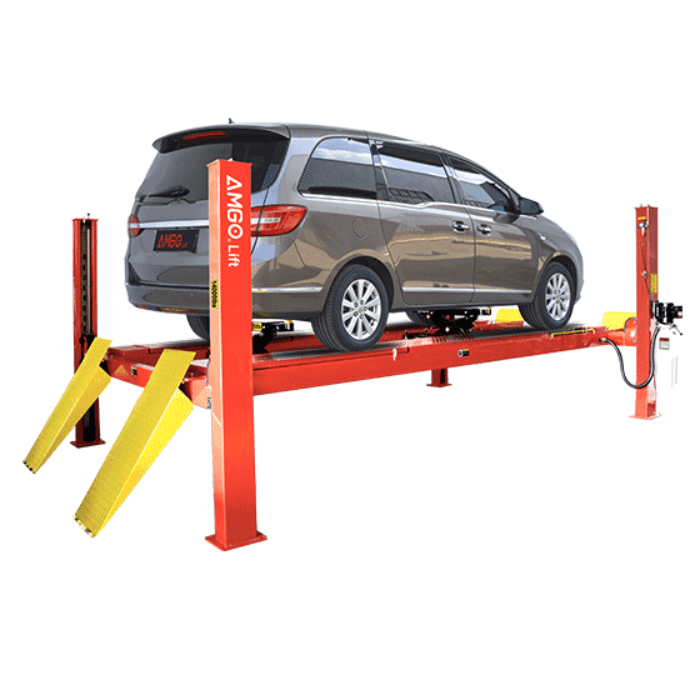

Extra-Long, Alignment-Ready: AMGO PRO-14AE 14,000 lb 4-Post Alignment Lift for High-Volume Shops
Finding the right 4 post lift for your shop isn’t just about capacity. It’s about having the runway length, width, and alignment capabilities to handle anything that rolls into your bay. Many lifts struggle with oversized fleet vehicles or precise alignment work, forcing techs into awkward setups and slowing down productivity. The AMGO PRO-14AE solves these issues with extra-long runways, a robust 14,000 lb capacity, and built-in alignment features that keep your workflow moving efficiently. Whether you’re servicing a compact sedan or a long-wheelbase truck, this lift is built to perform. Extra-long runways at 14K alignment capacity is a niche the market mostly ignores. Most 14K lifts default to standard runway lengths, leaving shops with long-wheelbase commercial vehicles forced to either downsize the lift's capability or buy a separate dedicated alignment rack.
What sets the PRO-14AE apart from standard AMGO 4 post lifts is its combination of strength, precision, and versatility. The integrated slip plates and adjustable turnplate pockets make wheel alignment work accurate and straightforward, while the stepless adjustable platform width lets you service everything from small passenger cars to large commercial trucks. With its aircraft-grade steel cables, dual safety lock systems, and cable-slack protection, you can count on consistent, secure lifting for years to come. Extended runways accommodate long-wheelbase commercial trucks, extended-cab pickups, and Class B vans during alignment service. Turn plate pockets and slip plates retain full alignment capability across the longer wheelbase range.
For busy alignment shops, general repair garages, and fleet maintenance facilities, the PRO-14AE offers a complete lifting solution that reduces downtime and increases earning potential. Its skid-proof diamond platform surface ensures safe vehicle loading, while the ETL-certified power unit delivers dependable lifting performance. From routine maintenance to precision alignment jobs, this 4 post alignment lift gives your shop the edge in both safety and productivity. For alignment shops that need true 14K capacity AND long-wheelbase accommodation, the PRO-14AE delivers a niche commercial alignment combination most lift manufacturers don't address.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the AMGO PRO-14AE 4-Post Alignment Lift
Alignment-Ready Configuration Turn plate cutouts and slip plates engineered for accurate alignment work on commercial vehicles. Front-end and four-wheel alignment in one setup. Heavy-Duty 14K Capacity Built for crew-cab dually pickups, work vans, and light-commercial vehicles that exceed standard 12K alignment lift ratings. Precision Vehicle Positioning Three-stage runways with proper drop-out sections for alignment turn plates. Wider runway spacing accommodates dually axles. Faster Alignment Throughput Built-in turn plate pockets eliminate setup time. Drive on, position, align. Without dedicated alignment-rack equipment. Versatile Service Capability Doubles as a heavy-duty service lift between alignment jobs. One bay covering both workflows. Pro-Shop Construction Commercial-grade structural design with reinforced runways for sustained 14K cycling under alignment service workload.Key Features of the AMGO PRO-14AE 4-Post Alignment Lift You'll Love:
• 14,000 lb Lifting Capacity: This lift can handle everything from small passenger cars to heavy-duty commercial trucks. The high capacity ensures your shop can work on a wide range of vehicles without compromising safety or performance. 14K capacity at extended-runway geometry handles long-wheelbase commercial vehicles standard 14K lifts won't fit cleanly.
• Extra-Long Runways: The extended runway length accommodates long-wheelbase vehicles, making it perfect for fleet service, RV maintenance, and specialty vehicle repairs. No more risky overhangs or awkward positioning. Extended runways accommodate long-wheelbase work vans and Class B vehicles without overhang concerns.
• Integrated Alignment System: Built-in slip plates and adjustable turnplate pockets make alignment work faster and more accurate. This feature helps reduce alignment errors and keeps jobs profitable. Integrated turn plates and slip plates eliminate the setup time of dedicated alignment racks.
• Stepless Adjustable Platform Width: Quickly adjust the runway spacing to fit different vehicle sizes, ensuring a secure fit and easier access for your technicians. This flexibility keeps your bays productive all day. Stepless width adjustment fits varied vehicle track widths without swapping platform configurations between cycles.
• Aircraft-Grade Steel Cables: Heavy-duty cables provide exceptional durability, reducing wear and tear over time. Combined with the cable-slack safety system, they add another layer of protection against unexpected failures. Aircraft-grade cables provide redundant equalization, critical at heavy-capacity loads with extended-runway leverage.
• Double Safety Lock Systems: Mechanical self-locking devices and a cable-breaking protection system work together to prevent accidents, giving both technicians and customers peace of mind. Dual safety systems engage automatically if the primary mechanism fails. The redundancy commercial alignment shops require.
Minimum Garage Requirements
✔ Ceiling Height: At least 92" (7'8") recommended ✔ Floor Space: 285" L x 130" W (23'9" x 10'10") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V/60Hz, single phase ✔ Post Height: 86" (7'2") (measure before ordering)
✔ Ceiling Height: At least 92" (7'8") recommended
✔ Floor Space: 285" L x 130" W (23'9" x 10'10")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V/60Hz, single phase
✔ Post Height: 86" (7'2") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO PRO-14AE 14,000 lb 4-Post Alignment Lift Specifications |
|
| Manufacturer | AMGO |
| Model | PRO-14AE |
| Lifting Capacity | 14,000 lbs |
| Lifting Time | 81s |
| Overall Length (Including Ramps) | 286" |
| Overall Length (No Ramps) | 229" |
| Overall Width | 130 7/8" |
| Width Between Columns | 116" |
| Max. Lifting Height | 77 9/16" |
| Max. Lock Height to Top of Runway | 74 7/16" |
| Overall Height | 86 3/16" |
| Minimum Height | 9 13/16" |
| Max. Underneath Height | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" |
| Drive-Thru Clearance | 102 1/16" |
| Width Between Runways | 46" |
| Outside Edge of Runways | 86" |
| Minimum Four-Wheel Alignment | 92 5/8" |
| Maximum Four-Wheel Alignment | 177 3/16" |
| Maximum Two-Wheel Alignment | 207 1/16" |
| Gross Weight | 3,752 lbs |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Shipping Dimensions | Length: 6254 mm (246.5") Width: 560 mm (22") Height: 1560 mm (61.5") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO PRO-14AE Frequently Asked Questions
What is the PRO-14AE built for?
Long-vehicle alignments: a 14,000 lb 4 post alignment lift with factory extra-long runways (286" overall). Two-wheel alignments reach a huge 207-1/16" wheelbase -- dually crew cabs, cutaway vans, and shuttle buses that won't fit a standard alignment rack. Four-wheel alignments cover 92-5/8" to 177-3/16".
What alignment hardware is built in?
Integrated rear slip plates and front turnplate pockets. Add the 40101 turn plate set (with adjustment blocks for when they're out) and the bay is alignment-ready.
Which AMGO alignment 4-post is right for me?
This PRO-14AE is the long-wheelbase specialist. Standard-length fleet? The PRO-14A costs less. No alignments? The PRO-14E is the same stretched platform without the alignment package. Heavier vehicles? The PRO-18A carries 18,000 lbs.
Can I do wheels-free service on it?
Yes -- pair it with the RJ-8A 8,000 lb pneumatic rolling jack for lifting axles during caster/camber adjustments, with the airline kit plumbing air along the runway.
How much space does it need?
About 24 feet of bay length (286" overall) and 92" (7'8") of ceiling -- the columns stand just 86-3/16". Runways are set to a fixed 46" spacing for consistent alignment measurement geometry.
Do I need to bolt it to the floor?
4-posts are free-standing on concrete at least 4" thick at 3,000 PSI, but for an alignment lift a flat, properly cured slab matters doubly -- levelness affects readings. Anchor per the manual for commercial use.
Is the AMGO PRO-14AE worth it?
Long-wheelbase alignment capability is a niche most brands charge heavily for -- the PRO-14AE delivers it under AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
