AMGO 12,000 lb Alignment Scissor Lift | AX-12A

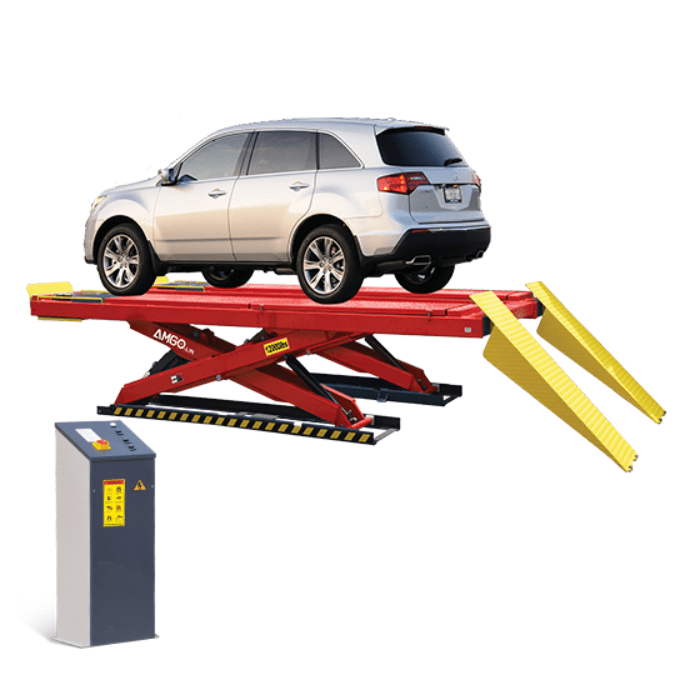

Alignment-Ready & Shop-Friendly: AMGO AX-12A 12,000 lb Alignment Scissor Lift
Shopping for a reliable vehicle scissor lift often means juggling a few headaches: will it actually fit your bay, is the capacity enough for trucks and SUVs, and how safe is the lock system during busy alignment work. The AMGO AX-12A clears those common hurdles with a true 12,000 lb capacity and long, non-skid diamond runways that handle today’s wider wheelbases. Dual synchronous hydraulic cylinders keep both platforms level so alignments stay accurate from rise to lock. Electro-air controls make operation simple and the mechanical self-locks add confidence under load. With a low 12 3/16 in minimum height, it slides into tight shops while still reaching a tall working height. Scissor lifts with built-in alignment capability are increasingly the choice for alignment shops where ceiling clearance is limited or where equipment efficiency matters. The AX-12A puts turn plates and slip plates into a scissor footprint instead of a dedicated alignment rack.
If you’re searching for a commercial scissor lift that’s equally at home with alignments and general service, the AX-12A is built for the job. It pairs heavy-duty X-scissor construction with large-tube steel for rock-solid stability under larger vehicles. Integrated rear slip plates, optional turnplates, and rolling bridge jacks mean you can lift, level, and align without shuffling cars between bays. The result is faster cycle times, better throughput, and fewer rechecks. 12,000 lb structural rating handles crew cabs, lifted trucks, and most light commercial vehicles requiring alignment service. Built-in turn plate pockets eliminate the setup time of separate alignment-rack equipment.
This amgo scissor lift was designed around real shop realities. The 197 1/2 in runway length, 90 1/8 in overall width, and 41 in between-runway spacing support a wide spread of wheelbases. Alignment ranges cover everything from compact sedans to long trucks. Power comes from a 2.0 HP, 220V single-phase motor, and gross weight is a stout 5,803 lb. If your search intent is “vehicle scissor lift” or “12000 lb scissor lift,” this alignment scissor lift delivers the specs, safety, and expandability you’re looking for. For alignment shops with limited ceiling height (under 12 feet) or shops bridging alignment with general service work, the AX-12A delivers both jobs in one bay.
If this isn’t what you need, explore our other scissor lifts.
Benefits of the AMGO AX-12A Alignment Scissor Lift
Key Features of the AMGO AX-12A You'll Love:
• Dual synchronous hydraulic cylinders: Two sets of synchronized cylinders keep both platforms level through the entire rise and descent. That means accurate sensor readings and repeatable alignment results with less rework. You’ll notice smoother lifts, fewer adjustments, and more confidence when you lock at height.
• Heavy-duty X-scissor structure: Large-tube steel and robust cross-members give the AX-12A the backbone to handle heavy vehicles without flex. That rigidity translates to stable rises, solid lock engagement, and a planted feel under load. It’s built for daily commercial use and tough shop environments.
• Broad alignment range and long wheelbase support: From 81 7/8 in to 167 3/4 in four-wheel alignment spans, plus 174 in two-wheel capability, the AX-12A covers a wide variety of cars, crossovers, and trucks. The 197 1/2 in runway length and 90 1/8 in overall width accommodate modern platforms. Fewer fitment surprises mean steadier bay scheduling.

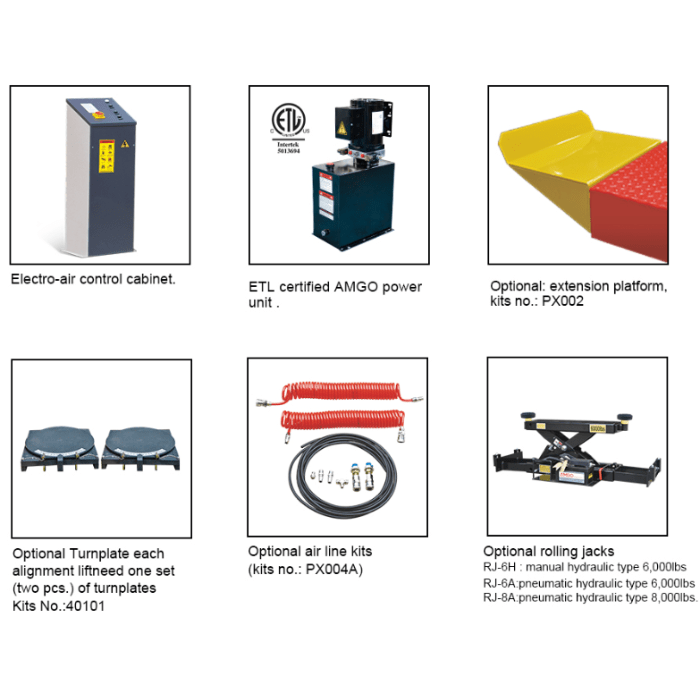

• Expandable with purpose-built accessories: Outfit the lift for your workflow with AMGO’s ecosystem: rolling bridge jacks (RJ-6H/RJ-6A/RJ-8A) for wheel-off service, turnplates for front slip, LED lighting to brighten the work area, extension platforms for longer vehicles, and airline kits to power air tools. Modularity lets you grow capability without replacing the core lift.

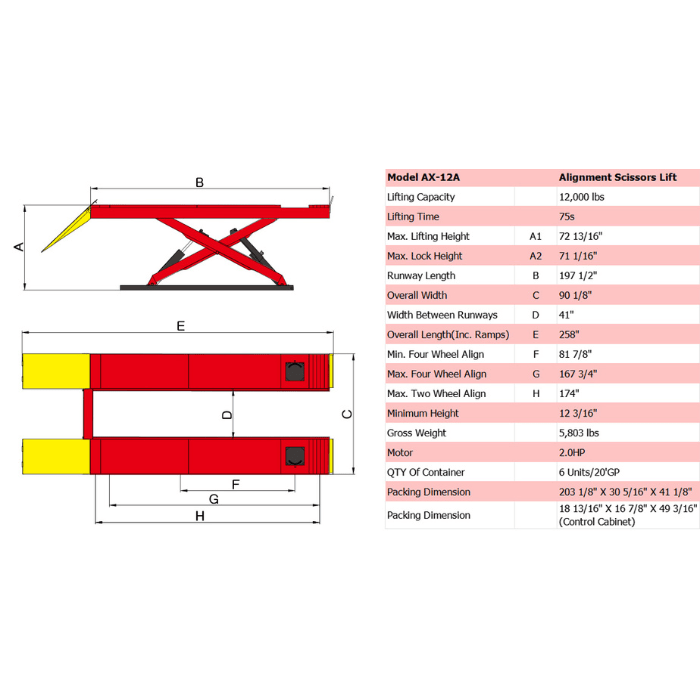

AMGO AX-12A 12,000 lb Alignment Scissor Lift Specifications |
|
| Manufacturer | AMGO |
| Model | AX-12A |
| Lift Type | Alignment Scissor Lift |
| Lifting Capacity | 12,000 lb |
| Lifting Time | 75 s |
| Max. Lifting Height (A1) | 72 13/16 in |
| Max. Lock Height (A2) | 71 1/16 in |
| Minimum Height | 12 3/16 in |
| Runway Length (B) | 197 1/2 in |
| Overall Width (C) | 90 1/8 in |
| Width Between Runways (D) | 41 in |
| Overall Length incl. Ramps (E) | 258 in |
| Min. 4-Wheel Align (F) | 81 7/8 in |
| Max. 4-Wheel Align (G) | 167 3/4 in |
| Max. 2-Wheel Align (H) | 174 in |
| Power Unit | 2.0 HP |
| Electrical | 220V / 60Hz / 1-phase |
| Gross Weight | 5,803 lb |
| Optional Rolling Jacks | RJ-6H manual 6,000 lb; RJ-6A pneumatic 6,000 lb; RJ-8A pneumatic 8,000 lb |
| Optional Kits | Turnplates Kit 40101; LED Light Kit PX010; Extension Kit PX002; Airline Kit PX004A |

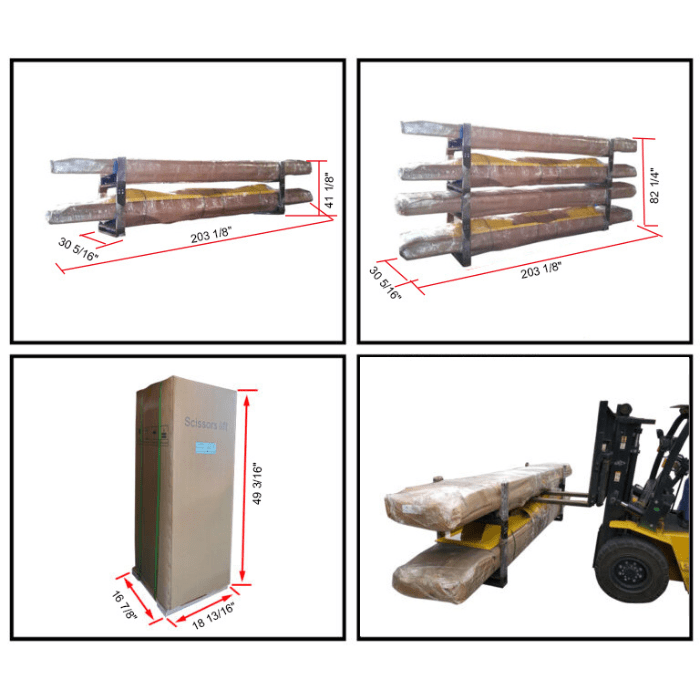

| Packing Dimension (Platforms) | 203 1/8 in x 30 5/16 in x 41 1/8 in |
| Packing Dimension (Control Cabinet) | 18 13/16 in x 16 7/8 in x 49 3/16 in |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
