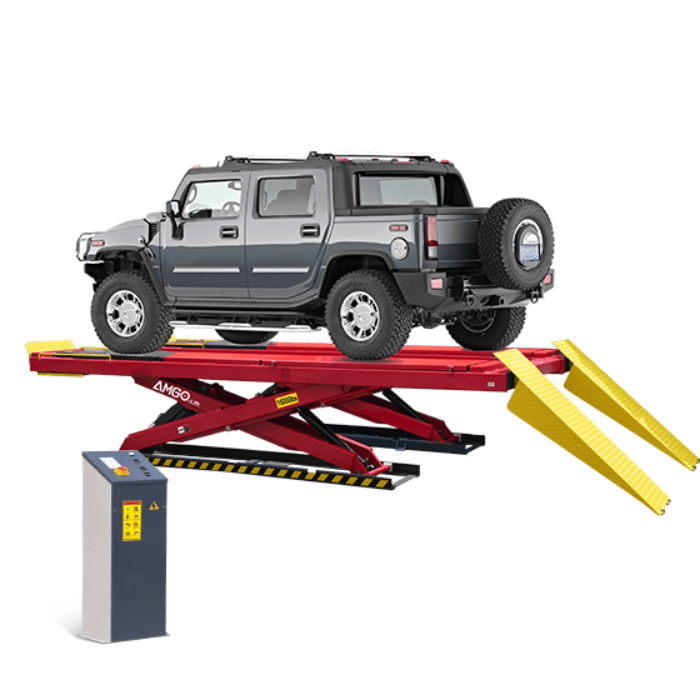

AMGO 16,000 lb Alignment Scissor Lift AX-16A with large SUV on red runways and yellow ramps

AMGO 16,000 lb Alignment Scissor Lift | AX-16A

by AMGO
SKU AX-16A
Save $435.00
$18,000.00
$17,565.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

Stable & Alignment-Ready: AMGO AX-16A 16,000 lb Alignment Scissor Lift



Buying a heavy-duty alignment lift can feel risky. You need a platform that actually stays level, locks safely every time, and fits everything from sedans to long-wheelbase vans and trucks. The AMGO AX-16A solves those pain points with synchronized hydraulics, electro-air safety locks, and extra-wide, non-skid runways that keep vehicles planted. With a 16,000 lb capacity and a long 213 3/4" runway, it handles real shop work without flinching. If you’re searching for a vehicle scissor lift that’s stable, accurate, and easy to live with, this one checks the boxes.

Built for volume alignment and general service, the AX-16A uses four synchronized hydraulic cylinders to keep both runways level from floor to full rise. Max lift height is 72 13/16" with a 71 1/16" lock height, so techs get standing room and tool clearance. Alignment-ready details come baked in, including front turnplate recesses and rear slip balls for smooth toe and thrust adjustments. The overall width is 94 1/8" with 44 7/8" between runways, giving you breathing room for trucks and wide stances. Lifting time is about 110 seconds, which feels smooth and controlled rather than abrupt.

Wheelbase coverage is where this vehicle scissor lift shines. Four-wheel alignment support spans roughly 98" to 184 1/4", while two-wheel alignment stretch reaches about 190 9/16". Minimum height is just 13", so loading is easy, and the electro-air locks are simple to release when you’re ready to descend. Power comes from a 2.0 HP, 220V single-phase motor that’s proven in busy bays. Pair the lift with RJ-6A or RJ-6H 6,000 lb bridge jacks or step up to the RJ-8A 8,000 lb set to handle wheel-free work without moving the vehicle.

If this lift isn’t your style, browse our complete scissor lift lineup.

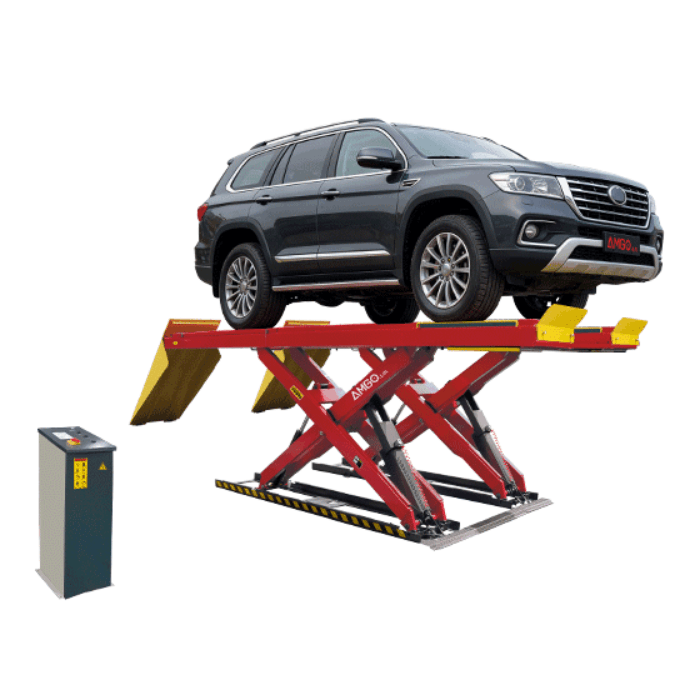

AMGO 16,000 lb Alignment Scissor Lift AX-16A with gray SUV raised on red runways and yellow ramps

Benefits of the AMGO AX-16A Alignment Scissor Lift

Faster alignments | Level runways and built-in provisions

Safer work height | Positive mechanical locking

Broad vehicle fit | Car to long-wheelbase truck

Confident loading | Extra-wide, non-skid platforms

Wheel-free service | Add RJ-6 or RJ-8 bridge jacks

Lower downtime | Simple electro-air controls

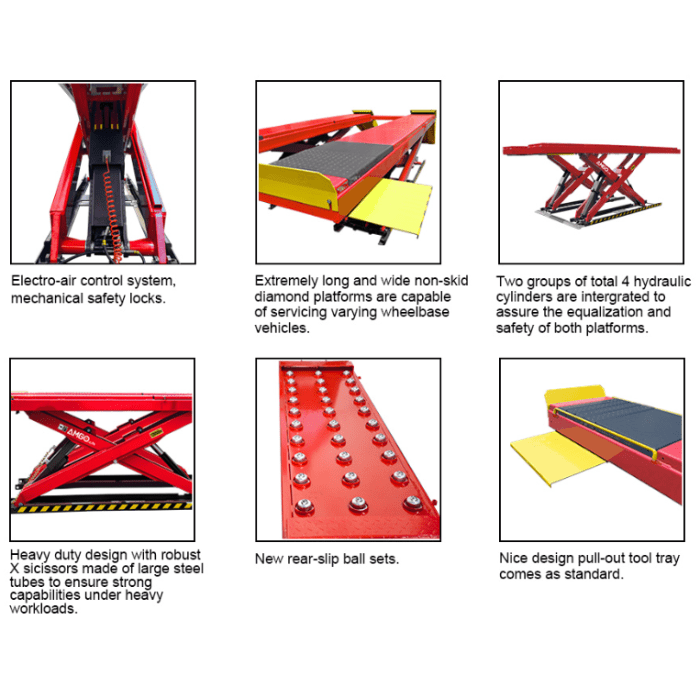

Key Features of the AMGO AX-16A You'll Love:

  • Electro-air, dual-teeth safety locks
    The mechanical locks engage automatically as you rise and release with a quick air trigger, so there’s no guesswork. Dual-teeth geometry adds bite and redundancy, giving you confident holds at working height. Techs get a simple, reliable routine that suits high-traffic shops using a commercial scissor lift.
  • Alignment-ready runways with slip balls and turnplate recesses
    Rear slip balls let the wheels move freely during toe and thrust angle adjustments. Front recesses accept standard turnplates, so you’re not improvising with adapters. With four-wheel coverage from about 98" to 184 1/4" and two-wheel up to about 190 9/16", the AX-16A fits everything from cars to long-wheelbase work vans.
  • Heavy-duty X-scissor structure
    Large tubes and bracing give the scissor stacks the rigidity needed for 16,000 lb duty cycles. The design resists twist under asymmetric loads, keeping geometry true for accurate readings. Longevity improves too, which lowers total cost of ownership for shops planning long service lives.
  • Clean bay routing with pull-out tool shelf
    Air and oil lines are neatly routed to reduce trip hazards and snags. A pull-out shelf gives techs a handy place for targets, heads, and hand tools while they work. Less clutter means faster steps, fewer misplaced parts, and better throughput on every alignment scissor lift session.

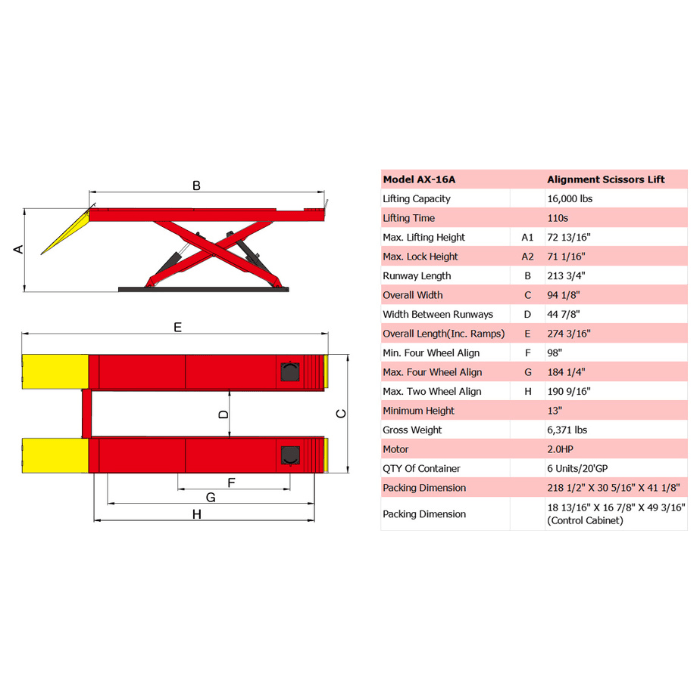

AMGO AX-16A Alignment Scissor Lift technical diagram showing side and top view with detailed measurements

AMGO AX-16A 16,000 lb Alignment Scissor Lift Specifications
Manufacturer AMGO
Model AX-16A
Lift Type Alignment scissor lift
Capacity 16,000 lbs
Lifting Time ~110 s
Max Lift Height 72 13/16"
Max Lock Height 71 1/16"
Minimum Height 13"
Runway Length (B) 213 3/4"
Overall Width (C) 94 1/8"
Width Between Runways (D) 44 7/8"
Overall Length incl. ramps (E) 274 3/16"
Min Four-Wheel Alignment WB (F) 98"
Max Four-Wheel Alignment WB (G) 184 1/4"
Max Two-Wheel Alignment WB (H) 190 9/16"
Motor 2.0 HP
Power Requirement 220V, single-phase
Gross Weight 6,371 lbs
Runway Surface Extra-wide, non-skid diamond plates
Safety Locks Electro-air, dual-teeth, air-released
Hydraulics Four synchronized cylinders
Alignment Provisions Front turnplate recesses, rear slip balls
Compatible Rolling Jacks RJ-6A / RJ-6H (6,000 lb), RJ-8A (8,000 lb)
Popular Add-Ons Turnplates 40101, LED under-car lights PX010, Platform extensions PX003

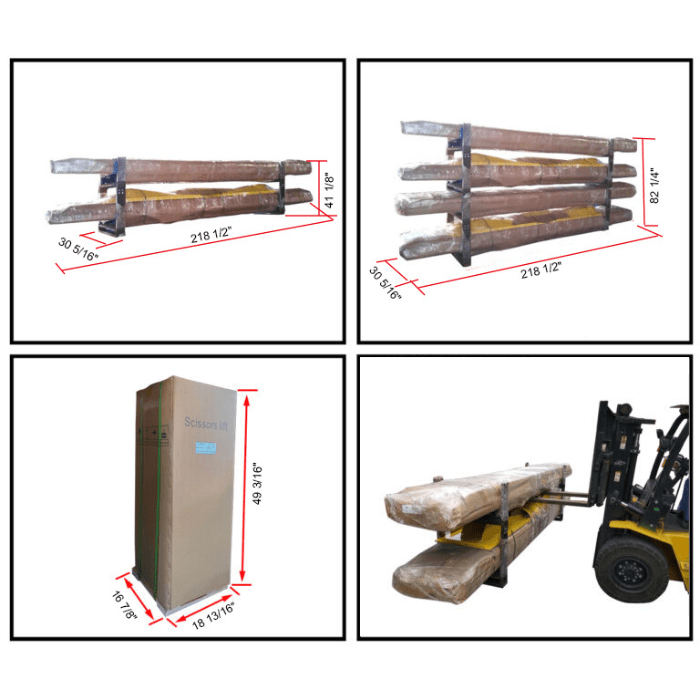

Packing Dimension (Main) 218 1/2" x 30 5/16" x 41 1/8"
Packing Dimension (Control Cabinet) 18 13/16" x 16 7/8" x 49 3/16"
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual

Click to view the AX-16A Manual

Overview

Stable & Alignment-Ready: AMGO AX-16A 16,000 lb Alignment Scissor Lift



Buying a heavy-duty alignment lift can feel risky. You need a platform that actually stays level, locks safely every time, and fits everything from sedans to long-wheelbase vans and trucks. The AMGO AX-16A solves those pain points with synchronized hydraulics, electro-air safety locks, and extra-wide, non-skid runways that keep vehicles planted. With a 16,000 lb capacity and a long 213 3/4" runway, it handles real shop work without flinching. If you’re searching for a vehicle scissor lift that’s stable, accurate, and easy to live with, this one checks the boxes.

Built for volume alignment and general service, the AX-16A uses four synchronized hydraulic cylinders to keep both runways level from floor to full rise. Max lift height is 72 13/16" with a 71 1/16" lock height, so techs get standing room and tool clearance. Alignment-ready details come baked in, including front turnplate recesses and rear slip balls for smooth toe and thrust adjustments. The overall width is 94 1/8" with 44 7/8" between runways, giving you breathing room for trucks and wide stances. Lifting time is about 110 seconds, which feels smooth and controlled rather than abrupt.

Wheelbase coverage is where this vehicle scissor lift shines. Four-wheel alignment support spans roughly 98" to 184 1/4", while two-wheel alignment stretch reaches about 190 9/16". Minimum height is just 13", so loading is easy, and the electro-air locks are simple to release when you’re ready to descend. Power comes from a 2.0 HP, 220V single-phase motor that’s proven in busy bays. Pair the lift with RJ-6A or RJ-6H 6,000 lb bridge jacks or step up to the RJ-8A 8,000 lb set to handle wheel-free work without moving the vehicle.

If this lift isn’t your style, browse our complete scissor lift lineup.

 AMGO 16,000 lb Alignment Scissor Lift AX-16A with gray SUV raised on red runways and yellow ramps

Benefits of the AMGO AX-16A Alignment Scissor Lift

Faster alignments | Level runways and built-in provisions

Safer work height | Positive mechanical locking

Broad vehicle fit | Car to long-wheelbase truck

Confident loading | Extra-wide, non-skid platforms

Wheel-free service | Add RJ-6 or RJ-8 bridge jacks

Lower downtime | Simple electro-air controls

Key Features of the AMGO AX-16A You'll Love:

  • Electro-air, dual-teeth safety locks
    The mechanical locks engage automatically as you rise and release with a quick air trigger, so there’s no guesswork. Dual-teeth geometry adds bite and redundancy, giving you confident holds at working height. Techs get a simple, reliable routine that suits high-traffic shops using a commercial scissor lift.
  • Alignment-ready runways with slip balls and turnplate recesses
    Rear slip balls let the wheels move freely during toe and thrust angle adjustments. Front recesses accept standard turnplates, so you’re not improvising with adapters. With four-wheel coverage from about 98" to 184 1/4" and two-wheel up to about 190 9/16", the AX-16A fits everything from cars to long-wheelbase work vans.
  • Heavy-duty X-scissor structure
    Large tubes and bracing give the scissor stacks the rigidity needed for 16,000 lb duty cycles. The design resists twist under asymmetric loads, keeping geometry true for accurate readings. Longevity improves too, which lowers total cost of ownership for shops planning long service lives.
  • Clean bay routing with pull-out tool shelf
    Air and oil lines are neatly routed to reduce trip hazards and snags. A pull-out shelf gives techs a handy place for targets, heads, and hand tools while they work. Less clutter means faster steps, fewer misplaced parts, and better throughput on every alignment scissor lift session.
 AMGO AX-16A Alignment Scissor Lift technical diagram showing side and top view with detailed measurements

AMGO AX-16A 16,000 lb Alignment Scissor Lift Specifications
Manufacturer AMGO
Model AX-16A
Lift Type Alignment scissor lift
Capacity 16,000 lbs
Lifting Time ~110 s
Max Lift Height 72 13/16"
Max Lock Height 71 1/16"
Minimum Height 13"
Runway Length (B) 213 3/4"
Overall Width (C) 94 1/8"
Width Between Runways (D) 44 7/8"
Overall Length incl. ramps (E) 274 3/16"
Min Four-Wheel Alignment WB (F) 98"
Max Four-Wheel Alignment WB (G) 184 1/4"
Max Two-Wheel Alignment WB (H) 190 9/16"
Motor 2.0 HP
Power Requirement 220V, single-phase
Gross Weight 6,371 lbs
Runway Surface Extra-wide, non-skid diamond plates
Safety Locks Electro-air, dual-teeth, air-released
Hydraulics Four synchronized cylinders
Alignment Provisions Front turnplate recesses, rear slip balls
Compatible Rolling Jacks RJ-6A / RJ-6H (6,000 lb), RJ-8A (8,000 lb)
Popular Add-Ons Turnplates 40101, LED under-car lights PX010, Platform extensions PX003
Packing Dimension (Main) 218 1/2" x 30 5/16" x 41 1/8"
Packing Dimension (Control Cabinet) 18 13/16" x 16 7/8" x 49 3/16"
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual

Click to view the AX-16A Manual

Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
