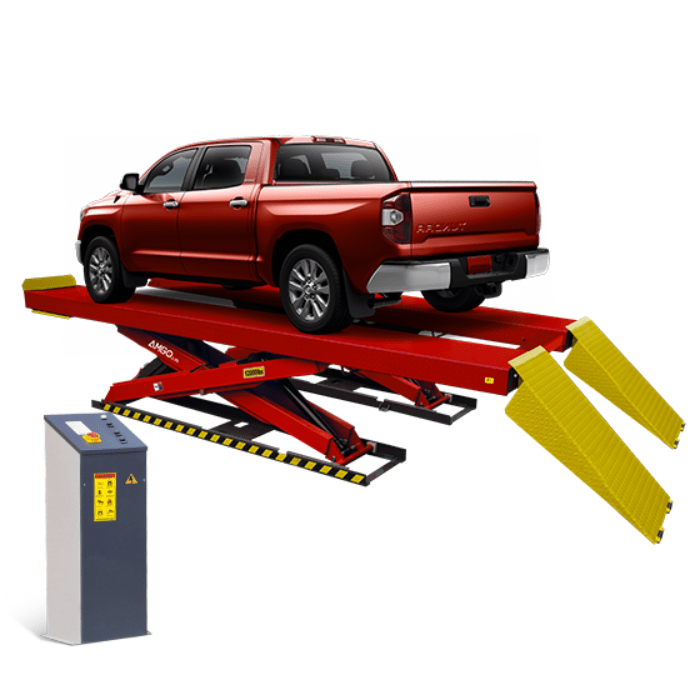

General-Service Workhorse: AMGO AX-12 12,000 lb Full-Rise Scissor Lift
Choosing the right vehicle scissor lift can be stressful when you’re juggling safety, ceiling height, and day-to-day uptime. You want rock-solid stability, true level platforms, and locks you can trust, without babysitting the controls. You also need a lift that handles cars, vans, and light trucks, not just one type of vehicle. The AMGO AX-12 solves those pains with a 12,000 lb capacity, dual synchronous cylinders, and electro-air mechanical locks that engage cleanly. As a general-service vehicle scissor lift, it reaches 73 5/8 in max lifting height with a low 11 3/4 in profile to clear most service bays. Full-rise commercial scissor lifts at 12K capacity bridge the gap between alignment scissors and 2-post lifts. The AX-12 brings 12K full-rise capability into a scissor footprint without the alignment-specific features (and price premium) of dedicated alignment scissors.
Built for busy shops, the AX-12 uses a heavy-duty X-scissor structure and diamond-plate runways to keep vehicles steady and technicians confident. A 2.0 HP, 220V single-phase motor brings the platforms up in about 75 seconds, so your workflow stays quick. The runways are 197 1/2 in long with 41 in between, and overall width is 90 1/8 in, which fits comfortably in typical commercial bays. A pull-out service shelf makes it easy to stage tools and lighting for under-car work. If you service longer wheelbases, the optional PX001 extension kit lengthens the platforms without complicating your setup. Industrial-grade 12K structural rating with reinforced platforms and hydraulics. The full-rise lift travel handles full-vehicle service work on crew cabs, lifted trucks, and most light commercial vehicles.

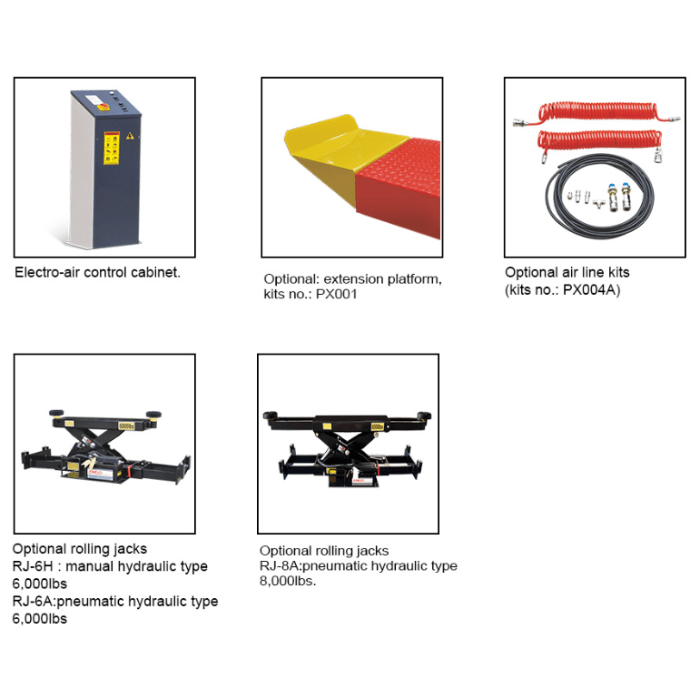

Day-to-day, the AX-12 is the dependable “set it and forget it” scissor car lift that keeps your team productive. The electro-air locks provide simple, positive engagement, backed by hydraulic and mechanical safety for redundancy. Add RJ-6H or RJ-6A rolling bridge jacks for wheels-free jobs, or step up to RJ-8A when you need more capacity. You can plumb shop air with the PX004 airline kit and improve visibility with the PX010 LED light kit. For exact cut-sheet dimensions and anchor layout, reference the AX-12/AX-12A installation and operation manual. For commercial shops needing 12K full-rise service capability without alignment-specific features, the AX-12 is sized for daily commercial cycling without paying for alignment hardware.
Need a different lift style? Compare all vehicle scissor lifts, browse the full Car Lifts collection, or see everything from AMGO. Questions? Call (470) 208-2754.
Benefits of the AMGO AX-12 Vehicle Scissor Lift

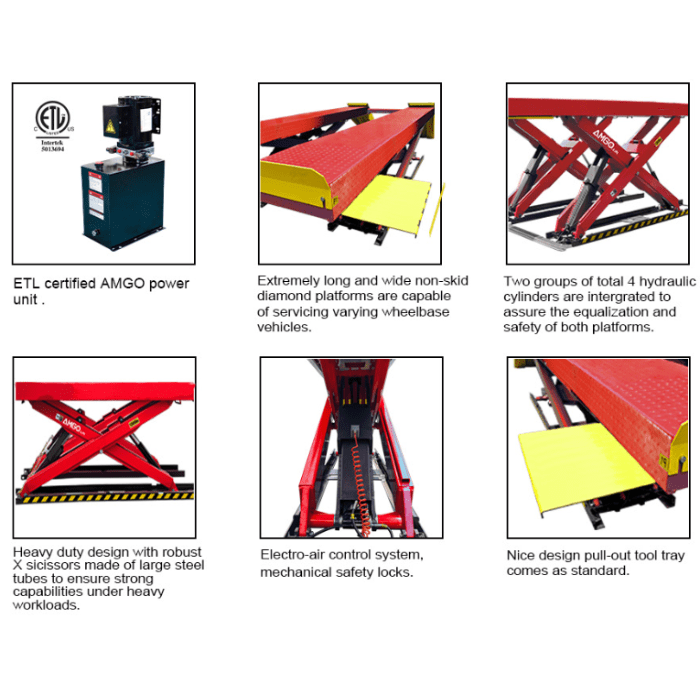

Key Features of the AMGO AX-12 You'll Love:
• Dual synchronous hydraulic cylinders: Two synchronized cylinders keep both platforms rising and lowering in unison for a level vehicle stance. This reduces time spent re-leveling before alignments or torque procedures. It also improves safety and confidence when loading mixed wheelbases and weights.
• Electro-air control with mechanical self-locks: The electro-air system engages robust mechanical locks for simple, positive positioning at multiple heights. Your techs get intuitive push-button control without complicated sequences. Locks hold firm during inspections and repairs, minimizing hydraulic creep and re-checks.
• Heavy-duty X-scissor structure: Large-tube X members resist twist and flex, delivering a planted feel under load. The structure is engineered for commercial duty cycles, so it stands up to daily use in busy bays. That rigidity helps maintain alignment of the platforms at full 73 5/8 in height.
• Pull-out service shelf for tools and lighting: The integrated shelf keeps impact guns, sockets, and work lights within reach, not on the floor. That means fewer trips and less clutter around the lift. Better organization translates into faster cycle times and fewer dropped tools.
Minimum Garage Requirements
✔ Max Lift Height: 73" (6'1") ✔ Lowered Height: see specifications below ✔ Platform Dimensions: see specifications below ✔ Overall Dimensions (raised): 267" L x 90" W (22'3" x 7'6") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Electrical: 2.0 HP, 220V/60Hz, single phase
✔ Max Lift Height: 73" (6'1")
✔ Lowered Height: see specifications below
✔ Platform Dimensions: see specifications below
✔ Overall Dimensions (raised): 267" L x 90" W (22'3" x 7'6")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Electrical: 2.0 HP, 220V/60Hz, single phase
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.

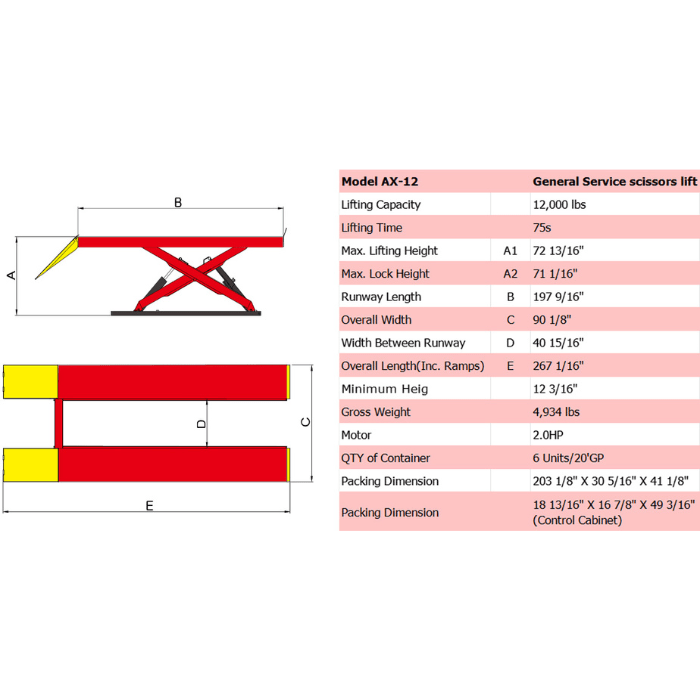

AMGO AX-12 12,000 lb Vehicle Scissor Lift Specifications |
|
| Manufacturer | AMGO |
| Model | AX-12 |
| Lift Type | General-service scissor lift |
| Capacity | 12,000 lb |
| Max Lifting Height | 73 5/8 in (1870 mm) |
| Minimum Height | 11 3/4 in (300 mm) |
| Runway Length | 197 1/2 in (5018 mm) |
| Overall Width | 90 1/8 in (2290 mm) |
| Width Between Runways | 41 in (1040 mm) |
| Overall Length Including Ramps | 267 in (6784 mm) |
| Gross Weight | 4,925 lb |
| Motor | 2.0 HP, 220V/60Hz, single phase |
| Lift Time | ~75 seconds |
| Control System | Electro-air with mechanical locks |
| Platform Surface | Diamond, non-skid runways |
| Safety | Hydraulic plus self-locking mechanical system |
| Recommended Air Supply | For pneumatic jacks and accessories (with PX004 kit) |
| Compatible Rolling Jacks | RJ-6H manual 6,000 lb, RJ-6A pneumatic 6,000 lb, RJ-8A pneumatic 8,000 lb |
| Extension Kit | PX001 platform extension kit |
| LED Light Kit | PX010 |
| Airline Kit | PX004 for pneumatic jacks |
| Applications | Cars, vans, light trucks in commercial service bays |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO AX-12 Frequently Asked Questions
What is the AX-12 built for?
Commercial drive-on service without posts: a 12,000 lb scissor lift with 197-1/2" runways for trucks, vans, and fleet vehicles. Full rise is 73-5/8" -- standing-height underbody access with the sides completely open.
Why choose a scissor over a 4-post at 12,000 lbs?
No columns. The scissor mechanism tucks under the runways, so nothing blocks access to rockers, doors, or panels, and the bay has no permanent posts eating floor space. The trade-off is a higher 11-3/4" drive-over height versus a 4-post's ramps.
Can I do wheels-free service on it?
Yes -- the AX-12 pairs with AMGO's rolling jacks: the RJ-6H, air-powered RJ-6A, or heavier RJ-8A, with the PX004A airline kit plumbing air to the jack.
Which AMGO scissor lift is right for me?
This AX-12 is the general-service 12K. Doing alignments? The AX-12A adds slip plates and turnplate pockets, and the AX-16A steps up to 16,000 lbs. Lighter work? The XL-7 covers 7,000 lbs in a compact footprint. Long chassis? Add the platform length extension kit.
Do I need to bolt it to the floor?
Anchor per the manual on concrete at least 4" thick at 3,000 PSI. At 4,925 lbs of lift and 12,000 lbs of vehicle, the slab matters -- verify before ordering.
Is the AMGO AX-12 worth it?
Post-free 12,000 lb drive-on service on 220V single-phase, backed by AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback, and our lift style guide if you're comparing categories.
