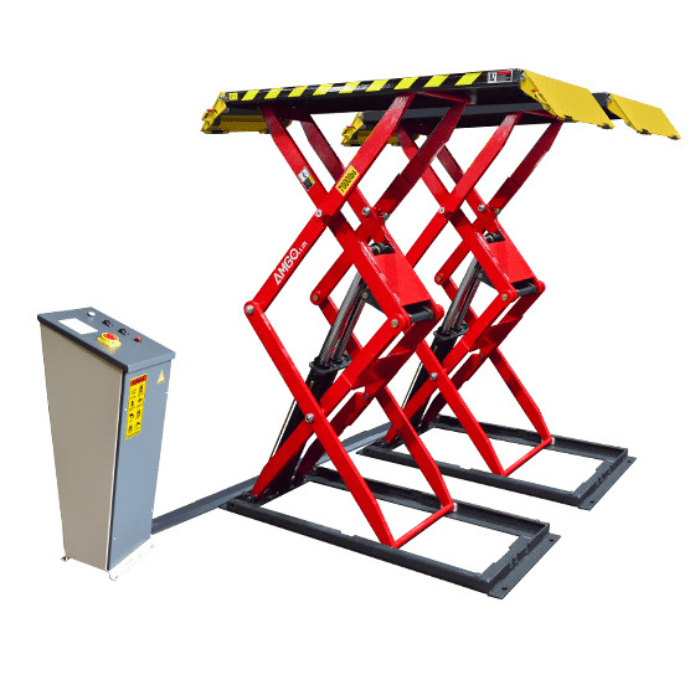

XL-7 by AMGO, 7,000 lb low-profile scissor lift

AMGO 7,000 lb Low Profile Scissor Lift | XL-7

by AMGO
SKU XL-7
Save $345.00
$6,000.00
$5,655.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

Built for Tight Bays: AMGO XL-7 7,000 lb Full-Rise Vehicle Scissor Lift



Buying a lift shouldn’t mean redesigning your whole bay or wrestling with ramps every time a low car rolls in. Many shops struggle with ceiling height, door swing clearance, and crowded work areas where posts get in the way. You also want true under-car access, not just a quick tire change platform. That’s where a full-rise vehicle scissor lift shines, especially one that starts at just 4-5/8" minimum height and still reaches 78-3/4". The AMGO XL-7 solves the space problem while giving you real working height and a 7,000 lb capacity you can trust.

The XL-7 is compact but serious about performance. It rises in about 50 seconds, giving your team quick turns without feeling jumpy or uneven. Four hydraulic cylinders run in two synchronized pairs to keep both platforms level from ground to full rise. With 57-5/8" runway length and 29-1/2" between platforms, it fits a wide range of cars and light trucks. Flip-lock ramps act as platform extensions, so longer wheelbases aren’t a headache.

Safety is built in, not bolted on. You get hydraulic plus mechanical locks, hose-burst protection valves, and a 24V control circuit designed for safer operation. There’s also a smart two-button lower step around 11-7/8" with an audible alarm that prevents accidental full descent. Power is simple too – a 2.0 HP, 220V single-phase motor that any licensed electrician can set up. If you’ve been hunting for a vehicle scissor lift that’s compact, commercial ready, and easy to live with day to day, the AMGO scissor lift XL-7 nails the balance.

Not the match you’re after? See our complete scissor lift offerings.

AMGO 7,000 lb Low Profile Scissor Lift XL-7 with electro-air control cabinet and red lifting platforms

Benefits of the AMGO XL-7 Vehicle Scissor Lift

Maximize bay space | Full-rise access without posts

Faster cycle times | ~50-second rise improves throughput

Protect low vehicles | 4-5/8" profile reduces scraping

Safer daily operation | Dual locks and hose-burst valves

Handle more jobs | Extensions fit longer wheelbases

Smooth, predictable use | Pressure-compensated lowering

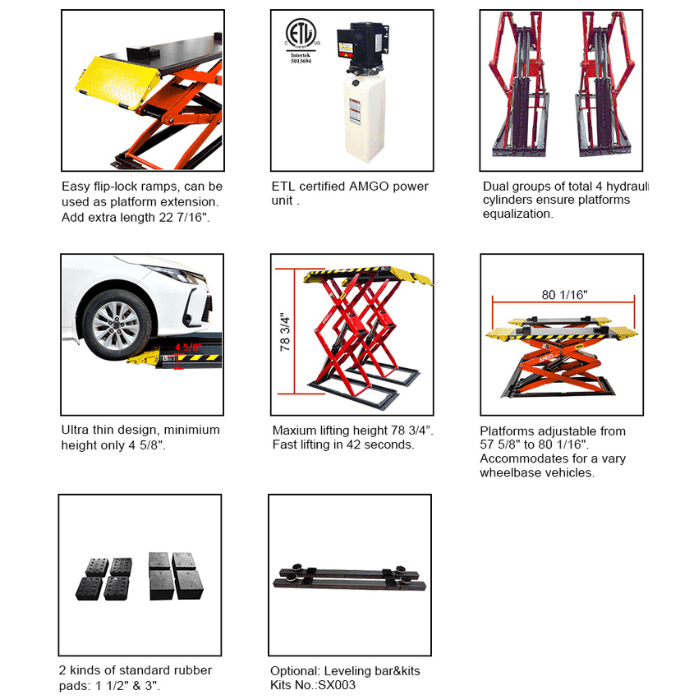

Key Features of the AMGO XL-7 You'll Love:

  • Ultra low profile that still full-rises
    At 4-5/8" minimum height, most cars roll on without loose ramps or wood blocks. That saves time and reduces the chance of bumper or skirt contact on lowered vehicles. Despite the low start, the XL-7 reaches 78-3/4" so techs can stand and work comfortably underneath.
  • Dual-lock safety with intelligent lower step
    Mechanical locking teeth combine with hydraulic locks for redundant holding power. Hose-burst valves add another layer of protection by checking sudden pressure loss. The two-button lower step around 11-7/8" with an audible alarm stops accidental ground contact and trains new users fast.
  • 24V control system and smooth descent
    The low-voltage 24V control circuit enhances operator safety around the cabinet. Pressure-compensated lowering gives a controlled, predictable descent, even with varying vehicle weights. It’s confidence-inspiring in busy bays where consistency matters.
  • Flip-lock ramps that double as extensions
    Built-in flip-lock ramps quickly convert to platform extensions for longer wheelbases. That means you can handle everything from compact sedans to many light trucks without add-on parts. It’s a clean, fast solution that keeps throughput high.

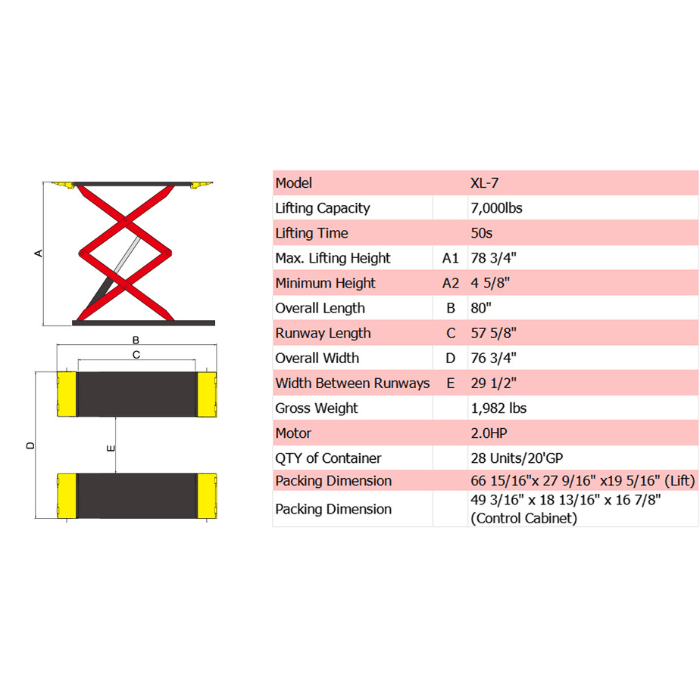

AMGO XL-7 Low Profile Scissor Lift technical drawing with labeled side and top dimensions

AMGO XL-7 7,000 lb Full-Rise Vehicle Scissor Lift Specifications
Manufacturer AMGO
Model XL-7
Product Type Low profile full-rise vehicle scissor lift
Capacity 7,000 lb
Rise Time ~50 seconds
Max Lifting Height 78-3/4"
Minimum Height (Closed) 4-5/8"
Overall Length 80"
Runway Length 57-5/8"
Overall Width 76-3/4"
Width Between Runways 29-1/2"
Motor / Power 2.0 HP, 220V, 60 Hz, single-phase
Control Voltage 24V
Ship Weight ~1,982 lb
Safety Features Hose-burst protection valves, audible alarm, two-button lower-from-~11-7/8" step, pressure-compensated lowering
Included Pads Rubber blocks: 1-1/2" and 3" sets
Included Components Lift assemblies with flip-lock ramps, control cabinet, anchor hardware, hose covers
Options & Accessories Leveling bar and kit (SX003) for narrow or wide frames
Concrete Requirements Level slab, 6" minimum thickness, 3,000 psi, free of cracks and voids
Electrical Requirements Dedicated 220V single-phase circuit, installed by licensed electrician, proper grounding
Operating Temperature 41–104°F (5–40°C)
Locking System Mechanical locking teeth plus hydraulic locking
Maintenance ISO 46 hydraulic oil, change at 3 months then annually; re-torque anchors monthly
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual

Click to view the XL-7 Manual

Overview

Built for Tight Bays: AMGO XL-7 7,000 lb Full-Rise Vehicle Scissor Lift



Buying a lift shouldn’t mean redesigning your whole bay or wrestling with ramps every time a low car rolls in. Many shops struggle with ceiling height, door swing clearance, and crowded work areas where posts get in the way. You also want true under-car access, not just a quick tire change platform. That’s where a full-rise vehicle scissor lift shines, especially one that starts at just 4-5/8" minimum height and still reaches 78-3/4". The AMGO XL-7 solves the space problem while giving you real working height and a 7,000 lb capacity you can trust.

The XL-7 is compact but serious about performance. It rises in about 50 seconds, giving your team quick turns without feeling jumpy or uneven. Four hydraulic cylinders run in two synchronized pairs to keep both platforms level from ground to full rise. With 57-5/8" runway length and 29-1/2" between platforms, it fits a wide range of cars and light trucks. Flip-lock ramps act as platform extensions, so longer wheelbases aren’t a headache.

Safety is built in, not bolted on. You get hydraulic plus mechanical locks, hose-burst protection valves, and a 24V control circuit designed for safer operation. There’s also a smart two-button lower step around 11-7/8" with an audible alarm that prevents accidental full descent. Power is simple too – a 2.0 HP, 220V single-phase motor that any licensed electrician can set up. If you’ve been hunting for a vehicle scissor lift that’s compact, commercial ready, and easy to live with day to day, the AMGO scissor lift XL-7 nails the balance.

Not the match you’re after? See our complete scissor lift offerings.

 AMGO 7,000 lb Low Profile Scissor Lift XL-7 with electro-air control cabinet and red lifting platforms

Benefits of the AMGO XL-7 Vehicle Scissor Lift

Maximize bay space | Full-rise access without posts

Faster cycle times | ~50-second rise improves throughput

Protect low vehicles | 4-5/8" profile reduces scraping

Safer daily operation | Dual locks and hose-burst valves

Handle more jobs | Extensions fit longer wheelbases

Smooth, predictable use | Pressure-compensated lowering

Key Features of the AMGO XL-7 You'll Love:

  • Ultra low profile that still full-rises
    At 4-5/8" minimum height, most cars roll on without loose ramps or wood blocks. That saves time and reduces the chance of bumper or skirt contact on lowered vehicles. Despite the low start, the XL-7 reaches 78-3/4" so techs can stand and work comfortably underneath.
  • Dual-lock safety with intelligent lower step
    Mechanical locking teeth combine with hydraulic locks for redundant holding power. Hose-burst valves add another layer of protection by checking sudden pressure loss. The two-button lower step around 11-7/8" with an audible alarm stops accidental ground contact and trains new users fast.
  • 24V control system and smooth descent
    The low-voltage 24V control circuit enhances operator safety around the cabinet. Pressure-compensated lowering gives a controlled, predictable descent, even with varying vehicle weights. It’s confidence-inspiring in busy bays where consistency matters.
  • Flip-lock ramps that double as extensions
    Built-in flip-lock ramps quickly convert to platform extensions for longer wheelbases. That means you can handle everything from compact sedans to many light trucks without add-on parts. It’s a clean, fast solution that keeps throughput high.
 AMGO XL-7 Low Profile Scissor Lift technical drawing with labeled side and top dimensions

AMGO XL-7 7,000 lb Full-Rise Vehicle Scissor Lift Specifications
Manufacturer AMGO
Model XL-7
Product Type Low profile full-rise vehicle scissor lift
Capacity 7,000 lb
Rise Time ~50 seconds
Max Lifting Height 78-3/4"
Minimum Height (Closed) 4-5/8"
Overall Length 80"
Runway Length 57-5/8"
Overall Width 76-3/4"
Width Between Runways 29-1/2"
Motor / Power 2.0 HP, 220V, 60 Hz, single-phase
Control Voltage 24V
Ship Weight ~1,982 lb
Safety Features Hose-burst protection valves, audible alarm, two-button lower-from-~11-7/8" step, pressure-compensated lowering
Included Pads Rubber blocks: 1-1/2" and 3" sets
Included Components Lift assemblies with flip-lock ramps, control cabinet, anchor hardware, hose covers
Options & Accessories Leveling bar and kit (SX003) for narrow or wide frames
Concrete Requirements Level slab, 6" minimum thickness, 3,000 psi, free of cracks and voids
Electrical Requirements Dedicated 220V single-phase circuit, installed by licensed electrician, proper grounding
Operating Temperature 41–104°F (5–40°C)
Locking System Mechanical locking teeth plus hydraulic locking
Maintenance ISO 46 hydraulic oil, change at 3 months then annually; re-torque anchors monthly
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual

Click to view the XL-7 Manual

Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
