AMGO 9,000 lb Mid-rise Scissor Lift | MRL09
Quick-Service Workhorse: AMGO MRL09 9,000 lb Mid-Rise Scissor Lift
Buying a lift for quick-service work can feel risky. You need a platform that takes low cars without scraping, fits a wide mix of wheelbases, and won't eat shop space or maintenance time. This vehicle scissor lift solves those headaches with two-stage, low-profile drive-on ramps and extendable runways that welcome lowered vehicles and longer wheelbases. Its mid-rise design gives you easy side access for tires, brakes, and detailing while keeping your bay flexible. Add in AMGO's 5-3-2 warranty and an ETL-certified power unit, and you get dependable uptime without surprises. 9K capacity at the mid-rise scissor tier is rare. Most 9K scissor lifts default to full-rise configuration, leaving shops with limited ceiling height forced to either downsize capacity or commit to commercial-grade overhead clearance.
The MRL09 is purpose-built for speed and simplicity. Rise time is about 30 seconds, so techs get cars in the air fast and keep work flowing. Max lifting height is 47 1/4 inches, which is ideal for tire rotations, brake jobs, shocks, and quick inspections. Minimum height is about 5 9/16 inches, and the first-stage ramp height is only 2 3/8 inches, so low-clearance vehicles can drive on without drama. The usable runway length adjusts from 61 7/16 to 77 3/16 inches to cover a wide range of wheelbases. Mid-rise lift travel handles brake, tire, exhaust, and suspension work efficiently. The 9,000 lb capacity covers full-size sedans, SUVs, work vans, and most light trucks.
AMGO engineered the MRL09 around stability and safety. Dual hydraulic synchronization keeps both sides level, and a hydraulic locking system secures the lift at height. Controls run on a 24V safety circuit, powered by a 2.0 HP single-phase motor for consistent performance. Overall length including ramps is 156 11/16 inches, overall width is 76 3/4 inches, and width between runways is 29 1/2 inches. If you're searching for a vehicle scissor lift that's simple to install, easy to live with, and built for daily commercial use, this AMGO scissor lift hits the mark. For shops handling high-volume mid-rise service work on full-size vehicles, the MRL09 brings 9K capability into the mid-rise scissor tier where most options stop at 6-8K capacity.
Need a different lift style? Compare all vehicle scissor lifts, browse the full Car Lifts collection, or see everything from AMGO. Questions? Call (470) 208-2754.
Benefits of the AMGO MRL09 Mid-Rise Scissor Lift
Key Features of the AMGO MRL09 You'll Love:

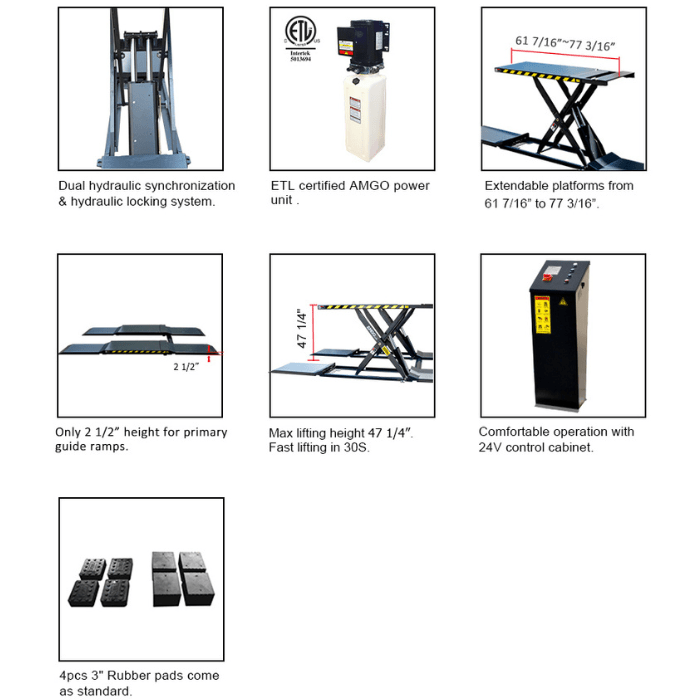

• Two-stage, low-profile drive-on ramps: The two-stage ramp design creates a gentle approach angle so low-clearance cars roll on without scraping. With a first-stage ramp height of just 2 3/8 inches, you can service sports cars and lowered sedans confidently. This reduces repositioning time and protects customer vehicles, which means faster throughput and fewer headaches.
• Adjustable, extendable platforms for varied wheelbases: Runways adjust from 61 7/16 to 77 3/16 inches of usable length, allowing you to fit compact cars up to longer sedans and light SUVs. Techs spend less time shuffling vehicles to "make it work" and more time turning wrenches. The flexibility also future-proofs your bay as your vehicle mix changes.
• Dual hydraulic synchronization with positive hydraulic locks: Both sides rise and lower in unison to keep the vehicle level. The dedicated hydraulic locking system adds an extra layer of security at working height. Together, they improve technician confidence, reduce wear, and help maintain consistent lift geometry over years of use.
• 24V safety control circuit with ETL-certified power unit: Low-voltage controls reduce risk at the panel while delivering responsive operation. The 2.0 HP, 220V single-phase motor provides steady power that shops can run on a standard dedicated circuit. ETL certification on the power unit adds third-party assurance for compliance-minded facilities.
Minimum Garage Requirements
✔ Max Lift Height: 47" (3'11") ✔ Lowered Height: ~5 9/16 in ✔ Platform Dimensions: 61 7/16 in to 77 3/16 in L x 76 3/4 in W ✔ Overall Dimensions (raised): 156 11/16" L x 76" W (13'1" x 6'4") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Electrical: 2.0 HP
✔ Max Lift Height: 47" (3'11")
✔ Lowered Height: ~5 9/16 in
✔ Platform Dimensions: 61 7/16 in to 77 3/16 in L x 76 3/4 in W
✔ Overall Dimensions (raised): 156 11/16" L x 76" W (13'1" x 6'4")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Electrical: 2.0 HP
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
AMGO MRL09 9,000 lb Mid-Rise Scissor Lift Specifications |
|
| Manufacturer | AMGO |
| Model | MRL09 |
| Lift Type | Mid-rise scissor car lift |
| Capacity | 9,000 lb |
| Rise Time | ~30 s |
| Minimum Height | ~5 9/16 in |
| Max Lifting Height | 47 1/4 in |
| First-stage Ramp Height | 2 3/8 in |
| Overall Length (incl. ramps) | 156 11/16 in |
| Overall Width | 76 3/4 in |
| Width Between Runways | 29 1/2 in |
| Runway Length (usable) | 61 7/16 in to 77 3/16 in |
| Power Unit | 2.0 HP |
| Electrical | 220V, 60Hz, single phase |
| Control Voltage | 24V safety circuit |
| Synchronization | Dual-hydraulic with hydraulic locking |
| Installation Options | Surface mount or flush mount |

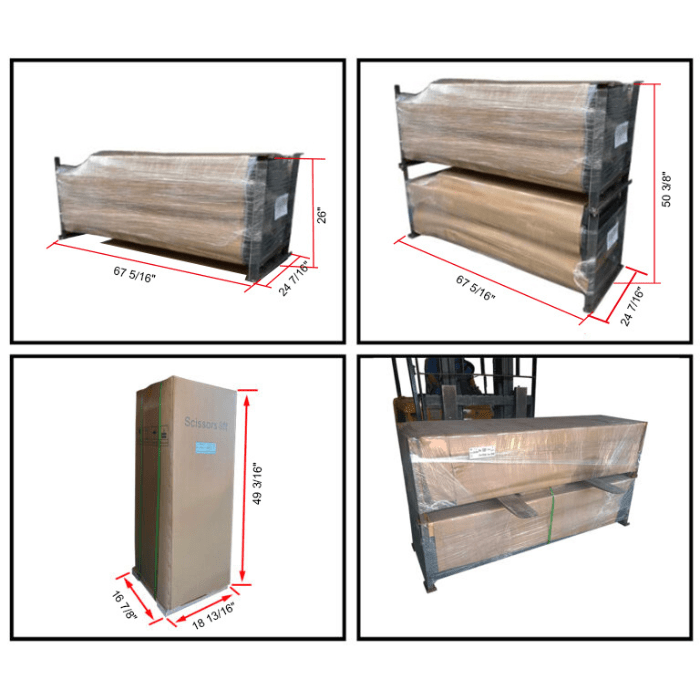

| Shipping Weight | ~1,821 lb |
| Included Accessories | Control cabinet, 1.5 in and 3 in rubber blocks |
| Optional Accessories | Leveling bar/kits, flush-mount hardware |
| Certifications | ETL-certified power unit |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO MRL09 Frequently Asked Questions
What is the MRL09 built for?
Heavy mid-rise work: 9,000 lbs to 47-1/4" in about 30 seconds. Trucks, vans, and SUVs sit at seated-work height with the sides completely open -- no posts blocking rockers, doors, or panels. Body shops and tire/brake operations are the natural fit.
Will my truck fit on the MRL09?
The 9,000 lb capacity covers full-size trucks and vans. Usable runway length extends from 61-7/16" to 77-3/16" for longer chassis, and the first-stage ramps are only 2-3/8" tall for low cars.
What power does it need?
A 2.0 HP, 220V, 60Hz single-phase power unit with a 24V safety control circuit. Plan a dedicated 220V drop where the lift will live.
Which AMGO scissor lift is right for me?
This MRL09 is the heavy 9,000 lb mid-rise. Lighter, portable needs? The MRP06 moves around the shop. Standing-height access? The flush-mount XL-9F rises to 87-3/4", and the AX-12 carries 12,000 lbs full-rise.
Do I need to bolt it to the floor?
Anchor per the manual on concrete at least 4" thick at 3,000 PSI -- at 9,000 lbs this is a fixed-position lift, not a portable.
Is the AMGO MRL09 worth it?
Nine thousand pounds at mid-rise height in 30 seconds, backed by AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty. See the Reviews tab above for buyer feedback, and our lift style guide if you're comparing categories.
