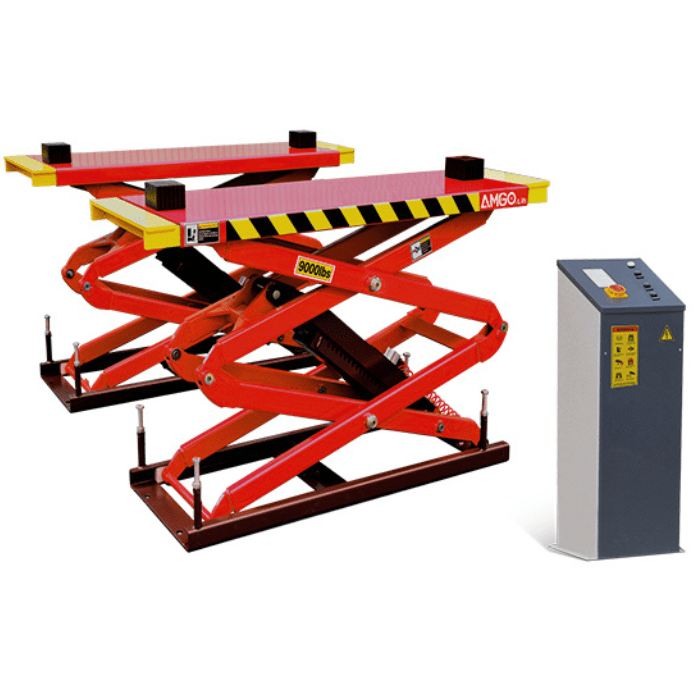

Built for Clear Floors: AMGO XL-9F 9,000 lb Flush-Mount Full-Rise Scissor Lift
Buying the wrong lift can bottleneck your whole bay. Floor posts get in the way, you can’t roll jacks or carts through, and low-rise platforms make under-car work a pain. Safety is another worry if the lift doesn’t stay level or the locks aren’t automatic. The XL-9F solves these pain points with a true flush-mount, full-rise design that leaves your floor completely clear when lowered, plus mechanical safety locks that engage automatically. With a 9,000 lb capacity, about 49 second rise time, and extendable platforms, this vehicle scissor lift feels built for busy commercial shops. Flush-mount scissor lifts give you full-rise service height (87+ inches) without the 12-foot ceiling 2-post overhead lifts need, and they sit flush with the floor when lowered so the bay stays usable for other work.
Here’s what that means in day-to-day use. When the XL-9F is down, the bay is a flat, open floor, so vehicles, tool carts, and creepers move freely. Raise to a max lifting height of 87 3/4 in for comfortable standing access around brakes, tires, and suspension. Dual synchronous hydraulic cylinders keep both platforms level, while a photocell trips if they drift out of sync. The electro-air cabinet gives you simple UP, LOCK, and DOWN controls, plus a lower-past-safety confirmation for controlled descents. Power is a 3.0 HP, 220V single-phase motor that’s easy to integrate in most shops. 9,000 lb capacity at full-rise scissor configuration covers full-size sedans, SUVs, and most light trucks. The flush-mount install means the lift disappears into the floor when not in use.
Fit is flexible. The runway length adjusts from 65 1/8 to 80 5/16 in to cover a wide range of wheelbases, and the 31 1/2 in spacing suits most passenger cars and light trucks. Minimum stack height is just 13 3/4 in at the platforms, and a flush install provides level floor entry. Standard 3 in rubber pads help you hit pinch welds cleanly, and an optional SX003 leveling bar kit adds reach for tricky frames. The steel structure is stout, the shipping weight is about 1,903 lbs, and the warranty backs it up for the long haul. For shops with limited ceiling clearance that still need full-vehicle service capability, the XL-9F is one of the rare lifts that delivers full-rise height without the overhead-crossmember installation.
Need another style? Browse our full selection of Vehicle Scissor Lifts.
Benefits of the AMGO XL-9F Flush-Mount Scissor Lift
Key Features of the AMGO XL-9F You'll Love:
• Flush-mount, clear-floor design: When the XL-9F is fully lowered, your bay becomes a smooth, unobstructed floor. That means you can roll transmissions, oil caddies, and parts carts anywhere without dodging posts or ramps. It keeps the workspace open for staging jobs and reduces trip hazards around the lift.
• Dual synchronous cylinders for level lifting: Two hydraulic cylinders work together to keep both platforms moving evenly. Level lifting supports the vehicle at consistent points and helps reduce bushing and slider wear. It also provides a stable feel under load, which techs notice the first week they use it.
• Mechanical locks with air release and two-button descent: Locks engage automatically as you rise, so you don’t have to think about it during a busy day. Air-operated release gives you smooth, predictable lowering when you’re ready to bring the car down. The lower-past-safety “PASS” confirmation with an audible tone helps prevent accidental drops near the floor.
• Extendable platforms and smart runway spacing: Runway length adjusts from 65 1/8 to 80 5/16 in, so you can cover compact sedans up to longer pickups. The 31 1/2 in runway spacing lines up well with common pinch weld and frame lift points. Fewer reposition attempts mean faster cycle times and happier customers.
Minimum Garage Requirements
✔ Max Lift Height: 87" (7'3") ✔ Lowered Height: see specifications below ✔ Platform Dimensions: see specifications below ✔ Overall Dimensions (raised): see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Electrical: 3.0 HP, 220V, 60Hz, single-phase
✔ Max Lift Height: 87" (7'3")
✔ Lowered Height: see specifications below
✔ Platform Dimensions: see specifications below
✔ Overall Dimensions (raised): see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Electrical: 3.0 HP, 220V, 60Hz, single-phase
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
AMGO XL-9F 9,000 lb Flush-Mount Full-Rise Scissor Lift Specifications |
|
| Manufacturer | AMGO |
| Model | XL-9F |
| Lift Type | Flush-mount full-rise scissor lift |
| Capacity | 9,000 lbs |
| Max Lifting Height | 87 3/4 in |
| Minimum Height (platform stack) | 13 3/4 in |
| Runway Length | 65 1/8 to 80 5/16 in (extendable) |
| Overall Width | 74 3/4 in |
| Width Between Runways | 31 1/2 in |
| Rise / Lower Time | About 49 s |
| Power Unit | 3.0 HP, 220V, 60Hz, single-phase |
| Controls | Electro-air cabinet with UP, LOCK, DOWN, and PASS function |
| Safety System | Mechanical locks with air release; photocell out-of-level protection |
| Air Requirement | Shop air for lock release; use oil-water separator near cabinet |
| Hydraulic Oil | AW-46 (initial change about 3 months, then annually) |
| Installation Surface | Indoor, level concrete, minimum 4 in thickness, 3,000 psi |
| Standard Equipment | 3 in rubber pads set (x4), anchors and shims, documentation |
| Popular Options | SX003 leveling bar and kit; additional pad blocks |

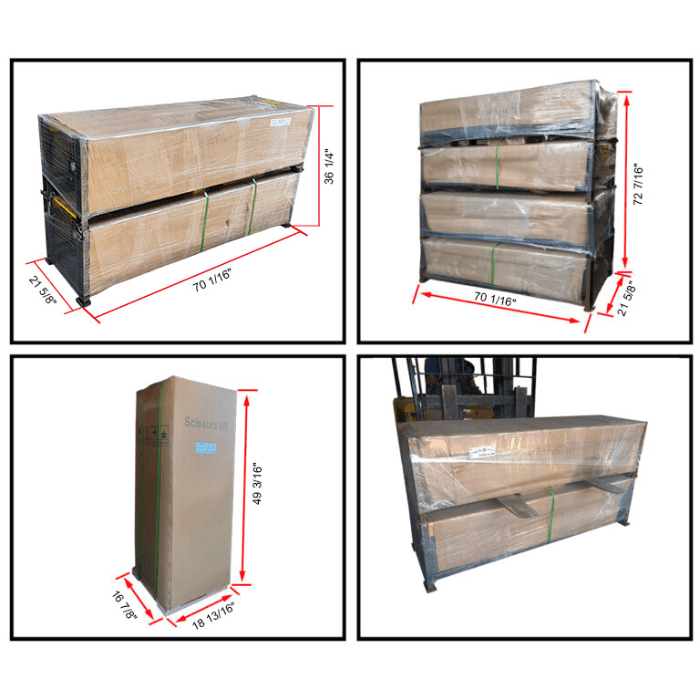

| Shipping Weight | 1,903 lbs |
| Warranty | 5 years steel, 3 years hydraulics/bronze bushings/sliders/plastics, 2 years electrical/cables |
