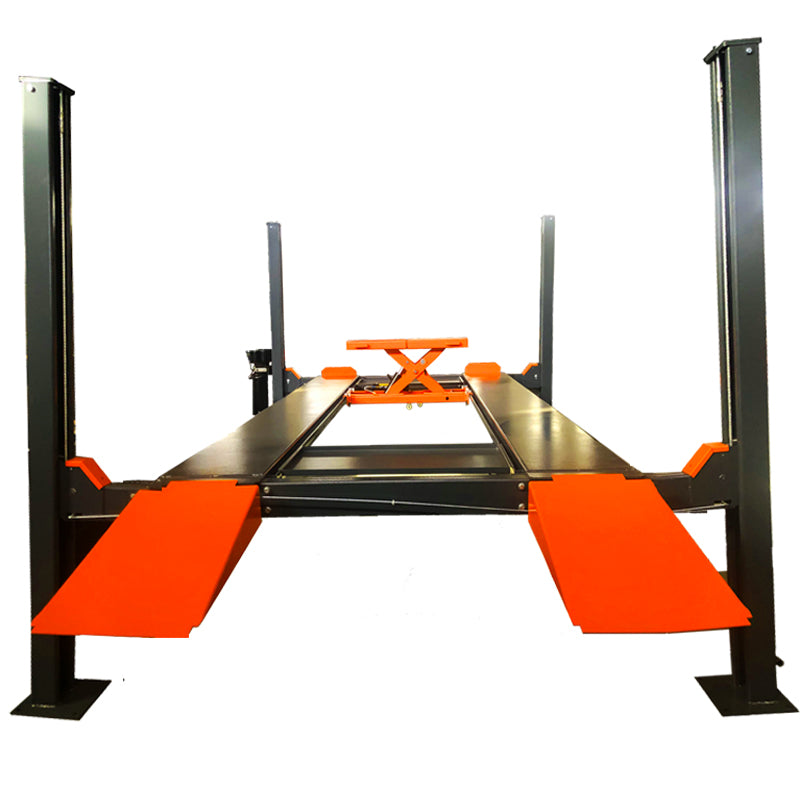

Katool 4-Post Alignment Lift - 15,000lb Capacity. Rolling Jack Included | KT-4H150
Heavy-Duty Vehicles Require Heavy-Duty Lifting -- The Katool KT-4H150 Delivers 15,000 lbs of Unmatched Strength
When you're lifting trucks, fleet vehicles, or anything that pushes past 12,000 lbs, most four-post lifts start looking undersized fast. You either end up maxing out the rated capacity on every job or paying for a commercial rack that eats half your shop floor. The KT-4H150 by Katool sits right in the sweet spot -- a true 15,000 lb rated capacity with CE certification at 115% dynamic and 150% static load testing, built for shops and serious home garages that need real headroom above 12K without jumping to an industrial-grade price tag.
This isn't just a bigger version of a lighter lift -- it's engineered differently. The safety system includes a single-point manual safety lock release with secondary backup locks, 12 lock positions every 4.7 inches for precise height control, and diamond-textured non-skid runways that keep heavy vehicles planted during loading. Lift time is 95 seconds up and 55 seconds down on 220V single-phase power, and the included pneumatic rolling jack lets you lift the axle or frame for wheels-off brake, tire, and suspension work without pulling the vehicle off the lift.
What sets the KT-4H150 apart from other 15K lifts is the alignment-ready runway setup. Rear roller plates (slip plates) are built into the runways, and optional front turntables can be added separately to complete a full 4-wheel alignment configuration. Overall length with ramps is 245.31 inches, overall width is 138.80 inches, and post height is 91.8 inches -- so measure your bay carefully before ordering. The rolling jack requires external air supply. If you need a heavy duty 4 post lift that handles the heaviest vehicles in your rotation and doubles as an alignment platform, this is the one that checks every box.
One size doesn't fit all! Compare all 4 post car lifts, see the rest of our alignment lifts, browse every 4 post lift with a rolling jack included, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Katool KT-4H150
Key Features of the Katool 4H150 15,000lb Four-Post Vehicle Lift You'll Love:
• 15,000 lb Drive-On Capacity: Rated for 15,000 lbs with CE certification at 115% dynamic and 150% static load testing. This lift handles the heaviest vehicles most shops encounter -- full-size trucks, heavy SUVs, fleet vans, and duallys -- without running near the ceiling of the rating on every job. That margin matters for safety and long-term structural integrity.

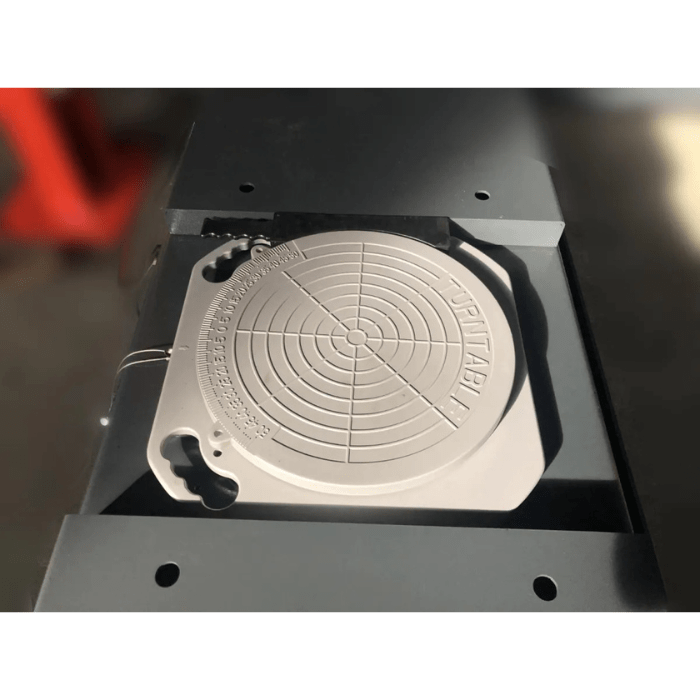

• Built-In Rear Slip Plates + Optional Front Turntables: Rear roller plates are integrated directly into the runways, so you're already set up for rear-wheel alignment adjustments out of the box. Front turntables can be added separately to complete a professional 4-wheel alignment configuration. This saves you from buying a separate alignment rack for most alignment work.

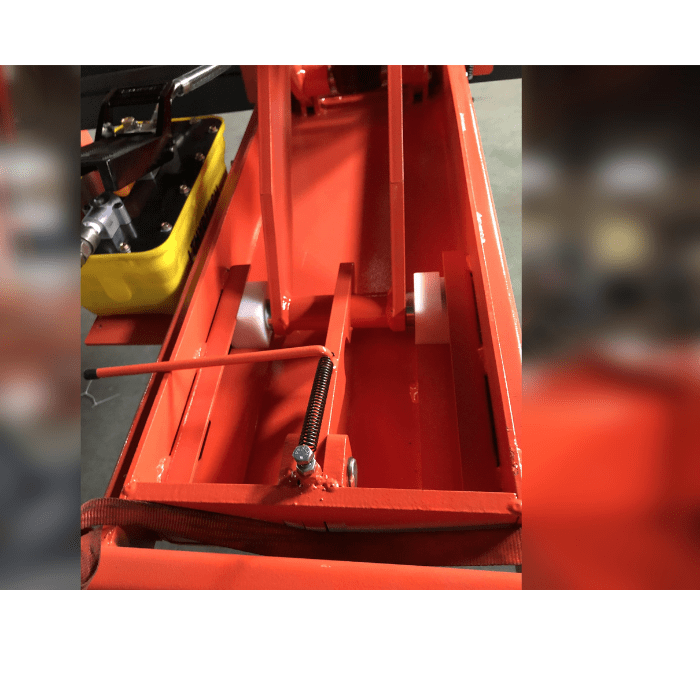

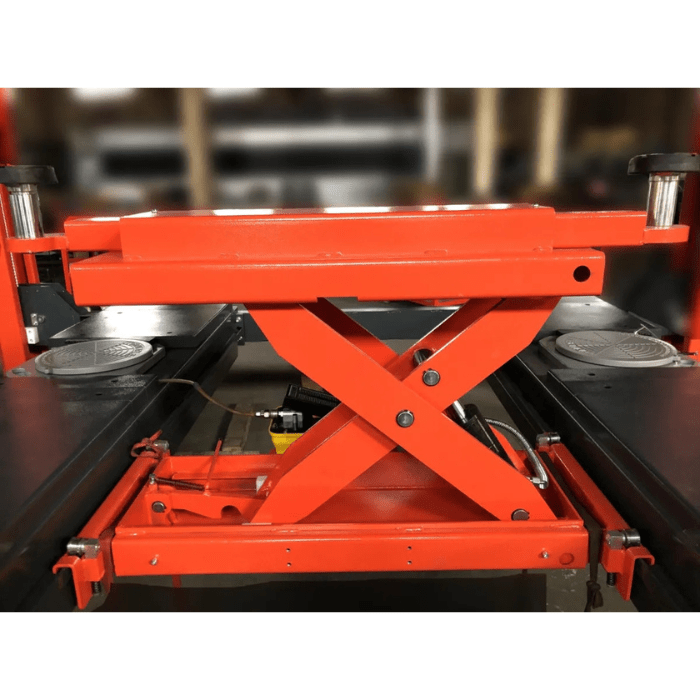

• Pneumatic Rolling Jack Included: The included rolling jack lets you lift the axle or frame so wheels hang free for brake jobs, tire rotations, suspension work, and more -- all without pulling the vehicle off the lift. Requires an external air supply. Most competitors at this capacity either don't include a rolling jack or charge extra for it.

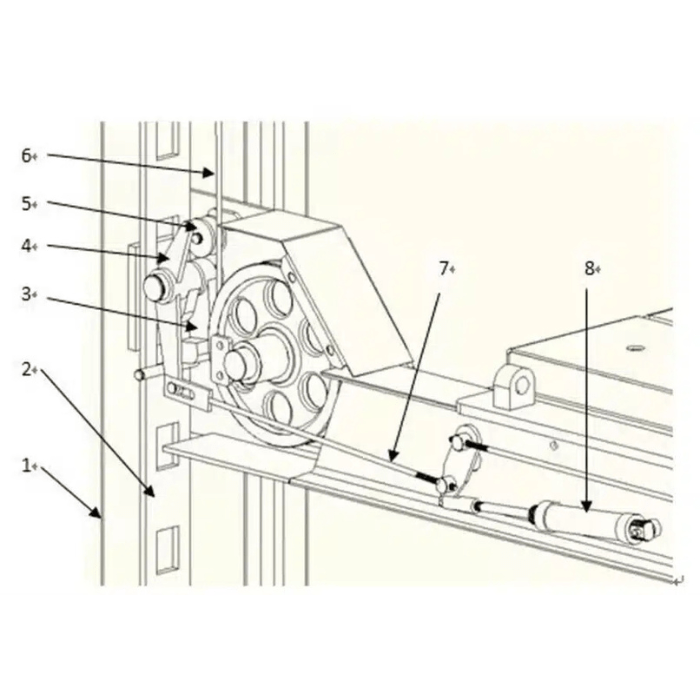

• 12-Position Adjustable Lock Ladder: Locks engage every 4.7 inches, giving you precise height control for different vehicles and tasks. The single-point manual safety lock release lets you disengage all locks from one location, and a secondary backup lock provides an extra layer of protection against unexpected failures.
• 220V Single-Phase Power: Runs on 220V/60Hz single-phase power -- this is the only voltage option on this model. Lift cycle is 95 seconds up and 55 seconds down. The slower, more controlled cycle is intentional at this weight class -- you want predictable, steady movement when you're raising 15,000 lbs overhead.
• Free-Standing Design: Engineered for free-standing use without bolting to the floor. No anchor bolts required for normal operation. However, the concrete requirements on this model are higher than lighter lifts -- minimum 5.9 inches (150 mm) thickness at 3,000 PSI compressive strength. Verify your slab before ordering.
Minimum Garage Requirements
✔ Ceiling Height: At least 97" (8'1") recommended ✔ Floor Space: 246" L x 139" W (20'6" x 11'7") ✔ Concrete Thickness: Minimum 5.9" (150 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V single-phase, 30A breaker, 10-gauge wire ✔ Post Height: 91.8" (7'8") -- measure before ordering
✔ Ceiling Height: At least 97" (8'1") recommended
✔ Floor Space: 246" L x 139" W (20'6" x 11'7")
✔ Concrete Thickness: Minimum 5.9" (150 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V single-phase, 30A breaker, 10-gauge wire
✔ Post Height: 91.8" (7'8") -- measure before ordering
*This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer's minimum requirements of at least 5.9" (150 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.

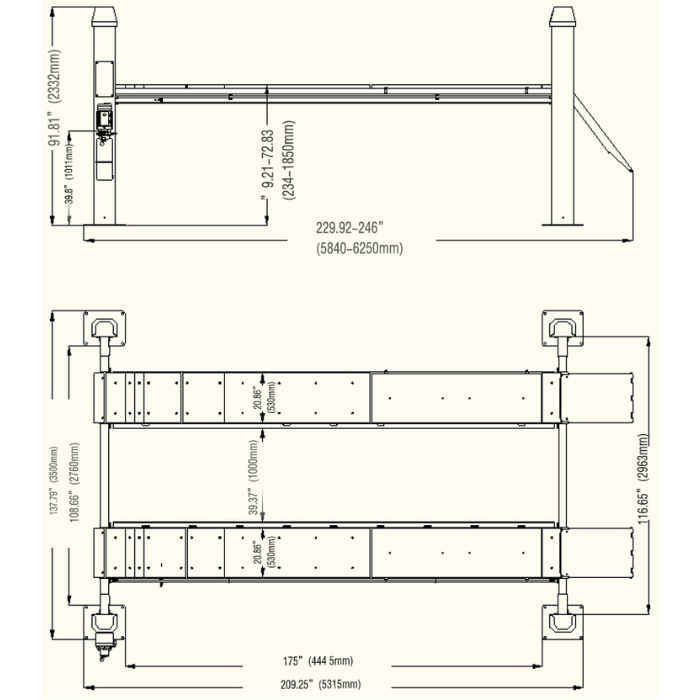

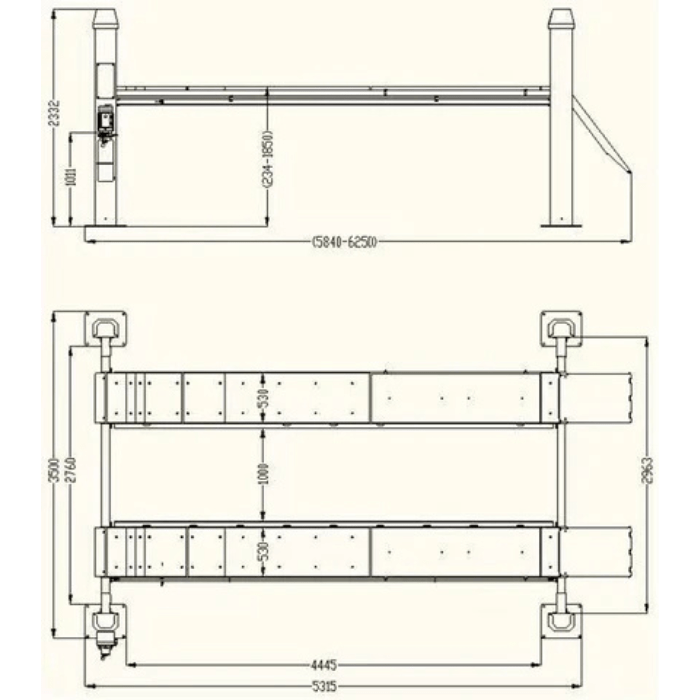

| Katool 4H150 15,000 lb Four-Post Alignment Lift Specifications | |
| Manufacturer | Katool |
| Lifting Capacity | 15,000 lbs |
| Max. Lifting Height | 75" (1,905 mm) |
| Lifting Time | 95 seconds up / 55 seconds down |
| Lock Positions | 12 positions, every 4.7" |
| Height of Posts | 91.8" (2,332 mm) |

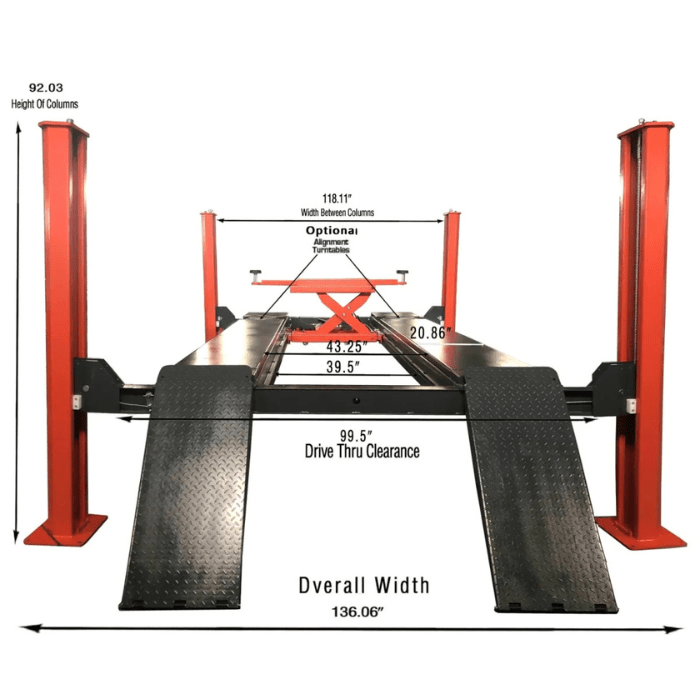

| Width Overall | 138.80" (3,525 mm) |
| Width Between Columns | 118.11" (3,000 mm) |
| Runway Width (each) | 20.9" (530 mm) |
| Width Between Runways | 39.4" (1,000 mm) |
| Overall Length (without ramps) | 208" (5,283 mm) |
| Overall Length (with ramps) | 245.31" (6,231 mm) |
| Min. Runway Height | 9.3" (236 mm) |
| Pad Size | 14.56" x 17.12" |
| Runway Features | Rear slip plates integrated; front turntables sold separately |
| Rolling Jack | Included pneumatic rolling jack (requires external air supply) |

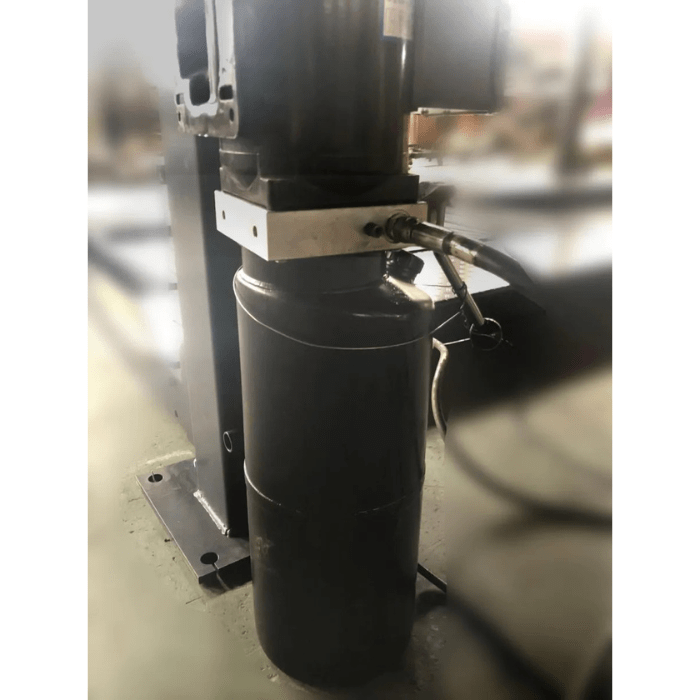

| Motor | 220V/60Hz/1PH |
| Electrical Requirements | Dedicated circuit, 10-gauge wire, 30-amp breaker (220V only) |
| Oil Requirement | AW-46 or AW-32 (colder climates) |
| Concrete Requirement | 5.9" (150 mm) minimum @ 3,000 PSI |
| Net Weight | 4,850 lbs (2,200 kg) |
| Shipping Dimensions | Lift: 4,057 lbs -- 200 x 27 x 33" Pump: 441 lbs -- 40 x 24 x 15" Ramps (x2): 66 lbs -- 47 x 20 x 12" Rolling Jack: 330 lbs -- 46 x 25 x 13" |
| Warranty | 1 Year limited parts & defects | 3 Year structural |
Katool KT-4H150 Frequently Asked Questions

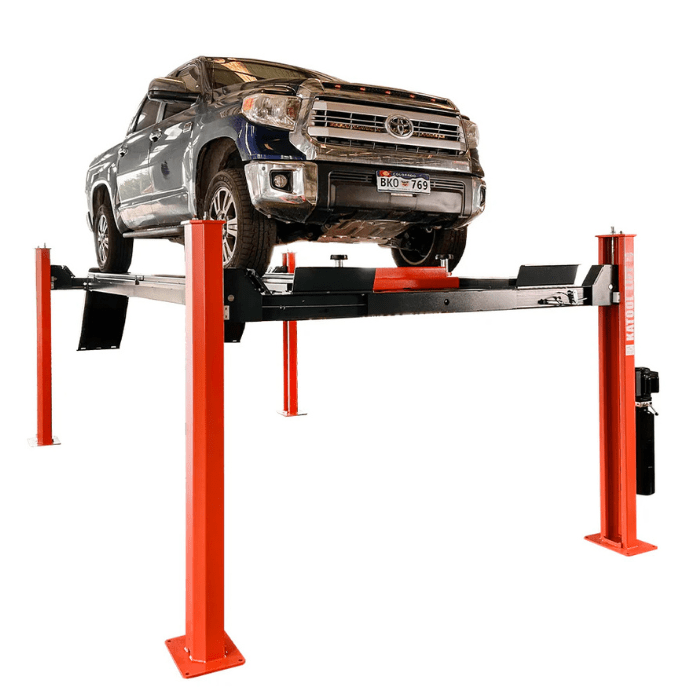

Will a dually or 1-ton truck fit on the KT-4H150?
This is the lift in our Katool lineup built for exactly that. The 15,000 lb rating swallows every pickup on the road -- a dually diesel crew cab curbs around 8,600-9,000 lbs, barely 60% of capacity -- and the 20.9" runways are the widest in the lineup with 39.4" between them. For duallys, still measure your outer tire-to-tire width against the runway stance before ordering, and call us if you're close: (470) 208-2754.
Why is the max lifting height only 75 inches?
It's a deliberate trade at this weight class. Keeping full-rise height at 75" lets the posts stay at 91.8" -- so this 15,000 lb 4 post lift fits under a 97" ceiling, the lowest requirement in our Katool 4-post lineup. You get maximum capacity in bays where a taller lift physically won't go, and the slower 95-second rise is intentional: predictable, steady movement when 15,000 lbs is going overhead.
Can I do wheel alignments on this lift?
Yes -- rear roller (slip) plates are built into the runways, and optional front turntables complete a full 4-wheel alignment configuration. Pair it with one of our wheel alignment machines and you have a heavy-duty alignment bay without a dedicated rack.
Does the KT-4H150 run on 110V power?
No -- this model is 220V single-phase only, on a dedicated circuit with a 30-amp breaker and 10-gauge wire. If you only have 110V available, look at the Katool KT-4H110 or Katool KT-4M110PA -- both ship standard with 110V motors.
What's included, and does the rolling jack need shop air?

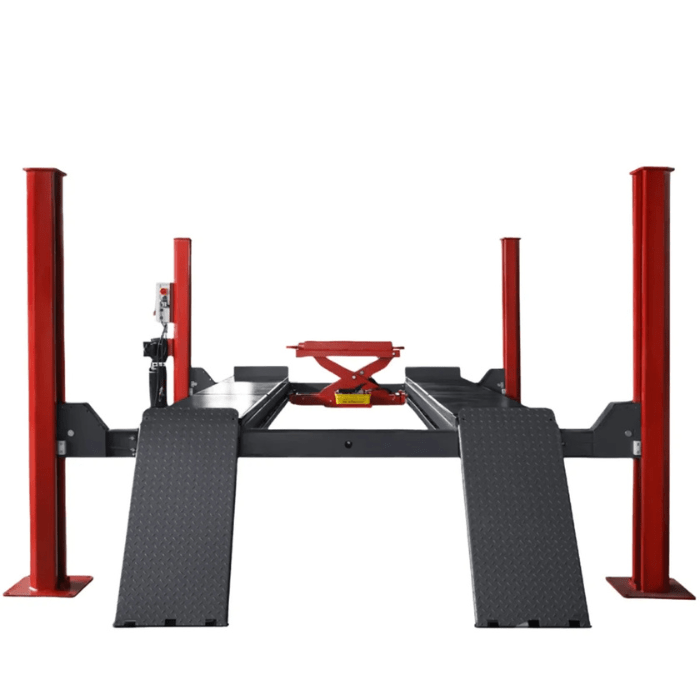

The pneumatic rolling jack and aluminum approach ramps ship with the lift. The jack does require an external air supply -- plan for a compressor line at the bay. Need a second jack down the road? The Katool KT-RJ60 is the 6,000 lb unit sized for this lift.
Do I need to bolt it down, and what about my concrete?
No anchor bolts are required for normal operation -- it's engineered for free-standing use even at 4,850 lbs of lift. The concrete spec is the serious part: minimum 5.9" (150 mm) thickness at 3,000 PSI compressive strength. Verify your slab before ordering.
How does freight delivery work?
It ships as several freight pieces totaling roughly 4,900 lbs: the lift (4,057 lbs), power unit, ramps, and rolling jack. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool KT-4H150 worth it?
Compare it against any 15K alignment-capable rack: most don't include the rolling jack, and many need a taller ceiling than this one. See the Reviews tab above for buyer feedback, and for a deeper look at the brand read our Are Katool Car Lifts Worth It? breakdown on The Pitstop Journal.
