Tuxedo 9000 lb 2 post car lift - Symmertric | TP9KF-TUX
Tired of Space Constraints? Upgrade to the Tuxedo TP9KF-TUX 9,000 lb 2-Post Car Lift for Faster, Safer Service
Finding the right 2 post lift can be tricky. Especially if you’re worried about balancing strength, safety, and affordability. Many lifts on the market either cut corners on durability or come at a price point that makes them tough to justify for smaller shops and serious DIYers. That’s where the Tuxedo TP9KF-TUX 2 post lift steps in, delivering the reliability and performance you need without the premium cost. The TUX-variant 9K symmetric lift adds Tuxedo's premium component upgrades to the symmetric arm configuration: heavy-duty cables, premium hydraulics, reinforced safety system. Same lift platform, longer mean-time-to-failure.

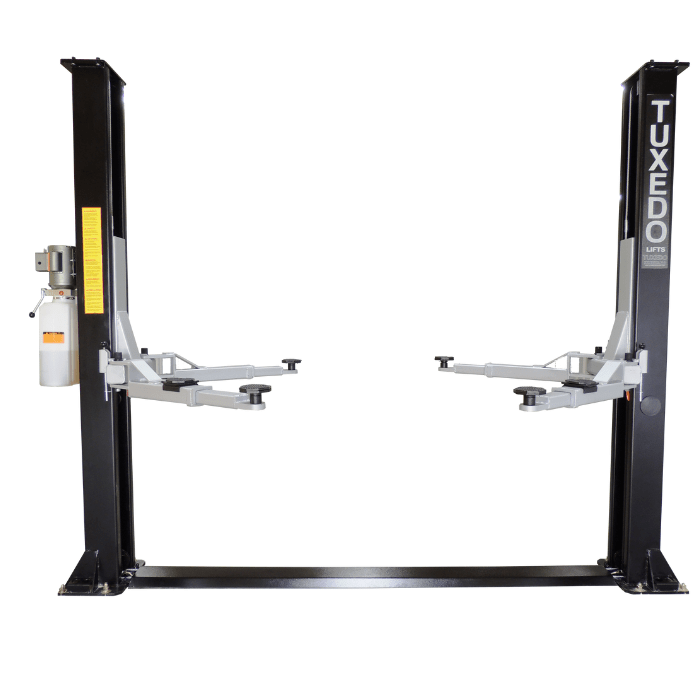

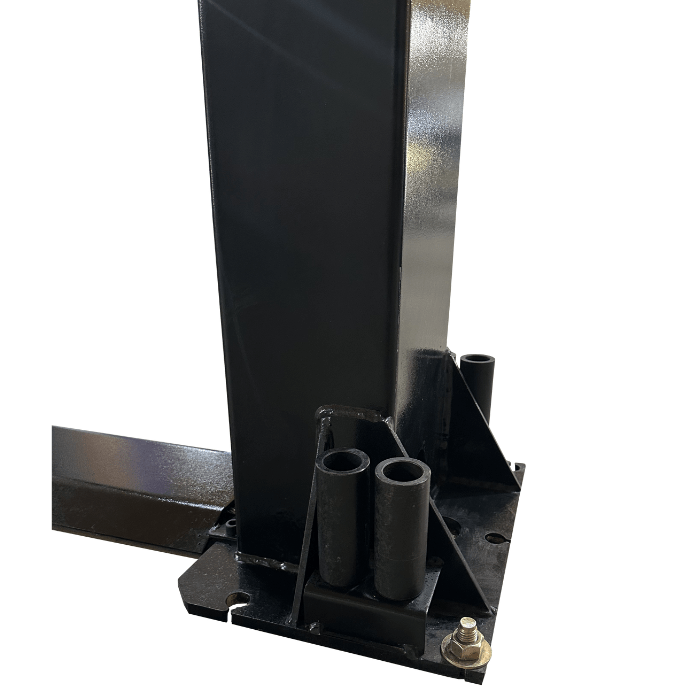

This 9,000 lb 2 post lift is designed with a floor plate configuration and symmetric arms, making it an excellent choice for general repair shops and home garages alike. Built from heavy-duty steel with a protective powder coat finish, it offers years of dependable service, even under daily use. At just 112″ overall height, it’s compact enough for lower-ceiling spaces while still providing a full 72″ lifting height to comfortably service sedans, SUVs, and light-duty trucks. 9,000 lb capacity with reinforced steel construction, aircraft-grade equalization cables, and sealed hydraulic systems rated for daily commercial cycling.
Tuxedo engineered this lift with convenience in mind. The hydraulic chain-over drive system ensures smooth lifting, while automatic arm restraints and dual-point carriage locks provide added safety. Low-profile 4″ lift pads and stackable height adapters give you flexibility for everything from sports cars to taller vehicles. Whether you’re running a small auto shop or upgrading your home garage, the Tuxedo 2 post lift delivers professional-grade performance at a price that makes sense. For shops choosing the symmetric arm configuration but wanting maximum mechanical reliability, the TP9KF-TUX is the upgrade-tier choice in the symmetric 9K category.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Tuxedo Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Tuxedo TP9KF-TUX 2-Post Lift
Key Features of the Tuxedo TP9KF-TUX 2-Post Lift You'll Love:

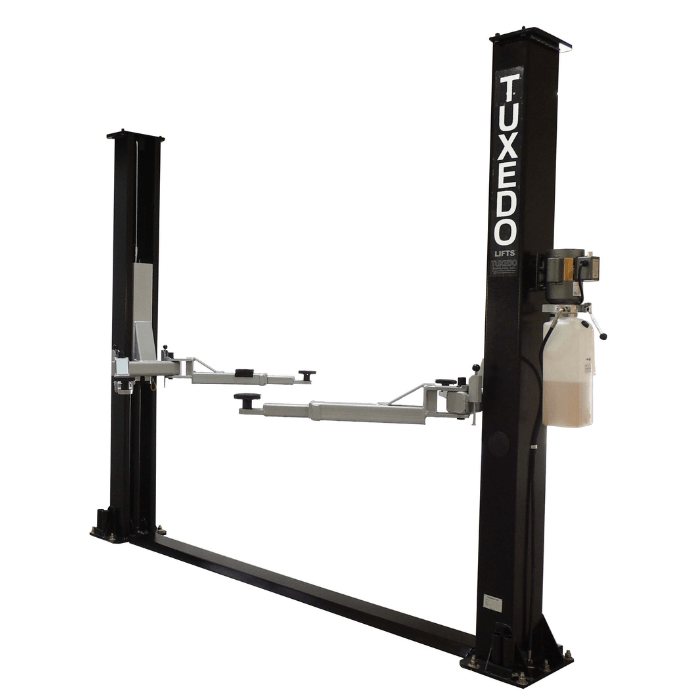

• Compact Floor Plate Construction: Unlike overhead beam models, this 2 post car lift uses a floor plate design, making it ideal for shops and garages with lower ceilings. You don’t have to compromise on lift capacity or height. This configuration lets you get full clearance even in tighter spaces. It’s a perfect balance of performance and space efficiency.

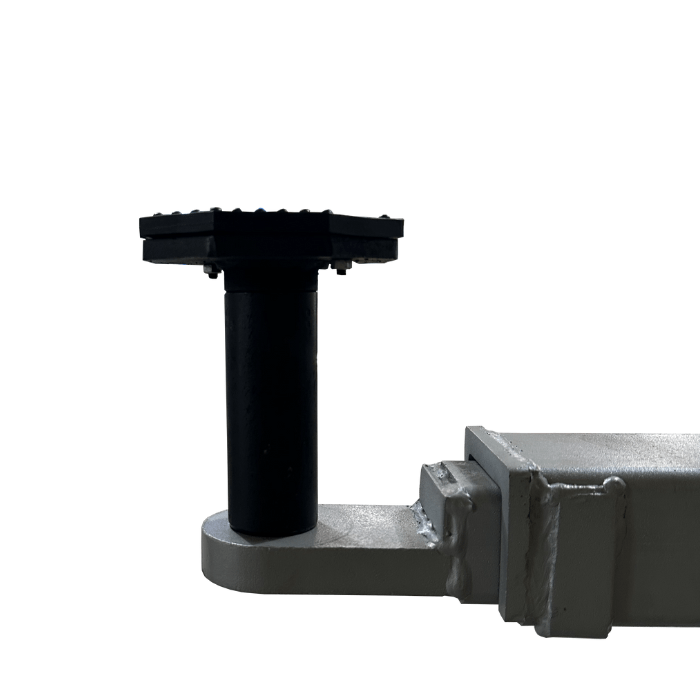

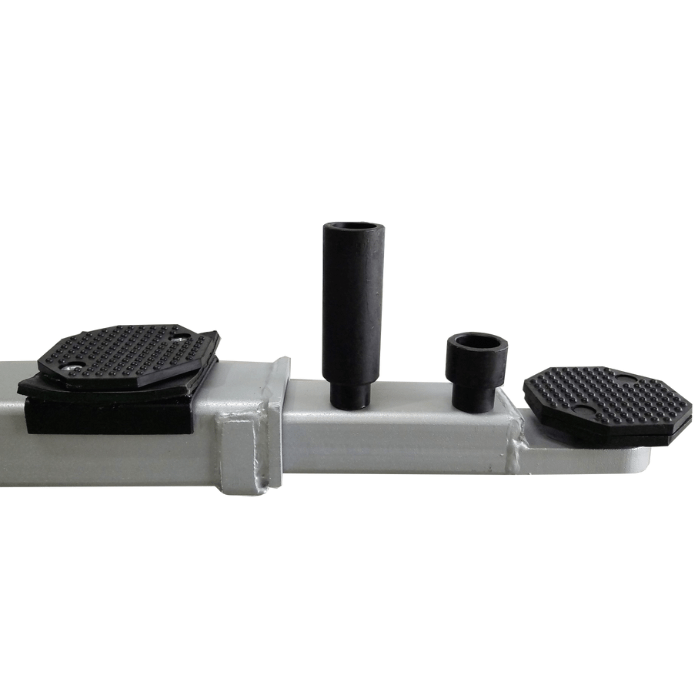

• Low-Profile 4″ Lift Pads: Getting under vehicles with low ground clearance can be a challenge, but the included low-profile lift pads make it easy. At just 4″ high, they slide under sports cars, sedans, and compact vehicles without issue. Paired with the stackable adapters, you’ll also have no trouble reaching taller frames and trucks.
• Hydraulic Chain-Over Drive System: This lift is powered by a durable hydraulic system with a chain-over cylinder drive, designed for smoother lifting action and fewer wear parts compared to older cable-driven systems. That means less maintenance downtime and more reliable performance across years of operation.

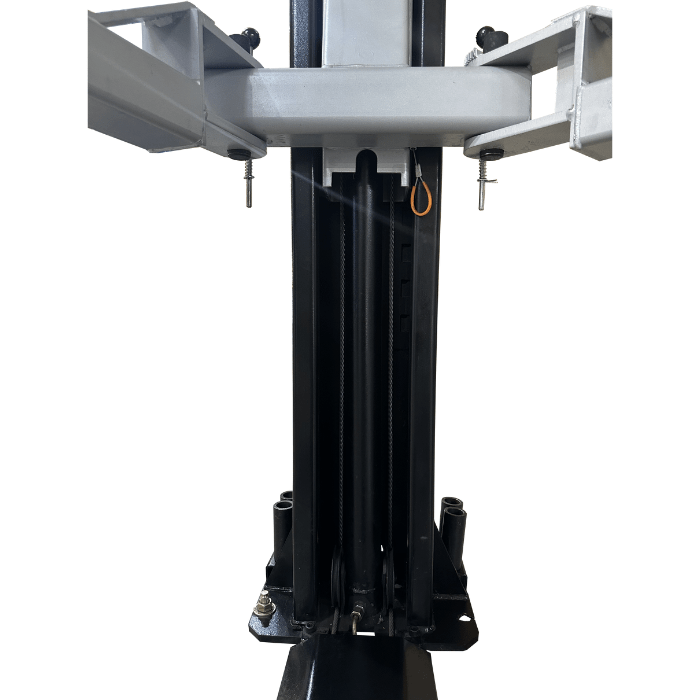

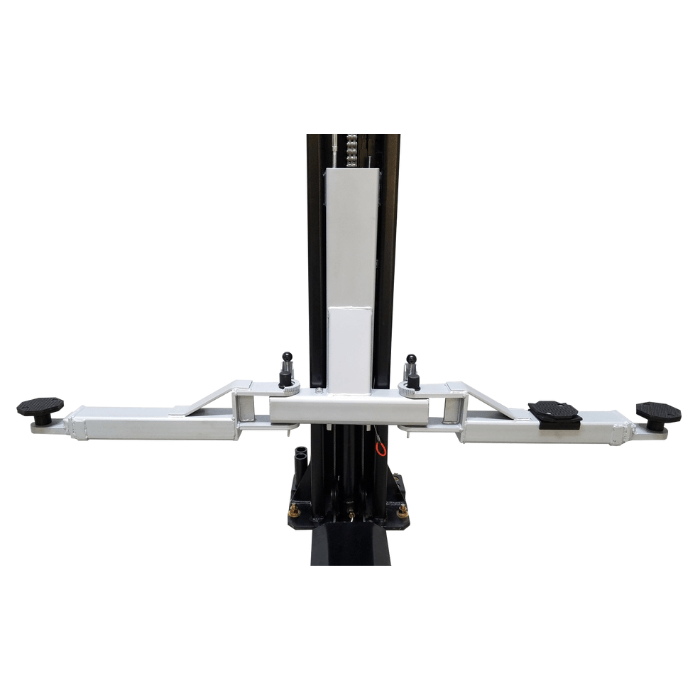

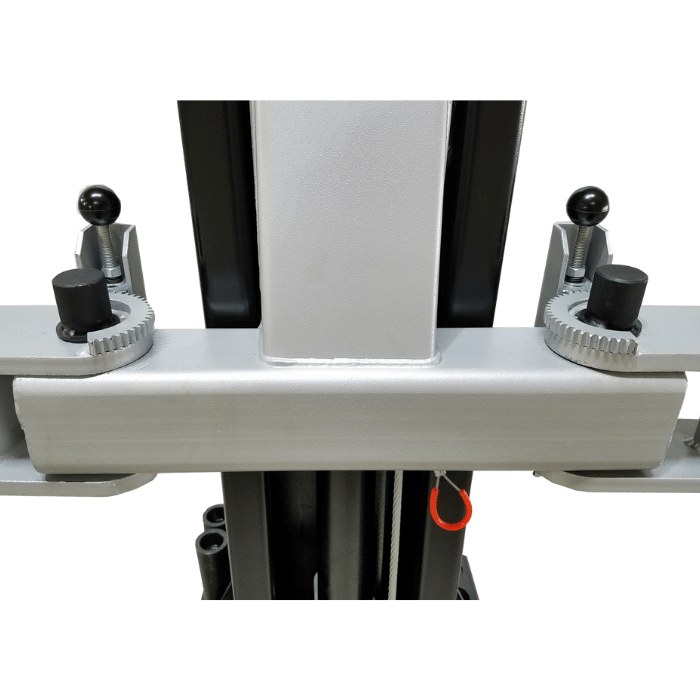

• Automatic Arm Restraints & Dual-Point Locks: Safety is non-negotiable, and Tuxedo built in both automatic arm restraints and a dual-point carriage lock release system. The arms lock in place as soon as lifting begins, while the lock release ensures both posts lower evenly for smooth, safe operation.
Minimum Garage Requirements
✔ Ceiling Height: At least 118" (9'10") recommended ✔ Footprint: 101" drive-thru x 141" overall (8'5" x 11'9") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V. 20 AMP. 1 PH ✔ Overall Lift Height: 112" (9'4") (measure before ordering)
✔ Ceiling Height: At least 118" (9'10") recommended
✔ Footprint: 101" drive-thru x 141" overall (8'5" x 11'9")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V. 20 AMP. 1 PH
✔ Overall Lift Height: 112" (9'4") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

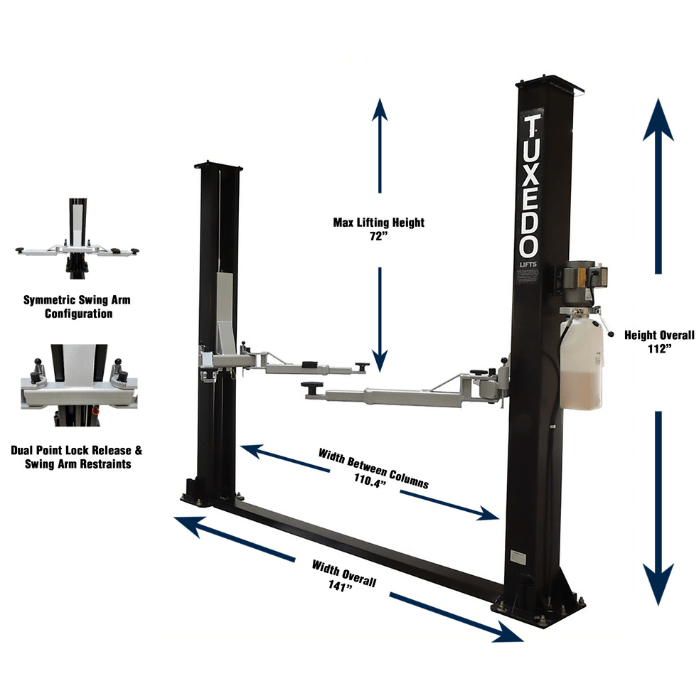

Tuxedo TP9KF-TUX 9,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | Tuxedo |
| Model | TP9KF-TUX |
| Capacity | 9,000 lbs. |
| Max Load Per Arm | 2,250 lbs. |
| Height Overall | 112″ |
| Width Overall (w/ Power Unit) | 141″ |
| Width Between Columns | 110-3/8″ |
| Max Lift Height | 72″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 101-11/16″ |
| Lifting Speed | 50 seconds |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach (min/max) | 31″. 45″ |
| Long Arm Reach (min/max) | 31″. 45″ |
| Narrow Bay Setting | N/A |
| Ship Weight | 1,295 lbs. |
| Power | 220V. 20 AMP. 1 PH |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
Tuxedo TP9KF-TUX Frequently Asked Questions
How is the TP9KF-TUX different from the TP9KFX?
Both are symmetric floor-plate lifts on the same 9,000 lb platform. The TUX variant carries Tuxedo's component upgrades -- heavy-duty equalization cables, upgraded hydraulics, and a reinforced safety system -- aimed at longer service life under daily cycling. If you want the standard version of this configuration, that's the TP9KFX.
Will my truck fit on the TP9KF-TUX?

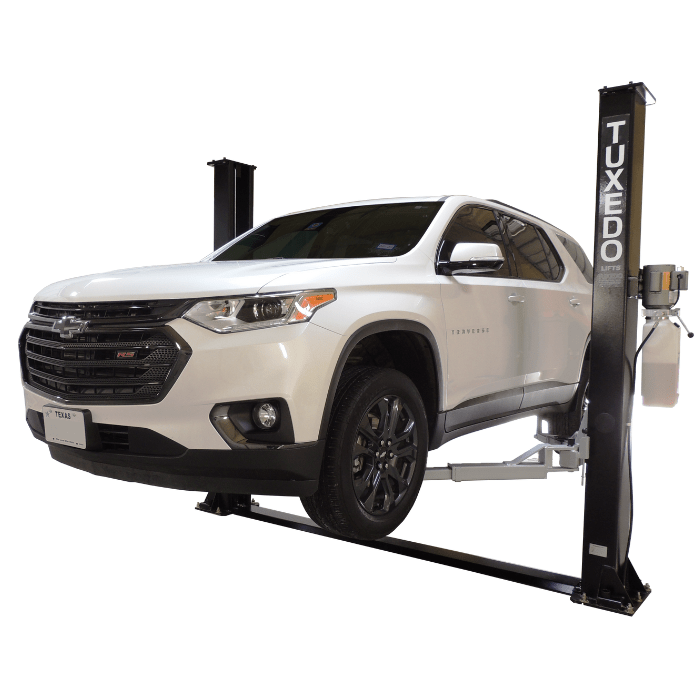

The 9,000 lb 2 post lift rating covers sedans, SUVs, and half-ton pickups with margin, and the stackable height adapters handle taller frames. For 3/4-ton trucks and vans, step up to the 11,000 lb TP11KC-DX.
Which Tuxedo 9,000 lb 2-post is right for me?
This TP9KF-TUX is the upgraded symmetric floor-plate model. The TP9KFX is the standard floor-plate version; the TP9KSCX and TP9KACX are the clear-floor models for taller ceilings; and the TP9KAC-TUX is this lift's asymmetric counterpart.
How much ceiling height do I need?
Plan on about 118" (9'10") -- the columns themselves stand only 112". The floor-plate design keeps everything low, making this a true 2 post lift for low ceiling garages where overhead clear-floor models need 12 feet. Measure your tallest vehicle at full lift before ordering.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. Plan on a slab at least 4" thick at 3,000 PSI compressive strength, and verify your concrete before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
Is the Tuxedo TP9KF-TUX worth it?
Upgraded cables and hydraulics under a 5-year structural warranty, in a package that fits under a 10-foot ceiling -- that's the TUX-variant pitch. See the Reviews tab above for buyer feedback, and read our Are Tuxedo Lifts Worth It? breakdown on The Pitstop Journal.
