Take on More Alignment Work with the Katool KT-4M110PA 11,000 lb Four Post Alignment Lift
If your shop runs alignment work on full-size cars and light trucks, a budget two-post or undersized four-post turns into a constant compromise. You're working around a lift that wasn't built for alignment, juggling drip trays and floor jacks, and sending heavier vehicles down the road because the rated capacity isn't there. Lifts that can't carry an 11,000 lb load or that skip a real rolling jack cost you the inspection and suspension jobs that should be driving your ticket up.
The Katool KT-4M110PA solves it with an 11,000 lb lifting capacity, 84.5" maximum lift height, and an included KT-RJ70 7,000 lb rolling jack for wheel and suspension service. Reinforced heavy-duty steel runways deliver the stability alignment work demands, and the pneumatic lock release system drops every position with one handle rather than asking the technician to walk around the lift. It ships standard with a 110V motor -- and if your shop runs 220V, the 220V motor upgrade is free at checkout -- and the carriage reaches full height in roughly 50 seconds.
Buy it once and the KT-4M110PA earns its keep across alignment, inspection, brake, and suspension work without dragging in a separate set of jacks for every job. The package ships with the rolling jack, three drip trays, one lift tray, and aluminum approach ramps, so nothing extra has to be sourced before installation. One tech can handle the full alignment workflow without help on the floor, and the reinforced runway construction keeps the rails true under load, which is what makes alignment readings repeatable over the life of the lift.
Ready to add a true alignment-grade lift to your shop? Talk to a Pitstop Pro lift specialist for installation requirements and shipping options on the KT-4M110PA. Or compare all 4 post car lifts, see the rest of our alignment lifts, browse every 4 post lift with a rolling jack included, or read our honest Are Katool Car Lifts Worth It? breakdown.
Benefits of the Katool KT-4M110PA
Key Features of the Katool KT-4M110PA 11k Alignment Lift

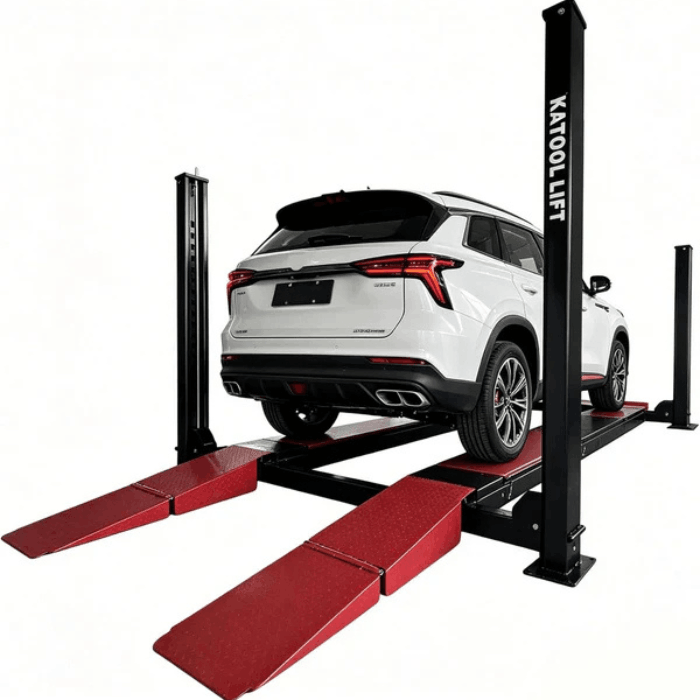

• 11,000 lb lifting capacity: Engineered for cars, trucks, SUVs, and other heavy vehicles. The reinforced runway construction provides the stability and strength alignment work demands across the full rated load.
• 84.5 inch maximum lift height: Generous under-vehicle clearance lets technicians work comfortably while standing. The 84.5 inch height supports inspection, repair, detailing, and alignment work without forcing a hunched posture across a long job.

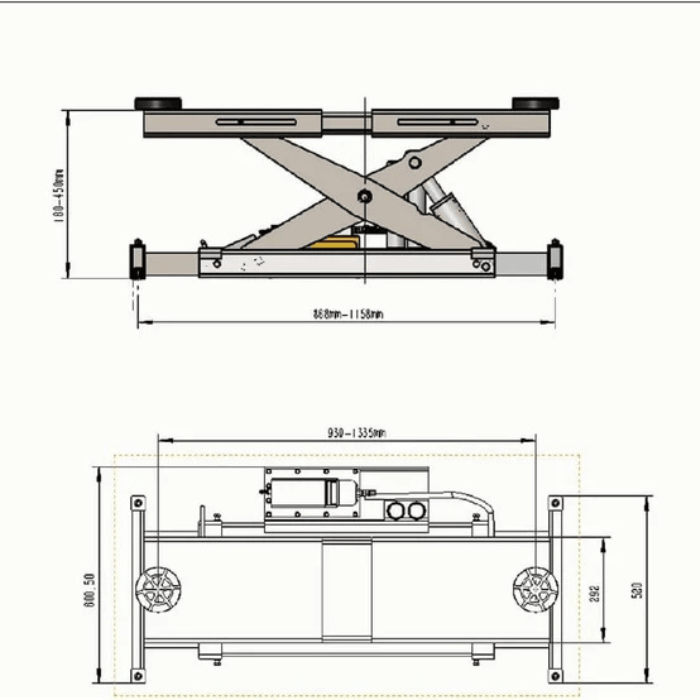

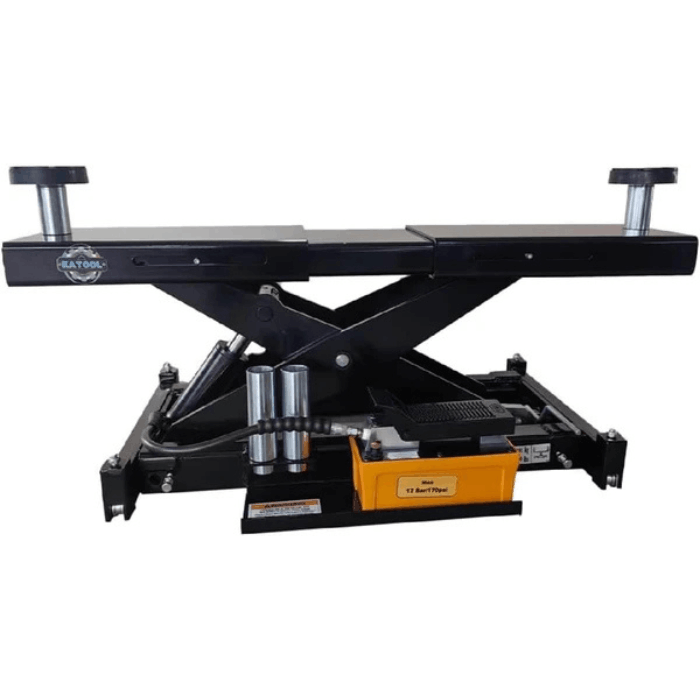

• Includes 7,000 lb rolling jack: The package ships with the Katool KT-RJ70 rolling jack (7,000 lb) along with three drip trays and a jack tray. Wheel and suspension service happens on the same lift without breaking down the setup or rolling in a second piece of equipment.

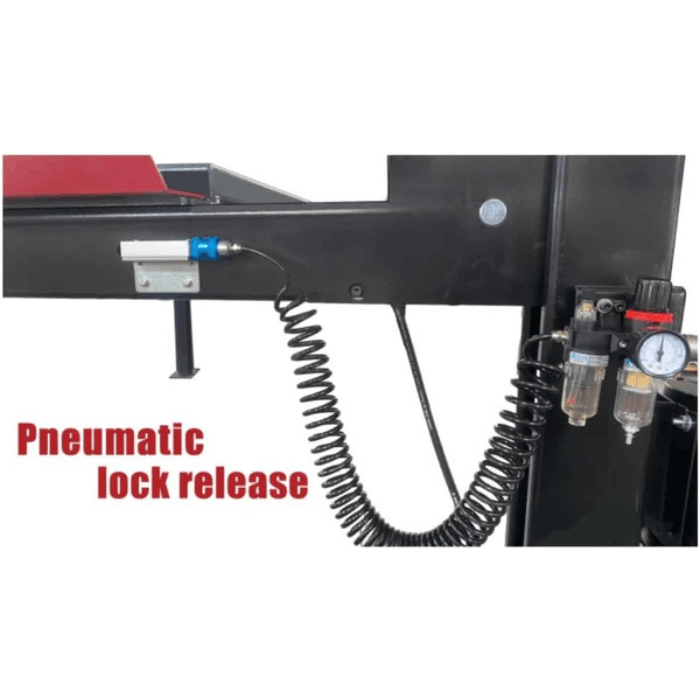

• Pneumatic lock release system: Pneumatic unlocking smooths operation and shortens the lock-release cycle compared to manual systems. The technician releases both columns from one position, keeping the workflow steady through a busy bay.
• Reinforced heavy-duty steel runways: Runways are built from reinforced heavy-duty steel for the load and travel an alignment lift sees over the long term. Rail integrity is what keeps alignment readings repeatable from one job to the next.
• 110V standard, free 220V upgrade: Ships with a 110V motor that runs on a dedicated circuit most garages already have -- and if your shop runs 220V single-phase, the 220V motor upgrade is free at checkout. Lightweight aluminum approach ramps are included for daily operation and easy roll-on, roll-off positioning.
Minimum Garage Requirements
✔ Floor Space: 240.7" L x 126" W (20'-0" x 10'-6") ✔ Concrete Thickness: Minimum 4" (102 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V standard (free 220V upgrade), dedicated circuit ✔ Lift Time: Approximately 50 seconds full travel ✔ Approach Ramps: Aluminum, included with lift
✔ Floor Space: 240.7" L x 126" W (20'-0" x 10'-6")
✔ Concrete Thickness: Minimum 4" (102 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V standard (free 220V upgrade), dedicated circuit
✔ Lift Time: Approximately 50 seconds full travel
✔ Approach Ramps: Aluminum, included with lift
*This lift must be installed on a concrete surface meeting the manufacturer's minimum requirements. Installing on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation.

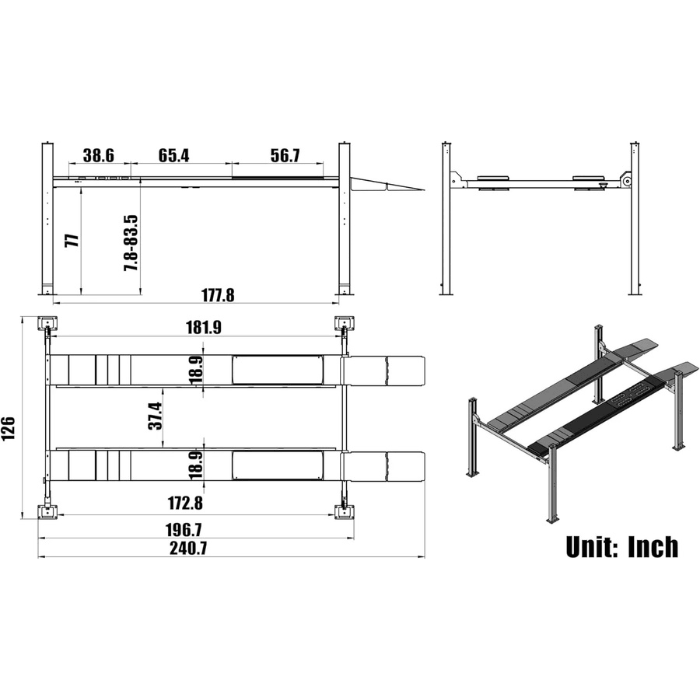

| Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift Specifications | |
| Manufacturer | Katool |
| Model | KT-4M110PA |
| Lift Type | 4-Post Alignment Lift |
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Rolling Jack Capacity | 7,000 lbs (3,175 kg) |
| Maximum Lift Height | 84.5" (2,146 mm) |
| Maximum Underneath Clearance | 77" (1,956 mm) |
| Lifting Time | 83 seconds up / 40 seconds down |
| Lock Positions | 14 positions, every 4.7" |
| Height of Posts | 94.88" (2,410 mm) |
| Overall Width | 126" (3,200 mm) |
| Drive-Through Width | 112.81" (2,865 mm) |
| Distance Between Runways | 37.4" (950 mm) |
| Runway Width | 18.9" each (480 mm) |
| Overall Length With Ramps | 240.7" (6,114 mm / about 20'-0") |
| Overall Length Without Ramps | 197.5" (5,016 mm) |
| Runway Length | 181.9" (4,620 mm) |
| Lowered Runway Height | 7.8" (198 mm) |
| Lock Release System | Pneumatic unlocking |
| Power Requirement | 110V/60Hz/3HP or 220V/60Hz/3HP |
| Runway Construction | Reinforced heavy-duty steel runways |
| Approach Ramps | Aluminum ramps, included |
| Shipping Dimensions | Lift: 189" × 26" × 35" | 2,646 lbs RJ70: 25" × 41" × 15" | 441 lbs |
| Included Accessories | KT-RJ70 7,000 lb rolling jack, 3 drip trays, 1 jack tray, and aluminum approach ramps |
| Warranty | 1-year limited parts and defects warranty | 3-year structural warranty |
Katool KT-4M110PA Frequently Asked Questions
Will a full-size truck fit on the KT-4M110PA?

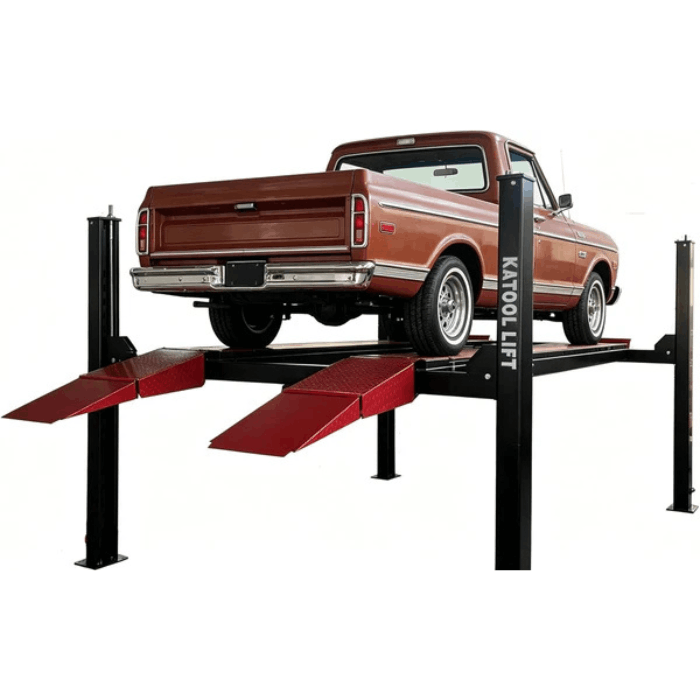

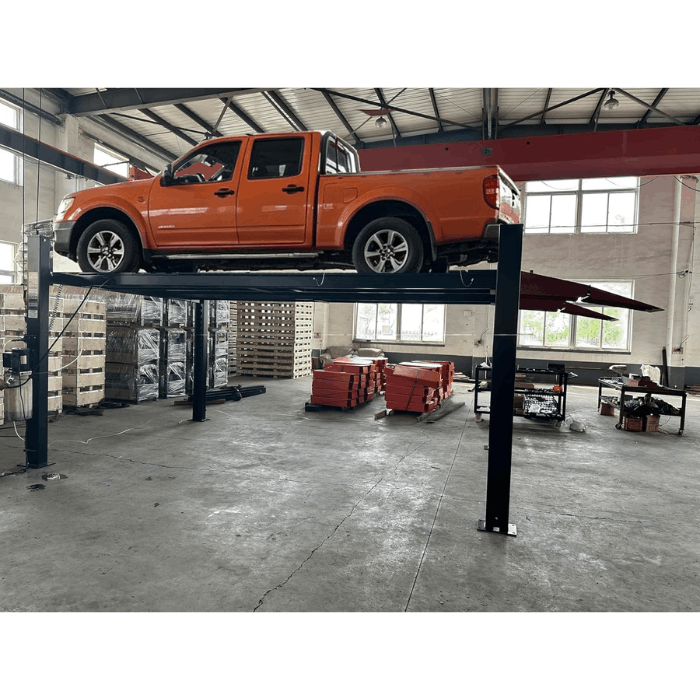

Yes -- the 11,000 lb rating covers half-ton, 3/4-ton, and even 1-ton single-rear-wheel pickups: an F-350 or RAM 3500 diesel crew cab curbs around 7,000-8,600 lbs, well inside capacity. The 181.9" runways take extended cabs and long beds. Dually rear wheels can run wider than the 18.9" runways -- for duallys and commercial upfits, step up to the 15,000 lb Katool KT-4H150.
Does the KT-4M110PA run on regular 110V power?
Yes -- it ships standard with a 110V motor on a dedicated circuit. If your shop already runs 220V single-phase, the 220V motor upgrade is free at checkout. Either way, full carriage travel takes roughly 50 seconds.
What's included in the box?
The Katool KT-RJ70 rolling jack (7,000 lb), three drip trays, a jack tray, and aluminum approach ramps all ship with the lift -- nothing extra to source before your installer can finish the job.
How is this different from the KT-4H110?
The Katool KT-4H110 is our storage-and-service 4-post at the same 11,000 lb capacity -- but the rolling jack is sold separately and the locks release manually. The 4M110PA is the work version: the KT-RJ70 rolling jack is in the crate, the lock release is pneumatic single-point, and the reinforced runways are built to hold rail alignment under load. If the lift will earn its keep on brake, suspension, and alignment jobs, this is the one.
Do I still need a separate alignment rack?
For most shops, no -- a 4 post alignment lift like this covers the inspection, suspension, and alignment-prep work that would otherwise justify a dedicated alignment rack, in a smaller footprint and at a fraction of the price. Pair it with one of our wheel alignment machines to complete the setup.
How does freight delivery work?
The lift ships as freight -- about 2,646 lbs for the lift plus 441 lbs for the rolling jack. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool KT-4M110PA worth it?
Factor in what's in the crate: at most competitors, a 7,000 lb rolling jack alone runs $1,000+ on top of the lift. See the Reviews tab above for buyer feedback on Katool lifts, and for a deeper look at the brand read our Are Katool Car Lifts Worth It? breakdown on The Pitstop Journal.
