AMGO Commercial 4-Post Lift – 14,000 lb Capacity | PRO-14

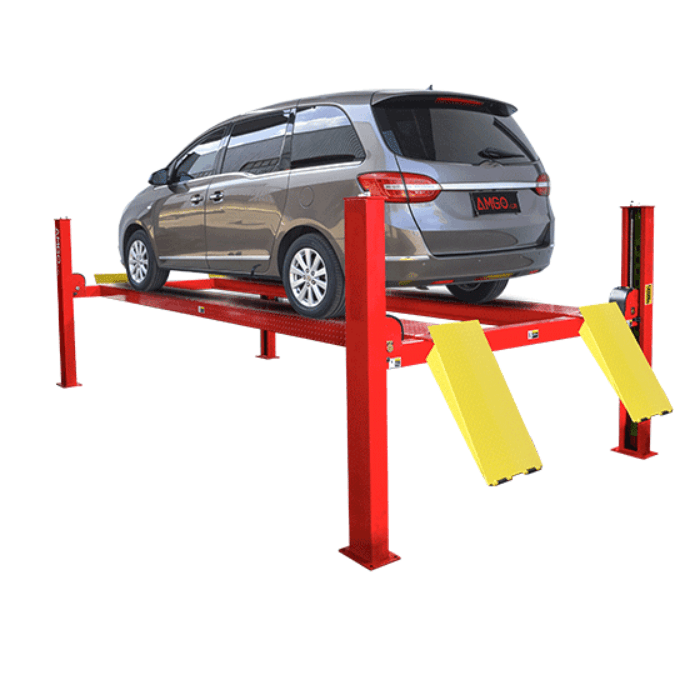

Meet the Workhorse: AMGO PRO-14 14,000 lb 4-Post Lift Built for Commercial Power & Safety
Finding the right 4 post lift that can handle heavy-duty vehicles without compromising on safety, speed, or stability can be a challenge. Many commercial lifts lack the durability or adjustability needed for busy shops, forcing you to work around limitations. The AMGO PRO-14 solves that problem with a massive 14,000 lb lifting capacity, a precision-engineered hydraulic system, and an adjustable platform width. Making it a top choice for auto repair shops, dealerships, and fleet maintenance facilities. Whether you’re servicing sedans, trucks, or vans, this lift gives you the strength and stability to work confidently every time. 14K is where commercial-vehicle service really starts. Above 12K, you're handling crew-cab dually pickups, work vans, and light-commercial vehicles where the daily cycling requires structural rating that consumer-tier 14K lifts can't sustain.
Built with commercial-grade construction, this AMGO 4 post lift combines rugged steel, precision welding, and advanced safety systems to keep both technicians and vehicles secure. Its air-released safety locks and mechanical self-locking device ensure every lift is stable from start to finish. The skid-proof diamond platform provides excellent traction, while the cable-breaking protection system adds another layer of reliability. With a max lifting height of 75 1/8" and drive-thru clearance of 102 1/16", it’s built for convenience as much as strength. Industrial-grade structural design with reinforced runways and base plates rated for daily commercial cycling. The 2.0 HP 220V power unit delivers consistent cycle times across the full 14K capacity range.
The PRO-14 is also designed for efficiency in high-volume environments. The 2.0 HP motor delivers smooth, consistent lifting in just 79 seconds, while adjustable platforms allow for quick setup changes between vehicles. Strict AMGO quality control ensures every lift meets the highest safety standards, so you can focus on getting more work done without worrying about equipment failure. If you need a 14000 lb 4 post lift that’s built for commercial use and backed by proven reliability, the PRO-14 is the lift you’ve been looking for. For commercial shops handling daily fleet-vehicle service, the PRO-14 brings true 14K commercial-grade structural rating into a price band independent shops can justify.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the AMGO PRO-14 4-Post Lift
Key Features of the AMGO PRO-14 4-Post Lift You'll Love:
• 14,000 lb Lifting Capacity: This commercial-grade 4 post car lift is engineered to handle a wide range of vehicles, from compact cars to heavy-duty trucks. Its robust steel construction and high-strength components make it ideal for busy shops and fleet maintenance.
• Air-Released Safety Lock System: The integrated air-released safety locks make raising and lowering vehicles smooth and controlled. This feature reduces downtime and improves safety, giving technicians peace of mind during every lift.
• Mechanical Self-Locking & Cable-Break Protection: Even in the event of a failure, the PRO-14’s mechanical self-locking system and cable-breaking protection ensure vehicles remain secure. This dual-safety setup provides unmatched reliability for commercial use.
• Adjustable Platform Width: The off-side platform can be adjusted left or right to accommodate different vehicle widths, from the standard 47" up to 54 1/2". This flexibility means faster setups and greater versatility in your shop.
• Precision Hydraulic Cylinders with Flow Restrictors: High-quality hydraulic cylinders and seals ensure smooth, efficient lifting. Built-in flow restrictors control lowering speed, enhancing safety and preventing accidental drops.
Minimum Garage Requirements
✔ Ceiling Height: At least 92" (7'8") recommended ✔ Floor Space: 257" L x 130" W (21'5" x 10'10") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase ✔ Post Height: 86" (7'2") (measure before ordering)
✔ Ceiling Height: At least 92" (7'8") recommended
✔ Floor Space: 257" L x 130" W (21'5" x 10'10")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase
✔ Post Height: 86" (7'2") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO PRO-14 14,000 lb 4-Post Lift Specifications |
|
| Manufacturer | AMGO |
| Model | PRO-14 |
| Lifting Capacity | 14,000 lbs |
| Lifting Time | 79 seconds |
| Overall Length (Inc. Ramps) | 257 1/2" |
| Overall Length (No Ramps) | 216 1/2" |
| Overall Width | 130 7/8" |
| Width Between Columns | 116" |
| Max. Lifting Height | 75 1/8" |
| Max. Lock Height to Top of Runway | 72" |
| Overall Height | 86 3/16" |
| Minimum Height | 7 7/8" |
| Max. Underneath Height | 68 1/2" |
| Max. Lock Underneath Runway | 65 3/8" |
| Drive-Thru Clearance | 102 1/16" |
| Width Between Runways | 47" (Min. 3 3/8" ~ Max. 54 1/2") |
| Outside Edge of Runways | 87" (Min. 43 3/8" ~ Max. 94 1/2") |
| Gross Weight | 2,784 lbs |
| Motor | 2.0 HP, 220V / 60Hz, Single Phase |
| Shipping Dimensions | Length: 5550 mm (218.5") Width: 560 mm (22") Height: 1560 mm (61.5") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO PRO-14 Frequently Asked Questions
What vehicles is the PRO-14 built for?
Fleet duty: a 14,000 lb 4 post car lift for 1-ton duallys, utility bodies, ambulances, and loaded service trucks. The 102-1/16" drive-thru takes wide commercial bodies, runways adjust up to 54-1/2" apart, and 68-1/2" of under-runway clearance gives standing access.
Will it fit in a standard-height bay?
Yes -- the columns stand 86-3/16", so 92" (7'8") of ceiling is enough. That's unusually low-profile for a 14,000 lb lift, which usually means no bay remodel.
Which AMGO heavy-duty 4-post is right for me?
This PRO-14 is the 14K service standard. Long vehicles? The PRO-14E stretches to 286" overall. Alignments? The PRO-14A adds slip plates and turnplate pockets. Box trucks and buses? Step up to the PRO-18. Lighter mixed work? The PRO-12 costs less.
Can I do wheels-free service on it?
Yes -- pair it with the RJ-8A 8,000 lb pneumatic rolling jack, which rides the runways and lifts by the frame for brakes, tires, and suspension. The airline kit plumbs air along the runway.
What about long-wheelbase vehicles?
AMGO's 26" platform extension kit (41403) bolts onto the PRO-14 runways -- or go straight to the PRO-14E with factory extra-long runways.
Do I need to bolt it to the floor?
4-posts are free-standing on concrete at least 4" thick at 3,000 PSI. For daily commercial cycling at this capacity, anchor per the manual and verify your slab before ordering.
Is the AMGO PRO-14 worth it?
A 14,000 lb commercial rating with adjustable runways under AMGO's 5-year structure / 3-year hydraulics / 2-year electrical warranty -- capability that usually costs thousands more. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
