Front right side view of the Katool 12,000 lb Two-Post Auto Lift – Single Lock Release H120D holding a truck

Katool 12,000 lb Two-Post Car Lift – Single Lock Release | H120D

Name: Katool 12,000 lb Two-Post Car Lift – Single Lock Release | H120D
Brand: KATOOL
SKU: KT-H120D
Price: 4022.0 CAD
Availability: InStock

by KATOOL

SKU KT-H120D

Save $745.00

$4,767.00

$4,022.00

No Sales Tax Outside GA & IL

Free Warehouse Pickup Available

Talk to a Specialist: (470) 208-2754

Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Find Your Nearest Pickup Warehouse

Quantity

The Katool KT-H120D 12,000 lb Two-Post Car Lift: The Ultimate Solution for Heavy-Duty Lifting

When it comes to lifting heavy vehicles such as cars, trucks, and SUVs, you need a car lift that is built to last and perform. The Two Post 12,000 lb Car Lift by Katool is engineered to provide outstanding performance with the reliability you need for daily use in your garage or workshop. This lift is not only powerful but also designed for safety and versatility, making it the go-to choice for anyone who demands a top-tier solution for vehicle lifting. Single-point lock release stands out as the differentiator most buyers overlook until they're actually using the lift. Walking the lift to disengage individual locks at every cycle wears out fast in a high-volume shop.

The 2-post car lift is perfect for those who require a high-capacity lift for vehicles up to 12,000 lbs (5,500 kg). Whether you’re a mechanic, car enthusiast, or own a busy auto repair shop, this 2-post car lift can handle it all. Designed with safety in mind, it features symmetric arms for even weight distribution, reducing the risk of accidents. The hydraulic system is powered by a 4 HP motor that guarantees smooth and reliable lifting every time. 12,000 lb capacity covers crew cabs, lifted SUVs, and most light commercial work. The 74.8-inch lift height gives you full standing clearance under most vehicles for service work.

Not only does this lift meet all the necessary safety standards, but it also integrates easily into most workspaces with minimal fuss. If you’re looking for a durable, high-capacity solution to handle a variety of vehicles, the Katool KT-H120D 12,000 lb Two Post Lift is the right choice for you. For shops handling daily mixed work where operator efficiency matters, the H120D's single-point release saves real seconds per cycle that compound across a full day of service.

Need a different setup? Check out our selection of Car Lifts, featuring differing sizes and weight capacities to suit your specific needs.

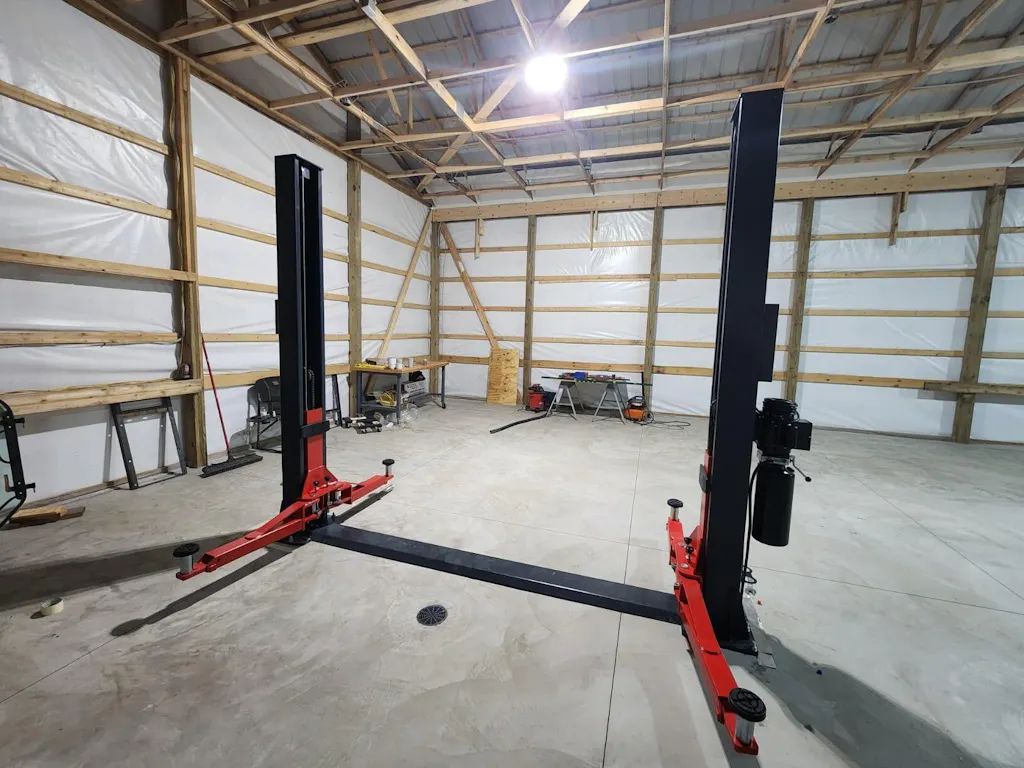

Katool KT-H120D Auto Lift with no car attached

Benefits of the Katool KT-H120D Auto Lift

Heavy-Duty Lifting Capacity

12,000 lb structural rating handles crew cabs, lifted trucks, and most light commercial vehicles. Built for the daily mixed-vehicle work most independent shops handle.

Reliable Performance

Single-point lock release engages and disengages from one location. Cuts walking time per cycle, which compounds into hours saved across a full week of service.

Enhanced Safety

Mechanical lock-and-release system holds the load on physical stops, not hydraulic pressure. Multiple lock positions give you precise height control.

Vehicle Protection

Three-stage arms adjust for short and long wheelbases without forcing improvised contact points. Heavy-duty rubber pads protect frame finish.

Versatile Support

74.8-inch lift height clears most full-size trucks and SUVs for full-standing service work. The motor cycles consistently across the full capacity range.

Quick Installation

Mounting hardware ships with the lift, so you're not chasing add-on parts after delivery. Standard concrete requirements work in most existing shop floors.

Key Features of the Katool 12,000 lb Two-Post Auto Lift You'll Love:

• High Lifting Capacity (12,000 lbs): The Katool KT-H120D is built to handle cars, trucks, vans, and SUVs effortlessly with its 12,000 lb (5,500 kg) capacity. The 12,000 lb structural rating is verified at the full capacity, not approximated for marketing claims.

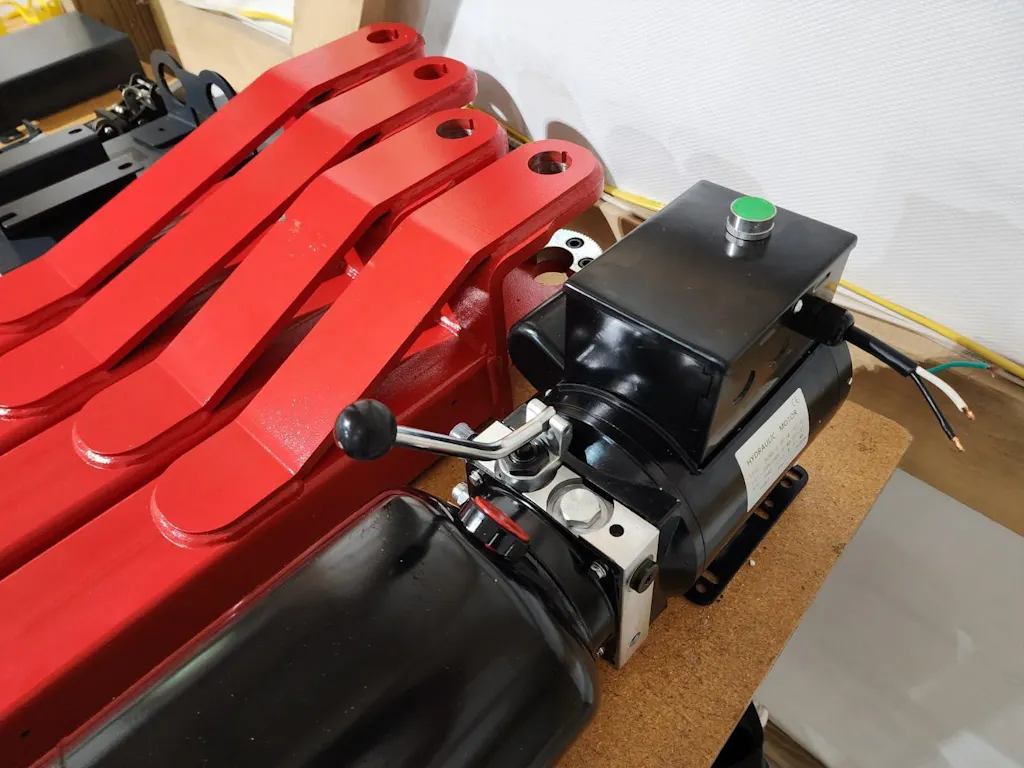

• Durable Hydraulic System: Powered by a 4 HP motor and dual hydraulic chain-drive cylinders for smooth and consistent performance. Heavy-gauge cylinders with sealed seals deliver consistent cycle times and resist the wear that fails cheaper hydraulic systems.

• Safety & Stability: Symmetric arm design for even weight distribution plus a single-point lock release and rubber pad door protection. Mechanical safety locks engage at multiple positions during the lift cycle, giving precise height control and audible engagement.

• Versatile Design: Includes extension support adapter sets (+100 mm) to accommodate a wide range of vehicles. Adjustable arms reach short and long wheelbases without swapping equipment, covering compact cars through crew-cab pickups.

• Easy Installation: Requires a concrete thickness of at least 5.9 in (150 mm) at 3000 PSI for safe installation. Concrete and mounting requirements are documented clearly so installation doesn't surprise buyers with unexpected setup costs.

• Built for Longevity: Constructed with high-quality materials to withstand constant use in demanding environments. Heavy-duty steel columns and reinforced base plates designed for sustained 12K cycling under daily commercial workloads.

Bottom side view of the Katool 12000lb Two-Post Auto Lift attaching to a car

Minimum Garage Requirements

✔ Ceiling Height: At least 116" (9'8") recommended ✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4") ✔ Concrete Thickness: Minimum 6" (152.4 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph ✔ Overall Lift Height: 110" (9'3") (measure before ordering)

✔ Ceiling Height: At least 116" (9'8") recommended
✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph
✔ Overall Lift Height: 110" (9'3") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

Katool KT-H120D Heavy-Duty Two-Post Car Lift Specifications
Lifting Capacity	12,000 lbs (5,500 kg)
Lock Release	Single-Point
Max. Lifting Height	74.8 in (1,900 mm)
Column Height	110.9 in (2,818 mm)
Drive-Thru Clearance	110.2 in (2,800 mm)
Column Width	124.8 in (3,170 mm)
Weight	1234lb (560kg)
Arm Style	Symmetric
Cable Thickness	3/8 in (9.5 mm)

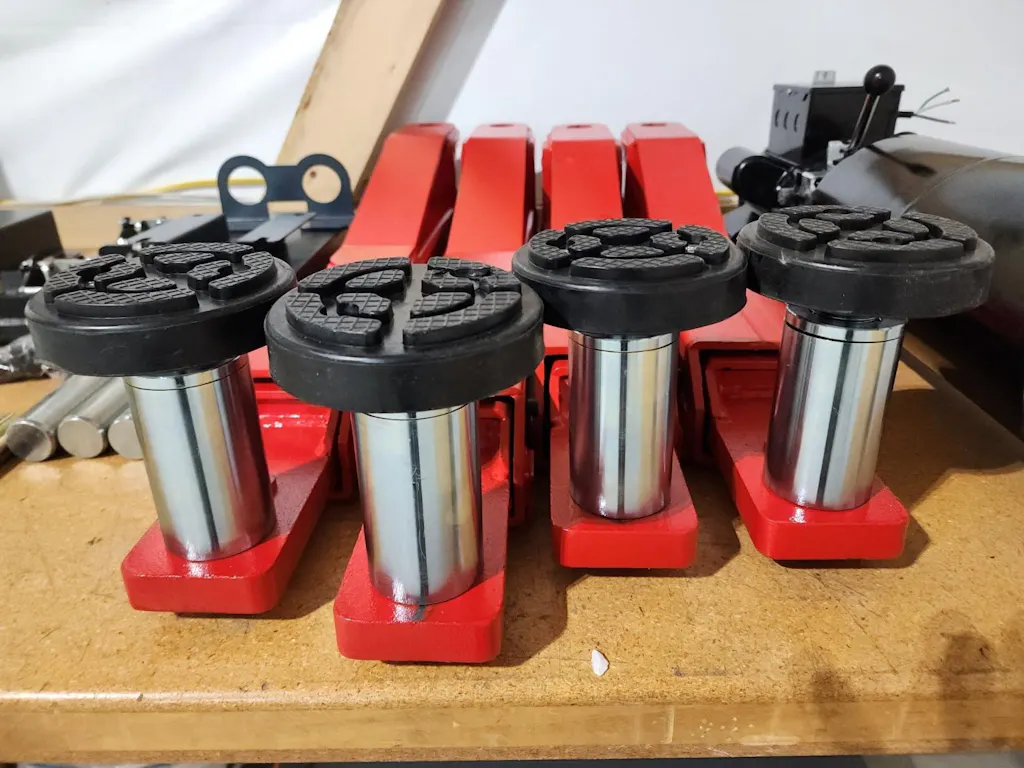

Support Adaptor	Extended (+4 in / 100 mm)
Motor	4.0 HP, 220 V / 60 Hz / 1 Ph
Hydraulic System	Dual Hydraulic Chain-Drive Cylinders
Oil	AW-46 (AW-32 for colder climates)
Door Protection	Rubber Pad Guards
Certification	CE-Approved. 115 % dynamic / 150 % static load tested
Wiring Requirement	Must be wired with 10-gauge wire & 30-amp breaker

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts

Overview
Manual
Shipping/Returns
Warranty
★Reviews

Overview

The Katool KT-H120D 12,000 lb Two-Post Car Lift: The Ultimate Solution for Heavy-Duty Lifting

Need a different setup? Check out our selection of Car Lifts, featuring differing sizes and weight capacities to suit your specific needs.

Benefits of the Katool KT-H120D Auto Lift

Heavy-Duty Lifting Capacity 12,000 lb structural rating handles crew cabs, lifted trucks, and most light commercial vehicles. Built for the daily mixed-vehicle work most independent shops handle. Reliable Performance Single-point lock release engages and disengages from one location. Cuts walking time per cycle, which compounds into hours saved across a full week of service. Enhanced Safety Mechanical lock-and-release system holds the load on physical stops, not hydraulic pressure. Multiple lock positions give you precise height control. Vehicle Protection Three-stage arms adjust for short and long wheelbases without forcing improvised contact points. Heavy-duty rubber pads protect frame finish. Versatile Support 74.8-inch lift height clears most full-size trucks and SUVs for full-standing service work. The motor cycles consistently across the full capacity range. Quick Installation Mounting hardware ships with the lift, so you're not chasing add-on parts after delivery. Standard concrete requirements work in most existing shop floors.

Key Features of the Katool 12,000 lb Two-Post Auto Lift You'll Love:

Minimum Garage Requirements

✔ Ceiling Height: At least 116" (9'8") recommended
✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph
✔ Overall Lift Height: 110" (9'3") (measure before ordering)

Katool KT-H120D Heavy-Duty Two-Post Car Lift Specifications
Lifting Capacity	12,000 lbs (5,500 kg)
Lock Release	Single-Point
Max. Lifting Height	74.8 in (1,900 mm)
Column Height	110.9 in (2,818 mm)
Drive-Thru Clearance	110.2 in (2,800 mm)
Column Width	124.8 in (3,170 mm)
Weight	1234lb (560kg)
Arm Style	Symmetric
Cable Thickness	3/8 in (9.5 mm)
Support Adaptor	Extended (+4 in / 100 mm)
Motor	4.0 HP, 220 V / 60 Hz / 1 Ph
Hydraulic System	Dual Hydraulic Chain-Drive Cylinders
Oil	AW-46 (AW-32 for colder climates)
Door Protection	Rubber Pad Guards
Certification	CE-Approved. 115 % dynamic / 150 % static load tested
Wiring Requirement	Must be wired with 10-gauge wire & 30-amp breaker

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts

Manual

Shipping/Returns

Shipping

Freight shipping only within the lower 48 states and Canada
Orders placed with us typically arrive within 7–10 days, depending on the model and quantity ordered. Please note: Due to recent tariff-related delays affecting shipments from overseas manufacturers, current shipping times may be slightly longer than usual.
⚠️ Backorders: If a Katool item is out of stock, restock times are determined by Katool. An estimated restock date will be provided by email once your order is placed or upon request. Customers are encouraged to confirm availability before ordering if delivery timing is critical.
Customer is responsible for unloading from the truck.
Forklift or unloading dock service may be required.
Customer is responsible for any re-delivery charges.
Liftgate service available for $90 (Not Available for Vehicle Lifts).
Shipments should be inspected for damages before signing the Bill of Lading.
Concealed damage or missing parts: If damage or missing items are discovered after delivery, please report it within 48 hours with photos of the crate, labels, and contents.

Returns

30-day return guarantee on eligible items.
Items must be unused and in original packaging. For freight items, customers must keep all original crating, pallets, and packing materials. If packaging is discarded or damaged, the item may be non-returnable or additional packaging and handling costs may apply.
Installed or used items are not returnable, including items that have been bolted down, assembled beyond basic unpacking, wired, or put into service.
Unauthorized returns will not be accepted.
Non-Returnable Items:

Items beyond the 30-day return window.
Used, installed, washed, or misused items.
Items missing original packaging or required components.

Return Process:

Submit a return request with order details, product name, and reason for return.
Returns require a Return Merchandise Form (RMA) and must be authorized by Katool before anything is sent back.
Customer service will provide the RMA and return instructions, including the return address and any freight preparation requirements.
Return item per RMA instructions and provide tracking info.
Refund or exchange processed within 3 days upon return receipt.

Refund Processing Times:

Credit card: 7-14 business days.
PayPal: Up to 48 hours.
Note: All refunds are subject to a 3% processing fee to cover non-refundable transaction costs, regardless of whether the item has shipped.

Return Shipping Costs:

Customers are responsible for return shipping fees.
Shipping fees are non-refundable.
A 20% restocking fee applies.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.

Warranty

Warranty:

12-month limited warranty covering all parts and defects.
36-month structural warranty for vehicle lifts.

Warranty Coverage:

Covers cylinders, power units, motors, displays, and electronics.
Structural elements of the equipment.
Replacement parts provided at no charge with free shipping.

Warranty Terms & Conditions:

Claims must be made within the valid warranty period.
Warranty is non-transferable.
Customers may need to provide photos or videos for claim verification.
Katool warranty support is handled by Katool’s US based support team. Katool may require diagnostics, photos, or the return of a component for testing before a replacement is sent.
Pitstop Pro can assist with order details and follow ups, but we cannot override Katool’s warranty process.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.

★Reviews

Rock-Solid Lift with Serious Power

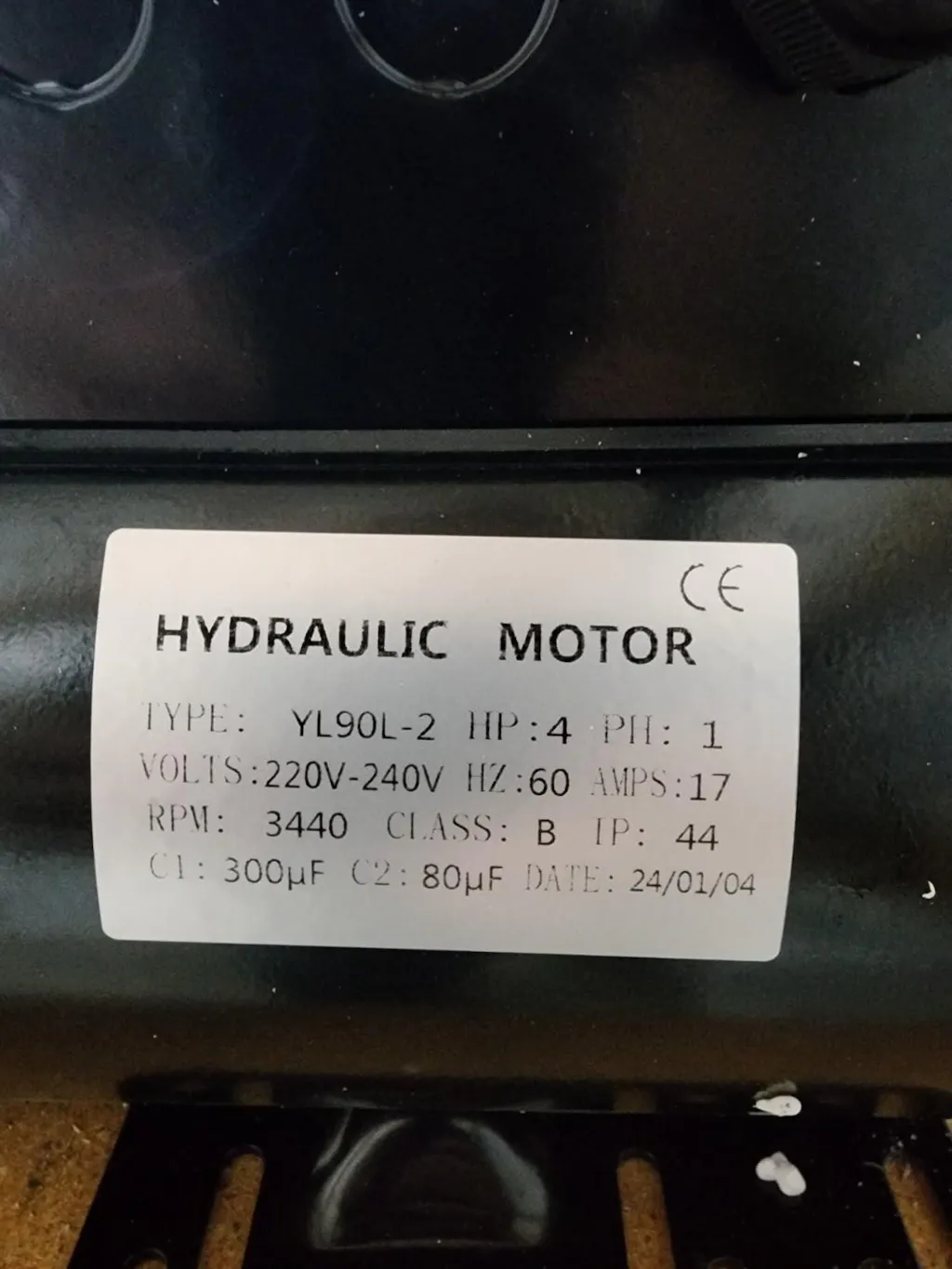

From unboxing to full setup, this lift impressed at every stage. The hydraulic motor is a beast—4 HP running at 3440 RPM, and it runs smooth on 220-240V. All the parts were well-packaged and clearly labeled, including the arms, anchors, and hoses. The install was straightforward in our shop, and the finished product looks clean and professional. We've already tested it with a full-size truck and it handled it with zero issues. If you're looking for a reliable two-post lift with commercial-grade performance, this one delivers big time.

Great truck car lift, bad instructions

This lift has proven to be highly effective, it has a dual safety feature that takes two-handed operation. The 10,000 lb lift has functioned remarkably well thus far. Nevertheless, I would confer a flawless rating if the instructions were crafted with greater clarity, presupposing fundamental mechanical seeknowledge. The shipping process was efficient, with delivery transpiring prior to the anticipated date. For individuals lacking proximity to a forklift, I suggest coordinating delivery to a site endowed with one.

Nice lift

Came on time. There was good communication from the seller to set up delivery. Had a few scratches but no big deal. Instructions are not clear, but found some videos on YouTube to install the same lift. I was able to install it on my own. Overall very happy with the purchase.

A Decent Hoist with Terrible Hardware

If this review was written for the seller, it would easily be 5 stars. They are very responsive, initiated communication on delivery right away, and offered a small credit for some light damage done by the shipping company. A simply great experience with the seller as far as Amazon goes.As for the hoist, it is pretty solid for the price. Core structure and critical components are made of heavy gauge steel.. has no issues lifting a crew cab dually F450. The lift appears to be manufactured under a bunch of different names and where this particular one falls short of expectations (even at this cheap overseas price) is the hardware... specifically the anchor bolts. They are absolutely garbage and not safe.. they have a pin that you hammer to expand the wedge and I was unable to get them to torque properly (for those that installed correctly). Some of the anchors also bent while hammering and would not accept a nut. They may be some metric size which caused my issue? Unsure.. I used a 3/4" masonry bit, which was the closest size I could find locally. I actually ended up having to extract these with a slide hammer and use a proper sleeved wedge anchor. What a monumentally better experience with new anchors. Most stores will not stock the size needed here ( 3/4" x 5.5" ) so plan ahead and order them if you are considering this lift.One additional annoyance is that there are no leveling shims included with the lift. The instruction manual mentions to use shims to level the columns but there are none on the exploded parts diagram. This, combined with the anchors, made installation harder than it needed to be. A $20 investment in better hardware by the manufacturer would make this lift an easy 5 stars.Keep in mind that the instruction manual is next to worthless, as the installation diagram has incorrect measurements. Make sure you verify actual dimensions by dry fitting the lift before drilling holes. The diagram stated a measurement that was a good ~2 inches off from actual. There are also hundreds of fasteners/washers/etc. all different sizes and material and the manual mentions nothing about where each goes. You can tell this is a generic manual but there are some videos online to give you some clues. I still had questions whether I was using the appropriate length screw for each cover/component.Time will tell on the reliability and longevity of the hoist.. Will update my review if there are any additional issues.
