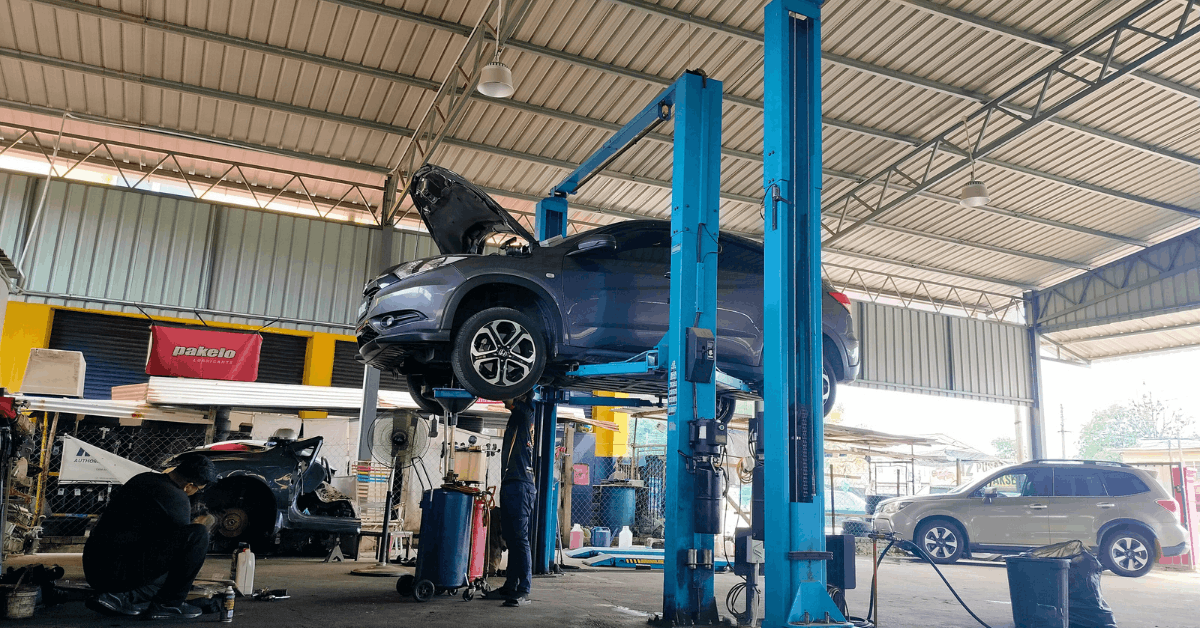

Vehicle lifted on a two post automotive lift in a service bay with the hood open and a mechanic performing maintenance below
February 20, 2026 Pitstop-Pro

What Size Lift Do You Need? A Straightforward Capacity & Height Guide(pictures need done)

What size car lift do I need? It’s a common question when planning to outfit your garage or shop with a vehicle lift, and the answer comes down to two key factors: how much weight it must handle (capacity) and how tall it needs to raise your vehicle (height).

In this guide, we’ll give you a quick, practical path to figure out the right size, covering how to measure your vehicles and garage, translating those numbers into 2-post or 4-post lift specs, and avoiding common pitfalls with ceilings, door tracks, concrete, and power. We even include a handy checklist so you can size your lift with confidence.

Quick Navigation

Capacity Sizing 101

Pick your lift by the heaviest vehicle you plan to raise, not the average. Find curb weight or GVWR on the door jamb or in the manual, then give yourself headroom. Running a lift at about 75 percent of its rating is a practical safety and longevity buffer. If you want a deeper breakdown of what those numbers really mean, see our car lift weight ratings guide.

  • Find the true heaviest case: full tank, typical gear, add-ons like winches or bumpers.

  • Choose the smallest class that covers that weight, then consider one class higher if you will be near the limit often.

  • Treat 75 percent of rated capacity as your everyday target, keeping 100 percent as rare.

Two-post ratings assume an even load, but vehicles are not perfectly balanced. Front-heavy trucks can push far more weight onto the front arms than the rear. That is why stepping from a 9k to an 11k two-post is more than a 2,000 lb headline jump, each arm gains crucial margin. If you are comparing options, start with the 2-post lift collection and filter by capacity.

  • Think per arm: a 9k two-post is roughly 2,250 lb per arm in ideal balance.

  • Add margin for accessories and uneven distribution, especially plow mounts, toolboxes, or diesel engines.

  • If you routinely lift near the limit, move up a class so no single arm is flirting with overload.

Four-post capacity is more straightforward since the weight rests on the tires across both runways. You still do not want to live at the maximum rating, especially with long wheelbase or loaded vehicles. Choose a rating that keeps your typical loads comfortably below the ceiling. For a quick side-by-side browse, use the 4-post lift collection.

  • Quick sizing checklist: confirm heaviest GVWR, add real-world gear, pick class, then one up if close.

  • Match lift type to use: two-post for wheels-off repairs, four-post for storage and drive-on service.

  • Recheck your slab, power, and ceiling to ensure your chosen capacity can be installed safely.

Automotive lift capacity guide illustrating load planning, two-post arm capacity, and four-post overall rating checklist

Height Sizing 101

Measuring height is as important as picking capacity. Map your bay’s true clear height at the center and under anything that hangs down, like door tracks or openers. Those often reduce usable height by 8–12 inches, so note both numbers.

Measure smart

  • Check floor-to-ceiling at the install spot, then under every obstruction.

  • Verify the highest vehicle you plan to lift, including roof racks or antennas.

  • Leave a few inches of buffer so columns and cars do not kiss lights or hardware.

A full-rise 2-post typically wants about 11–12 feet of ceiling to get walk-under clearance. With only 9–10 feet, look at baseplate (floor-plate) 2-posts that use shorter columns but won’t raise the car to full standing height. If you are still deciding which style fits your ceiling, start with our best 2-post lift guide.

2-post quick picks

  • Full-rise models: plan on ~11–12 ft ceiling for comfortable stand-up work.

  • Low-ceiling/baseplate options: fit around 9'3" to 10' ceilings, expect ~5 ft under-car clearance in a 9'6" room.

  • Always confirm overall column height and required overhead room from the spec sheet.

For a 4-post, do stacking math before you buy. Add lower vehicle roof height + deck thickness + a safe gap (about 4–6 inches) + upper vehicle height. That sum is your minimum ceiling. Example: two 65 in cars with 5 in decks need roughly 65 + 65 + 5 + 6 ≈ 141 in, about 11.75 ft. If you are shopping storage setups, compare lift heights and lock ladders in the 4-post storage lift guide.

4-post stacking checklist

  • Two sedans near 54 in each can often stack in a 10 ft garage.

  • SUVs over 6 ft usually push you into the 11–12 ft range.

  • Confirm lock positions. You park on a notch, so pick a lift with intervals that create comfortable spacing.

Final pass: measure twice, including door travel paths and opener hardware, then match the lift’s overall height and lock heights to your real vehicles. If your ideal parking height sits between lock notches, swap which car goes on top or choose a lift with tighter lock spacing. If you want a second set of eyes on your numbers, use our contact page.

Height sizing 101 infographic showing garage ceiling measurements and lift height recommendations for two-post, three-post, and

2-Post Details That Affect Fit

Baseplate vs. Overhead

  • Baseplate (floor-plate): hoses and cables run under a small floor hump, fits under lower ceilings, but you must drive over the plate and ultimate lift height is limited by ceiling hardware.

  • Overhead (clear floor): crossbeam up top keeps the floor between posts unobstructed for jacks, creepers, and carts, but needs taller ceilings, often around 12 feet.

  • Rule of thumb: under ~10 feet, think baseplate; with height to spare, overhead delivers easier workflow.
    A low ceiling points you to baseplate to simply fit the posts, while a tall bay rewards you with the clear, trip-free floor of an overhead setup. For a practical comparison, see clear floor vs floor plate lift details.

Symmetric vs. Asymmetric Arms

A symmetric two-post centers the vehicle for maximum stability, great for trucks and wider chassis. Asymmetric shifts the car slightly rearward for better door clearance, ideal for daily drivers in tighter bays. Many modern lifts offer bi-symmetric or 3-stage arms so you can choose either layout per vehicle. If you want a quick breakdown with examples, read symmetric vs asymmetric arm differences.

  • Symmetric: equal-length arms, balanced load, excels with longer wheelbases and frames.

  • Asymmetric: shorter front arms, easier cabin access, friendlier for sedans and coupes.

  • Versatile arms: 3-stage reach adapts to pickups or compacts without buying a second lift.

Space and Clearance

  1. Tape out post footprints and full arm swing arcs on the floor, confirm doors can open without hitting cabinets or walls.

  2. Keep about 2 to 3 feet of working room around the vehicle for carts and toolboxes.

  3. Check overhead door tracks and openers so a raised hood or trunk is not under moving hardware.
    A quick mock layout now prevents headaches later and makes daily lifting smoother. If you want help mapping a bay layout to a specific model, email support@pitstop-pro.com.

Truck lifted on a two-post auto lift for engine service and diagnostic work in a professional garage

4-Post Details That Affect Fit

Runway Length and Width

Match runway length to your longest wheelbase, with some margin so tires are not near the ends. Also compare inside width and runway spacing to your widest vehicle. Standard hobby 4-posts often handle most cars and small trucks, but long crew cabs or duallys may need extra-length or wide models. If you are comparing storage platforms, this 4-post storage guide is a quick reference for common fit calls.

  • Verify overall deck length vs wheelbase, plus a safety cushion at each end.

  • Check inside post width and distance between runways against track width.

  • If you are unsure, size up to avoid squeezing tires near posts.

Bridge Jacks for Wheels-free Work

  • A rolling bridge jack slides between runways to lift one end for brakes, tires, or suspension jobs.

  • Confirm jack capacity is at least half the vehicle weight and that its minimum height clears under your lift points.

  • Jack trays or scissor jacks are workable alternatives if a rolling jack is not in the bundle.
    Adding a bridge jack turns a storage platform into a true service bay when you need wheels off. If you are pairing accessories, rolling jacks is a common add-on for wheels-free work.

Locking Positions and Storage Height

When storing one car above another, the top vehicle rests on preset lock notches. Your ideal parking height must align with one of those steps while leaving gap for the lower car and a little headroom to re raise and release the locks.

  • Do the math: lower roof height + deck thickness + 4 to 6 inch safety gap + upper roof height.

  • Compare that total to ceiling height and the lift’s lock ladder spacing.

  • Ensure you can raise slightly above the lock to disengage it without hitting the ceiling.
    Dialing in lock intervals now ensures comfortable spacing and hassle free lowering later. If you want help choosing a lift with lock spacing that fits your garage, use our contact page.

Car elevated on a shop lift for inspection and repair work in a professional automotive garage

Concrete and Power Checks

A lift is only as good as the slab under it and the circuit feeding it. Measure, verify, and plan before you buy so install day is smooth and safe. Use this quick check to confirm your bay is truly lift ready. If you want the full checklist in one place, use our installation requirements guide.

Concrete Requirements

A sound slab prevents anchor pullout and post shift. Match the lift’s spec, not a guess.

  • Baseline: 4 in thick, 3,000 PSI concrete supports many 2-post lifts to ~10,000 lb and typical 4-posts.

  • Heavy duty: 6 in at 3,500 to 4,000 PSI is common for 12k to 15k two-posts.

  • Anchors: most 2-posts use 3/4 in anchors; keep holes 6 in or more from edges and joints, and drill fresh holes if relocating a lift.

Quick prep steps:

  1. Confirm thickness and PSI from the manufacturer manual, not forum lore.

  2. Inspect for cracks, spalls, or soft spots where baseplates land.

  3. New concrete should cure 28 days before anchoring. If the floor is thin or compromised, cut and repour dedicated pads at the posts.

Electrical Power

Right voltage and a dedicated circuit improve lift speed and motor life.

  • 110 to 120 V units: convenient for hobby 4-posts and some sub-9k 2-posts; expect 15 to 20 A draw and slower rise. Use a dedicated circuit and avoid long extension cords.

  • 220 to 240 V single phase: typical for larger 2-posts; plan a 30 A double-pole breaker and proper outlet or hardwire nearby. Usually lifts ~20 percent faster and runs cooler.

  • Always ground the motor and secure conduit so wiring cannot snag when arms move.

Setup tips:

  • Place the disconnect within line of sight of the power unit.

  • Label the breaker and keep the circuit lift only to prevent nuisance trips.

  • Hire a licensed electrician if you lack a nearby 240 V circuit.

Pro tip: Cross check your pick with an installation guide that lists slab, anchor, and power specs for your exact model. Catching a concrete or circuit shortfall now is cheaper than rework later. If you need help matching a lift manual to your slab and power, call (470) 208-2754.

Concrete and power checks infographic showing slab thickness, PSI requirements, and 110V vs 220V lift power options

Real-World Sizing Scenarios

Daily driver car + small SUV (home garage)

An 8,000 to 9,000 lb 2-post easily covers a sedan and compact crossover, keeping you well under the limit. If your ceiling is under 10 ft, a baseplate 2-post helps you fit without sacrificing access. Expect a simple install and fast turnarounds for brakes, oil, and rotations. A common home-garage pick in this range is the Triumph NT-9.

  • Pick 8k to 9k capacity for ~3,000–5,000 lb vehicles with buffer.

  • Go baseplate under ~10 ft ceilings; overhead if you have height and want a clear floor.

Half-ton truck + occasional heavy SUV

If you wrench on an F-150 or 1500 regularly and sometimes see a heavier SUV, step to 10k or 11k 2-post. Extra headroom protects front-heavy trucks and keeps each arm well within limits. Three-stage or asymmetric arms help reach lift points on both short SUVs and longer pickups. If you want a clear-floor option with flexible arm reach, look at the Tuxedo TP11KC-DX.

  • Target 11k if you ever approach 6,000+ lb curb weight or diesel fronts.

  • Plan for ~12 ft ceilings for overhead models; use a heavy-duty baseplate if height is tight.

  • Favor 3-stage arms for reach flexibility on mixed wheelbases.

Two cars, storage + light service

For stacking a fun car over a daily and doing basic maintenance, choose an 8,000–9,500 lb 4-post. Drive-on convenience means fewer setup errors and easier repeat parking. Add a rolling bridge jack later if you want wheels-free work between the runways. A strong storage-first choice is the Katool KT-4H950.

  • Many home 4-posts fit 8 ft garages; verify stacking height against both vehicles.

  • Storage first, service second: you can leave it freestanding for parking, then anchor if you ramp up repair use.

Heavy-duty pickup or light fleet work

Regular 3/4-ton and 1-ton trucks call for a sturdier class. A 15k 2-post handles service bodies and big pickups, provided your slab and ceiling meet spec. If alignments or wheel work on heavy vehicles matter, a 14k–15k 4-post alignment rack opens revenue and simplifies long vehicles. For heavy-duty clear-floor lifting, the Katool KT-M150D is a common step-up pick.

  • Expect 6 in, 3,500–4,000 PSI concrete and 13–14 ft ceilings for many 15k units.

  • Alignment 4-posts with rolling jacks let you do wheels-free tasks without arm placement hassles.

Car lift sizing scenarios guide showing recommended lift classes, ceiling height targets, and power requirements for common use

Copy-Friendly Formulas

Quick cheats you can paste into your notes. Measure carefully, add a small buffer, and you’ll avoid 90% of sizing mistakes. If you want more examples like these with real lift picks, see our 4-post storage lift guide.

  • 2-Post Ceiling Check
    Ceiling height ≥ column height + a few inches.
    Example: 11' 3" columns → plan for ~11' 5" minimum.

  • 4-Post Stacking Check
    Ceiling height ≥ lower vehicle height + runway thickness + clearance gap (~6") + upper vehicle height.
    Example: 54" car + 5" runways + 6" gap + 65" SUV → ~130" (10' 10") minimum.

  • Capacity Safety Margin
    Lift capacity ≥ heaviest vehicle weight, with margin.
    Example: Heaviest at 5,500 lb → choose 9,000 lb instead of 7,000 lb for comfort and longevity.

Product Highlights

Triumph 9,000 lb Two-Post Auto Lift (NT-9)

Straightforward floor-plate 2-post for sedans and light SUVs. Fits many home ceilings and keeps costs down.

  • Capacity & fit: 9,000 lb for daily drivers under the limit with margin

  • Footprint: floor-plate design for lower ceilings and simple routing

  • Why pick it: dependable locks and an easy first lift for home setups
    View Product »

NT-9 Two post automotive lift product image showing overhead crossbar design and adjustable yellow swing arms for vehicle lifting

Tuxedo 11,000 lb Two-Post Clear Floor (TP11KC-DX, Bi-Symmetric 3-Stage Arms)

Steps up capacity and reach for mixed fleets while keeping the floor clear.

  • Capacity & fit: 11,000 lb for trucks and modern SUVs with varied frames

  • Footprint: clear-floor layout for creepers, jacks, and carts between posts

  • Why pick it: 3-stage bi-symmetric arms make hitting lift points fast
    View Product »

TP11KC-DX Black Dodge Charger lifted on a blue two post car lift in a studio product photo

Katool 9,500 lb 4-Post Storage Lift (KT-4H950)

Drive-on 4-post with tire-supporting runways for storage plus routine service.

  • Capacity & fit: 9,500 lb for most cars and light trucks when stacking

  • Footprint: stable platform that often installs without anchoring

  • Why pick it: add a rolling bridge jack later for wheels-free work
    View Product »

Katool KT 4H950 four post vehicle lift product photo showing red platforms, black columns, and removable diamond plate ramps

Katool 15,000 lb 4-Post Alignment Lift (KT-4H150, Rolling Jack Included)

High-capacity alignment platform ready for heavy vehicles and serious service.

  • Capacity & fit: 15,000 lb for trucks and commercial vans

  • Tooling: includes rolling bridge jack for quick wheels-free lifts

  • Why pick it: alignment and suspension work on a rock-solid rack
    View Product »

Katool 4H150 four post vehicle lift lifting a pickup truck, showing drive on platforms and heavy duty shop lift design

Additional Resources

Internal guides

External references

  • ALI and ANSI Vehicle Lift Standards . Certification, design, and inspection frameworks. ALI standard reference

  • OSHA Vehicle Lift Guidance . Operator training, maintenance, and recordkeeping expectations.

  • OEM Vehicle Lifting Point Charts . Factory lift point diagrams for accurate pad placement. If you need help confirming lift points on a specific vehicle, use support@pitstop-pro.com

Conclusion & Next Steps

Sizing a car lift is straightforward when you measure first, pick capacity with a safe margin, and match the lift style to your ceiling and workflow. A few careful checks now prevent headaches later and make install day smooth.

Do this before you buy

  • Recheck ceiling height, slab thickness/PSI, and available power against the exact model specs.

  • Confirm fit for your heaviest and tallest vehicle, including wheelbase and door clearance.

  • Pull the product manual to verify column height, anchor details, lock heights, and electrical draw.

Shortlist two or three models that clear every box, then pick the one that best fits your daily tasks. If two look equal, choose the higher capacity or the model with better arm reach or runway length for future flexibility.

Need a quick sanity check or help matching specs to your garage? Call a Pitstop Pro Lift Specialist at (470) 208-2754 and we will walk the numbers with you and confirm nearest warehouse options. Measure once, choose right, and enjoy the upgrade.
