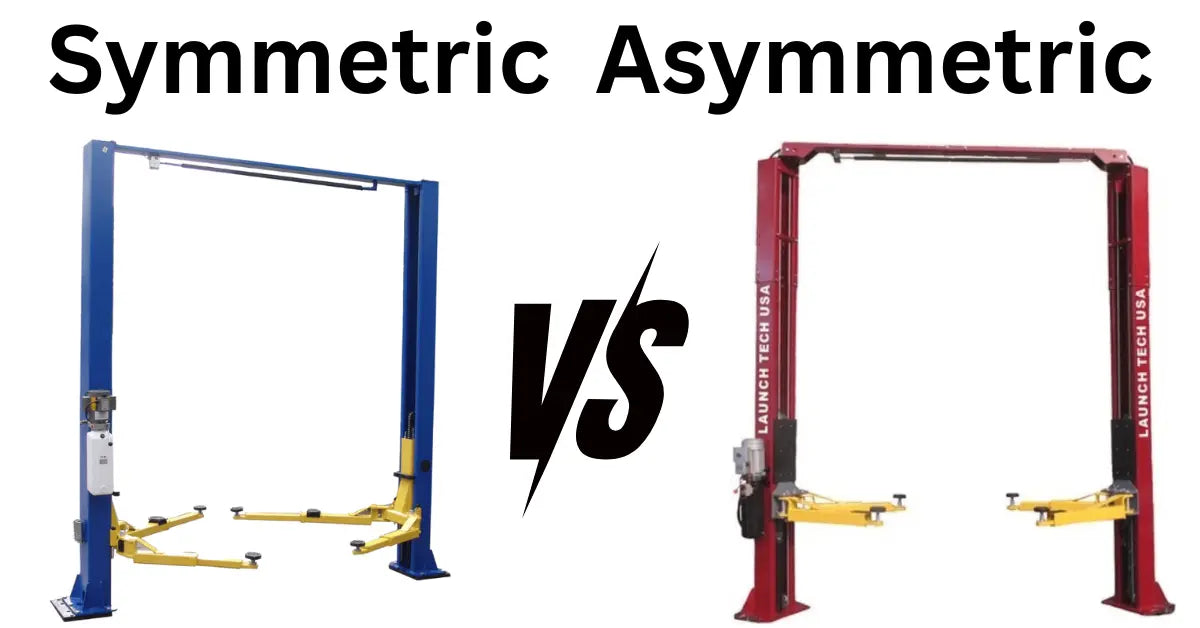

Main image for the Symmetric vs Asymmetric article

Symmetric vs Asymmetric Lifts: Which Setup Is Right for Your Bay?

Shopping for a 2-post car lift and wondering about symmetric vs asymmetric lift designs? You’re not alone. These terms refer to the two main styles of 2-post lifts, and choosing between an asymmetrical lift vs symmetrical lift can be confusing. In simple terms, it comes down to how the lift’s arms and posts are configured and how your vehicle is positioned.

This article breaks down symmetric vs asymmetric car lift differences, the pros and cons of each, and how to decide which type fits your vehicles, garage space, and needs. By the end, you’ll have a clear understanding of 2 post lift symmetrical vs asymmetrical setups – and which one will give you a lift (pun intended) in your garage.


What Are Symmetric and Asymmetric 2-Post Lifts?

Big picture: both styles use two opposing columns and four adjustable arms to raise a vehicle by its frame points—but the arm lengths (and therefore the vehicle’s parking position) differ.

Symmetric (a.k.a. “symmetrical”)

  • Equal-length arms front & rear create an “X” under the car.

  • Posts stand straight (90°) and line up directly across from each other.

  • Vehicle parks centered between columns—roughly half its length ahead of the posts, half behind—so weight is evenly split left-to-right.

Asymmetric (a.k.a. “asymmetrical”)

  • Short front arms / long rear arms.

  • Posts are usually rotated ~30° outward, opening a gap behind them.

  • Car parks off-center—about one-third of its length in front of the columns and two-thirds behind—shifting the center of gravity rearward.

  • The staggered layout leaves the front doors clear of the posts for easier entry/exit and fits in tighter bays.

At a glance: A symmetric lift looks perfectly even, with mirror-image arms meeting the frame evenly. An asymmetric lift looks “offset” because the front arms are visibly shorter and the vehicle sits farther back. Both achieve rock-solid support—just optimized for different space and door-clearance priorities.


Design Differences: Symmetrical vs Asymmetrical 2-Post Lifts

Symmetric and asymmetric lifts share the same core DNA—two opposing columns and four adjustable arms—but their geometry changes how they fit your garage and where a vehicle’s weight lands.

1. Arm layout & weight split

  • Symmetric: four identical arms meet the frame at equal distances, keeping the center-of-gravity dead-center between the posts (a near-perfect 50/50 balance).

  • Asymmetric: short front arms + long rear arms create an intentional rear-bias (roughly a 30 / 70 front-to-rear load when the vehicle is parked correctly) so front-heavy cars sit farther back without overloading the front arms.

2. Post orientation & door clearance

  • Symmetric: columns stand straight (90°). Great for big trucks, but when a car is centered the doors line up with the posts—getting in or out can be tight.

  • Asymmetric: columns are rotated about 30° outward; pushing the car rearward means front doors clear the posts. Result: you can swing doors wide open and climb inside without contortions.

3. Width, bay spacing & floor footprint

  • Symmetric lifts are usually spaced wider, giving a generous drive-through for full-size pickups or vans. The trade-off is a longer overall footprint—plan on roughly 12 ft of clearance in front of a wall.

  • Asymmetric lifts tuck the car farther back and often allow columns to be set closer together. That saves a foot or two of bay depth (many installs work with ~9 ft to a wall) and lets shops line up more lifts side-by-side, though the angled posts shave a little off the clear width between columns.

4. Center-of-gravity targets

  • On a symmetric lift you simply center the wheelbase between the posts and you’re in the sweet spot.

  • On an asymmetric lift you pull forward until a reference mark (door seam, B-pillar, etc.) lines up with the posts so the heavier engine mass ends up just behind the column line. Follow the lift maker’s chart—get the position right and stability matches a symmetric unit.

Bottom line: choose symmetric if you’re working on long-wheelbase, high-capacity trucks or if you value maximum drive-through width. Choose asymmetric if your fleet is mostly passenger cars and you’d love easier door access in a tighter bay. Either design, installed on the proper concrete and used as instructed, is rock-solid and shop-worthy. Got questions about which lift is right for your setup? Contact us and our team will help you get it right.

Interior of a spacious auto repair shop with multiple blue two‑post lifts; a black sedan is raised with its hood open while technicians work in the background among tool carts and equipment

Which Vehicles Are Each Type Best Suited For?

Think of symmetric and asymmetric lifts as two tools in the same toolbox—each shines with a different set of vehicles.

Symmetric lifts ▸ best for “big & balanced” loads

They’re the heavy-duty workhorses you see under pickups and long-wheelbase vans.

  • Perfect match → full-size trucks, HD SUVs, commercial or utility vans, fleet box trucks.

  • Why?

    • Four equal-length arms spread the weight 50/50, so long, evenly loaded frames stay rock-steady.

    • Wider post spacing gives generous drive-through clearance—mirrors and fenders are safer when you’re herding a dually or ladder-rack van into position.

    • Most symmetric designs carry higher max capacities than their asym cousins, making them the go-to when you live in the 10k lb plus world.

Rule of thumb: If your “daily driver” tips the scales like a work truck—or you’re lifting vehicles filled with equipment—symmetric keeps life simple and balanced.

Asymmetric lifts ▸ best for “door-friendly” passenger cars

They trade a tad of capacity for easier cabin access and tighter bay fit.

  • Ideal for → sedans, coupes, hot-hatches, sports/exotics, small-to-mid SUVs—especially front-heavy FWD cars.

  • Why?

    • Short front + long rear arms slide the engine’s mass behind the posts, giving a stable 30/70 weight split while freeing the front doors to swing wide.

    • Angled columns let you park closer to a wall—great in shallow home garages or crowded pro shops.

    • Quick in-car access matters for interior work, electronics, detail jobs and alignment tweaks.

Tip: Many techs swear by asymmetric for any job that involves hopping in and out of the driver’s seat all day.

The “gray-area” vehicles

  • Mid-size pickups / muscle cars: Modern bi-symmetric lifts offer arms that can swing either way—handy if your fleet ranges from Camaros to crew-cab Tacomas.

  • Ultra-short wheelbase cars: A Smart or Miata may sit better on asymmetric arms that telescope further under the chassis.

  • Stretched long-bed trucks: Center-up on a symmetric; you’ll get cleaner balance and full arm reach.

Bottom line:

  • Mostly trucks & vans? Choose symmetric.

  • Mostly cars & space is tight? Choose asymmetric.

  • Mixed fleet? Look at hybrid/bisymmetric models—or pick the style that covers 80% of your lifts and use jack stands for the exceptions.


Pros and Cons of Symmetric vs Asymmetric 2-Post Lifts

Both types of 2-post lifts have advantages and drawbacks. Let’s break down the key pros and cons of each style:

Symmetric 2-Post Lifts

Symmetric lifts shine when you’re dealing with long-wheel-base trucks, vans, or any vehicle that carries its weight evenly. Four equal-length arms meet the chassis at identical points, so the load is perfectly balanced between the posts. Wider drive-through spacing and high capacity ratings make this design the go-to workhorse in many commercial bays.

Key pros

  • Higher weight ratings – many models start at 12 k lb and climb from there.

  • 50/50 load balance yields smooth, predictable lifting and lowering.

  • Generous drive-through width protects mirrors and fenders on wide rigs.

  • Ideal for long wheelbases (crew-cab pickups, cargo vans, box trucks).

Key cons

  • Tight door clearance; stepping out of the vehicle can feel like a yoga pose.

  • Less friendly to front-heavy FWD cars; front arms may sit near their limits.

  • Needs extra bay depth because the vehicle protrudes equally front and rear.

  • Can cost more when you step up to truly heavy-duty capacities.

Asymmetric 2-Post Lifts

Asymmetric lifts push the vehicle rearward and angle the posts, letting front doors swing wide while shifting more mass onto the longer rear arms. That off-center stance is tailor-made for modern passenger cars, especially front-engine / front-drive models, and it saves a surprising amount of floor space in tight garages.

Key pros

  • Easy cabin access – doors clear the posts, so no squeezing in or out.

  • Balances front-heavy cars by sliding engine weight behind the column line.

  • Space saver; you can park closer to a front wall or squeeze lifts side-by-side.

  • Great for engine-bay work; more open space in front for hoists and tool carts.

Key cons

  • Less ideal for very heavy trucks; front arms can be overloaded if you’re careless.

  • Vehicle placement takes practice; mis-positioning defeats the design’s benefits.

  • Slightly slower setup because of multi-stage arms and extra stability checks.

  • Potential uneven wear on components if you always lift off-center.

Bottom line:
Choose symmetric if trucks, vans, or extra-long rides dominate your workload; go asymmetric if you mostly service everyday cars and value door clearance in a compact bay. Still undecided? A “bisymmetric” hybrid model—or owning one of each style—can cover every base, as long as you follow the same core rules: solid concrete, correct anchoring, and strict weight-limit discipline. → Need help choosing a capacity? Our 2-post lift buyer’s guide breaks down weight classes, arm styles, and space requirements.

Dimly lit auto repair shop with red two‑post lifts raising a silver sedan and a black SUV overhead, a tool cart and workbench in the foreground, and parked cars along the back wall

Common Misconceptions About Symmetric vs Asymmetric Lifts

A lot of chatter online mixes fact and fiction about 2-post lift styles. Below are the four misunderstandings we hear most—each myth in a quick bullet, followed by a brief, clarifying explanation.

  • “One type is always safer.”
    When a certified lift is installed on solid concrete and used as instructed, both styles are equally safe. Engineers have already factored in weight distribution; you just have to position the vehicle correctly, respect capacity limits, lock the arms, and perform the quick “shake test” a few inches off the floor. Do that, and either design will hold its rated load securely.

  • “Symmetric lifts are outdated dinosaurs.”
    Not so. Heavy-duty fleets, diesel trucks, and long-wheelbase vans still lean on symmetric lifts because balanced arms and wider post spacing handle big loads best. Bisymmetric hybrids exist, but they’re a compromise, not a replacement; the industry keeps both styles because each has jobs it does better.

  • “Asymmetric lifts can’t lift pickups.”
    They can—as long as the truck is within the lift’s rating and positioned per the manual. Use longer rear arms, pull the chassis slightly deeper onto the lift, and add high-reach jack stands if you’re removing heavy components. Symmetric designs are easier for frequent truck work, but an 11 k-lb asym lift will safely raise many ½-ton and some ¾-ton pickups when set up correctly.

  • “Small garage? You must buy asymmetric.”
    Asym lifts do save a bit of front-clearance depth, yet overall footprint, post width, and ceiling height still rule the day. Measure first; you might find a centered symmetric lift fits fine. In very low ceilings, you may end up with a base-plate (often symmetric) design anyway. Choose the style that suits your vehicles, then plan the bay layout carefully. → Working with low ceilings? Check out our most popular Katool base-plate model, the KT-H105 10,000 lb 2-post lift—perfect for shops with height constraints.


Safety and Installation Considerations

No matter which style you choose, a few safety and setup fundamentals apply to all 2-post lifts:

Safety & Installation Essentials

A 2-post lift—symmetric or asymmetric—is only as safe as its installation. Here’s what matters, trimmed down to a few keystone checkpoints and the reasoning behind them.

  • Concrete spec first.
    For most 10 k-lb lifts you need at least 4 in / 3,000 psi concrete; step up to 6 in+ for heavy-duty trucks. Anything weaker invites cracks and anchor failure.

  • Correct anchoring.
    Torque the 5⁄8–¾-in anchor bolts to the manual’s spec and shim each post perfectly plumb. A square, well-anchored pair of columns simply can’t tip.

  • Weight positioned as designed.
    Center the vehicle on a symmetric lift; slide it back (roughly one-third ahead of the posts) on an asymmetric. Raise a few inches, give the chassis a firm shake—no wobble, no problem.

  • Locks engaged before you work.
    Lift to the next mechanical lock, lower onto the lock bar, and release hydraulic pressure. The cylinders lift; the steel locks hold.

Once those four basics are locked in, the rest is good shop practice:

Ceiling & clearance. Clear-floor (overhead-bar) models typically need ~12 ft; base-plate designs fit lower ceilings but limit full rise. Make sure garage doors, lights, or beams won’t foul a raised hood.

High-reach stands for insurance. If you remove major components—beds, engines, heavy axles—add a tall jack stand under the frame or rear axle to keep weight shifts from rocking the car (especially on asymmetric lifts).

Door & paint protection. Stick magnetic pads or foam on the columns so an opened door doesn’t chip paint.

Routine checks. Grease arm pins, verify cable/chain tension, and scan for oil seepage once a month. Five minutes of upkeep prevents surprises.

Get those fundamentals right and a quality 2-post lift will deliver years of worry-free service—no matter which arm layout you choose.

Empty automotive workshop with multiple blue two‑post lifts spaced across a clean gray rubber floor under a white high‑ceilinged interior, with red tool carts and blue storage cabinets lining the back wall

Example Products: Symmetric vs Asymmetric 2-Post Lifts in Action

To make this discussion more concrete (no pun intended), let’s look at a real example of each type of lift and why each one is a good fit for its intended use. Here are two popular models from our 2-post lift collection:

Symmetric Pick

Katool H120D — 12,000 lb / 6-ton – $2,799

• Heavy-duty symmetric arms: equal-length front & rear for a perfectly centered, 50/50 load balance
• Extra-wide post spacing and tall yoke give full-size trucks, vans, and long SUVs room to drive through and sit square on the pads
• Single-point mechanical lock release, dual cylinders, and oversize anchor plates keep big iron steady while you wrench
• Best use-case: a shop bay that sees anything—from a dually work truck one day to a classic land-yacht sedan the next—where brute capacity and rock-solid centering matter more than door clearance.

Quick take: If you regularly hoist heavy or long wheel-base vehicles, the H120D’s straight-ahead, beef-first design is the safer, simpler choice.

Front‑right view of a Katool H120D 12,000 lb two‑post auto lift with single‑lock release arms holding a dark blue pickup truck aloft

Asymmetric Pick

Katool AS110D — 11,000 lb clear-floor - $2,099

• Staggered arms (shorter in front, longer in back) + 30° post angle push the vehicle rearward, letting driver-side doors swing wide open
• 30–50 in telescoping reach adapts to sports cars, CUVs, and crew-cab ½-ton pickups without fuss
• Clear-floor design—no base plate—keeps the shop floor unobstructed for jacks, transmission stands, and creepers
• Built-in auto arm restraints and dual-lock system deliver pro-level safety in a footprint that fits tighter home or retail bays

Quick take: Perfect when you live under 12 ft of ceiling and want easy cabin access for diagnostics, detailing, or interior repairs—yet still need headroom to pull a transmission on an F-150.

Front-side view of a Katool AM120S two‑post car lift raising a blue sedan with visible support arms, lift columns branded ‘KATOOL LIFT,’ and Colorado license plate BKO 769

Which one’s “right”?
Think about what’s on your lift most of the time. If it’s tall, heavy, or long-wheelbase, the symmetric H120D keeps the weight centered and confidence high. If it’s a mix of daily-driver cars and the occasional light truck—and you crave door clearance in a modest-size bay—the asymmetric AS110D pays off every single job.

Still debating? Email us at support@pitstop-pro.com or call/text 470-208-2754 for no-pressure, tech-first advice on matching a lift to your exact vehicles and workspace.


Choosing the Right Lift for Your Garage

When it’s time to pull the trigger on a 2-post, keep three practical factors front-and-center:

  • Your fleet. If most jobs involve sedans, coupes, or sport compacts, the door-clearance and interior access of an asymmetric lift is hard to beat. Regularly hoist ¾-ton pickups, vans, or anything with a long wheelbase? A symmetric model spreads the load 50/50 and simply feels steadier under heavy metal.

  • Your footprint. Measure ceiling height, bay depth, and drive-through width before you shop. Asymmetric posts sit a bit closer together and park the vehicle farther back, saving a foot or two of forward space. Need to sneak under a 10-ft ceiling? Look at base-plate designs (no overhead bar) on either style.

  • Your workflow. Wrenching on brakes, suspension, or exhaust all weekend? Either lift type works—wheels hang free on a 2-post. If interior diagnostics, detailing, or quick, repeated in-and-out jobs are common, asymmetric wins for easy door swing. Mix of everything? Many techs run one of each or choose a “bisymmetric” design that can do both positions.

Still undecided? That’s what we’re here for. We’ll match capacity, arm reach, and column height to your exact garage dimensions—so the lift you buy is the lift you keep for decades. Pro tip: add frame-pad adapters for tall-frame trucks, keep arm pins greased, and inspect cables/chains each season; either lift style will reward you with years of smooth, safe service.


Ready to Get Lifting? Next Steps

Choosing between a symmetric or asymmetric 2-post lift ultimately comes down to your specific needs, but either way, you’re on track to make wrenching on your vehicles a whole lot easier. If you’re ready to move forward, here are a few final steps and resources:

  • Browse Our 2-post lift Collection: Head over to our full selection of 2-post car lifts to compare models, capacities, and features. We offer both symmetric and asymmetric lifts (including the examples above and more), so you can find the perfect match for your garage.

  • Read the Ultimate 2-Post Car Lift Guide: For an even deeper dive into 2-post lifts (covering installation, safety tips, and expert advice), check out our comprehensive Guide. It’s packed with information on concrete requirements, using the lift safely, and maintenance tips to ensure your lift operates flawlessly.

  • Reach Out with Questions: Not sure which lift is right for you? Need guidance on installation or have specific concerns? We’re here to help. Feel free to contact our team with any questions – we’re happy to provide personalized advice so you can buy with confidence. Choosing a car lift is a big decision, and we want you to feel reassured every step of the way.

Investing in a 2-post lift – whether symmetric or asymmetric – will revolutionize how you work on cars. Picture yourself effortlessly raising your vehicle, with plenty of room to work, and wondering how you ever got by with just a jack and stands. That convenience and capability is within reach. So take the next step: explore our collection, arm yourself with knowledge, and soon you’ll be lifting like a pro.
