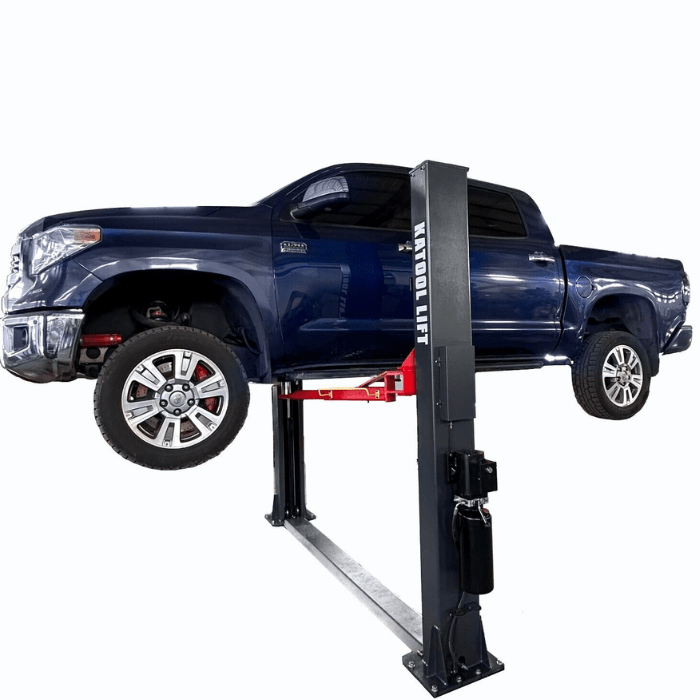

Front right side view of the Katool 12,000 lb Two-Post Auto Lift – Single Lock Release H120D holding a truck

Katool 12,000 lb Two-Post Car Lift – Single Lock Release | H120D

Name: Katool 12,000 lb Two-Post Car Lift – Single Lock Release | H120D
Brand: KATOOL
SKU: KT-H120D
Price: 2699.0 USD
Availability: InStock

by KATOOL

SKU KT-H120D

Save $500.00

$3,199.00

$2,699.00

No Sales Tax Outside GA & IL

Free Warehouse Pickup Available

Talk to a Specialist: (470) 208-2754

Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Find Your Nearest Pickup Warehouse

Quantity

The Katool KT-H120D 12,000 lb Two-Post Car Lift: The Ultimate Solution for Heavy-Duty Lifting

When it comes to lifting heavy vehicles such as cars, trucks, and SUVs, you need a car lift that is built to last and perform. The Two Post 12,000 lb Car Lift by Katool is engineered to provide outstanding performance with the reliability you need for daily use in your garage or workshop. This lift is not only powerful but also designed for safety and versatility, making it the go-to choice for anyone who demands a top-tier solution for vehicle lifting. Single-point lock release stands out as the differentiator most buyers overlook until they're actually using the lift. Walking the lift to disengage individual locks at every cycle wears out fast in a high-volume shop.

The 2-post car lift is perfect for those who require a high-capacity lift for vehicles up to 12,000 lbs (5,500 kg). Whether you’re a mechanic, car enthusiast, or own a busy auto repair shop, this 2-post car lift can handle it all. Designed with safety in mind, it features symmetric arms for even weight distribution, reducing the risk of accidents. The hydraulic system is powered by a 4 HP motor that guarantees smooth and reliable lifting every time. 12,000 lb capacity covers crew cabs, lifted SUVs, and most light commercial work. The 74.8-inch lift height gives you full standing clearance under most vehicles for service work.

Not only does this lift meet all the necessary safety standards, but it also integrates easily into most workspaces with minimal fuss. If you’re looking for a durable, high-capacity solution to handle a variety of vehicles, the Katool KT-H120D 12,000 lb Two Post Lift is the right choice for you. For shops handling daily mixed work where operator efficiency matters, the H120D's single-point release saves real seconds per cycle that compound across a full day of service.

Need a different setup? Check out our selection of Car Lifts, featuring differing sizes and weight capacities to suit your specific needs.

Katool KT-H120D Auto Lift with no car attached

Benefits of the Katool KT-H120D Auto Lift

Heavy-Duty Lifting Capacity

12,000 lb structural rating handles crew cabs, lifted trucks, and most light commercial vehicles. Built for the daily mixed-vehicle work most independent shops handle.

Reliable Performance

Single-point lock release engages and disengages from one location. Cuts walking time per cycle, which compounds into hours saved across a full week of service.

Enhanced Safety

Mechanical lock-and-release system holds the load on physical stops, not hydraulic pressure. Multiple lock positions give you precise height control.

Vehicle Protection

Three-stage arms adjust for short and long wheelbases without forcing improvised contact points. Heavy-duty rubber pads protect frame finish.

Versatile Support

74.8-inch lift height clears most full-size trucks and SUVs for full-standing service work. The motor cycles consistently across the full capacity range.

Quick Installation

Mounting hardware ships with the lift, so you're not chasing add-on parts after delivery. Standard concrete requirements work in most existing shop floors.

Key Features of the Katool 12,000 lb Two-Post Auto Lift You'll Love:

• High Lifting Capacity (12,000 lbs): The Katool KT-H120D is built to handle cars, trucks, vans, and SUVs effortlessly with its 12,000 lb (5,500 kg) capacity. The 12,000 lb structural rating is verified at the full capacity, not approximated for marketing claims.

• Durable Hydraulic System: Powered by a 4 HP motor and dual hydraulic chain-drive cylinders for smooth and consistent performance. Heavy-gauge cylinders with sealed seals deliver consistent cycle times and resist the wear that fails cheaper hydraulic systems.

• Safety & Stability: Symmetric arm design for even weight distribution plus a single-point lock release and rubber pad door protection. Mechanical safety locks engage at multiple positions during the lift cycle, giving precise height control and audible engagement.

• Versatile Design: Includes extension support adapter sets (+100 mm) to accommodate a wide range of vehicles. Adjustable arms reach short and long wheelbases without swapping equipment, covering compact cars through crew-cab pickups.

• Easy Installation: Requires a concrete thickness of at least 5.9 in (150 mm) at 3000 PSI for safe installation. Concrete and mounting requirements are documented clearly so installation doesn't surprise buyers with unexpected setup costs.

• Built for Longevity: Constructed with high-quality materials to withstand constant use in demanding environments. Heavy-duty steel columns and reinforced base plates designed for sustained 12K cycling under daily commercial workloads.

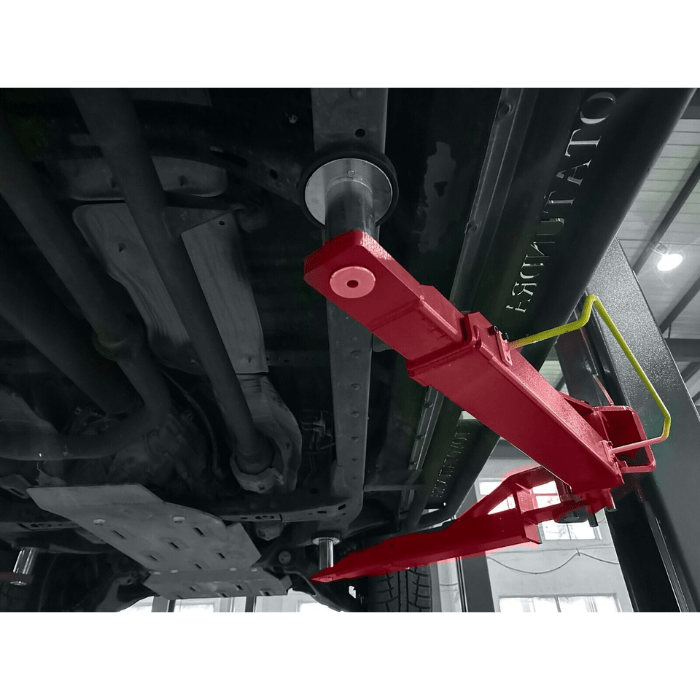

Bottom side view of the Katool 12000lb Two-Post Auto Lift attaching to a car

Minimum Garage Requirements

✔ Ceiling Height: At least 116" (9'8") recommended ✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4") ✔ Concrete Thickness: Minimum 6" (152.4 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph ✔ Overall Lift Height: 110" (9'3") (measure before ordering)

✔ Ceiling Height: At least 116" (9'8") recommended
✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph
✔ Overall Lift Height: 110" (9'3") (measure before ordering)

*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

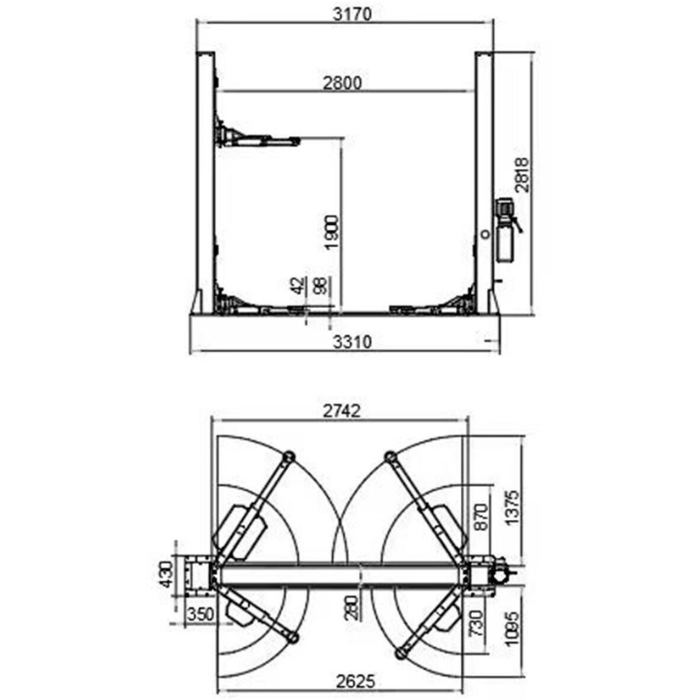

Katool KT-H120D Heavy-Duty Two-Post Car Lift Specifications
Lifting Capacity	12,000 lbs (5,500 kg)
Lock Release	Single-Point
Max. Lifting Height	74.8 in (1,900 mm)
Column Height	110.9 in (2,818 mm)
Drive-Thru Clearance	110.2 in (2,800 mm)
Column Width	124.8 in (3,170 mm)
Weight	1234lb (560kg)
Arm Style	Symmetric
Cable Thickness	3/8 in (9.5 mm)
Support Adaptor	Extended (+4 in / 100 mm)
Motor	4.0 HP, 220 V / 60 Hz / 1 Ph
Hydraulic System	Dual Hydraulic Chain-Drive Cylinders
Oil	AW-46 (AW-32 for colder climates)
Door Protection	Rubber Pad Guards
Certification	CE-Approved. 115 % dynamic / 150 % static load tested
Wiring Requirement	Must be wired with 10-gauge wire & 30-amp breaker

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts

Overview
Manual
Shipping/Returns
Warranty
★Reviews

Overview

The Katool KT-H120D 12,000 lb Two-Post Car Lift: The Ultimate Solution for Heavy-Duty Lifting

Need a different setup? Check out our selection of Car Lifts, featuring differing sizes and weight capacities to suit your specific needs.

Benefits of the Katool KT-H120D Auto Lift

Heavy-Duty Lifting Capacity 12,000 lb structural rating handles crew cabs, lifted trucks, and most light commercial vehicles. Built for the daily mixed-vehicle work most independent shops handle. Reliable Performance Single-point lock release engages and disengages from one location. Cuts walking time per cycle, which compounds into hours saved across a full week of service. Enhanced Safety Mechanical lock-and-release system holds the load on physical stops, not hydraulic pressure. Multiple lock positions give you precise height control. Vehicle Protection Three-stage arms adjust for short and long wheelbases without forcing improvised contact points. Heavy-duty rubber pads protect frame finish. Versatile Support 74.8-inch lift height clears most full-size trucks and SUVs for full-standing service work. The motor cycles consistently across the full capacity range. Quick Installation Mounting hardware ships with the lift, so you're not chasing add-on parts after delivery. Standard concrete requirements work in most existing shop floors.

Key Features of the Katool 12,000 lb Two-Post Auto Lift You'll Love:

Minimum Garage Requirements

✔ Ceiling Height: At least 116" (9'8") recommended
✔ Footprint: 110" drive-thru x 124" overall (9'2" x 10'4")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 4.0 HP, 220 V / 60 Hz / 1 Ph
✔ Overall Lift Height: 110" (9'3") (measure before ordering)

Katool KT-H120D Heavy-Duty Two-Post Car Lift Specifications
Lifting Capacity	12,000 lbs (5,500 kg)
Lock Release	Single-Point
Max. Lifting Height	74.8 in (1,900 mm)
Column Height	110.9 in (2,818 mm)
Drive-Thru Clearance	110.2 in (2,800 mm)
Column Width	124.8 in (3,170 mm)
Weight	1234lb (560kg)
Arm Style	Symmetric
Cable Thickness	3/8 in (9.5 mm)
Support Adaptor	Extended (+4 in / 100 mm)
Motor	4.0 HP, 220 V / 60 Hz / 1 Ph
Hydraulic System	Dual Hydraulic Chain-Drive Cylinders
Oil	AW-46 (AW-32 for colder climates)
Door Protection	Rubber Pad Guards
Certification	CE-Approved. 115 % dynamic / 150 % static load tested
Wiring Requirement	Must be wired with 10-gauge wire & 30-amp breaker

Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse All Lifts
