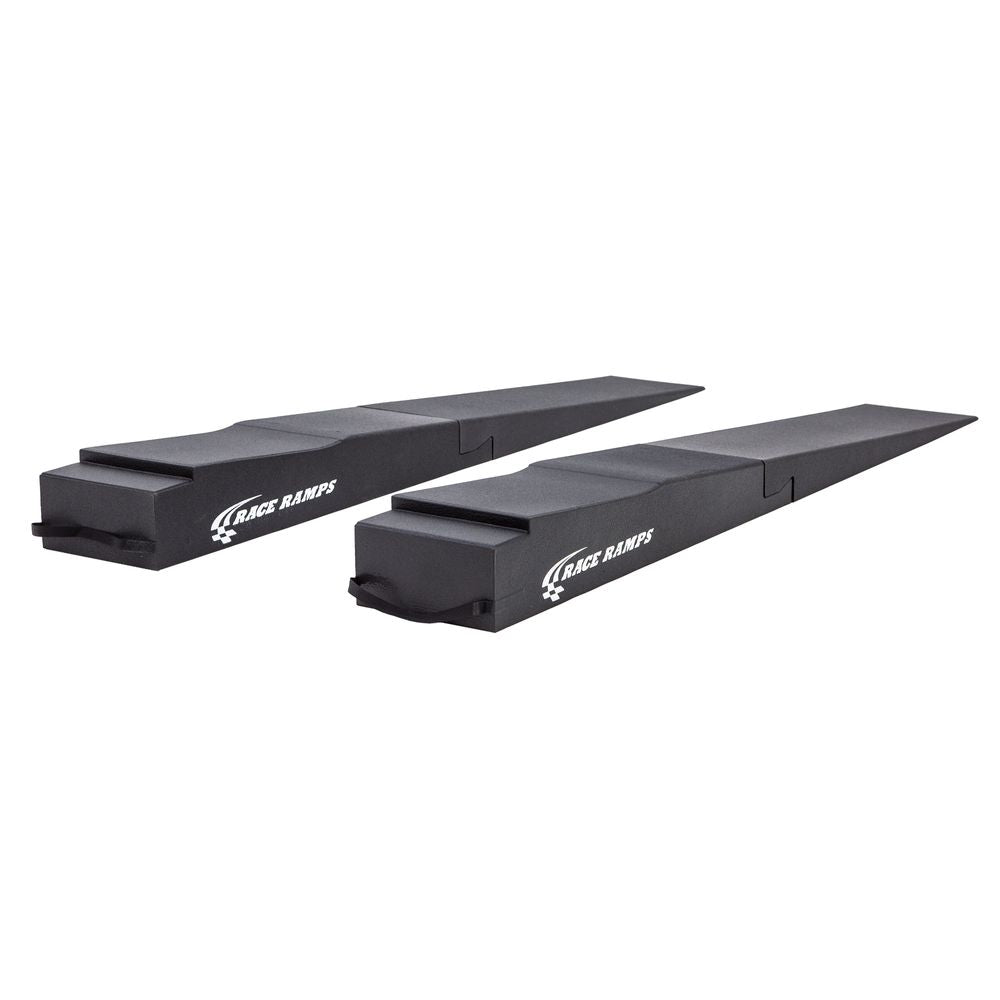

Race Ramps RR-TR-9-FLP pair of trailer ramps with flap cut out in black expanded foam

Race Ramps 9 Inch Trailer Ramps with Flap Cut Out | RR-TR-9-FLP

by Race Ramps
SKU RR-TR-9-FLP
Sold out
$813.75
$774.00
No Sales Tax in Most States
Free Shipping
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Notify me when back in stock

Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

Eight Feet of Ramp That Straddles the Flap

The RR-TR-9-FLP is the longest single piece ramp Race Ramps builds for trailers. At 95 inches it holds the approach to 5.5 degrees while still reaching a tall deck, which is a combination nothing shorter can manage.

Its other job is the flap. A lot of ramp gates have a hinged dovetail section that folds out at the tip, and a flat bottomed ramp just teeters on it. This one has an 18 inch wide relief cut into the underside so it sits down over that flap and lands flat on the gate behind it.

If your car is long, low, and going into a trailer with a folding flap, this is the ramp built for exactly that. Everything else in the range asks you to compromise on one of the three.

Sold as a pair. 1,500 lbs per ramp, 3,000 lbs per pair, for tires up to 12 inches. Compare the full range of trailer ramps.

Race Ramps RR-TR-9-FLP pair of trailer ramps with flap cut out

Benefits of the RR-TR-9-FLP

Ninety five inches of run
Nearly eight feet, the longest single piece ramp in the trailer range. Length is the only thing that buys a shallow angle at a tall deck height, and this has more of it than anything else here.

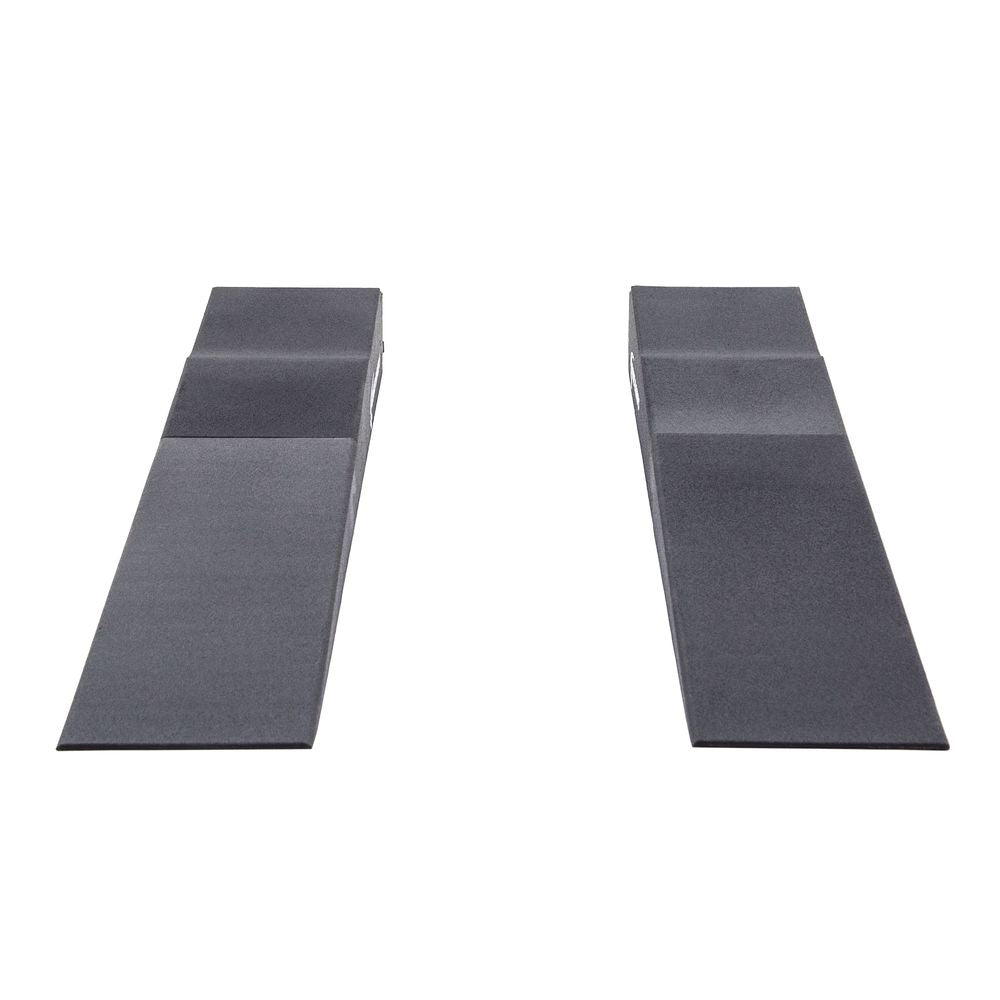

Eighteen inch flap relief
The underside is cut away so the ramp straddles a folded out dovetail flap and beds down on the gate behind it. No rocking on the hinge, no gap under the middle of the ramp.
5.5 degrees at full height
Splitters, side skirts and long overhangs all fail at the transition rather than on the ramp itself. Stretching the climb out this far keeps the break gentle enough that most of them clear.
One person still sets them up
Foam rather than steel, so eight feet of ramp is something you carry rather than drag. A steel ramp this long needs two people and a clear path past the fenders.
Solid section, no hinge to fail
Expanded foam through the whole ramp carries the load in compression. Nothing folds, nothing pivots, and there is no pinned joint at the eight foot mark waiting to work loose.
Made in the USA
Race Ramps builds these in Michigan and backs them with a one year warranty against defects, plus a 30 day satisfaction guarantee through Pitstop Pro.

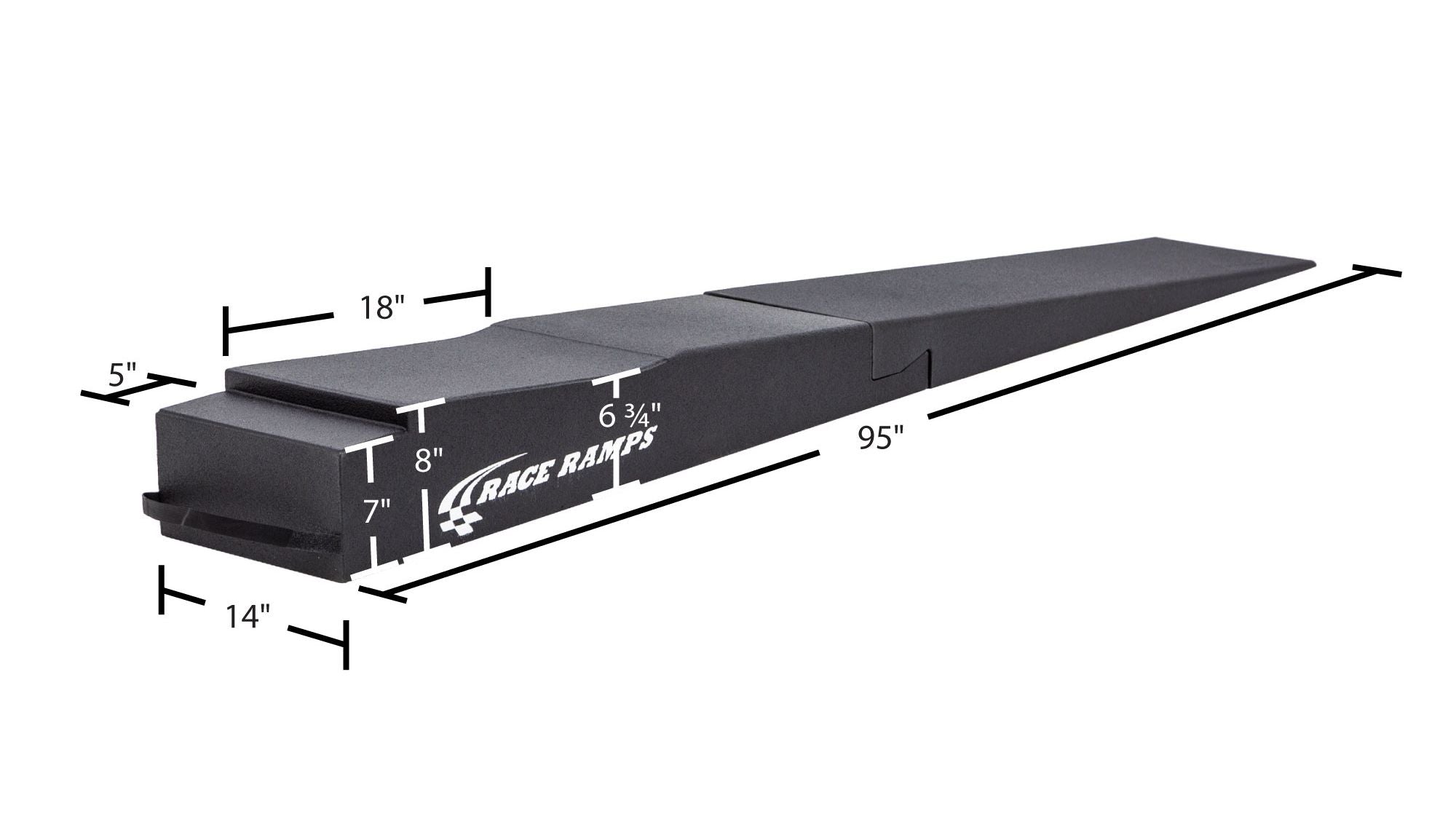

Race Ramps RR-TR-9-FLP Specifications
Model RR-TR-9-FLP
Overall Length 95"
Width 14"
Lift Height 8" at the deck end
Approach Angle 5.5 degrees
Flap Relief 18" wide cut out in the underside
Capacity 1,500 lbs per ramp | 3,000 lbs per pair | 6,000 lbs across a set of four
Maximum Tire Width 12"
Sold As Pair, two ramps
Manufacturer Race Ramps
Material Expanded foam with traction coating
Colour Black
Origin Made in the USA
Warranty 1-year manufacturer warranty | 30-day satisfaction guarantee

RR-TR-9-FLP Frequently Asked Questions

Do I need the flap cut out version?

Only if your ramp gate has a separate hinged section at the tip that folds out onto the ground. Look at the gate when it is down: if the last 12 to 18 inches is a distinct panel on a hinge, you want the relief. A one piece gate does not need it.

Why is it called a 9 inch ramp if the body is 8 inches?

It belongs to the 9 inch series, and the relief cut into the underside takes the finished body height down to 8 inches. Once the ramp is sitting over the folded flap, the flap makes that height back up. The same thing happens on the 7 inch flap cut out version, which measures 6.25 inches.

Is there a shorter flap cut out option?

Yes. The 7 inch trailer ramp is offered in a Flap Cut Out configuration at 74 inches with a 16 inch relief. It is the same idea in a shorter, lower ramp for gates that do not sit as high.

How much room do I need behind the trailer?

The ramp alone takes just under eight feet, and you need the length of the car beyond that to line up straight. Plan on roughly 30 feet of clear space behind the gate before you start, and more if you are working on a slope.

Where do these store?

They are 14 inches wide and 8 inches tall, so a pair takes a slot roughly 95 by 14 by 16 inches. In most enclosed trailers they live on edge along a wall or under the car once it is strapped down.

Not sure your gate needs the relief? Talk to a Pitstop Pro specialist.

Call (470) 208-2754 Request a Quote Browse Trailer Ramps
