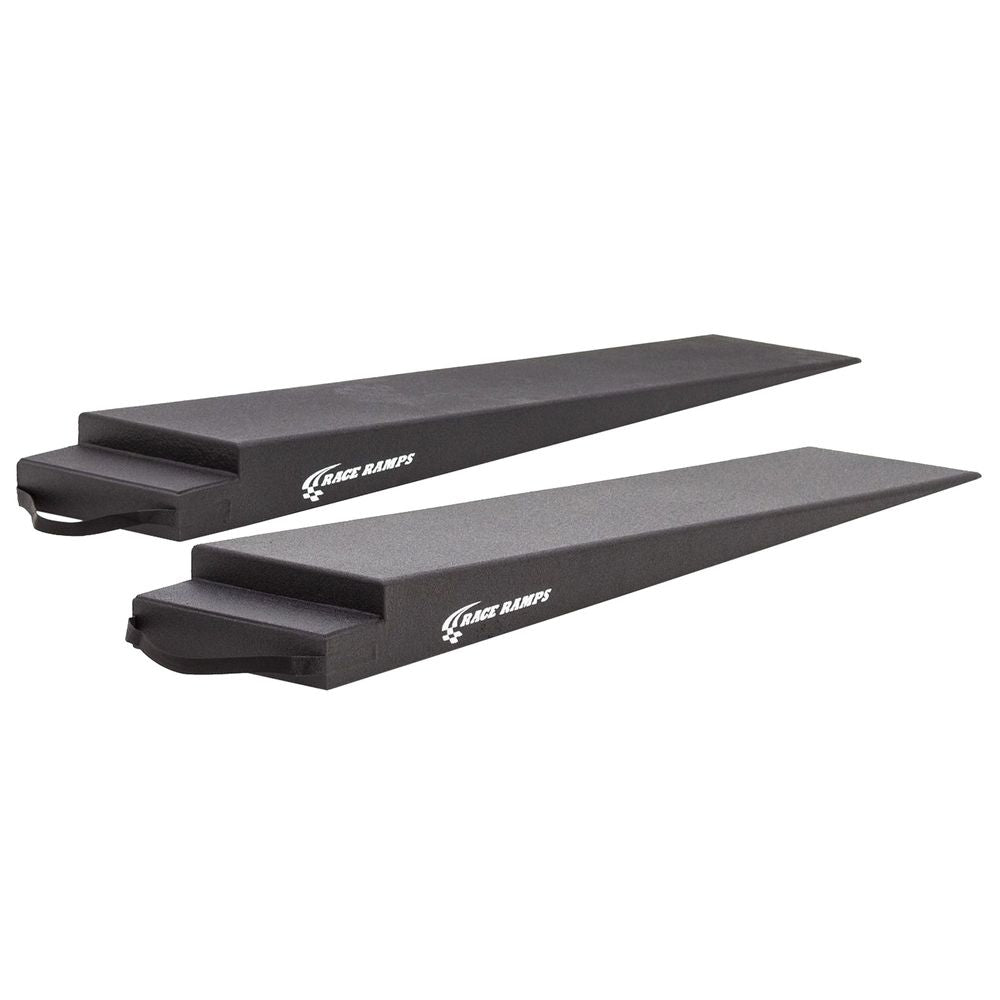

Race Ramps RR-TR-5 pair of 5 inch trailer ramps in black expanded foam

Race Ramps 5 Inch Trailer Ramps, 4.3 Degree Approach | RR-TR-5

by Race Ramps
SKU RR-TR-5
Sold out
$458.85
$436.00
No Sales Tax in Most States
Free Shipping
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Notify me when back in stock

Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

The Shallowest Approach in the Trailer Line

If the car has a splitter, an air dam or a set of side skirts that clear the ground by an inch, the number that matters is not how high the ramp lifts. It is how gradually it gets there.

The RR-TR-5 spends 67 inches climbing 5 inches, which works out to 4.3 degrees. That is the gentlest approach angle of any Race Ramps trailer ramp, and it is the reason this one gets picked for cars that scrape on everything else.

Like the rest of the line, the trailer end is notched 5 inches by 2 inches so it hangs over the edge of a door or gate instead of sitting on top of it, which takes the starting height down and flattens the climb further.

Sold as a pair. 1,500 lbs per ramp, 3,000 lbs per pair, for tires up to 12 inches. See the full range of trailer ramps.

Race Ramps RR-TR-5 pair of 5 inch trailer ramps

Benefits of the RR-TR-5

4.3 degrees, the gentlest in the range
Twenty one inches longer than the RR-TR-4 for one extra inch of lift. All of that length goes into softening the angle, which is the whole point of this model.

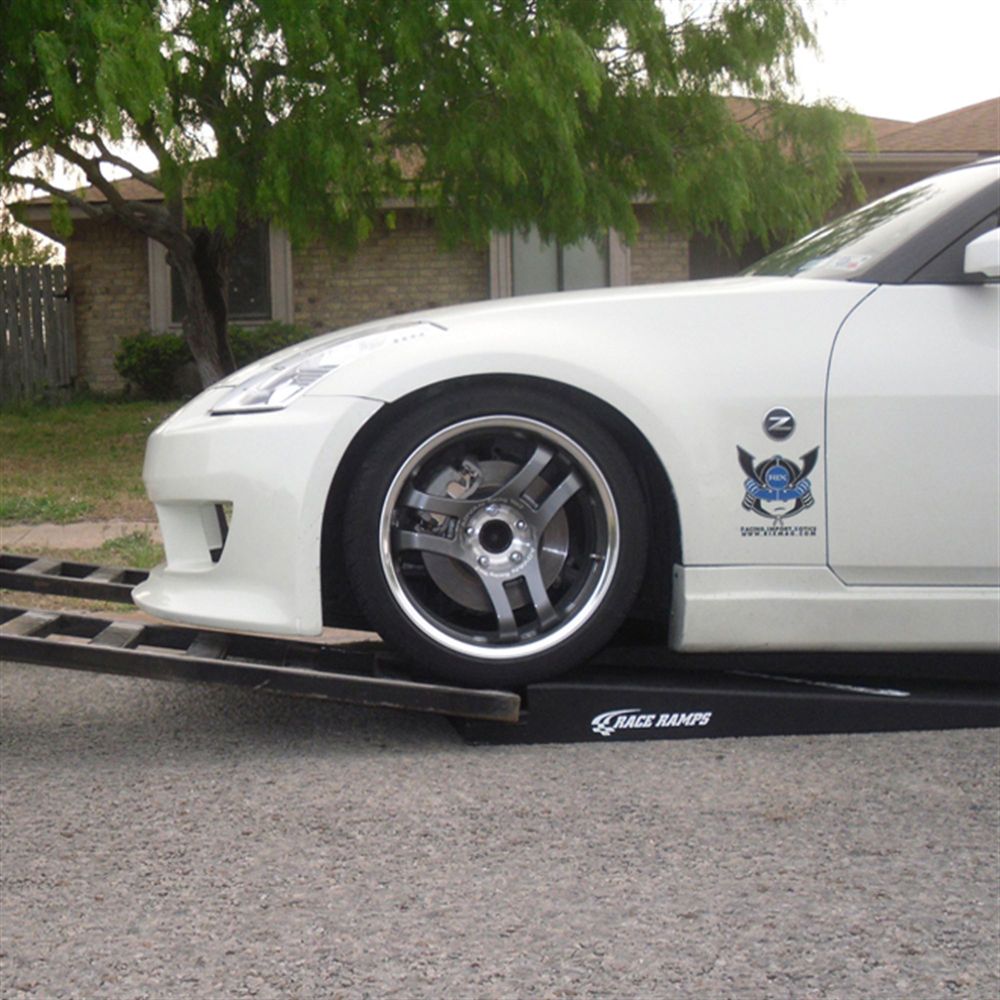

Built for cars that scrape
Front splitters, lip spoilers and low air dams all catch at the break point where the ramp meets the ground. A longer ramp moves that break further out and softens it.
Notched to sit on the door

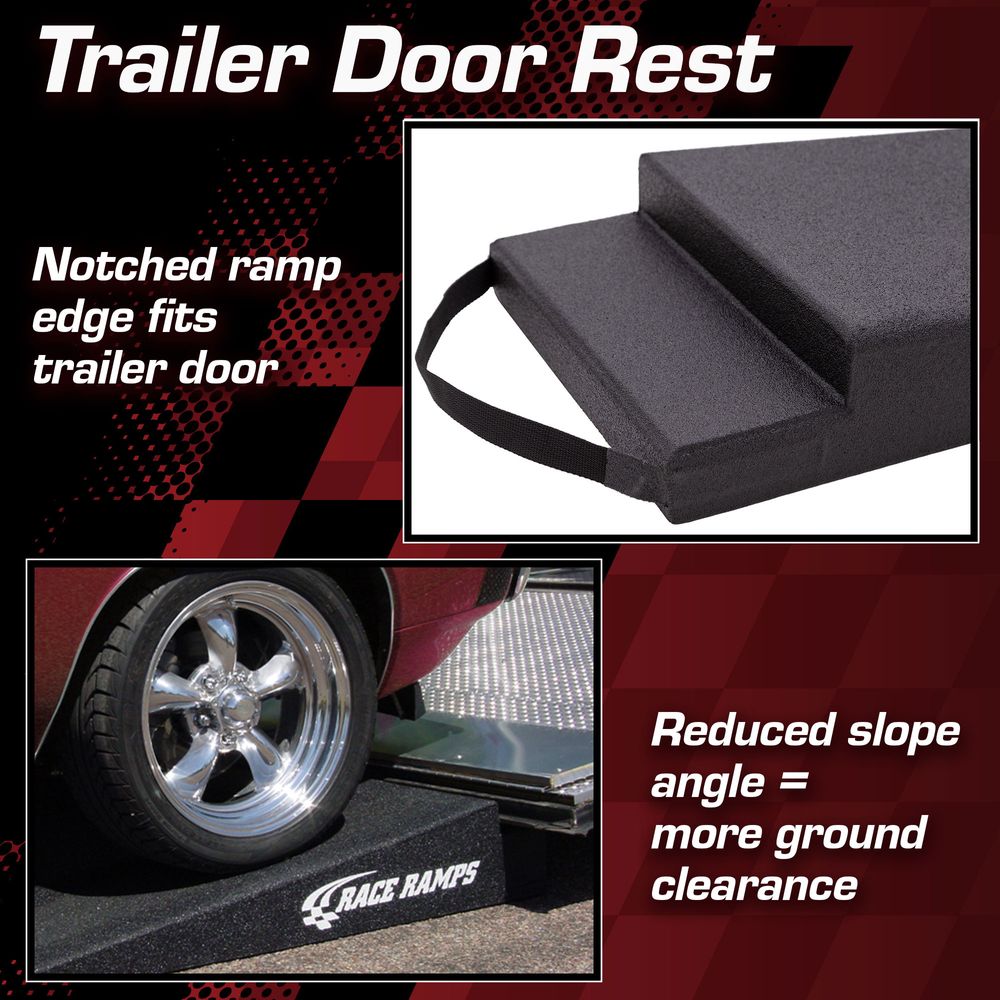

The 5 by 2 inch cutout drops over a trailer door or ramp gate edge. Starting 2 inches lower means less angle again, and the ramp locates itself instead of wandering.
Ten pounds, not eighty
A steel ramp this long is a two person lift. This one goes under an arm. That matters at four in the morning at a track gate when you are loading alone.
Nothing to scratch the car
No frame, no edges, no hinge pins. If a low bumper does touch down, it touches coated foam rather than a steel lip, and it does not leave a mark.
Made in the USA
Race Ramps builds these in Michigan and backs them with a one year warranty against defects, plus a 30 day satisfaction guarantee through Pitstop Pro.

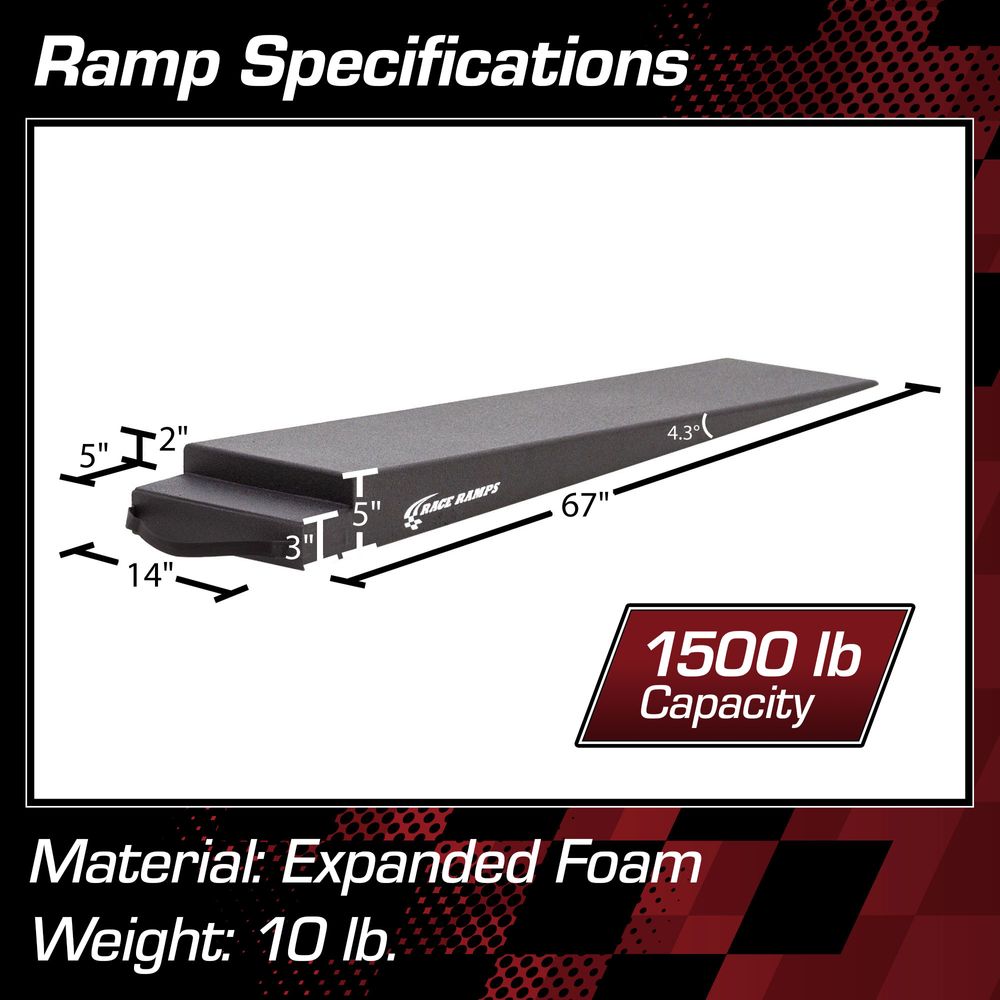

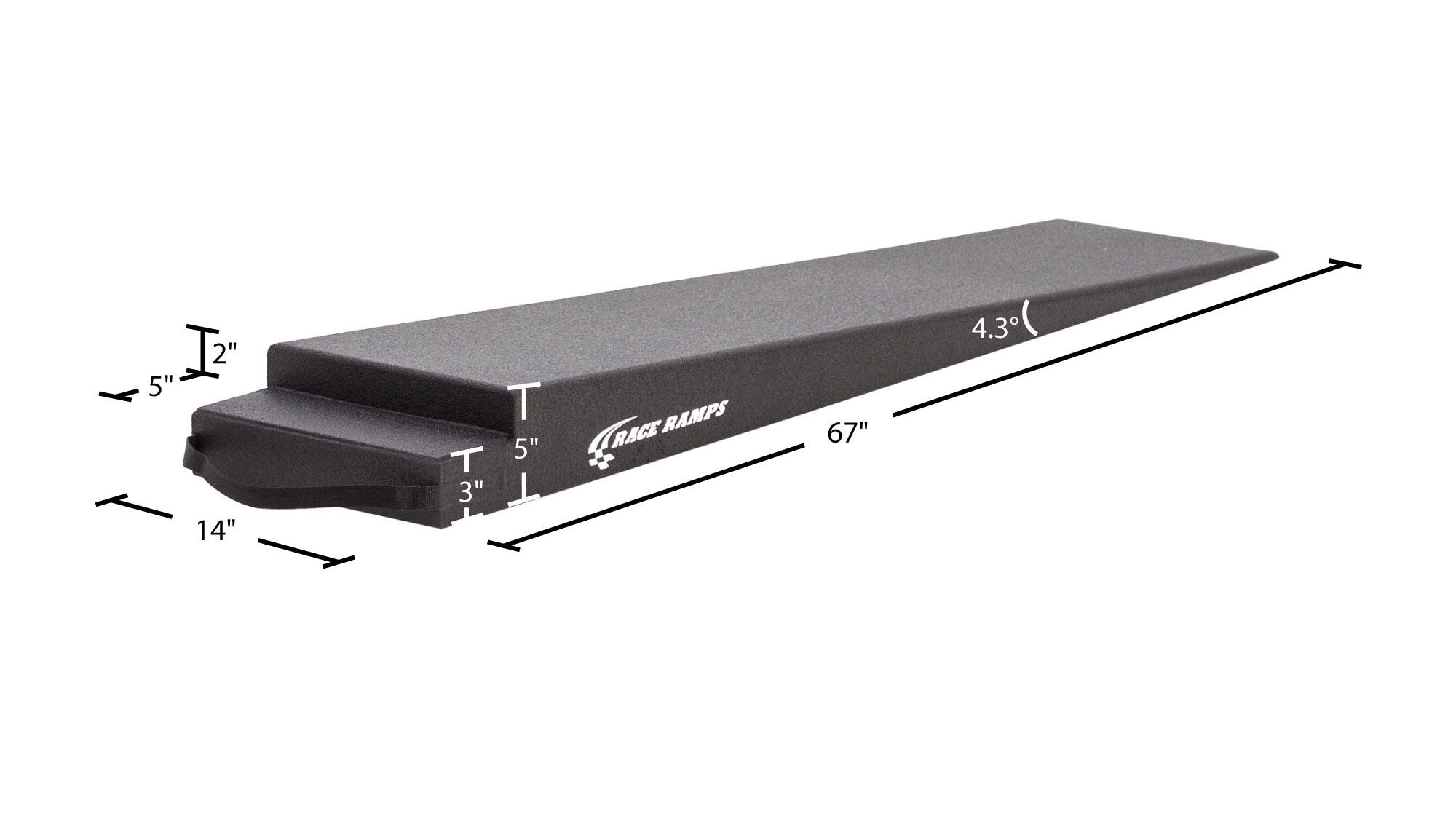

Race Ramps RR-TR-5 Specifications
Model RR-TR-5
Overall Length 67"
Width 14"
Lift Height 5"
Approach Angle 4.3 degrees
Trailer Door Notch 5" long x 2" high
Capacity 1,500 lbs per ramp | 3,000 lbs per pair | 6,000 lbs across a set of four
Maximum Tire Width 12"
Weight 10 lbs per ramp
Sold As Pair, two ramps
Manufacturer Race Ramps
Material Expanded foam with traction coating
Colour Black
Origin Made in the USA
Warranty 1-year manufacturer warranty | 30-day satisfaction guarantee

RR-TR-5 Frequently Asked Questions

Should I get this or the RR-TR-6?

Different problems. The RR-TR-6 lifts an inch higher but does it in 45 inches, so it climbs at 8.2 degrees. Pick the RR-TR-5 when ground clearance is the issue and the RR-TR-6 when deck height is the issue and storage space is tight.

How much clearance does 4.3 degrees actually give me?

A rough guide: at 4.3 degrees, a point 24 inches behind the front tire only drops about 1.8 inches relative to the tire contact patch as the car climbs. Measure the height of your lowest point and how far it sits ahead of the front axle, and you can work out whether it clears.

Do I need the notch to use these?

No. The notch is there for trailer doors and ramp gates, but the ramps work perfectly well butted up against a flat deck edge or a solid curb. If you are not using a door, just make sure the end has full contact and is not bridging a gap.

Can I use one pair for all four wheels?

Yes, and most people do. The front wheels go up first, you pull forward off them, then reposition the same pair for the rears if the trailer needs it. A second pair only makes sense if you want all four wheels supported at once.

Where do I store a 67 inch ramp?

They are 14 inches wide and 5 inches tall, so a pair stacks into a slot roughly 68 by 14 by 10 inches. Most people stand them on edge against the trailer wall or slide them under the car once it is loaded.

Questions about fitment? Talk to a Pitstop Pro specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse Trailer Ramps
