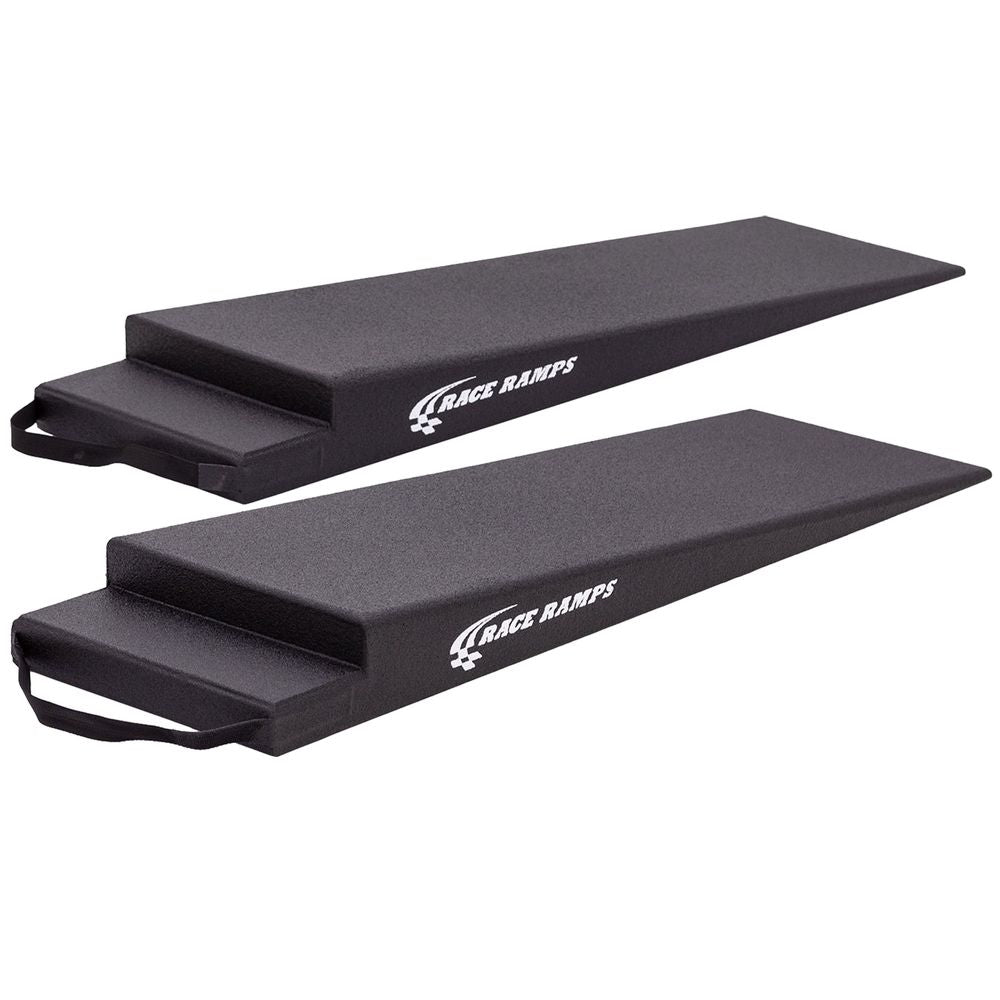

Race Ramps RR-TR-4 pair of 4 inch trailer ramps in black expanded foam

Race Ramps 4 Inch Trailer Ramps, 5.5 Degree Approach | RR-TR-4

by Race Ramps
SKU RR-TR-4
Save $18.40
$386.40
$368.00
No Sales Tax Outside GA, IL, OH
Free Shipping
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Notify me when back in stock

Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

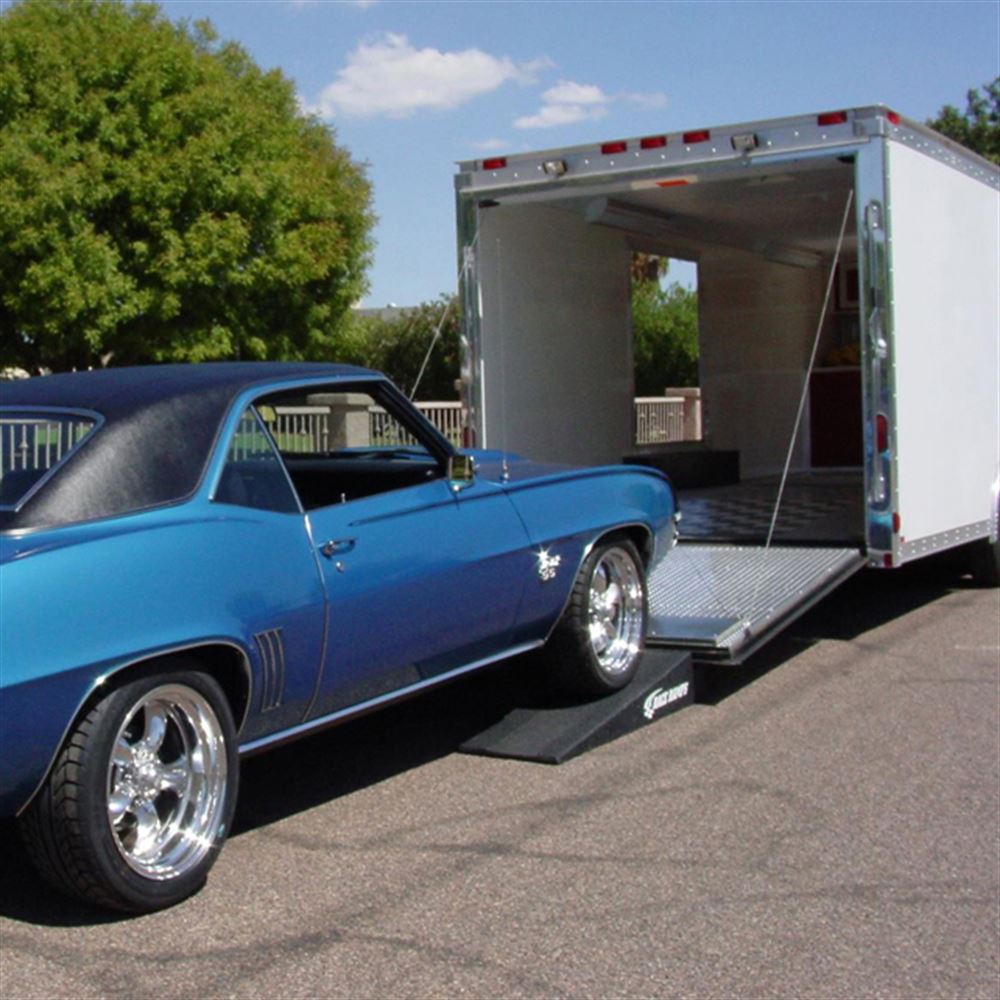

Four Inches of Lift From a 46 Inch Ramp

A tilt deck or a low trailer does not need much help. What it needs is a little extra rise at the lip so the splitter clears, without a ramp so long you cannot store it.

The RR-TR-4 is the shortest ramp in the Race Ramps trailer line at 46 inches, and it still holds the approach angle to 5.5 degrees. It lifts 4 inches, which is usually all the difference a tilt trailer or a low deck height needs.

The trailer end is notched 5 inches long by 2 inches high so it sits down over the edge of a trailer door or ramp gate instead of resting on top of it. That drops the whole ramp lower and takes another degree or so out of the climb.

Sold as a pair. 1,500 lbs per ramp, 3,000 lbs per pair, for tires up to 12 inches wide. Compare the rest of the trailer ramps.

Race Ramps RR-TR-4 pair of 4 inch trailer ramps

Benefits of the RR-TR-4

Shortest ramp, shallow angle
Forty six inches of ramp for four inches of rise works out to 5.5 degrees. Most steel ramps in that length are twice as steep, which is exactly when a front lip catches.

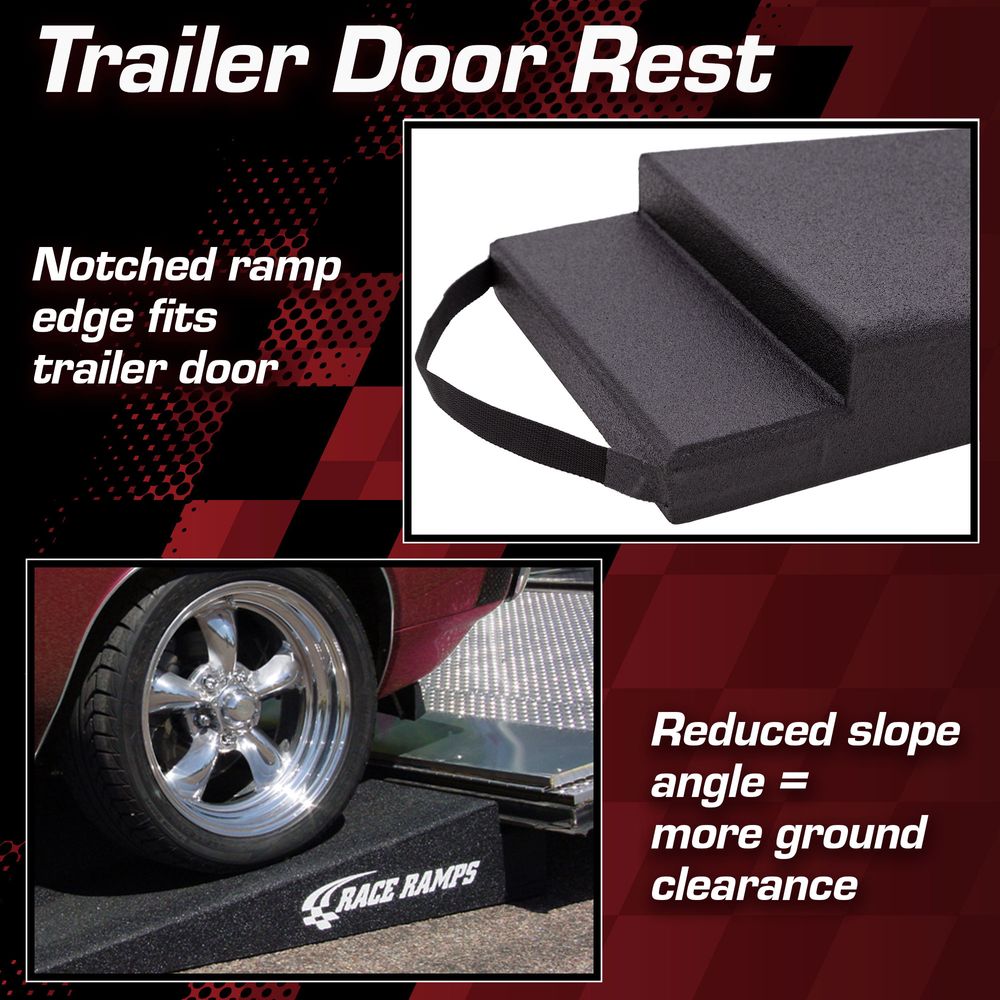

Notched to sit on the door
The 5 by 2 inch notch drops over a trailer door or gate edge rather than perching on it. Lower starting point, less angle, and the ramp stays put once the tire loads it.
Six pounds each
Light enough to carry both at once and set them by hand at the trailer. No lifting a steel ramp onto a gate by yourself, and nothing to drop on a rocker panel.
Solid foam all the way through
There is no frame, no hinge and no welds. Expanded foam carries the load in compression, so the ramp cannot bend, rust or gouge a trailer floor or a driveway.
Traction coating that grips
The whole surface is coated, so a tire finds grip on a wet driveway and the ramp itself does not skate forward as the car loads it. Sweep the contact patch first and it stays where you set it.
Made in the USA
Race Ramps builds these in Michigan and backs them with a one year warranty against defects, plus a 30 day satisfaction guarantee through Pitstop Pro.

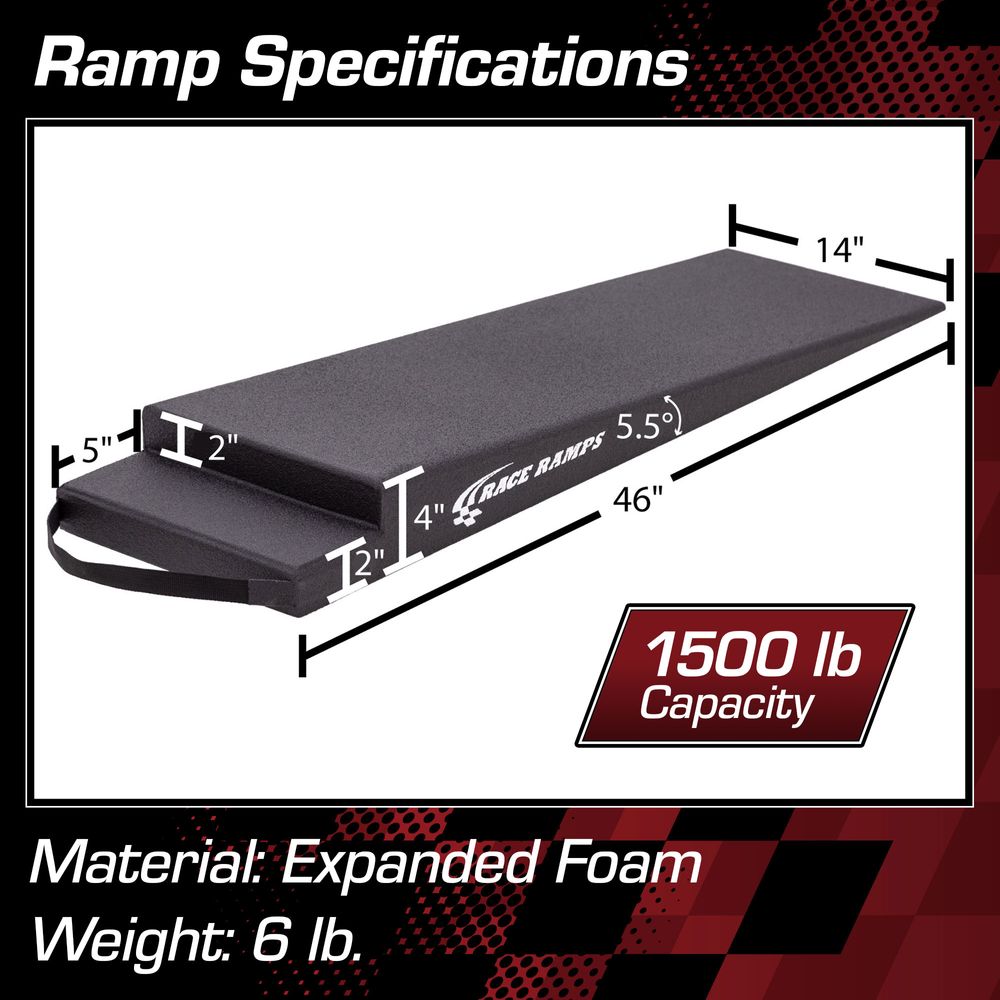

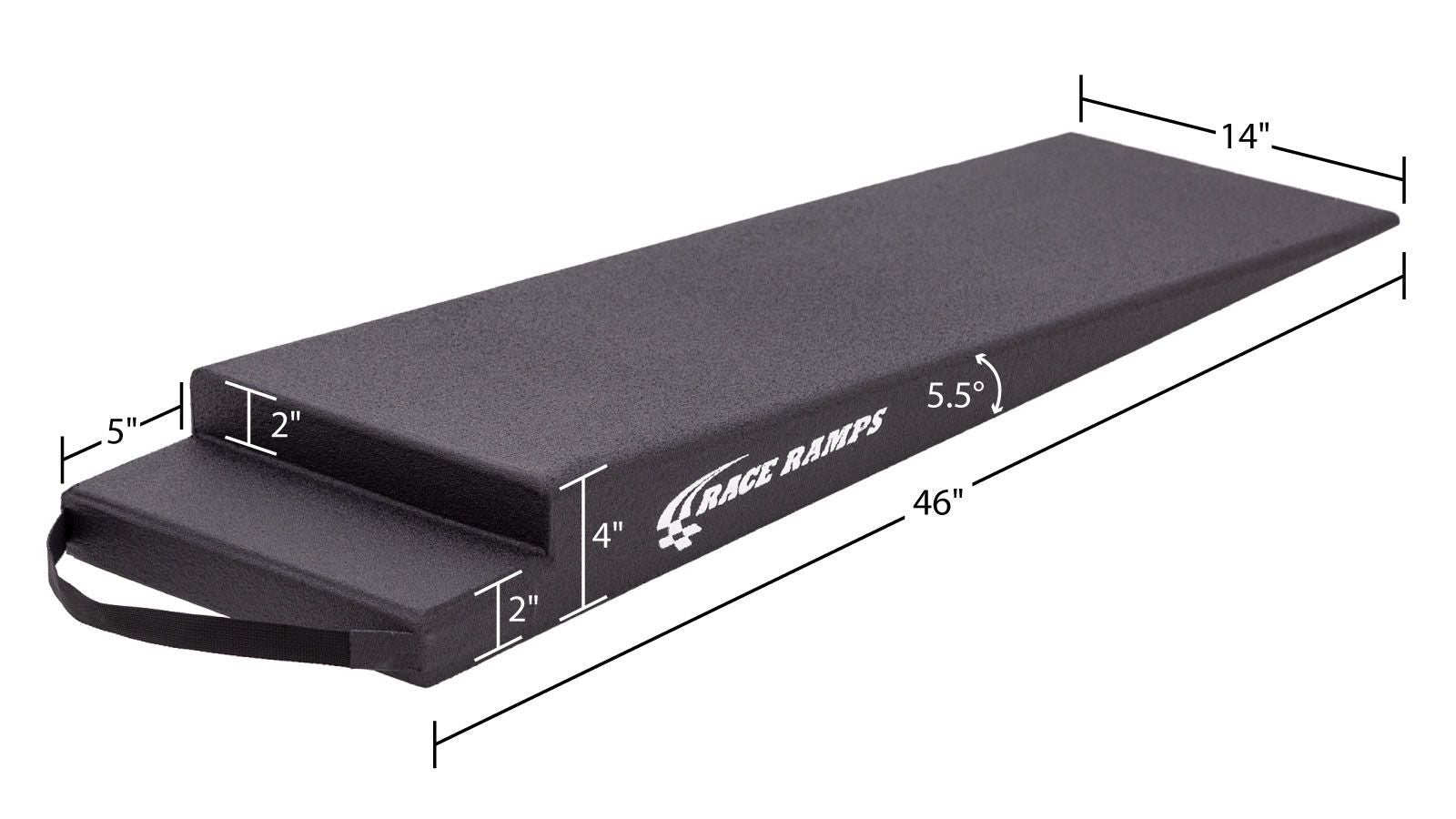

Race Ramps RR-TR-4 Specifications
Model RR-TR-4
Overall Length 46"
Width 14"
Lift Height 4"
Approach Angle 5.5 degrees
Trailer Door Notch 5" long x 2" high
Capacity 1,500 lbs per ramp | 3,000 lbs per pair | 6,000 lbs across a set of four
Maximum Tire Width 12"
Weight 6 lbs per ramp
Sold As Pair, two ramps
Manufacturer Race Ramps
Material Expanded foam with traction coating
Colour Black
Origin Made in the USA
Warranty 1-year manufacturer warranty | 30-day satisfaction guarantee

RR-TR-4 Frequently Asked Questions

How do I know 4 inches is enough?

Measure from the ground to the top edge of your trailer deck or the hinge point of the tilt, then subtract the height of the ramp gate when it is down. Whatever gap is left is what the ramp has to bridge. If that number is closer to 5 or 6 inches, step up to the RR-TR-5 or RR-TR-6.

What does the notch actually do?

The end of the ramp is cut away 5 inches back and 2 inches up, so the ramp hangs over the trailer door edge rather than stacking on top of it. The whole ramp starts 2 inches lower, which flattens the approach and gives the front of the car more ground clearance at the transition.

Will foam really hold my car?

Each ramp is rated for 1,500 lbs, so a pair under one axle handles 3,000 lbs and a full set of four handles 6,000 lbs. The rating is per ramp, not per car, so what matters is the weight on the heaviest single wheel.

My tires are wider than 12 inches.

The deck is 14 inches wide and rated for tires up to 12 inches. A wider tire overhangs the coated surface and loads the edge of the ramp, which is not what it is built for. The RR-TR-8 uses a 16 inch deck and takes tires up to 14 inches.

Can I leave them outside?

They will not rust and they do not absorb water, but long term sun exposure is hard on the coating like it is on any painted surface. Store them out of direct sunlight when you can and they will last considerably longer.

Questions about fitment? Talk to a Pitstop Pro specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse Trailer Ramps
Overview

Four Inches of Lift From a 46 Inch Ramp

A tilt deck or a low trailer does not need much help. What it needs is a little extra rise at the lip so the splitter clears, without a ramp so long you cannot store it.

The RR-TR-4 is the shortest ramp in the Race Ramps trailer line at 46 inches, and it still holds the approach angle to 5.5 degrees. It lifts 4 inches, which is usually all the difference a tilt trailer or a low deck height needs.

The trailer end is notched 5 inches long by 2 inches high so it sits down over the edge of a trailer door or ramp gate instead of resting on top of it. That drops the whole ramp lower and takes another degree or so out of the climb.

Sold as a pair. 1,500 lbs per ramp, 3,000 lbs per pair, for tires up to 12 inches wide. Compare the rest of the trailer ramps.

 Race Ramps RR-TR-4 pair of 4 inch trailer ramps

Benefits of the RR-TR-4

Shortest ramp, shallow angle Forty six inches of ramp for four inches of rise works out to 5.5 degrees. Most steel ramps in that length are twice as steep, which is exactly when a front lip catches. Notched to sit on the door The 5 by 2 inch notch drops over a trailer door or gate edge rather than perching on it. Lower starting point, less angle, and the ramp stays put once the tire loads it. Six pounds each Light enough to carry both at once and set them by hand at the trailer. No lifting a steel ramp onto a gate by yourself, and nothing to drop on a rocker panel. Solid foam all the way through There is no frame, no hinge and no welds. Expanded foam carries the load in compression, so the ramp cannot bend, rust or gouge a trailer floor or a driveway. Traction coating that grips The whole surface is coated, so a tire finds grip on a wet driveway and the ramp itself does not skate forward as the car loads it. Sweep the contact patch first and it stays where you set it. Made in the USA Race Ramps builds these in Michigan and backs them with a one year warranty against defects, plus a 30 day satisfaction guarantee through Pitstop Pro.
Race Ramps RR-TR-4 Specifications
Model RR-TR-4
Overall Length 46"
Width 14"
Lift Height 4"
Approach Angle 5.5 degrees
Trailer Door Notch 5" long x 2" high
Capacity 1,500 lbs per ramp | 3,000 lbs per pair | 6,000 lbs across a set of four
Maximum Tire Width 12"
Weight 6 lbs per ramp
Sold As Pair, two ramps
Manufacturer Race Ramps
Material Expanded foam with traction coating
Colour Black
Origin Made in the USA
Warranty 1-year manufacturer warranty | 30-day satisfaction guarantee

RR-TR-4 Frequently Asked Questions

How do I know 4 inches is enough?

Measure from the ground to the top edge of your trailer deck or the hinge point of the tilt, then subtract the height of the ramp gate when it is down. Whatever gap is left is what the ramp has to bridge. If that number is closer to 5 or 6 inches, step up to the RR-TR-5 or RR-TR-6.

What does the notch actually do?

The end of the ramp is cut away 5 inches back and 2 inches up, so the ramp hangs over the trailer door edge rather than stacking on top of it. The whole ramp starts 2 inches lower, which flattens the approach and gives the front of the car more ground clearance at the transition.

Will foam really hold my car?

Each ramp is rated for 1,500 lbs, so a pair under one axle handles 3,000 lbs and a full set of four handles 6,000 lbs. The rating is per ramp, not per car, so what matters is the weight on the heaviest single wheel.

My tires are wider than 12 inches.

The deck is 14 inches wide and rated for tires up to 12 inches. A wider tire overhangs the coated surface and loads the edge of the ramp, which is not what it is built for. The RR-TR-8 uses a 16 inch deck and takes tires up to 14 inches.

Can I leave them outside?

They will not rust and they do not absorb water, but long term sun exposure is hard on the coating like it is on any painted surface. Store them out of direct sunlight when you can and they will last considerably longer.

Questions about fitment? Talk to a Pitstop Pro specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse Trailer Ramps
Shipping/Returns

Shipping & Returns

  • Shipping Policy
    • Orders are typically processed and shipped within 48 hours after payment is received. Orders placed before 10:00 AM CST may ship the same day.
    • Estimated delivery time is 1–5 business days for most locations, depending on product availability and destination.
    • Processing and delivery times for ground and expedited shipments are estimates and are not guaranteed.
    • Shipping costs are calculated during checkout based on the delivery address and selected shipping method.
    • Products requiring freight delivery may be subject to separately calculated shipping charges.
  • Domestic Shipping
    • Race Ramps products are shipped throughout the United States using FedEx and LTL freight carriers.
    • Unless another shipping option is selected during checkout, orders are shipped through FedEx Ground or FedEx Home Delivery.
    • Estimated ground delivery time is 1–5 business days for most locations.
  • International Shipping
    • Some Race Ramps products may not be eligible for international shipping.
    • International customers should contact Pit Stop Pro at (470) 208-2754 or support@pitstop-pro.com before placing an order.
    • International orders may require manual verification, and final shipping charges may differ from the initial order confirmation due to international shipping rates, tariffs, duties, and taxes.
  • Returns Policy (30 Days)
    • Undamaged products may be returned within 30 days for a product-only refund or exchange.
    • Refunds are issued using the original payment method.
    • Original shipping and handling charges are nonrefundable.
    • Exchanges for products of the same dollar value will not incur additional shipping or handling charges.
    • All LTP and custom-item sales are final and are not eligible for return.
  • How to Initiate a Return
    • Before returning a product, contact Pit Stop Pro at (470) 208-2754 or support@pitstop-pro.com to request a Return Goods Authorization (RGA) number.
    • Returns must be shipped using a prepaid, insured, and trackable shipping method.
    • Products returned without an approved RGA number will not be processed.
    • Approved returns should be sent to:

      Race Ramps LLC
      ATTN: Returns
      N102W19400 Willow Creek Way
      Germantown, WI 53022

Shipping, return, and delivery policies are subject to change without prior notice.

Warranty

Warranty

  • Warranty Period:
    • Race Ramps purchased from an authorized dealer or directly from Race Ramps LLC are covered by a one-year limited warranty.
    • The warranty begins on the original purchase date and applies only to the original owner.
    • Warranty coverage is not transferable.
  • Warranty Coverage:
    • Coverage is limited to the repair or replacement of manufacturer defects.
    • Race Ramps LLC will determine whether an eligible product should be repaired or replaced.
    • Products sold by Race Ramps but manufactured by another company are covered by that manufacturer’s warranty and policies.
  • What the Warranty Does Not Cover:
    • Damage caused by improper, unintended, or unsafe use.
    • Damage to a vehicle, personal injury, labor charges, or other related damages or expenses.
    • Consequential, incidental, or indirect damages or costs.
    • Normal surface impressions, wear, staining, or cosmetic changes resulting from regular use.
    • Damage caused by exceeding the product’s stated weight capacity, temperature limits, or intended application.
  • Proper Use Requirements:
    • Race Ramps are designed for vehicles with high-performance, high-speed-rated tires.
    • Do not use Race Ramps with heavy-lug mud tires or excessively narrow tires unless the product is specifically designed for that application.
    • Standard Race Ramps are designed to support up to 1,500 pounds per tire, per ramp, unless a different capacity is listed for the specific model.
    • Ramps must be used on a flat, solid, and level surface.
    • Do not use Race Ramps to bridge gaps or combine them with wood, metal, or other unsupported materials.
    • The surface temperature of the ramps must remain below 150°F (65.56°C).
  • Normal Surface Impressions:
    • Vehicle tire weight may leave a slight impression of up to approximately 1/8 inch in the ramp’s surface.
    • This is considered normal and does not necessarily indicate a product defect.
  • Ground Surface and Safety:
    • Sweep cement, asphalt, or other surfaces before placing the ramps.
    • Rocks, gravel, and debris underneath the ramps may cause sliding, denting, or surface damage.
  • Temperature and Storage:
    • Race Ramps may be used indoors or outdoors as long as their surface temperature remains below 150°F (65.56°C).
    • Avoid leaving the ramps in prolonged direct sunlight.
    • In warmer climates, do not store the ramps outdoors or inside a vehicle trunk where temperatures may become excessive.
  • Cleaning and Automotive Fluids:
    • Clean Race Ramps using a scrub brush with soap and water.
    • For cleaning while traveling, WD-40 may be applied and wiped away with a clean cloth.
    • Race Ramps resist most automotive fluids, but some fluids may stain or penetrate the surface if they are not removed promptly.
  • Warranty Assistance:
    • Contact Pit Stop Pro before returning or disposing of a product believed to have a warranty defect.
    • Photos, proof of purchase, product information, and a description of the issue may be required to evaluate a warranty claim.
  • Important Notes:
    • Product specifications may change without prior notice due to ongoing research and product development.
    • Always follow the instructions and weight limitations provided for your specific Race Ramps model.

Need help with a Race Ramps warranty claim? Contact Pit Stop Pro at (470) 208-2754 or support@pitstop-pro.com.
