Launch Two Post Car Lift - 9,000 lb Capacity, Symmetric Floor Plate | TLT240SB-R

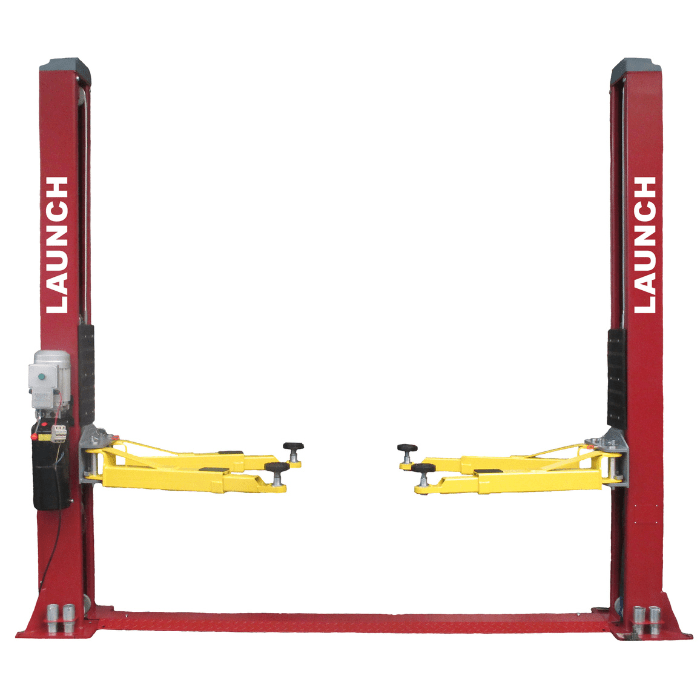

Launch TLT240SB-R 2 Post Car Lift. 9,000 lb Capacity with 98″ Drive-Thru
Shopping for a 2 post lift can be a pain. Especially when you're trying to balance affordability, durability, and power. You want something strong enough to handle your heaviest trucks but still low-profile enough to work on sports cars without risking damage. Many shop owners settle for cheap lifts that wear out fast or don’t offer the clearance and speed they need to run a tight, efficient garage. That’s where the Launch TLT240SB-R comes in. No compromises, just real performance. Symmetric floor-plate 2-post lifts solve a niche problem: 9K capacity in a residential-friendly footprint with overhead clearance most home garages can absorb. Launch's TLT240SB-R fills that gap cleanly.
This 2 post car lift is built to handle it all. With a rugged 9,000 lb lifting capacity and symmetric arm configuration, you can raise a wide range of vehicles confidently. From fleet SUVs to compact sedans, it lifts smoothly and securely in just 50 seconds. Its 73″ max lift height and 98″ drive-thru clearance give you the breathing room you need to move, inspect, and work without restriction. Especially when space is tight. 9,000 lb capacity at the floor-plate configuration covers full-size sedans, SUVs, and most light trucks. Symmetric arm geometry distributes load evenly, simpler to operate than asymmetric layouts.

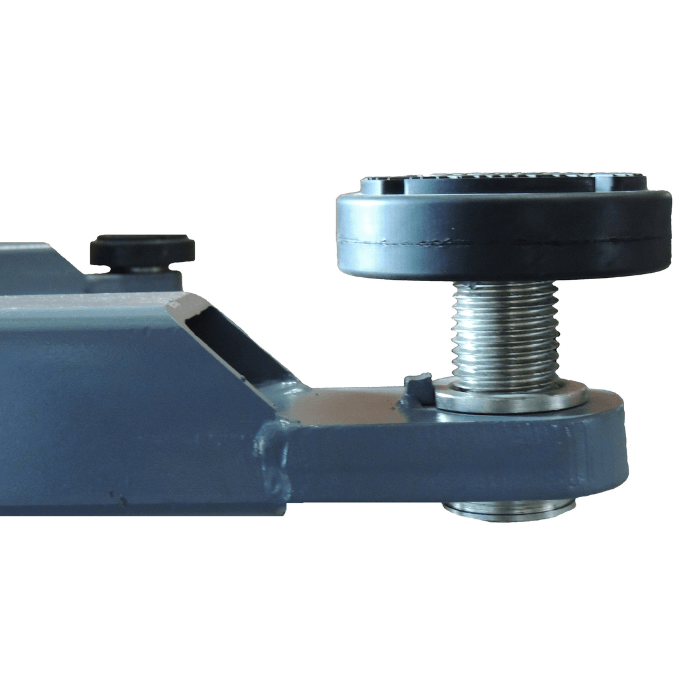

Beyond brute strength, the TLT240SB-R is all about smart design and shop-friendly features. You’ll get double telescoping screw pads with stackable extensions, door guards to protect vehicle finishes, and a dual-point lock release for quick operation. Powered by a 220V, 20 AMP single-phase setup, it’s easy to integrate into most shop setups. Whether you're wrenching at a pro-level garage or upgrading your home setup, this 2 post auto lift gets the job done right. * For home shops or commercial bays with limited ceiling height, the TLT240SB-R brings true 9K capability in a footprint most residential garages can absorb.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the Launch TLT240SB Auto Lift
Key Features of the Launch 9,000lb Two-Post Auto Lift You'll Love:
• 9,000 lb Lifting Capacity: This 2 post car lift is designed to handle everything from compact sedans to full-size trucks. Ideal for general repair, tire service, and inspections.
• Chain Drive System: A proven chain drive mechanism ensures smooth, reliable lifting with minimal maintenance, even during heavy daily shop use.

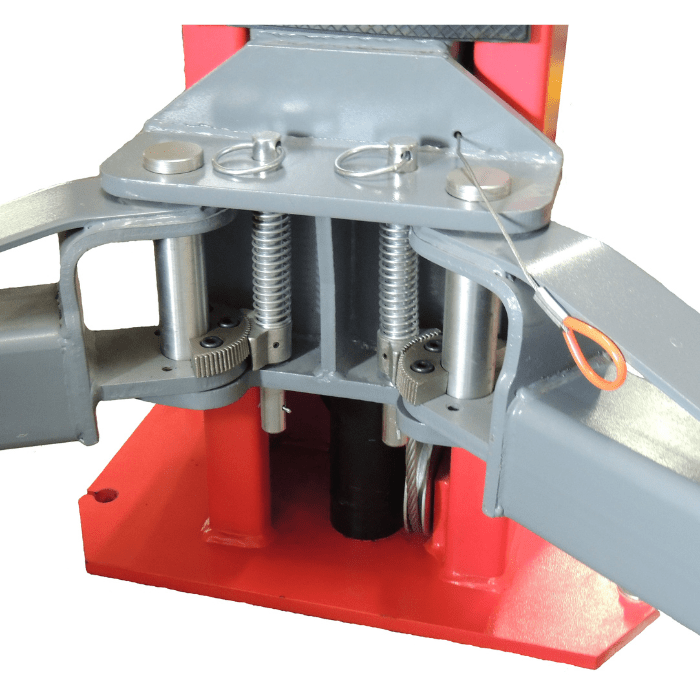

• Heavy-Duty Arm Restraint System: Automatic locking arms engage during lift to stabilize the vehicle and enhance safety throughout the job.

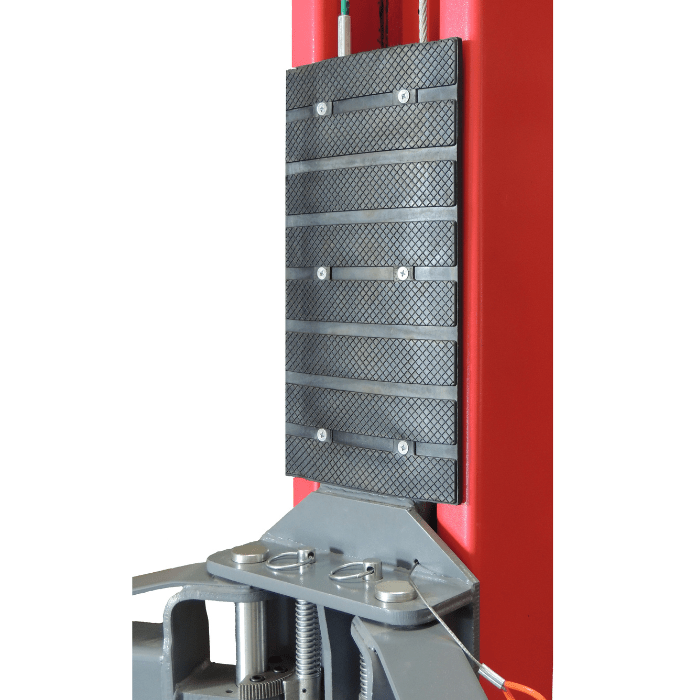

• Rubber Door Guards & Hose Guards: Protects both your customer’s vehicle and your lift system by preventing dings and shielding hydraulic hoses from wear.
• Dual Point Lock Release: Easily release both lift columns at once with user-friendly dual controls. Streamlining your workflow and reducing downtime.

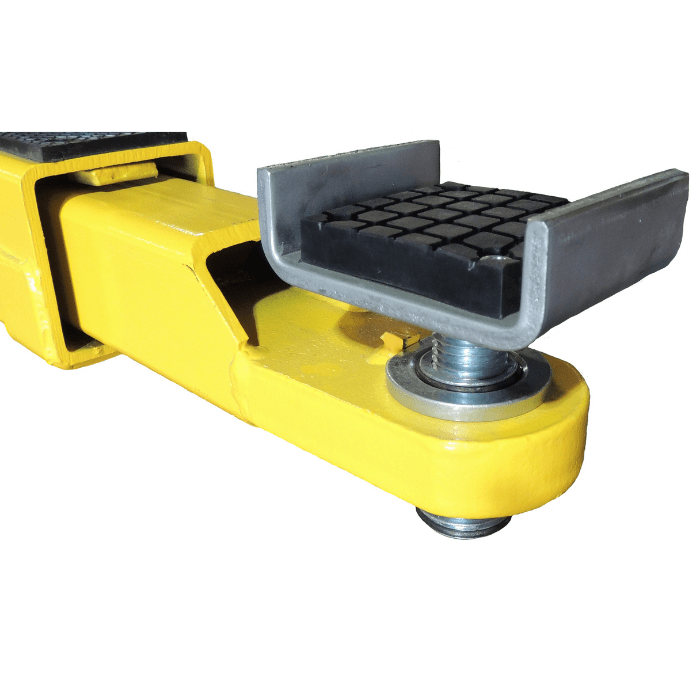

• Stackable Pad Extensions: Accommodate vehicles with different frame heights quickly and efficiently with included stackable lift pad extensions.
Minimum Garage Requirements
✔ Ceiling Height: At least 119" (9'11") recommended ✔ Footprint: 98" drive-thru x 133" overall (8'2" x 11'1") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V, 20 AMP, 1 PH ✔ Overall Lift Height: 113" (9'5") (measure before ordering)
✔ Ceiling Height: At least 119" (9'11") recommended
✔ Footprint: 98" drive-thru x 133" overall (8'2" x 11'1")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V, 20 AMP, 1 PH
✔ Overall Lift Height: 113" (9'5") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Launch TLT240SB 9,000lb Two-Post Car Lift Specifications |
|
| Manufacturer | Launch |
| Model | TLT240SB-R |
| Lift Capacity | 9,000 lbs |
| Height Overall | 113″ |
| Width Overall (w/ power unit) | 133″ |
| Width Between Columns | 108″ |
| Max Lift Height | 73″ |
| Min. Pad Height | 4″ |
| Drive-Thru Clearance | 98″ |
| Lifting Speed | 50 seconds |
| Symmetry | Symmetric |
| Style | Floor Plate |
| Short Arm Reach (Min/Max) | 31-1/2″. 47-1/4″ |
| Long Arm Reach (Min/Max) | 31-1/2″. 47-1/4″ |
| Max Load Per Arm | 2,250 lbs |
| Power Requirements | 220V, 20 AMP, 1 PH |
| Pallet Dimensions | 113″ x 22″ x 43″ |
| Warranty | 5 Years Structure, 1 Year Parts |
Launch TLT240SB-R Frequently Asked Questions
What does "floor plate" mean on the TLT240SB-R?
Instead of an overhead crossbeam, the hydraulics and equalizer cables run through a low plate across the floor between the columns. That keeps the whole lift at just 113" tall -- a 2 post lift for low ceiling garages where clear-floor models needing 13 feet simply won't fit. The trade-off is a small plate you drive over.
Will my truck fit on the TLT240SB-R?
The 9,000 lb 2 post lift rating covers sedans, SUVs, and half-ton pickups with margin -- 2,250 lbs per arm on symmetric swing arms. Max lift height is 73", plenty for wheel and underbody work under a lower ceiling. Need more capacity? The ALI-certified 10,000 lb TLT210-XT is the step up.
Which Launch 2-post is right for me?
This TLT240SB-R is the floor-plate model for bays under 10 feet. The TLT240SC-R is the clear-floor version for 13'+ ceilings -- nothing on the floor between the posts. And the TLT210-XT adds 10,000 lb capacity plus ALI certification for commercial shops.
How much ceiling height do I need?
Plan on 119" (9'11") -- the columns themselves stand only 113". That makes this one of the few true 2 post car lift options for standard 10-foot residential ceilings. Measure your tallest vehicle at full lift before ordering.
What are the spin-up cradle adapters for?
Launch's TLT240-SPNCA spin-up cradle adapter set threads onto the lift pads to add adjustable height for reaching truck frame rails and pinch welds on taller vehicles -- a worthwhile add-on if you service a mix of cars and trucks.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. The TLT240SB-R calls for concrete at least 4" thick at 3,000 PSI compressive strength. Verify your slab before ordering.
Is the Launch TLT240SB-R worth it?
Launch is the diagnostics giant behind the X431 scan tools, and its lifts carry a 5-year structural warranty -- this one delivers true 9K capacity under a 10-foot ceiling. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still weighing lift types.
