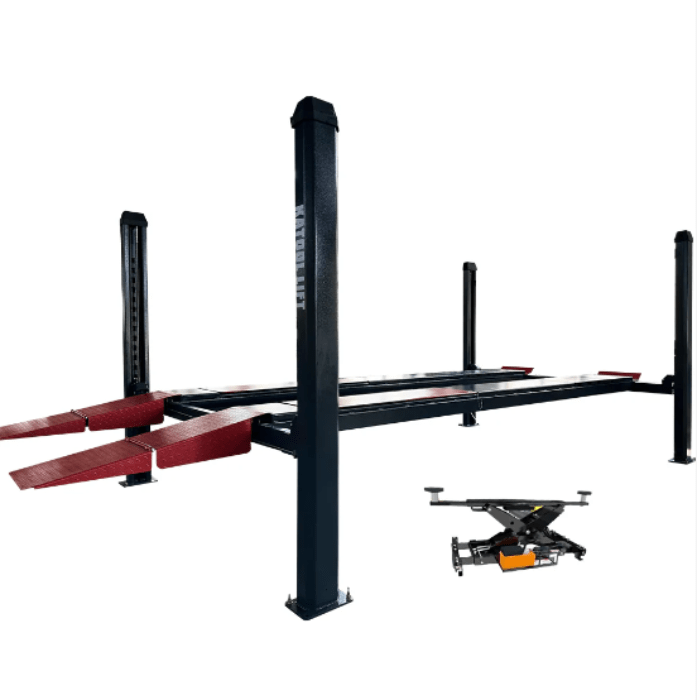

KT-4H120X 12000 Lbs 220V Heavy Duty Four Post Vehicle Lift wide stance four post frame with optional jack

Katool 4-Post Alignment Lift - 12,000lb Capacity. Rolling Jack Included | KT-4H120X

by KATOOL
SKU KT-4H120X
Save $499.00
$4,999.00
$4,500.00

Notify me when back in stock

Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

Need a Service-Ready Alignment Lift? Step Up to the Katool KT-4H120X 12k 4 Post Lift with RJ70 Rolling Jack



Buying a 4 post alignment lift sounds easy until the real stuff starts hitting you. A lot of lifts look similar online, but once you’re using it daily you notice what matters fast: stability under load, lifting height, and how smooth the runways feel when you drive on. Plenty of buyers also get burned by missing service ready pieces, like a rolling jack for wheel free work, or alignment style runway features that make setup simpler. Speed matters too, because a slow raise time drags down your whole workflow. And if the safety system feels questionable, you’ll never be fully comfortable putting a heavier vehicle in the air.

The Katool KT-4H120X is a shop grade katool 4 post lift built for dependable daily use, with specs that actually match what most shops and serious home garages need. It’s a 4 post 12k lift rated for 12,000 lbs, powered by 220V, with a max lifting height of 86.9 in (2208 mm) for strong under vehicle access. It raises in ≤ 83 seconds and lowers in ≥ 40 seconds, so it feels efficient without ever feeling out of control. The wide column spacing helps with vehicle compatibility and makes it easier to work around doors and runways. If you want a 12000lb 4 post lift that’s built to keep up, this one checks the big boxes.

This specific package includes the RJ70 7000lb Pneumatic Rolling Jack, which is a huge upgrade for real service work. It lets you lift the axle or frame so you can get the wheels off the runways for brake jobs, tire rotations, suspension work, and more. Front alignment plates are sold separately, but the rear slip plates are already built into the runways, making this a practical 4 post alignment lift platform with a clean workflow and fewer add ons. *This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer’s minimum requirements of at least 5.9" (150 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation.

Need a different capacity or size? Explore our full lineup of vehicle lifts to find the perfect match for your shop.

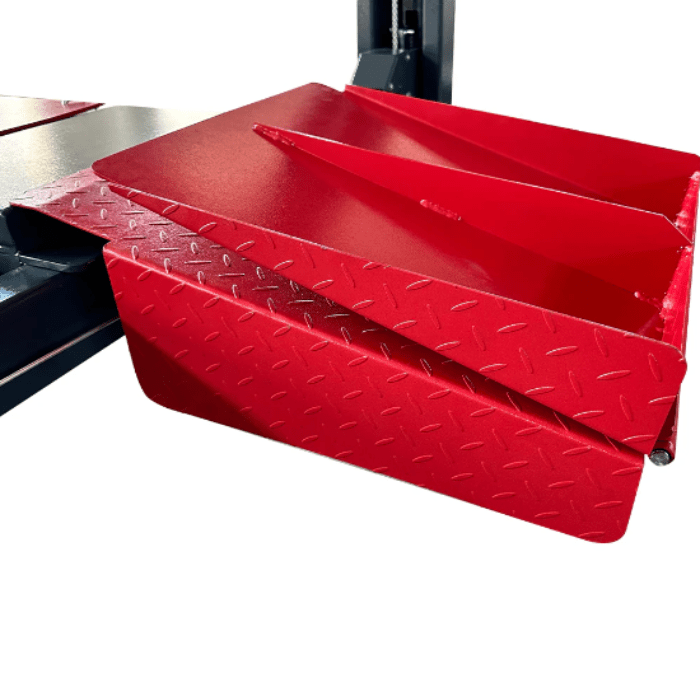

Katool KT-4H120X heavy duty four post car lift 220V with steel ramps and optional jack

Benefits of the Katool KT-4H120X Four Post Alignment Lift

Wheel Free Service Ready | RJ70 rolling jack included.

Confident Heavy Lifting | 12,000 lb rated capacity.

Faster Shop Workflow | Quick raise and controlled lowering.

Better Under Car Comfort | 86.9 in max lift height.

Alignment Friendly Runway Setup | Rear slip plates integrated.

Cleaner Install Planning | Clear 220V power requirements.

Key Features of the Katool KT-4H120X 4 Post Lift You'll Love:

  • 12,000 lb Drive On Capacity for Bigger Vehicles: Rated for 12,000 lbs, giving you more breathing room for SUVs, heavier daily drivers, and many trucks.
  • RJ70 7000lb Pneumatic Rolling Jack Included: Lift the axle or frame so wheels can hang free for brakes, tire rotations, and suspension service.
  • Alignment-Capable Setup: Rear slip plates are built into the runways, while front alignment plates can be purchased separately.
  • High Lift Height for Comfortable Under Car Access: Max lifting height of 86.9 in (2208 mm) provides real working room for underbody service.
  • Faster Cycle Times That Keep Bays Moving: Raises in ≤ 83 seconds with controlled lowering at ≥ 40 seconds for a steady, predictable feel.
  • Safety Focused Operation and Balanced Lifting Design: Mechanical locking devices, single point manual safety lock release, secondary lock style backup, top limit switch, and a quad cable system for synchronized lifting.

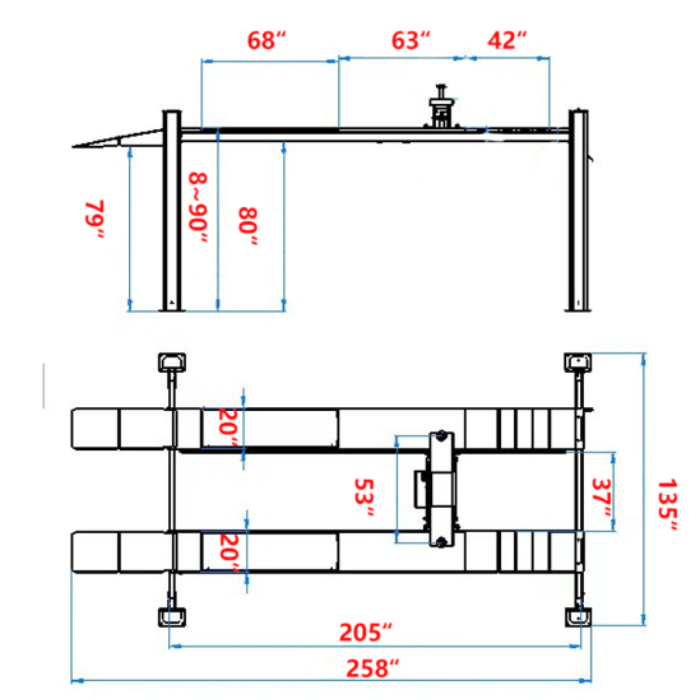

Katool KT-4H120X 12000 lb four post lift technical layout drawing with measurements

Katool KT-4H120X 12,000 lb 4 Post Alignment Lift Specifications
Manufacturer Katool
Model KT-4H120X
Product Type 4 Post Alignment Lift
Lifting Capacity 12,000 lbs
Max. Lifting Height (distance to top of runways) 86.9 in (2208 mm)
Max. Underneath Height (clearance below runways when fully raised) 80" (2032 mm)
Lifting Time ≤ 83 sec Up / ≥ 40 sec Down
Height of Posts 94.88 in (2410 mm)
Width Overall 135.2 in (3435 mm)
Width Inside Columns 112.81 in (2865 mm)
Width inside Runways 37" (940 mm)
Width of Runways 20" (508 mm)
Length Overall (with ramps) 258" (6,553 mm)
Runway Length 205" (5,207 mm)
Net Weight 3373 lbs (1530 kg)
Included Accessory RJ70 7000lb Pneumatic Rolling Jack
Motor 220VAC/60HZ/1PH | Must be wired to a circuit with 10-gage wire and a 30-amp breaker
Warranty 1 Year limited warranty covering all parts and defects.
3 Year structural warranty for vehicle lifts.
Overview

Need a Service-Ready Alignment Lift? Step Up to the Katool KT-4H120X 12k 4 Post Lift with RJ70 Rolling Jack



Buying a 4 post alignment lift sounds easy until the real stuff starts hitting you. A lot of lifts look similar online, but once you’re using it daily you notice what matters fast: stability under load, lifting height, and how smooth the runways feel when you drive on. Plenty of buyers also get burned by missing service ready pieces, like a rolling jack for wheel free work, or alignment style runway features that make setup simpler. Speed matters too, because a slow raise time drags down your whole workflow. And if the safety system feels questionable, you’ll never be fully comfortable putting a heavier vehicle in the air.

The Katool KT-4H120X is a shop grade katool 4 post lift built for dependable daily use, with specs that actually match what most shops and serious home garages need. It’s a 4 post 12k lift rated for 12,000 lbs, powered by 220V, with a max lifting height of 86.9 in (2208 mm) for strong under vehicle access. It raises in ≤ 83 seconds and lowers in ≥ 40 seconds, so it feels efficient without ever feeling out of control. The wide column spacing helps with vehicle compatibility and makes it easier to work around doors and runways. If you want a 12000lb 4 post lift that’s built to keep up, this one checks the big boxes.

This specific package includes the RJ70 7000lb Pneumatic Rolling Jack, which is a huge upgrade for real service work. It lets you lift the axle or frame so you can get the wheels off the runways for brake jobs, tire rotations, suspension work, and more. Front alignment plates are sold separately, but the rear slip plates are already built into the runways, making this a practical 4 post alignment lift platform with a clean workflow and fewer add ons. *This lift is designed for free-standing use and does not require bolting to the ground for normal operation. Regardless of whether the lift is anchored, it must be installed on a concrete surface that meets the manufacturer’s minimum requirements of at least 5.9" (150 mm) thickness and 3,000 PSI compressive strength. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer’s responsibility to verify concrete thickness and strength prior to purchase and installation.

Need a different capacity or size? Explore our full lineup of vehicle lifts to find the perfect match for your shop.

 Katool KT-4H120X heavy duty four post car lift 220V with steel ramps and optional jack

Benefits of the Katool KT-4H120X Four Post Alignment Lift

Wheel Free Service Ready | RJ70 rolling jack included.

Confident Heavy Lifting | 12,000 lb rated capacity.

Faster Shop Workflow | Quick raise and controlled lowering.

Better Under Car Comfort | 86.9 in max lift height.

Alignment Friendly Runway Setup | Rear slip plates integrated.

Cleaner Install Planning | Clear 220V power requirements.

Key Features of the Katool KT-4H120X 4 Post Lift You'll Love:

  • 12,000 lb Drive On Capacity for Bigger Vehicles: Rated for 12,000 lbs, giving you more breathing room for SUVs, heavier daily drivers, and many trucks.
  • RJ70 7000lb Pneumatic Rolling Jack Included: Lift the axle or frame so wheels can hang free for brakes, tire rotations, and suspension service.
  • Alignment-Capable Setup: Rear slip plates are built into the runways, while front alignment plates can be purchased separately.
  • High Lift Height for Comfortable Under Car Access: Max lifting height of 86.9 in (2208 mm) provides real working room for underbody service.
  • Faster Cycle Times That Keep Bays Moving: Raises in ≤ 83 seconds with controlled lowering at ≥ 40 seconds for a steady, predictable feel.
  • Safety Focused Operation and Balanced Lifting Design: Mechanical locking devices, single point manual safety lock release, secondary lock style backup, top limit switch, and a quad cable system for synchronized lifting.
 Katool KT-4H120X 12000 lb four post lift technical layout drawing with measurements

Katool KT-4H120X 12,000 lb 4 Post Alignment Lift Specifications
Manufacturer Katool
Model KT-4H120X
Product Type 4 Post Alignment Lift
Lifting Capacity 12,000 lbs
Max. Lifting Height (distance to top of runways) 86.9 in (2208 mm)
Max. Underneath Height (clearance below runways when fully raised) 80" (2032 mm)
Lifting Time ≤ 83 sec Up / ≥ 40 sec Down
Height of Posts 94.88 in (2410 mm)
Width Overall 135.2 in (3435 mm)
Width Inside Columns 112.81 in (2865 mm)
Width inside Runways 37" (940 mm)
Width of Runways 20" (508 mm)
Length Overall (with ramps) 258" (6,553 mm)
Runway Length 205" (5,207 mm)
Net Weight 3373 lbs (1530 kg)
Included Accessory RJ70 7000lb Pneumatic Rolling Jack
Motor 220VAC/60HZ/1PH | Must be wired to a circuit with 10-gage wire and a 30-amp breaker
Warranty 1 Year limited warranty covering all parts and defects.
3 Year structural warranty for vehicle lifts.
