iDEAL 3,300 lb Powertrain Platform Lift Table | LT-PT3300DC-X
The 3,300 lb Portable Powertrain Platform Built to Pull Engines, Transmissions and Axles Out from Under a Truck

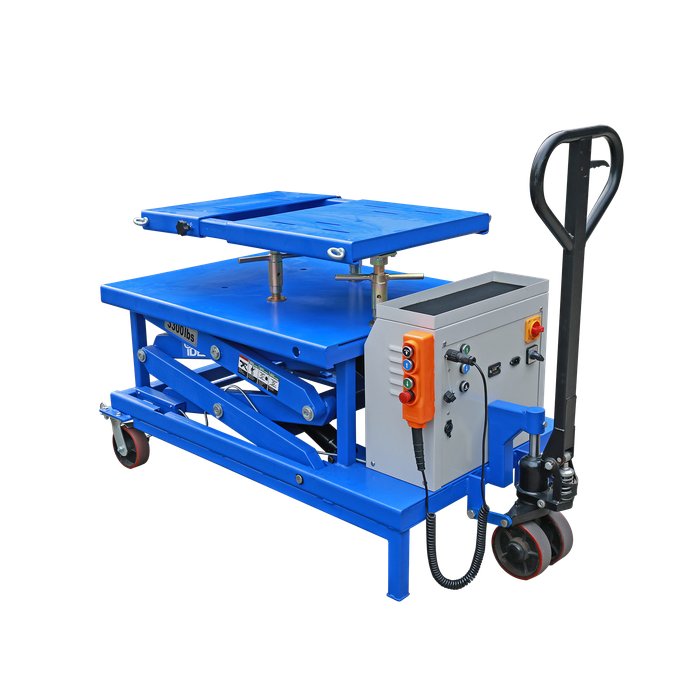

The iDEAL LT-PT3300DC-X is a portable, high-rise, commercial-grade lift table built specifically for the tech pulling powertrain components: engines, transmissions, transfer cases, differentials, drive-axle and transaxle assemblies. Its 3,300 lb capacity handles anything from a small four-cylinder short block to a full 4WD transmission with a transfer case still bolted to it, and the extendable slotted platform adjusts from 31.5 to 36.7 inches long so you can position long assemblies where the bell housing lines up with the crossmember.
A 12VDC deep-cycle sealed battery with an integrated 110VAC charger powers the DC electric hydraulic system, so the lift runs whether you have shop air, a wall outlet or nothing but the battery in the base. Dual control: full function from the main control box panel and from the magnetic remote hand controller, so one person can position the platform and stage the load without walking around the lift. The platform rises to 72 inches in 20 seconds and lowers in 22, with three intermediate locking positions at 49, 61 and 68 inches.

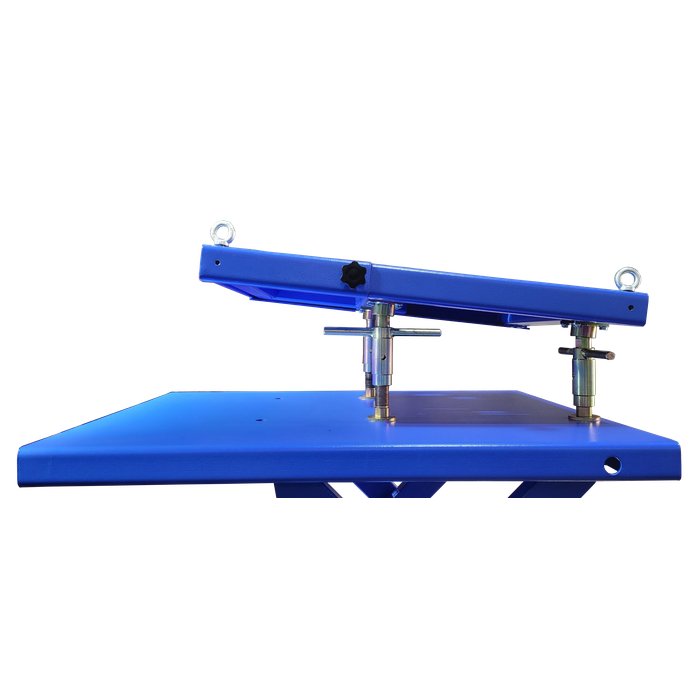

The platform includes four tie-down ring eyelets and a heavy-duty ratchet strap so the component stays put when you tilt (+/- 6 to 8 degrees) or roll the lift across the shop floor. Portability is built in: an integrated pallet-jack dolly with 6 inch poly wheels and four directional-locking poly swivel casters. Also included: 12VDC auxiliary outlet port for tools, integrated utility / tool tray, sub-platform storage area, leg support stands. Backed by iDEAL / Tuxedo.

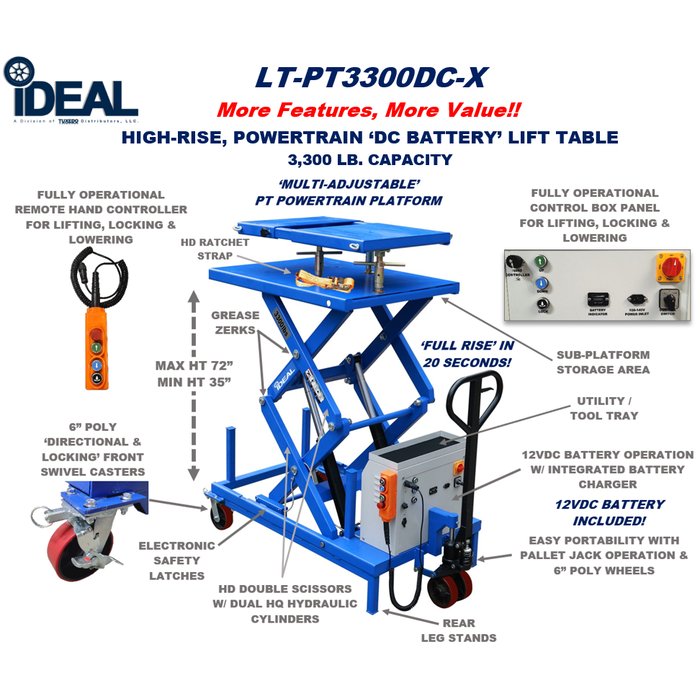

Key Features of the LT-PT3300DC-X That Matter in the Driveline Bay:
- 3,300 lb Capacity, 12VDC Battery Power: Deep-cycle sealed battery with integrated 110VAC charger runs the DC electric-hydraulic system. No shop air required. Auxiliary 12VDC outlet port powers tools while you work.

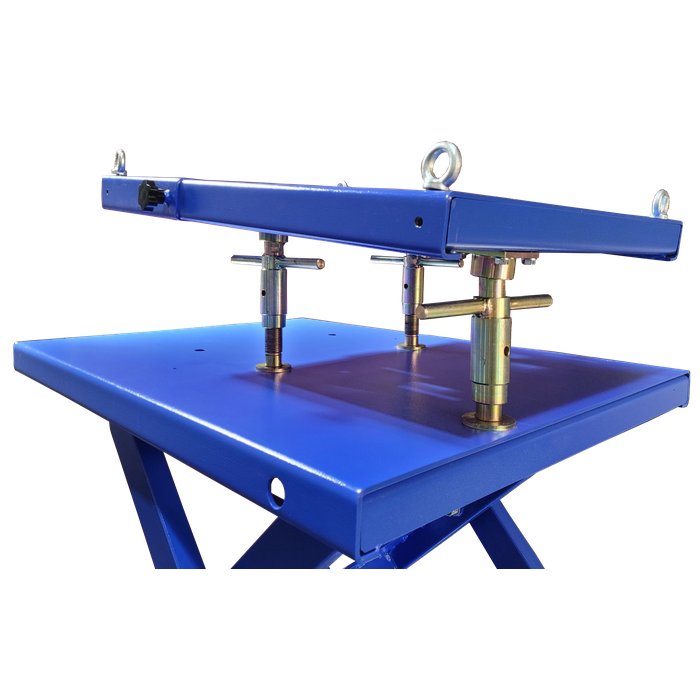

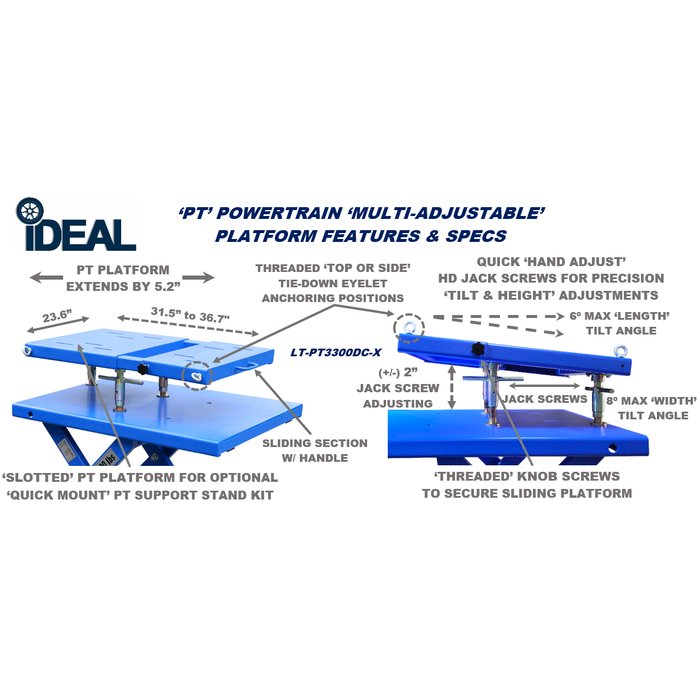

- Extendable Slotted Powertrain Platform: Platform length adjusts from 31.5 to 36.7 inches with 5.2 inches of range, so a small block, a longitudinal transmission or a full transaxle all land in the right spot for the crossmember bolts.
- Four Tie-Down Eyelets + Ratchet Strap: Four heavy-duty tie-down rings and a ratchet strap included. Secure the component to the platform for tilted moves, rolled moves and multi-day work in progress.

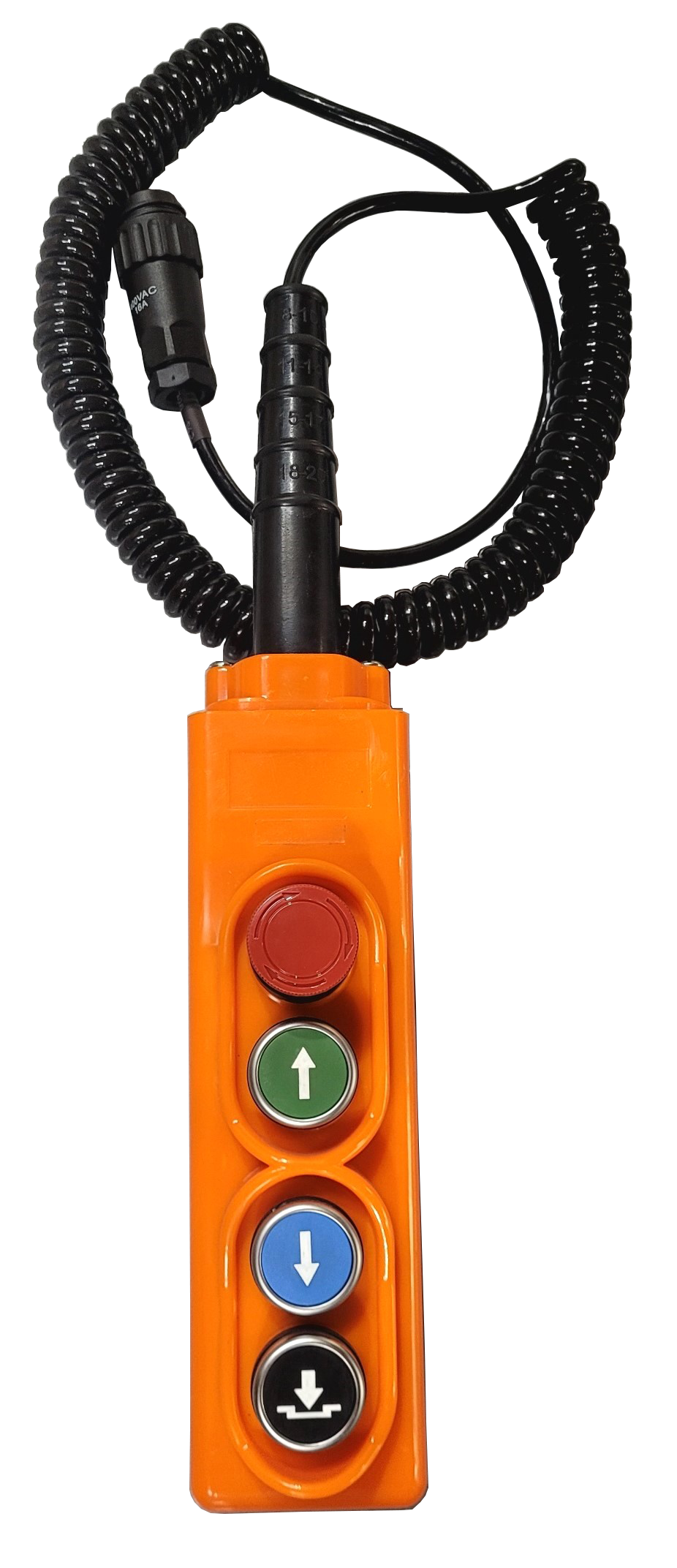

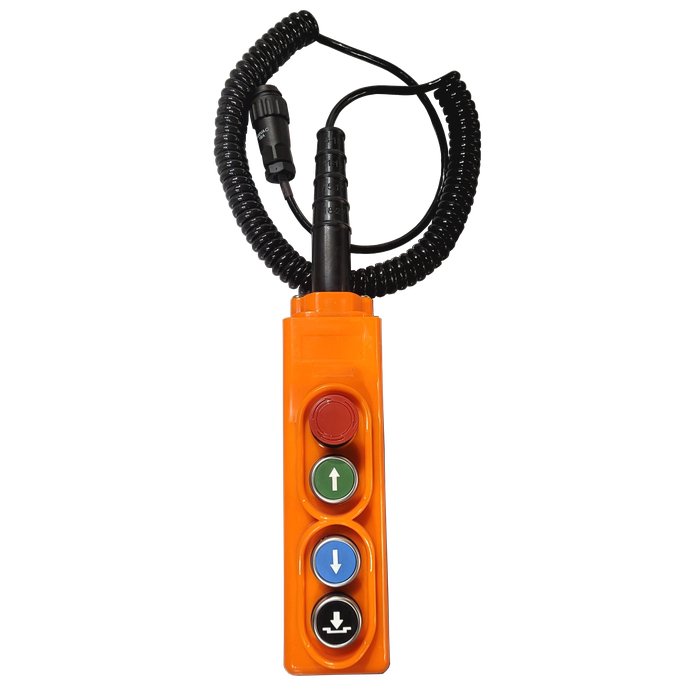

- Dual Control Operation: Full function from both the main control box panel and a magnetic remote hand controller. Position the platform and stage the load without walking around the lift.

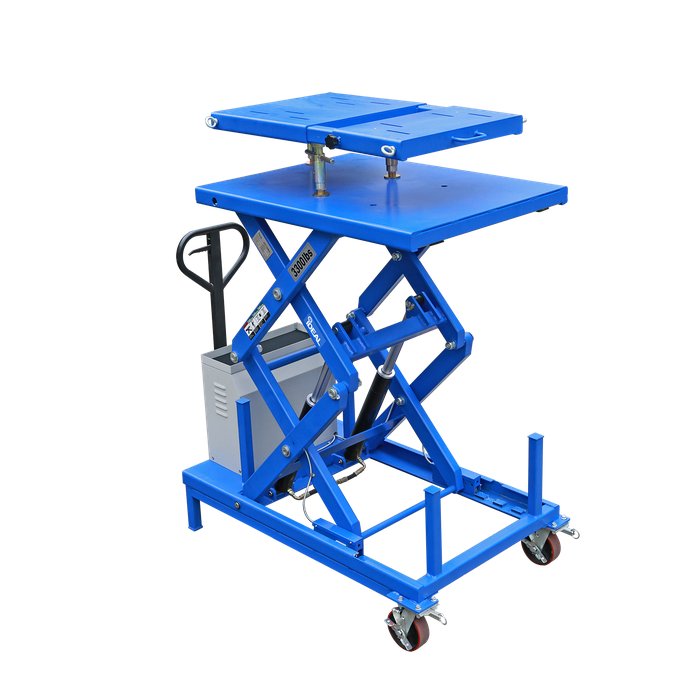

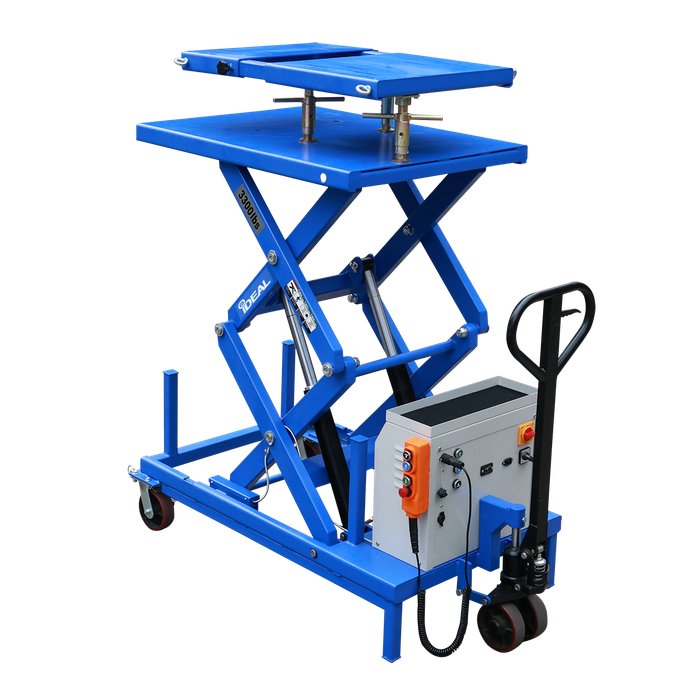

- Three Locking Height Positions: Locks at 49, 61 and 68 inches with a max lift height of 72 inches. 20-second rise, 22-second lower. Height range from 35 to 72 inches covers everything from crossmember drops to full engine hoist work.

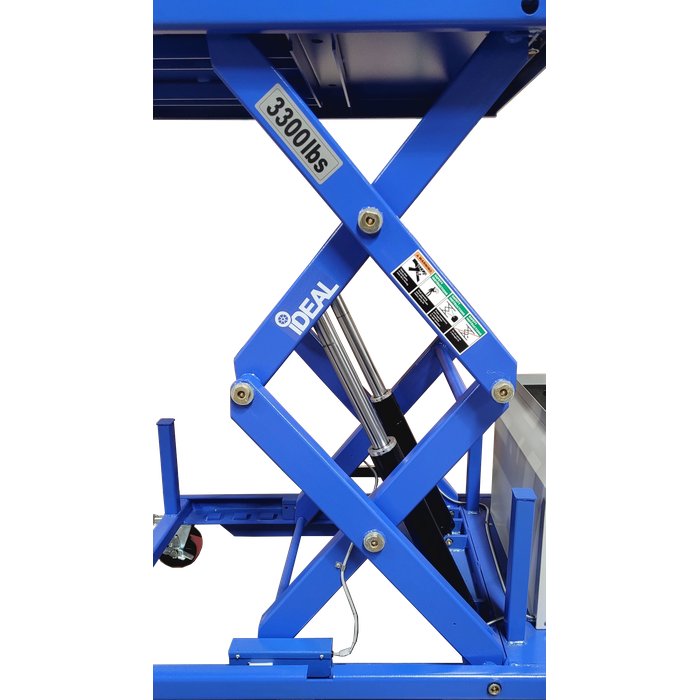

- Double-Scissor Heavy-Duty Design: Twin lift scissors with high-quality hydraulic cylinder and grease zerks at every pivot. Built to handle full-capacity loads day after day in a busy driveline shop.

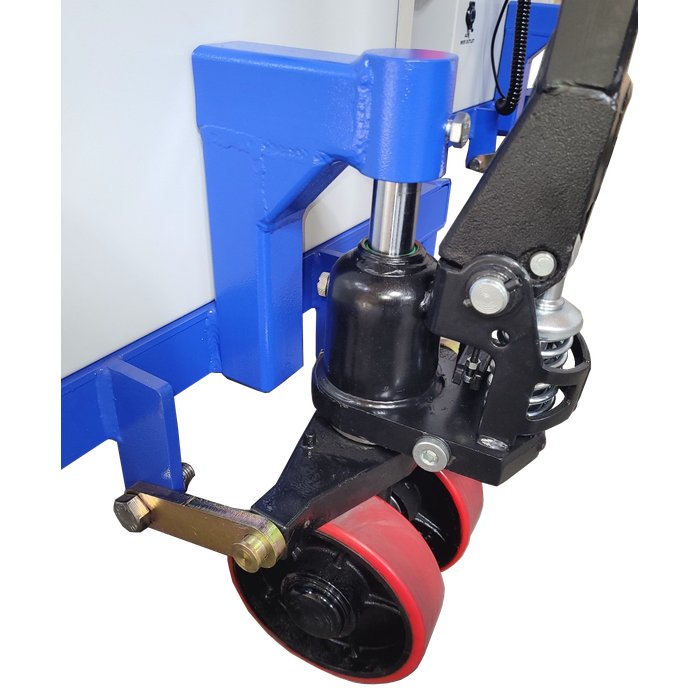

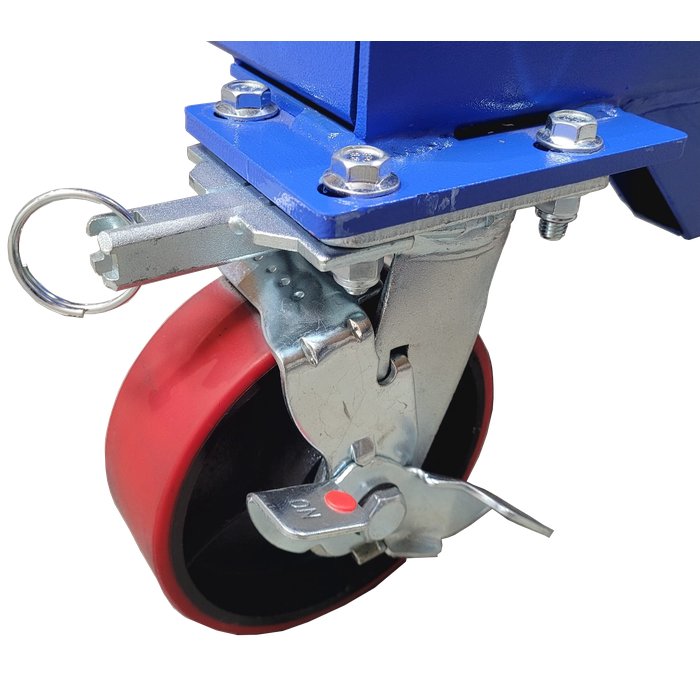

- Integrated Pallet-Jack Dolly: 6 inch poly wheels on an integrated pallet-jack dolly let you move the fully loaded lift across the shop floor. Front swivel and rear directional-locking poly casters hold direction under load.
- Sub-Platform Storage + Utility Tray: Built-in utility and tool tray plus a sub-platform storage area keep torque wrenches, transmission fluid, bell housing bolts and hardware inside arm's reach while you work.
LT-PT3300DC-X Powertrain Platform Specifications |
|
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | LT-PT3300DC-X |
| Configuration | Portable 12VDC battery-powered electric-hydraulic scissor lift table |
| Primary Application | Powertrain component service: engines, transmissions, transfer cases, differentials, axles |
| Lifting Capacity | 3,300 lb |
| Overall Length | 65.2 in |
| Overall Width | 33.5 in |
| Dolly Hand Bar Height | 47.2 in |
| Powertrain Platform Size | 31.5 to 36.7 in L (extendable, 5.2 in range) x 23.6 in W |
| Min Platform Height | 35 in |
| Max Platform Height | 72 in |
| Locking Height Positions | 49 in, 61 in, 68 in |
| Platform Tilt Range | +/- 6 to 8 degrees |
| Rise Time | 20 seconds |
| Lower Time | 22 seconds |
| Power Supply (Charger) | 110VAC, 1.5 A, 1-phase |
| DC Power Unit | 12VDC, 120 A, 2.15 HP electric motor |
| Battery | 12VDC deep-cycle sealed, integrated charger, 12VDC auxiliary outlet port |

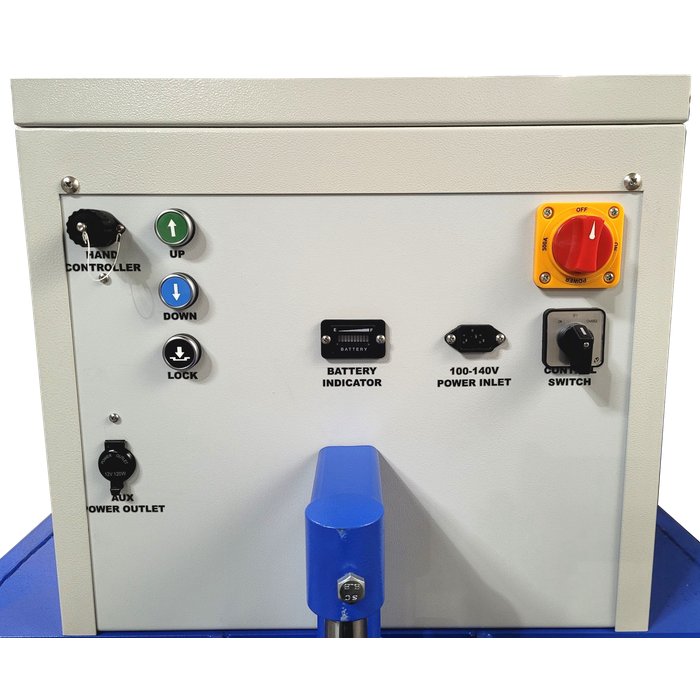

| Control | Dual control: control box panel + magnetic remote hand controller |
| Scissors | Double scissor with heavy-duty hydraulic cylinder and grease zerks |
| Casters | Front directional-locking + rear swivel poly casters, 6 in |
| Portability | Integrated pallet-jack dolly, 6 in poly wheels |
| Included Tie-Downs | Four tie-down ring eyelets + heavy-duty ratchet strap |
| Also Included | Leg support stands, utility / tool tray, sub-platform storage area |
| Optional Accessories | LT-PT-PSAEK PT Support Adaptors & Extension Kit, 12VDC LED spot light with magnetic base |
| Finish | Durable powder coat |
| Shipping Weight | 908 lb |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
