Portable Muscle for Tight Bays: iDEAL MSC-6KLP 6,000 lb Single-Post Lift with 72″ Rise
Buying a vehicle lift can be overwhelming, especially when space is limited in your garage or shop. Most buyers struggle with finding a lift that combines portability, ease of use, and reliable lifting power without requiring a permanent installation. A bulky two-post lift often takes up too much space, while smaller, underpowered alternatives can’t safely handle heavier vehicles. That’s where the iDEAL MSC-6KLP 6,000 lb single post lift steps in to solve those problems. Low-profile single-post lifts solve a unique problem: low-clearance vehicles (sports cars, lowered trucks, modern crossovers) that can't drive over standard single-post platforms. The MSC-6KLP's low-profile design accommodates vehicles that other single-post lifts can't safely accept.

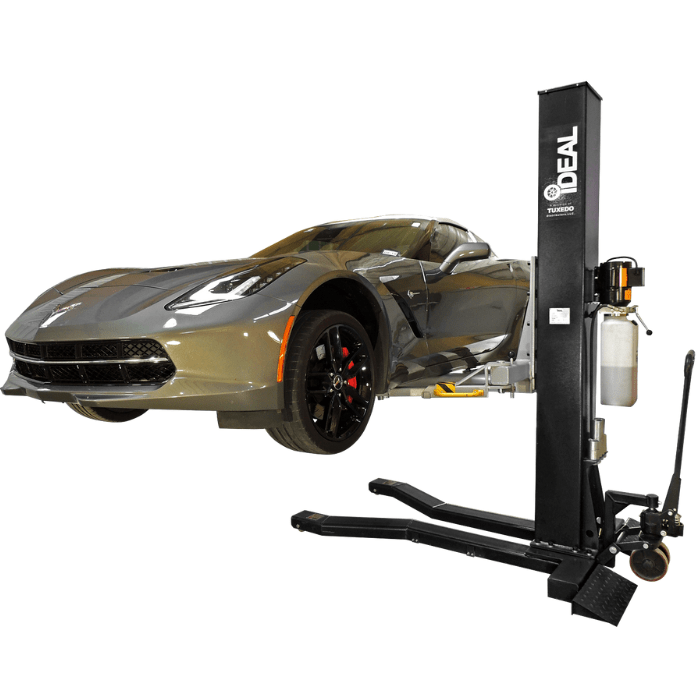

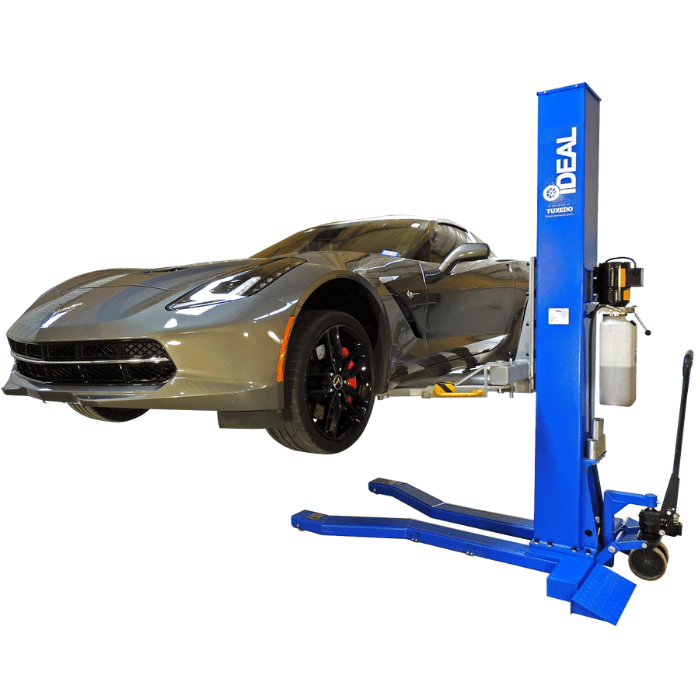

This single column lift is designed with convenience and efficiency in mind. Its pallet-jack style mobility makes it easy to roll into place, while the low-profile drive-over ramps allow vehicles to be positioned quickly and safely. With a lift rise height of 72 inches and a robust 6,000 lb capacity, it gives you the clearance and stability you need for undercar service, oil changes, tire work, and pre-service inspections. All without eating up valuable shop space. 6,000 lb capacity covers passenger cars, performance vehicles, and most mid-size SUVs. The low-profile platform geometry handles low-clearance vehicles without ramps or improvised contact pads.
Whether you’re a professional running a busy shop or a DIY enthusiast working from a home garage, the 6000 lb single post lift offers the perfect blend of strength and flexibility. Built by iDEAL, a trusted manufacturer, the MSC-6KLP is engineered with multiple safety features, a durable powder-coated frame, and 21 locking positions for maximum security. If you’re looking for a reliable lift that adapts to your space instead of limiting it, this iDEAL lift is your go-to solution. For shops handling performance vehicles, lowered cars, or any modern vehicle with low ground clearance, the MSC-6KLP is the right single-post lift for the workflow.
If this isn’t the lift for you, explore more in our single post collection.
Benefits of the iDEAL MSC-6KLP Single-Post Lift

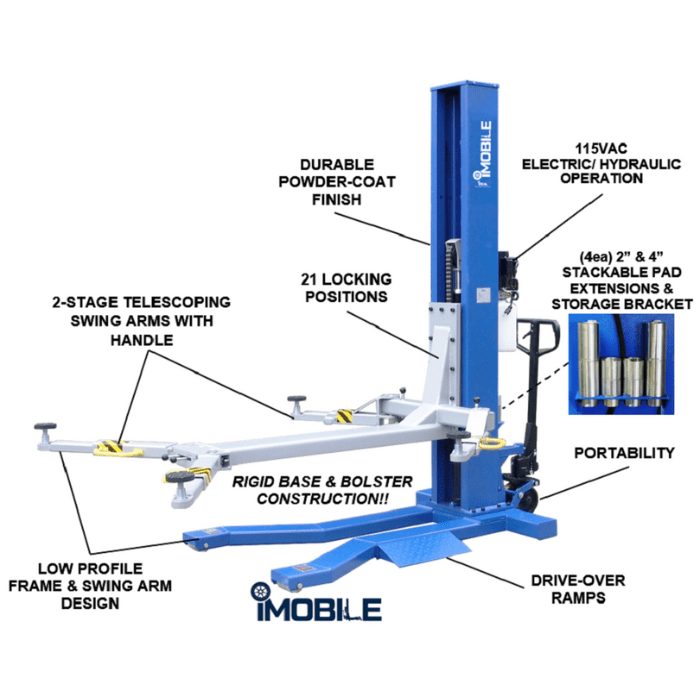

Key Features of the iDEAL MSC-6KLP Single-Post Lift You'll Love:

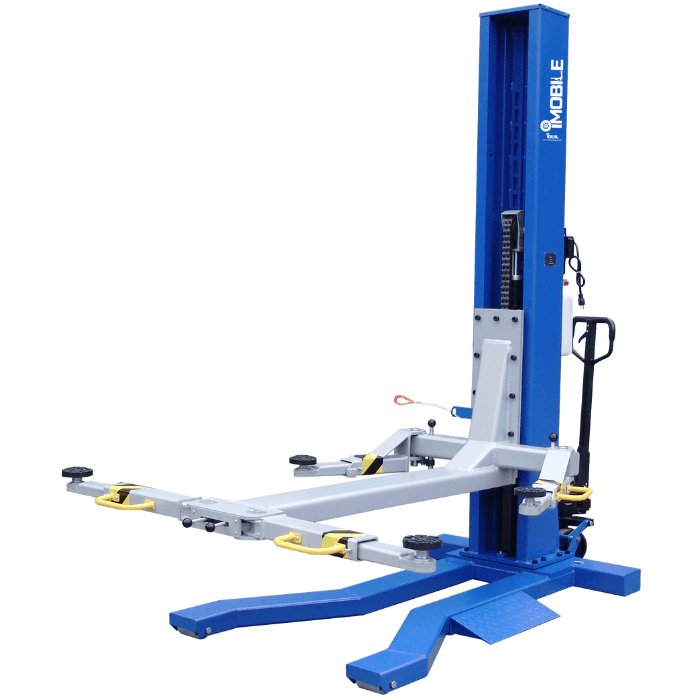

• Pallet-Jack Mobility System: The built-in pallet-jack style design makes this single post lift easy to roll and position wherever you need it. This ensures your workspace remains flexible, whether you’re operating in a tight home garage or shifting between bays in a professional shop.

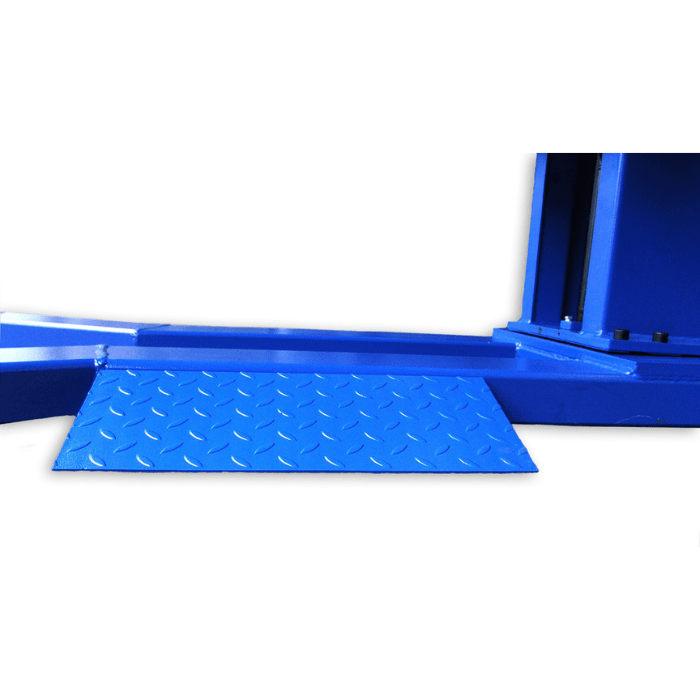

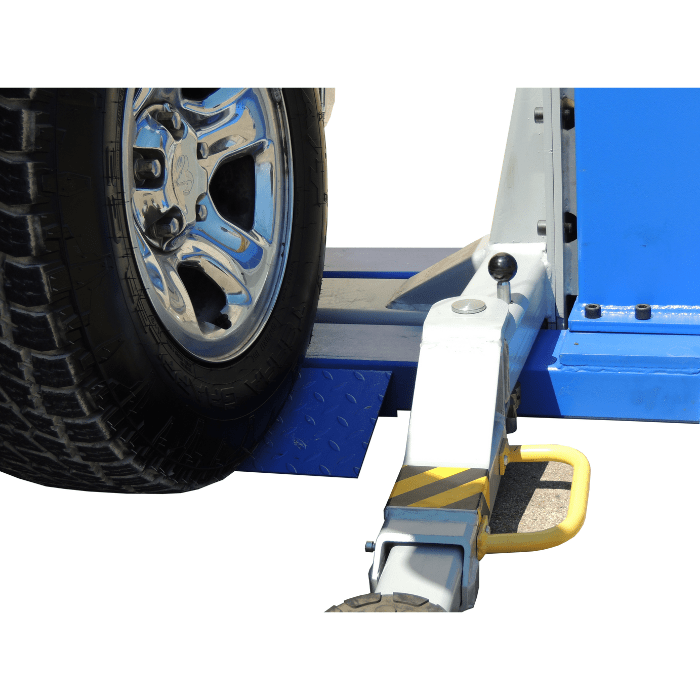

• Low-Profile Drive-Over Ramps: With a base ramp height of under 4 inches, vehicles can be driven directly over the lift for fast setup. This feature minimizes wasted time repositioning vehicles and makes it practical for low-clearance cars as well as larger trucks.
• 21 Secure Locking Positions: The MSC-6KLP includes 21 different locking points, giving you multiple safe working heights to accommodate different tasks. This provides both versatility and peace of mind when working under heavy vehicles.

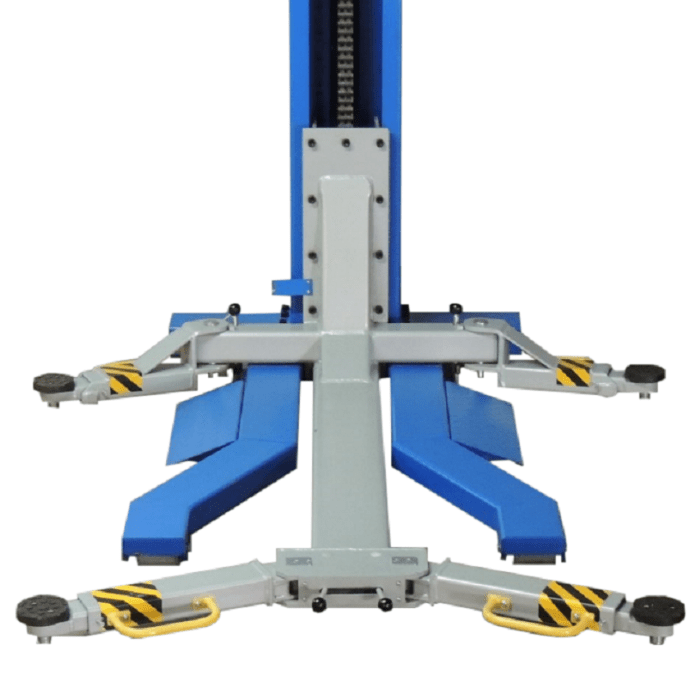

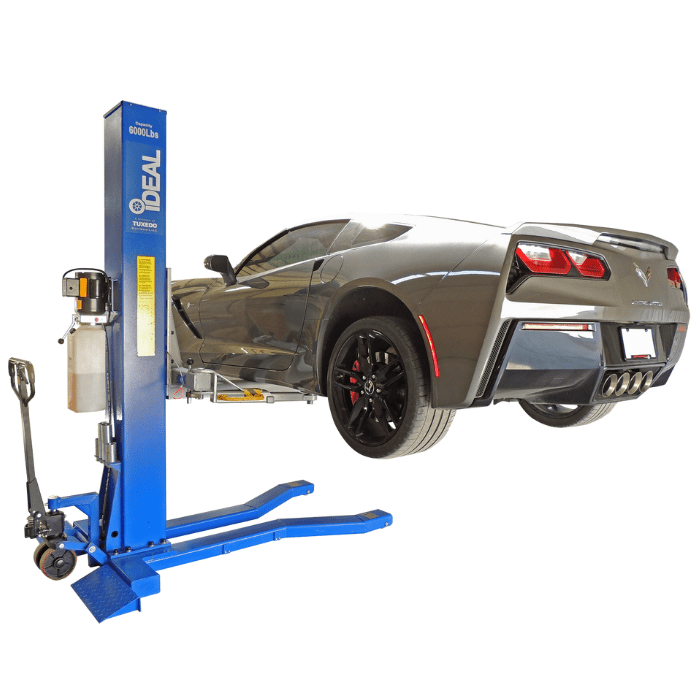

• Heavy-Duty Build Quality: Built with a rigid steel base and finished with a powder coat, this lift is engineered for longevity. Reinforced swing arms and durable swivel pads ensure it can withstand daily use in commercial shops without compromising safety or stability.

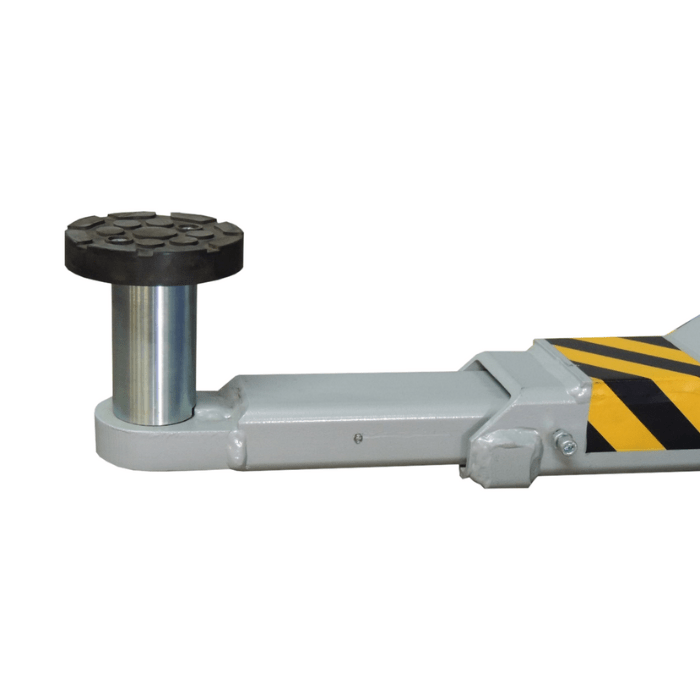

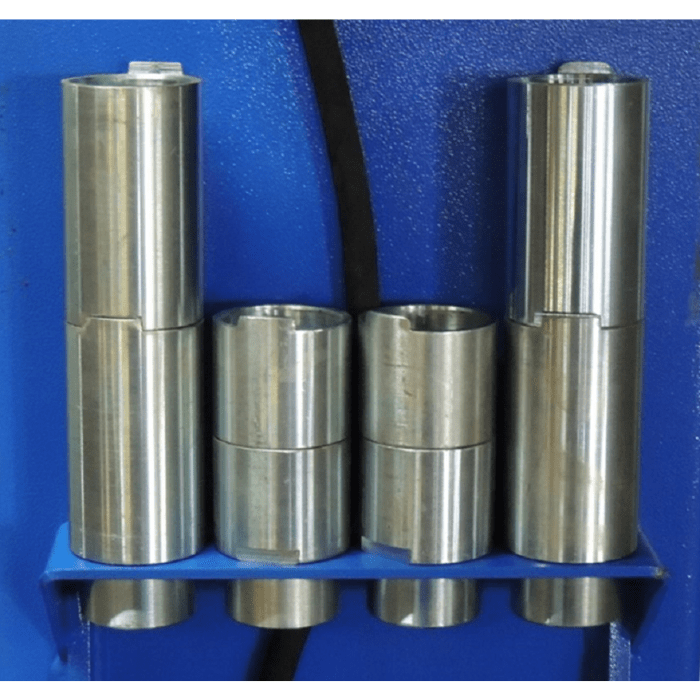

• Swivel Pads with Stackable Extensions: The adjustable spin-up pads make it easy to reach various lifting points, and it comes with four stackable extensions (2” and 4”). This gives you added flexibility when servicing vehicles of different sizes and frame heights.
• Integrated Safety Systems: Safety is a top priority, with built-in slack cable safety devices, an internal hydraulic safety latch, and operator controls featuring a lock release. These layers of protection keep you safe during operation.
Minimum Garage Requirements
✔ Ceiling Height: At least 108" (9'0") recommended ✔ Max Lift Height: see specifications below ✔ Platform Footprint: 101" L x 45" W (8'5" x 3'9") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: see specifications below
✔ Ceiling Height: At least 108" (9'0") recommended
✔ Max Lift Height: see specifications below
✔ Platform Footprint: 101" L x 45" W (8'5" x 3'9")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: see specifications below
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: single-post lifts concentrate load through one column. Verify your concrete meets the manufacturer's point-load requirements before installation.
iDEAL MSC-6KLP 6,000 lb Single-Post Lift Specifications |
|
| Manufacturer | iDEAL |
| Model | MSC-6KLP |
| Capacity | 6,000 lbs (1,500 lbs max per arm) |
| Width Overall | 45-3/16″ |
| Height Overall | 102-3/8″ |
| Length Overall | 101-9/16″ |
| Lift Rise Height | 72″ |
| Drive-Over Base Ramp Height | 3-15/16″ |
| Swivel Pad Height (Min/Max) | 3-7/16″. 6-5/16″ |
| Main Side Swing Arms (Min/Max) | 19-11/16″. 26″ |
| Off Side Swing Arms (Min/Max) | 24-5/8″. 34″ |
| Ship Weight | 1,850 lbs |
| Power | 115V AC, 1PH, 20 Amp |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
