The 2,500 lb Air-Hydraulic Powertrain Lift for Shops That Already Have Compressed Air
The iDEAL LT-PT2500AH-X is a portable, commercial-grade air-hydraulic lift table built specifically for the tech pulling powertrain components: engines, transmissions, transfer cases, differentials, drive-axle and transaxle assemblies. Its 2,500 lb capacity handles small block engines, transmissions with transfer cases, and full transaxle assemblies, and the extendable slotted platform adjusts from 31.5 to 36.7 inches long so you can position long assemblies where the bell housing lines up with the crossmember.
Instead of a 12VDC battery, this version runs on 90 to 125 PSI shop air through an exclusive fully-operational pneumatic hand-operated stainless-steel control panel with integrated air gauge and water separator. No charger to plug in, no battery to replace over the life of the lift, and no downtime when the battery is dead. If you have compressed air anywhere in the bay, you have a lift.

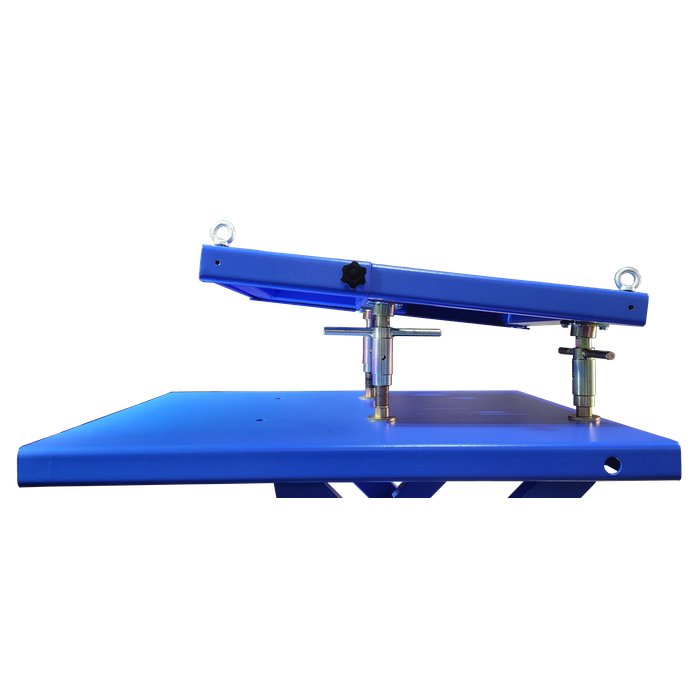

The platform includes four tie-down ring eyelets and a heavy-duty ratchet strap so the component stays put when you tilt (+/- 6 to 8 degrees) or roll the lift across the shop floor. Safety air latches secure the platform at each of three locking heights (49, 61 and 68 inches, max 72 inches). Rolls on four 6 inch directional-locking poly swivel casters. Also included: HD air-hydraulic pump and cylinder, double lift scissors, utility / tool tray, sub-platform storage, removable hand bar. Optional PT-PSAEK Support Adaptors & Extension Kit available. Backed by iDEAL / Tuxedo.
Key Features of the LT-PT2500AH-X That Matter in the Driveline Bay:
- 2,500 lb Capacity, Air-Hydraulic Operation: Runs on 90 to 125 PSI shop air. No battery to charge or replace. If you have compressed air in the bay, the lift is ready to work.

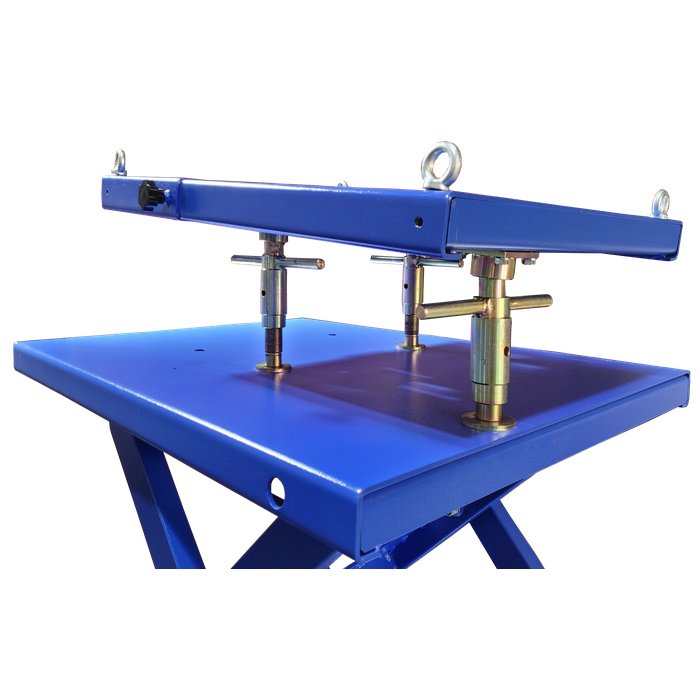

- Extendable Slotted Powertrain Platform: Platform length adjusts from 31.5 to 36.7 inches with 5.2 inches of range, so a small block, a longitudinal transmission or a full transaxle all land in the right spot for the crossmember bolts.
- Four Tie-Down Eyelets + Ratchet Strap: Four heavy-duty tie-down rings and a ratchet strap included. Secure the component to the platform for tilted moves, rolled moves and multi-day work in progress.

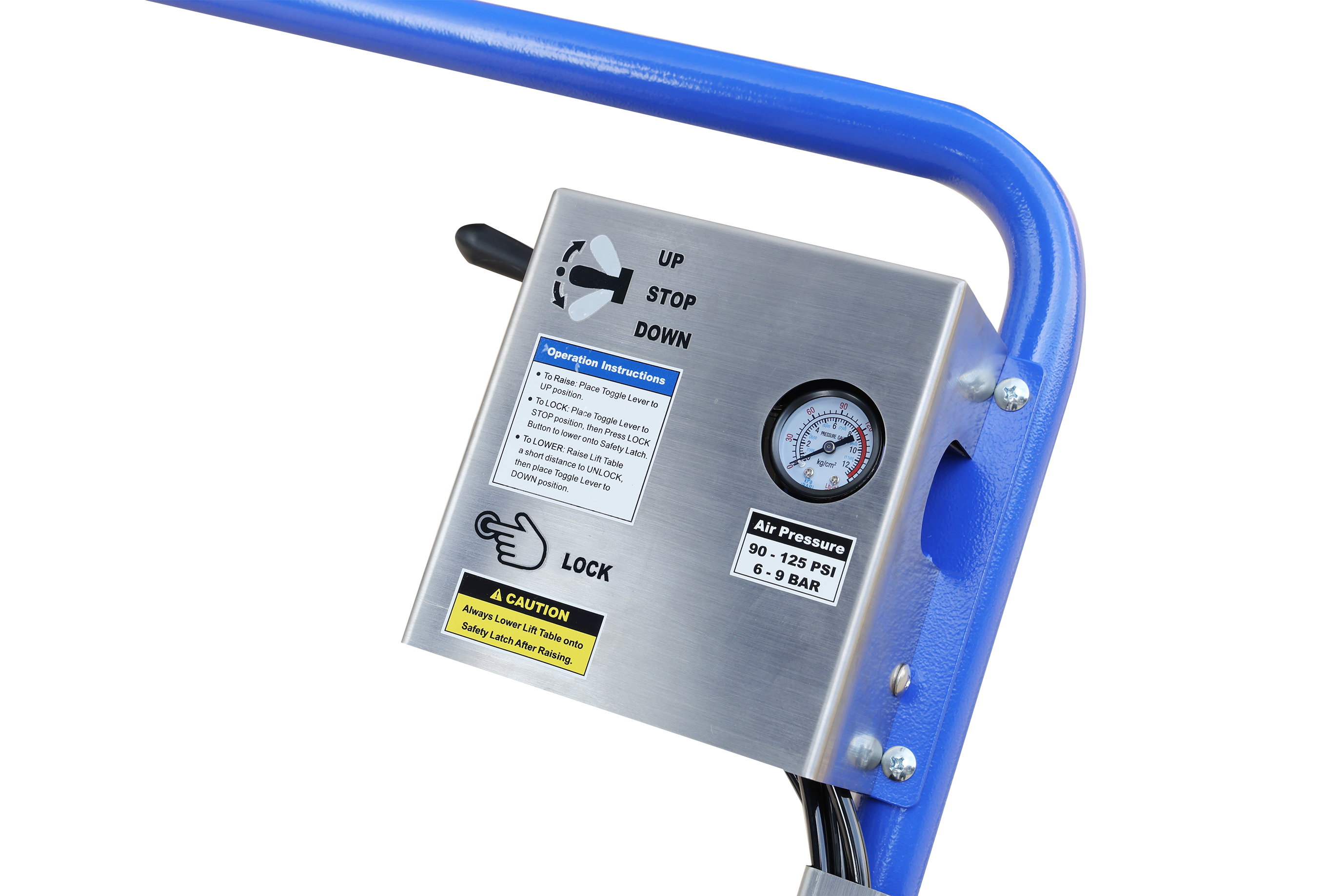

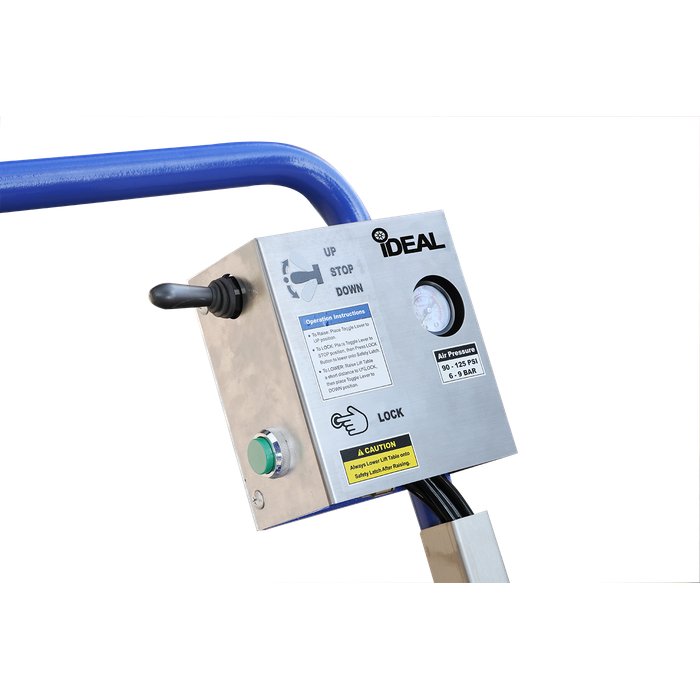

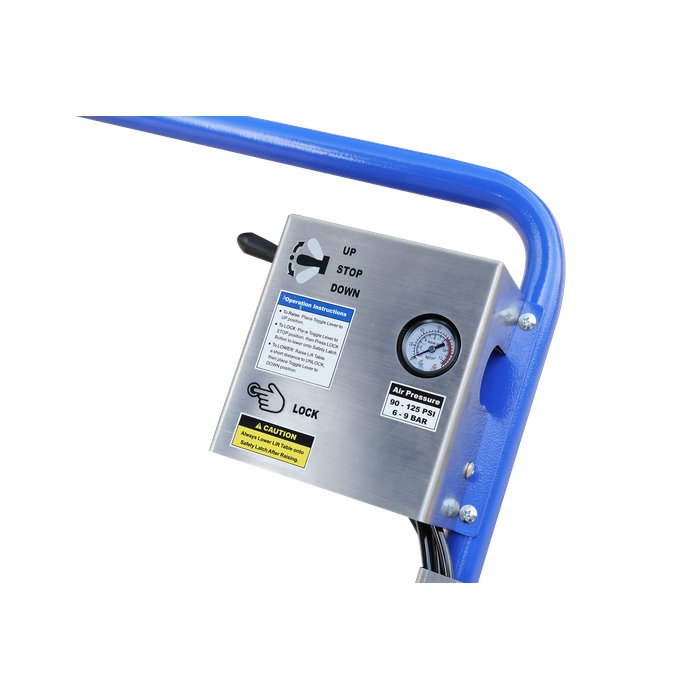

- Exclusive Pneumatic Control Panel: Fully-operational stainless-steel hand-operated control panel with integrated air gauge and water separator. Smooth pneumatic control for precise lifting, locking and lowering.

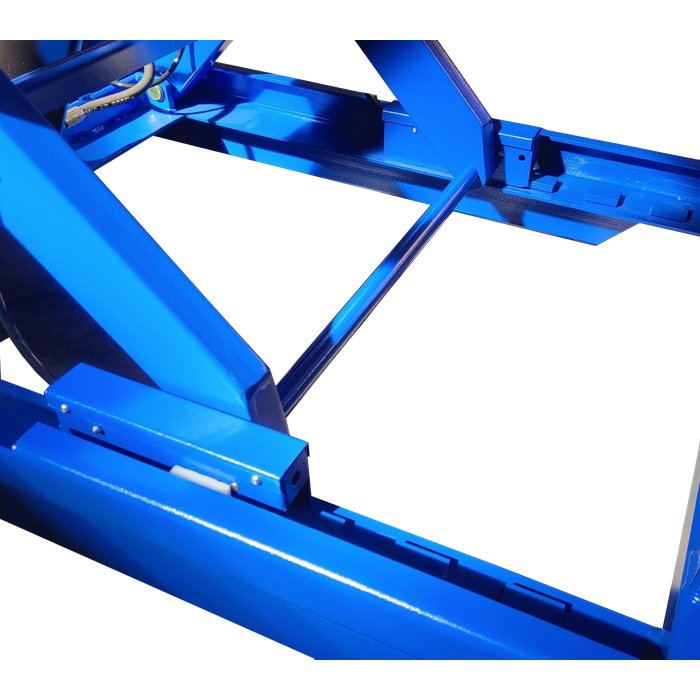

- Safety Air Latches: Redundant safety air latches secure the platform at each locking height. Mechanical backup to the hydraulic pressure holding the load.

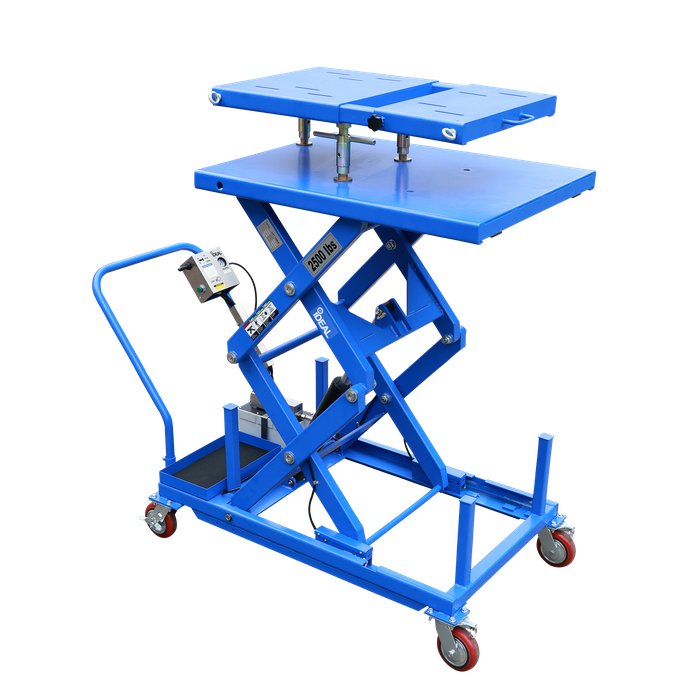

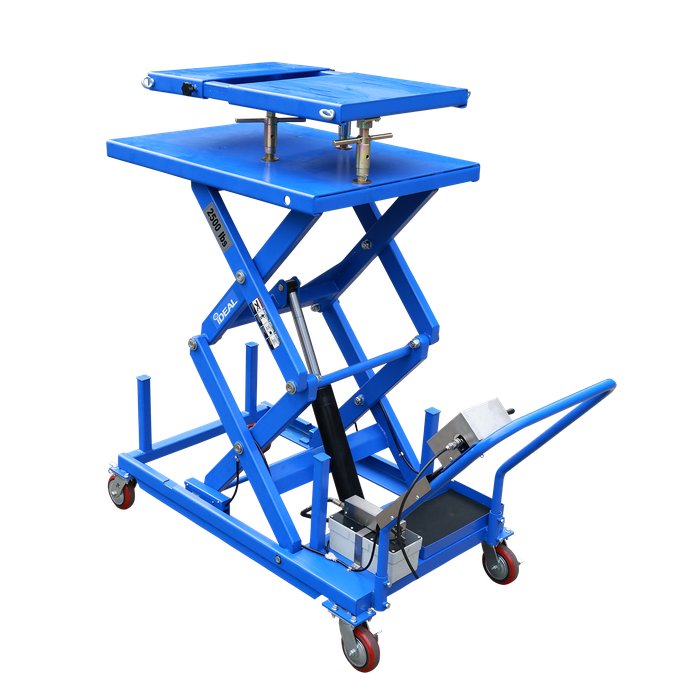

- Three Locking Height Positions: Locks at 49, 61 and 68 inches with a max lift height of 72 inches. Height range from 35 to 72 inches covers everything from crossmember drops to full engine hoist work.

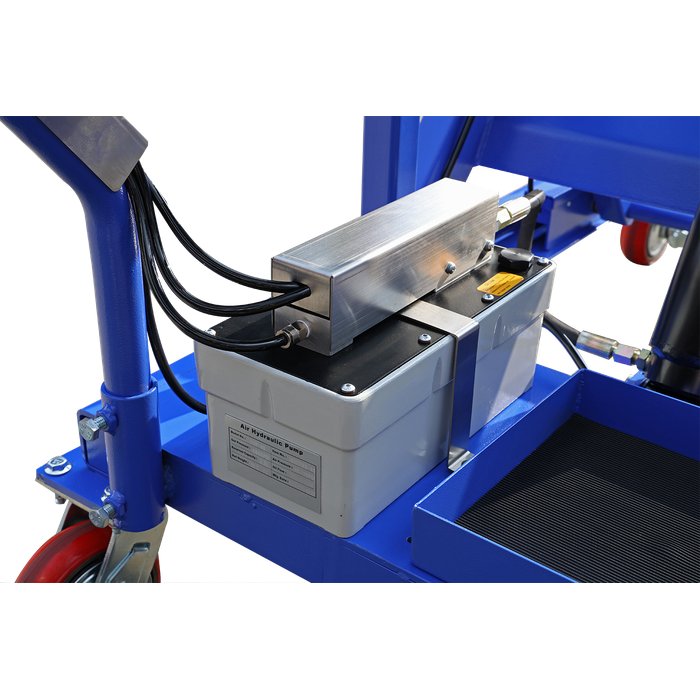

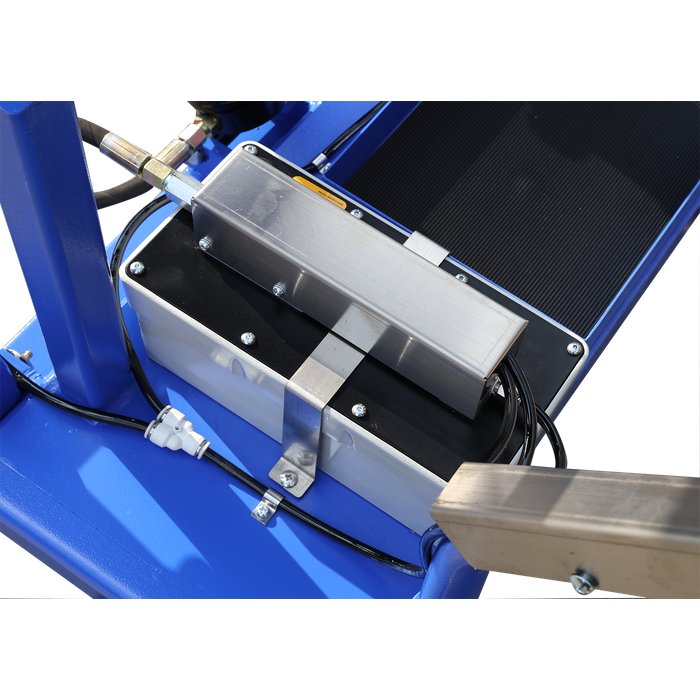

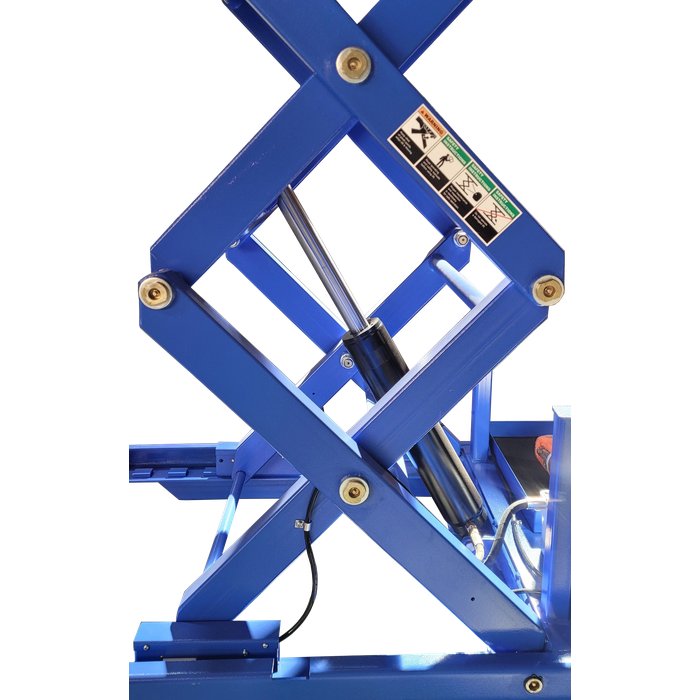

- Double-Scissor Heavy-Duty Design: Twin lift scissors with high-quality hydraulic cylinder and grease zerks at every pivot. Built to handle full-capacity loads day after day in a busy driveline shop.

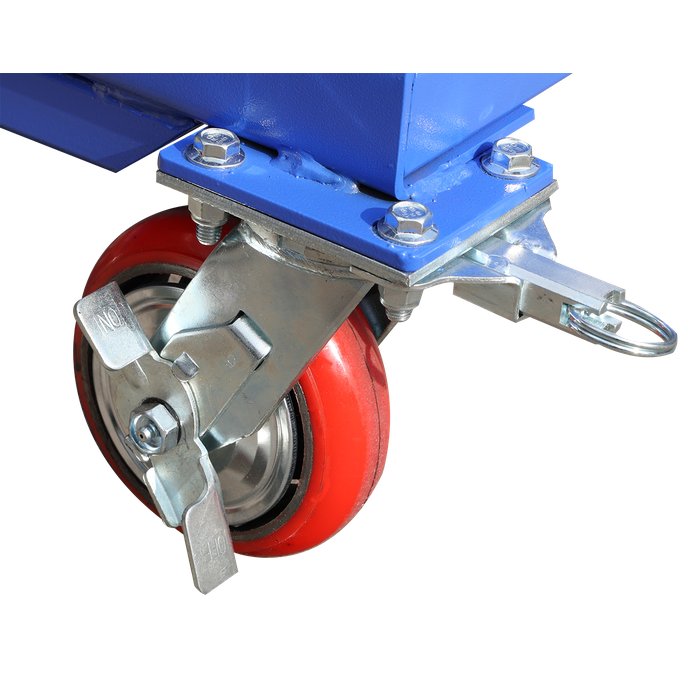

- Directional-Locking Poly Swivel Casters + Removable Hand Bar: Four 6 inch poly swivel casters with directional locking. Removable hand bar makes rolling the lift into a tight bay easy, then comes off when you need clearance.
LT-PT2500AH-X Air-Hydraulic Powertrain Lift Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | LT-PT2500AH-X |
| Configuration | Portable air-hydraulic scissor lift table |
| Primary Application | Powertrain component service: engines, transmissions, transfer cases, differentials, axles |
| Lifting Capacity | 2,500 lb |
| Overall Length | 71.3 in |
| Overall Width | 33.5 in |
| Hand Bar Height | 39.2 in |
| Powertrain Platform Size | 31.5 to 36.7 in L (extendable, 5.2 in range) x 23.6 in W |

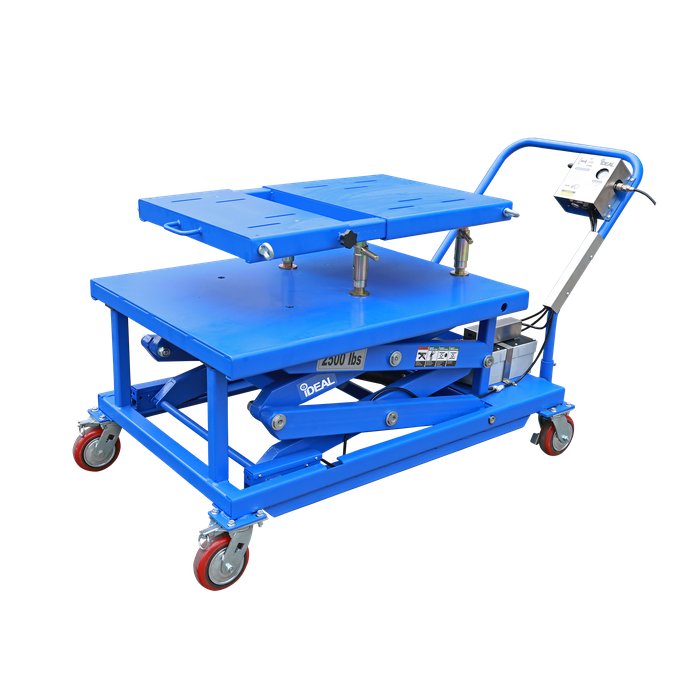

| Min Platform Height | 35 in |
| Max Platform Height | 72 in |
| Locking Height Positions | 49 in, 61 in, 68 in |
| Platform Tilt Range | +/- 6 to 8 degrees |
| Rise Time | 72 seconds |
| Lower Time | 33 seconds |
| Power Supply | 90 to 125 PSI shop air (6 to 9 BAR) |
| Control | Stainless-steel pneumatic hand-operated control panel with air gauge + water separator |
| Safety | Redundant safety air latches at each locking position |
| Scissors | Double scissor with heavy-duty air-hydraulic pump + cylinder, grease zerks |
| Casters | Four 6 in directional-locking poly swivel casters |
| Hand Bar | Removable |
| Included Tie-Downs | Four tie-down ring eyelets + heavy-duty ratchet strap |
| Also Included | Utility / tool tray, sub-platform storage area |
| Optional Accessories | LT-PT-PSAEK PT Support Adaptors & Extension Kit |
| Finish | Durable powder coat |
| Shipping Weight | 798 lb |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
