iDEAL 2,500 lb Air-Hydraulic EV and Hybrid Lift Table | LT-EV2500AH-X
The 2,500 lb Air-Hydraulic EV Lift Table for Shops That Already Have Compressed Air

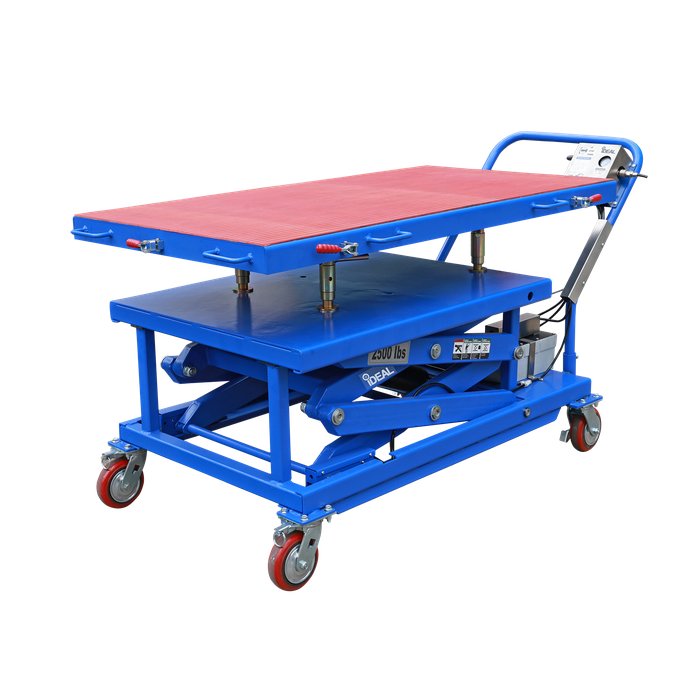

The iDEAL LT-EV2500AH-X is a portable, commercial-grade air-hydraulic lift table built for the EV and hybrid tech who already has shop air. Its 2,500 lb capacity handles a modern EV battery pack, motor assembly or hybrid powertrain module, and the same multi-adjustable insulated EV platform used on the bigger LT-EV3300DC-X slides, tilts and locks so you can position that component exactly where it needs to come out or go in.
Instead of a 12VDC battery, this version runs on 90 to 125 PSI shop air through an exclusive fully-operational pneumatic hand-operated stainless-steel control panel with integrated air gauge and water separator. That means no charger to plug in, no battery to replace over the life of the lift, and no downtime when the battery is dead. If you have compressed air anywhere in the bay, you have a lift.
The 59 x 31.5 inch insulated EV platform includes six adjustable latch clamps, tilt jack screws (+/- 4 to 8 degrees), safety air latches and multi-directional sliding to line up the load. Locks at 49, 61 and 68 inches, max lift 72.6 inches. Portability is built in: four directional-locking poly swivel casters and a removable hand bar. Also included: HD air-hydraulic pump and cylinder, double lift scissors, utility / tool tray, sub-platform storage area, four rubber pads. Backed by iDEAL / Tuxedo.
Key Features of the LT-EV2500AH-X That Matter Under an EV:
- 2,500 lb Capacity, Air-Hydraulic Operation: Runs on 90 to 125 PSI shop air. No battery to charge or replace. If you have compressed air in the bay, the lift is ready to work.

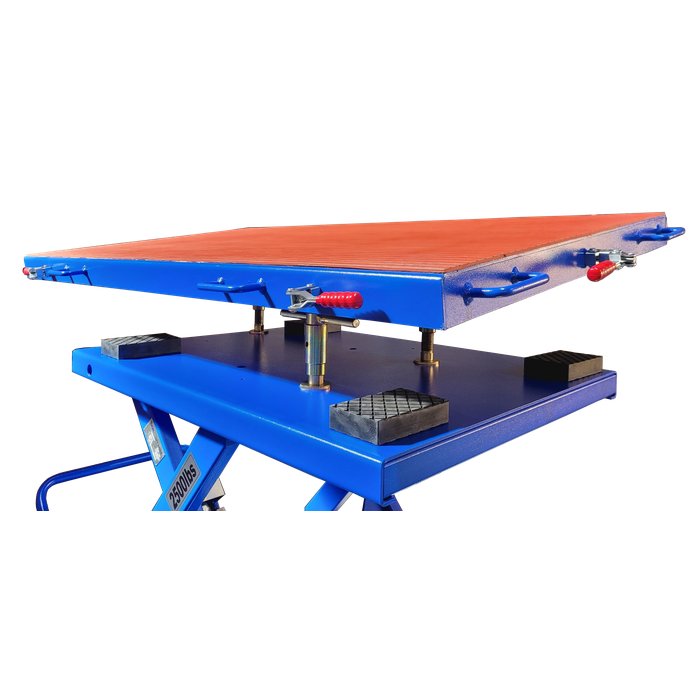

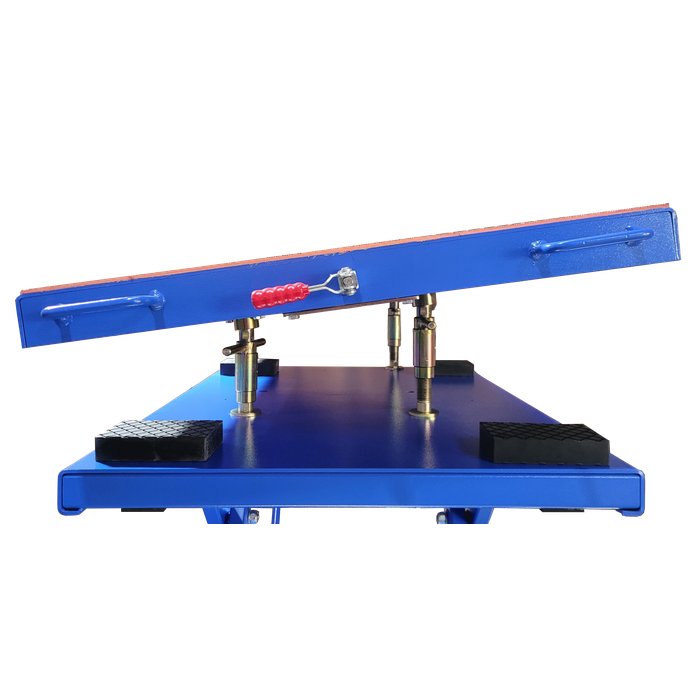

- Insulated Multi-Directional EV Platform: 59 inch by 31.5 inch platform with six adjustable latch clamps and heavy-duty jack-screw tilt and height adjustments. Insulated for safe EV battery pack and high-voltage component handling.

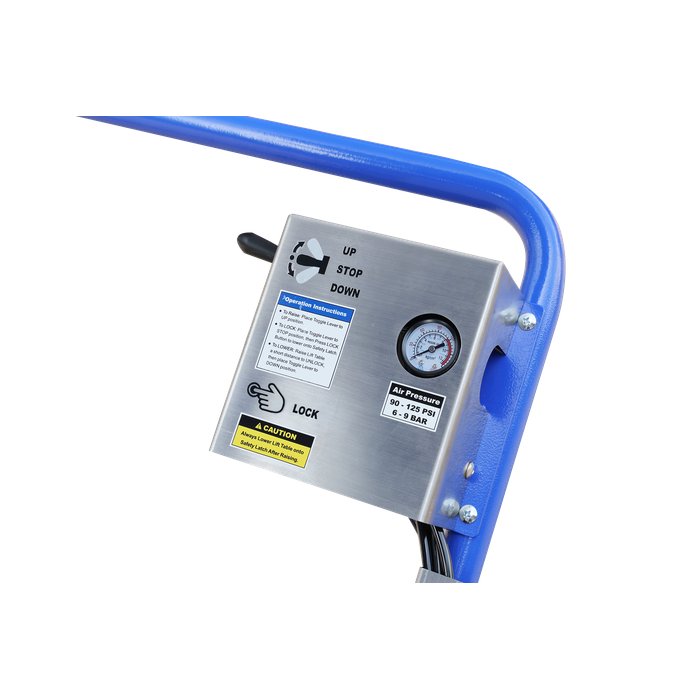

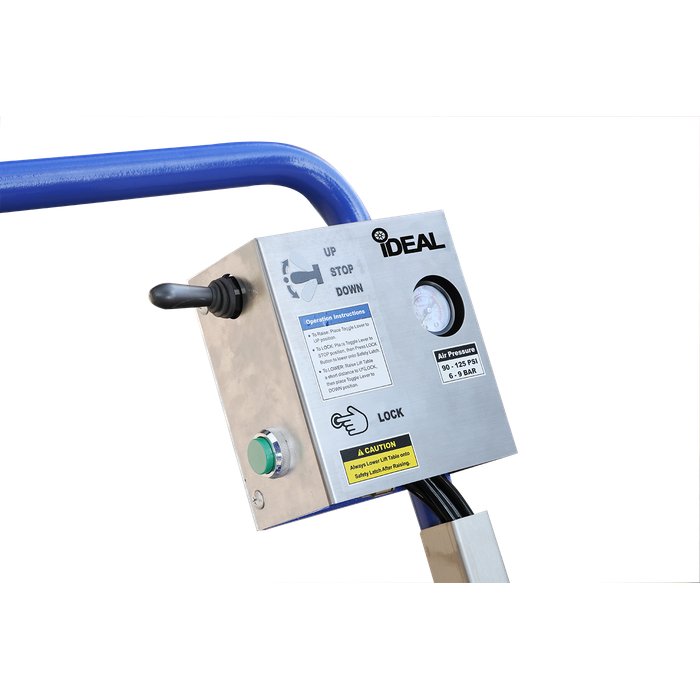

- Exclusive Pneumatic Control Panel: Fully-operational stainless-steel hand-operated control panel with integrated air gauge and water separator. Smooth pneumatic control for precise lifting, locking and lowering.

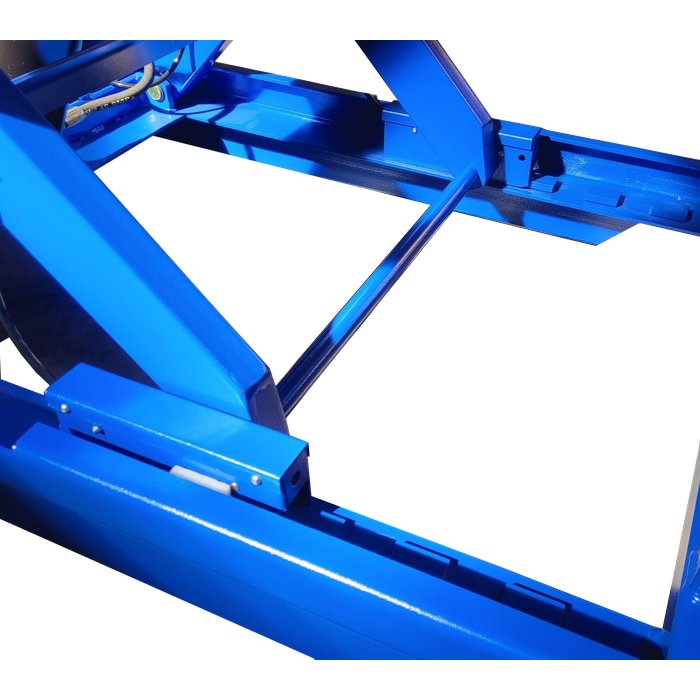

- Safety Air Latches: Redundant safety air latches secure the platform at each locking height. Not just hydraulic pressure holding a load, mechanical latches back it up.

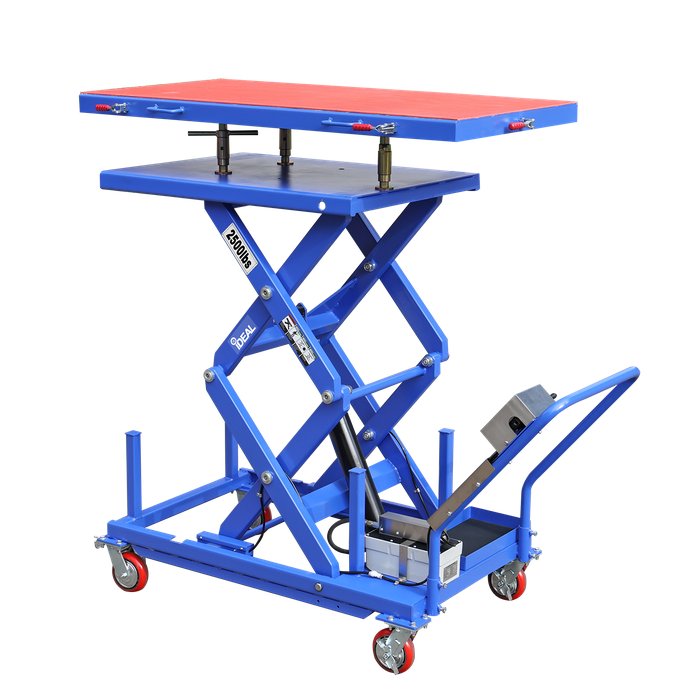

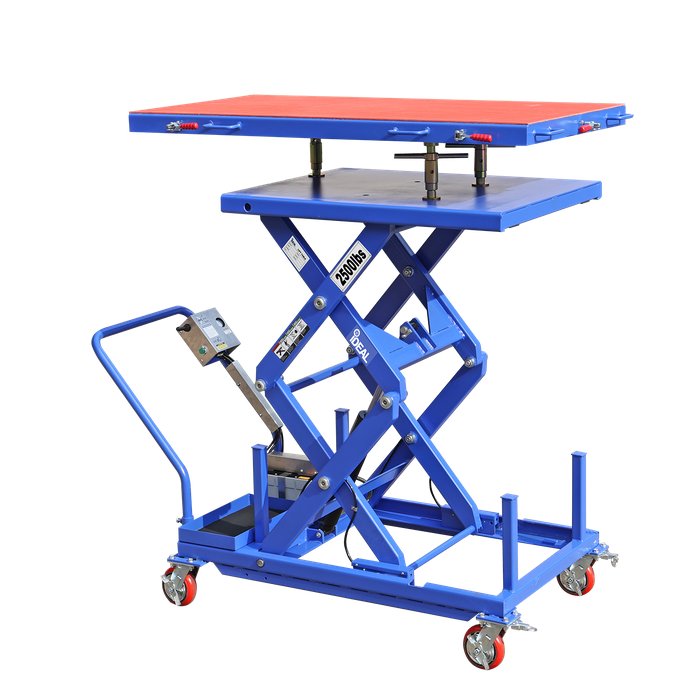

- Three Locking Height Positions: Locks at 49, 61 and 68 inches with a max lift height of 72.6 inches. Height range from 35.4 to 72.6 inches covers everything from crossmember work to full battery-pack drops.

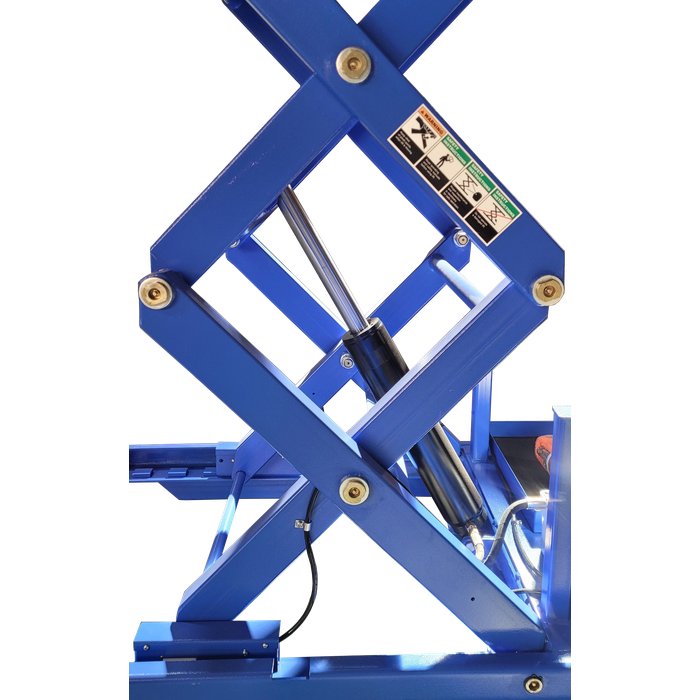

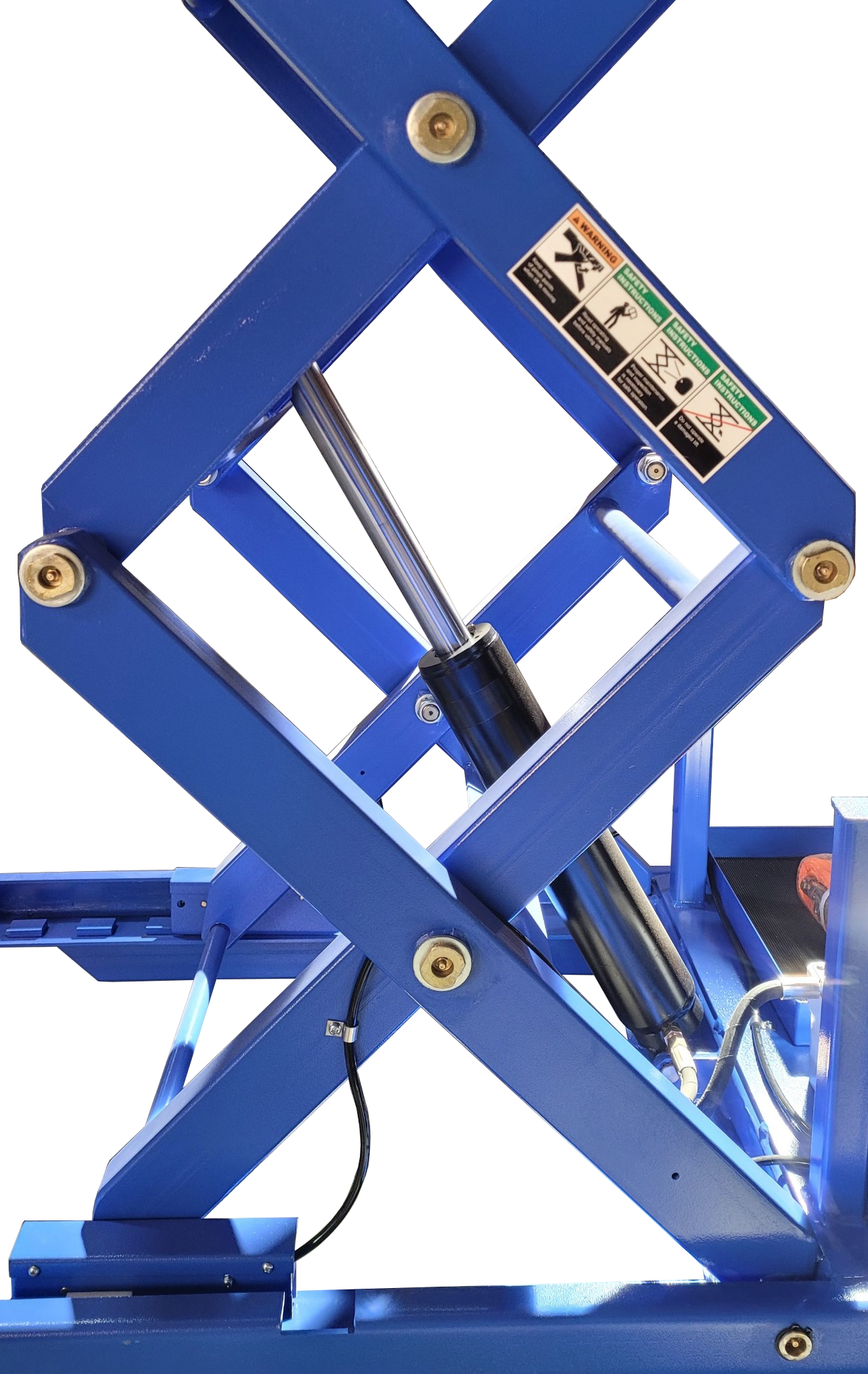

- Double-Scissor Heavy-Duty Design: Twin lift scissors with high-quality hydraulic cylinder and grease zerks at every pivot. Built to handle full-capacity loads day after day in a busy EV service shop.

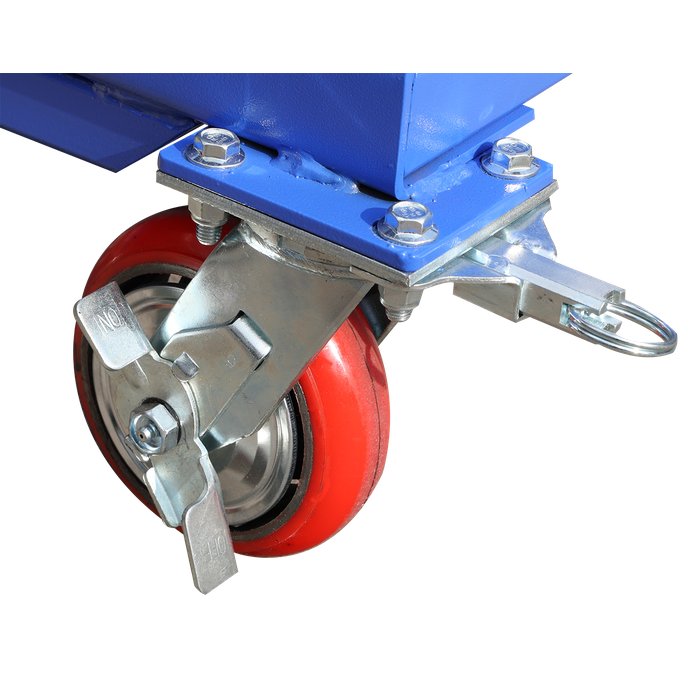

- Directional-Locking Poly Swivel Casters: Four 6 inch poly swivel casters with directional locking. Roll the lift wherever the vehicle is, lock direction under load, park at your work station.
- Durable Powder-Coat Finish: Powder-coated frame and platform stand up to shop chemicals, battery electrolyte spills and daily use. Four rubber pads (6.4 x 4 x 1.45 inch) included. Removable hand bar.
LT-EV2500AH-X Air-Hydraulic EV Lift Table Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | LT-EV2500AH-X |
| Configuration | Portable air-hydraulic scissor lift table |
| Primary Application | EV and hybrid vehicle battery pack, motor and powertrain component service |
| Lifting Capacity | 2,500 lb |
| Overall Length | 74.6 in |
| Overall Width | 35.4 in |
| Hand Bar Height | 39.2 in |
| EV Platform Size | 59 in L x 31.5 in W |

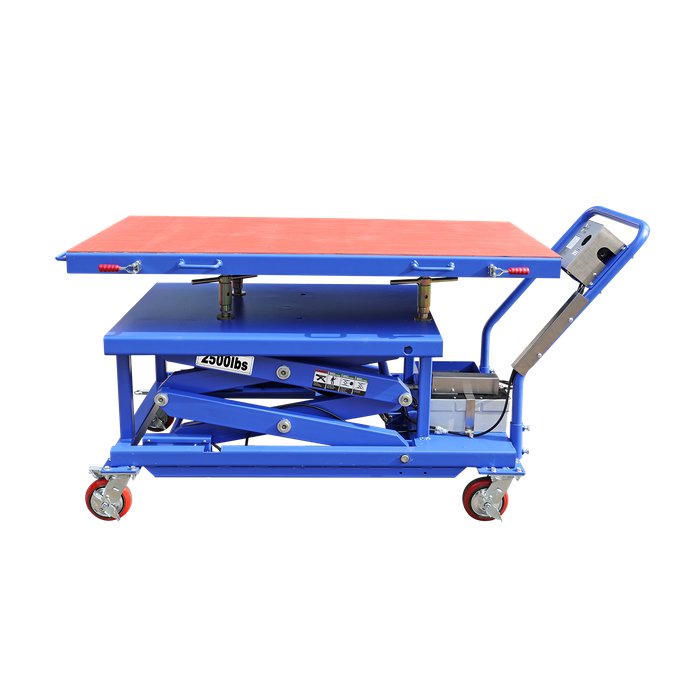

| Min Platform Height | 35.4 in |
| Max Platform Height | 72.6 in |
| Locking Height Positions | 49 in, 61 in, 68 in |
| Platform Tilt Range | +/- 4 to 8 degrees |
| Rise Time | 72 seconds |
| Lower Time | 33 seconds |
| Power Supply | 90 to 125 PSI shop air (6 to 9 BAR) |
| Control | Stainless-steel pneumatic hand-operated control panel with air gauge + water separator |
| Safety | Redundant safety air latches at each locking position |

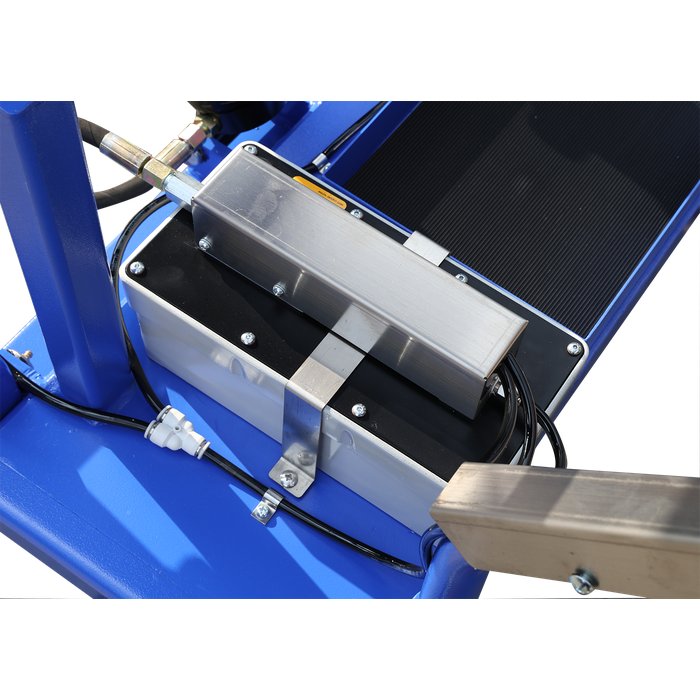

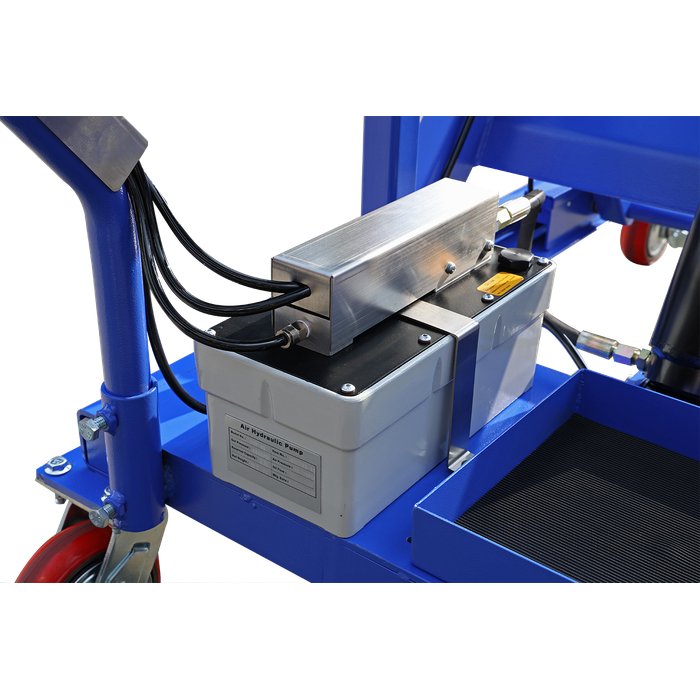

| Scissors | Double scissor with heavy-duty air-hydraulic pump + cylinder, grease zerks |
| Casters | Four 6 in directional-locking poly swivel casters |
| Hand Bar | Removable |
| Included Rubber Pads | Four, 6.4 in L x 4 in W x 1.45 in H |
| Also Included | Utility / tool tray, sub-platform storage area |
| Finish | Durable powder coat |
| Shipping Weight | 978 lb |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
