Alignment-Ready Power: iDEAL FP14KAC-X 14,000 lb 4-Post Car Lift for Precision & Capacity
Finding a reliable 4 post lift that can handle today’s heavy-duty service needs is a real challenge for busy auto shops. Many standard lifts don’t offer the strength, precision, or undercarriage clearance required for larger trucks, SUVs, and fleet vehicles. On top of that, many shops struggle with outdated alignment setups that make jobs slower and less accurate. Ultimately costing time, money, and customer trust. That’s why investing in a professional-grade iDEAL 4 post lift like the FP14KAC-X is such a smart long-term solution. Alignment-ready 14K 4-post lifts is a niche where iDEAL excels. Most 14K 4-post lifts skip alignment-specific features because they add engineering and cost. The FP14KAC-X retains full alignment capability at the 14K commercial capacity tier.

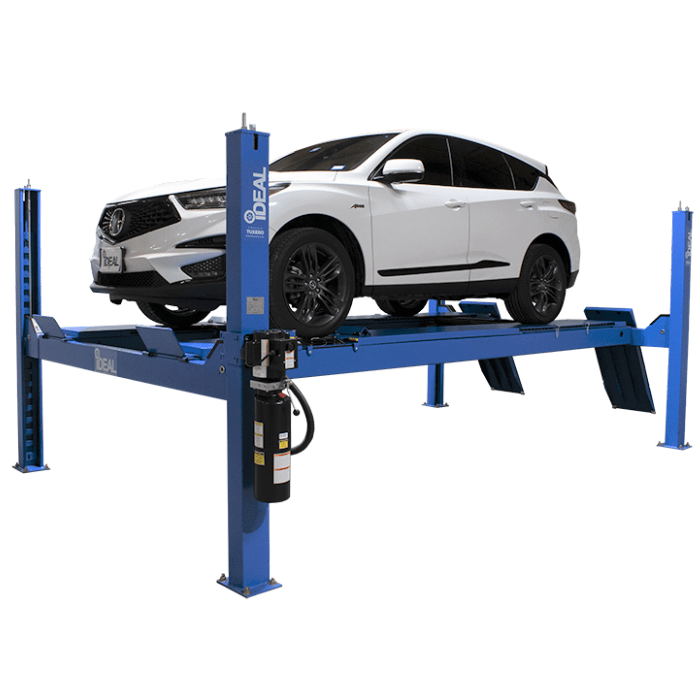

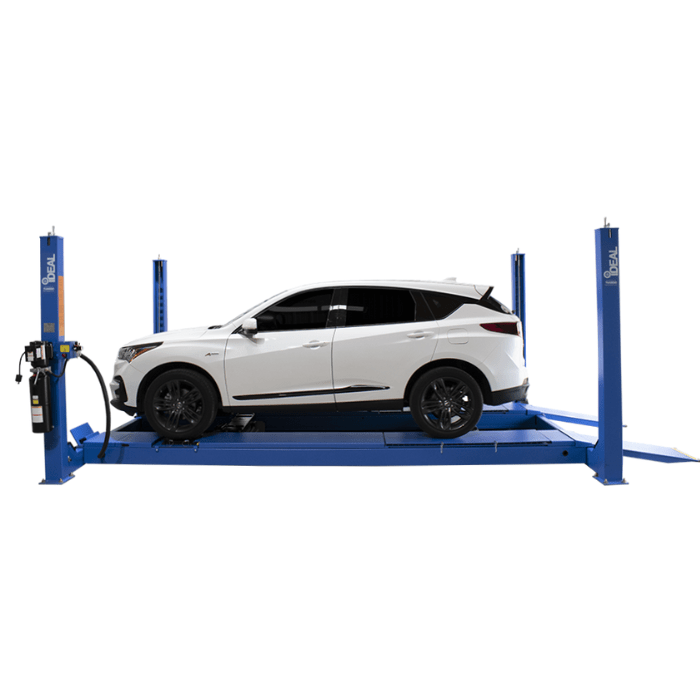

The iDEAL FP14KAC-X 14,000 lb 4 post car lift combines the durability of a commercial service lift with the advanced functionality of a full alignment lift. With its closed-front design, adjustable runway widths, and maximum rise of 79-1/2″, technicians get unobstructed access underneath for everything from brake jobs to full suspension alignments. The integrated alignment features. Including full-width slip plates, multiple turntable positions, and rollback spacers. Ensure precision results on every vehicle that rolls in. 14,000 lb structural rating with built-in turn plate cutouts and slip plates for accurate alignment work on commercial vehicles. The alignment-ready configuration doesn't compromise the standard 4-post storage and service capability.
Built for professional shops, this alignment lift delivers long-term reliability thanks to a heavy-duty powder-coated steel frame, advanced slack cable safety devices, and 18 locking positions throughout the lifting range. Whether you’re servicing light trucks or SUVs with extended wheelbases, the FP14KAC-X provides the stability, flexibility, and alignment accuracy your team needs to keep vehicles running safely and efficiently. For alignment shops handling commercial vehicles or shops bridging 14K alignment with general 4-post service, the FP14KAC-X delivers both jobs in one bay.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the iDEAL FP14KAC-X Four Post Alignment Lift

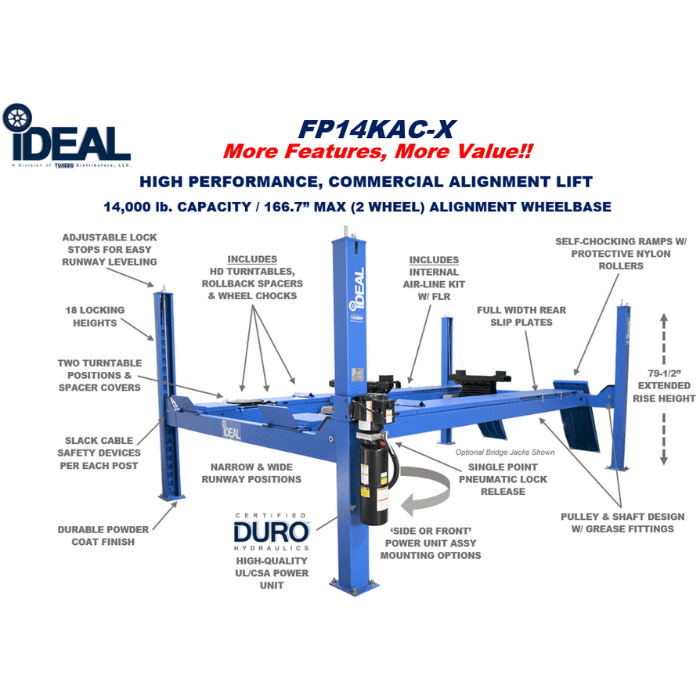

Key Features of the iDEAL FP14KAC-X 4-Post Alignment Lift You'll Love:
• 14,000 lb Lifting Capacity: This commercial-grade capacity allows the FP14KAC-X to safely handle cars, SUVs, vans, and medium-duty trucks. The extra weight support means your shop can confidently service a wider range of vehicles without worry. More capacity equals more business opportunities.
• Extended Rise Height: With a max rise of 79-1/2″, technicians enjoy greater undercarriage clearance for transmission work, exhaust replacements, and alignments. This height advantage makes it easier to work comfortably and safely beneath larger vehicles.
• Heavy-Duty Steel Construction: Built with a reinforced powder-coated frame, this lift is designed to withstand years of daily use. The rugged build resists corrosion, ensures stability, and provides long-lasting durability that shop owners can rely on.

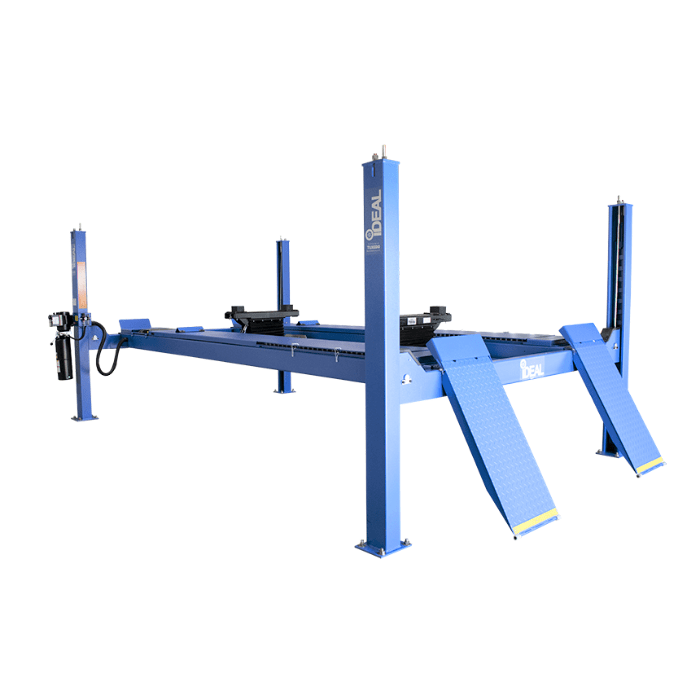

• Adjustable Runway Options: The lift includes both narrow and wide runway settings, making it adaptable for different vehicle sizes. This flexibility helps shops service everything from compact cars to extended-wheelbase trucks without needing multiple lifts.

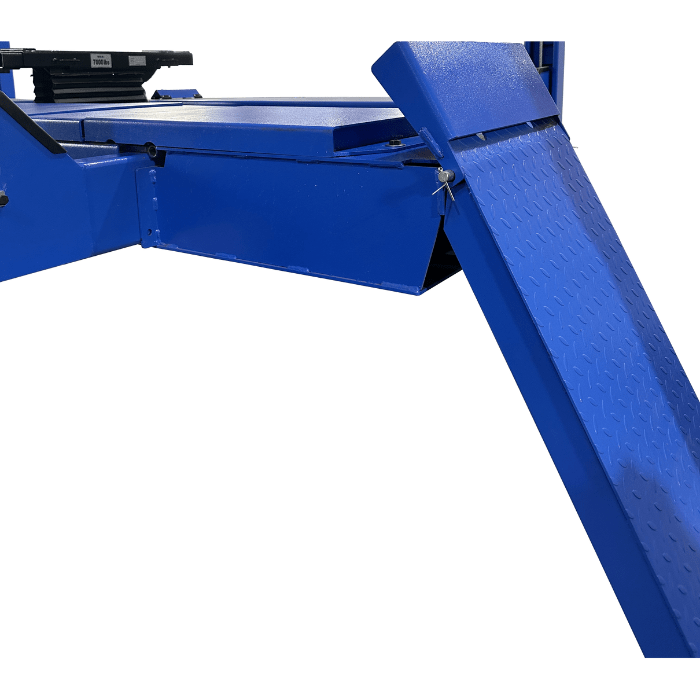

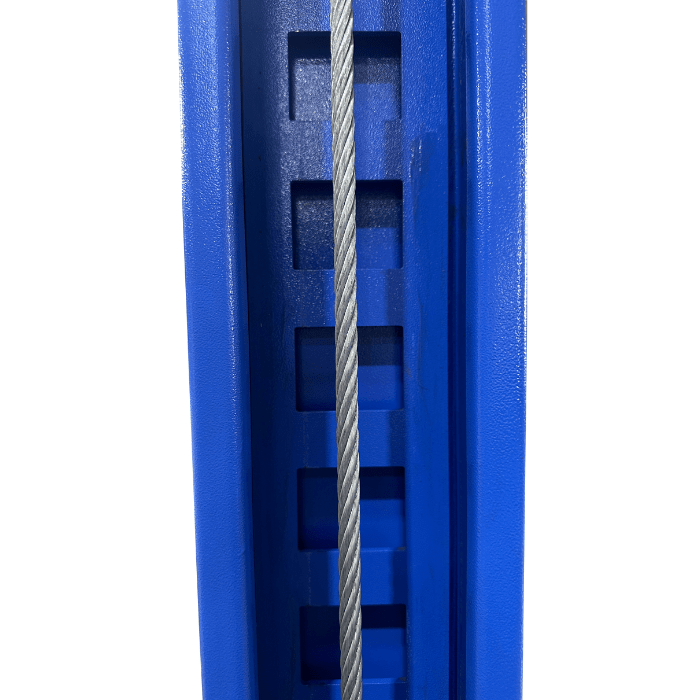

• Advanced Safety Features: Equipped with self-chocking ramps, slack cable safety devices, and 18 locking positions, the FP14KAC-X prioritizes technician safety. These features reduce risk, increase confidence, and help shops comply with industry safety standards.
Minimum Garage Requirements
✔ Ceiling Height: At least 98" (8'2") recommended ✔ Floor Space: 252" L x 131" W (21'0" x 10'11") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V – 20 Amp – 1 PH ✔ Post Height: 92" (7'8") (measure before ordering)
✔ Ceiling Height: At least 98" (8'2") recommended
✔ Floor Space: 252" L x 131" W (21'0" x 10'11")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V – 20 Amp – 1 PH
✔ Post Height: 92" (7'8") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
iDEAL FP14KAC-X 14,000 lb 4-Post Alignment Lift Specifications |
|
| Manufacturer | iDEAL |
| Model | FP14KAC-X |
| Capacity | 14,000 lbs |
| Overall Length (with ramp) | 252-1/2″ |
| Overall Width (w/out power unit) | 131-7/8″ |
| Overall Width (with power unit) | 142″ |
| Overall Height | 92-1/2″ |
| Max Rise Height | 79-1/2″ |
| Minimum Height | 9-7/8″ |
| Width Between Posts | 116-1/4″ |
| Length Between Posts | 196″ |
| Width Between Runways | 43″ or 46″ (adjustable) |
| Runway Width | 20″ |
| Max Wheelbase | 182-1/2″ |
| Max Align Wheelbase (2-wheel) | 166-3/4″ |
| Min/Max Align Wheelbase (4-wheel) | 103″ / 157″ |
| Ramp Length | 44″ |
| Max Clearance Under Runway | 69-5/8″ |
| Drive-Thru Clearance | 100″ |
| Base Plate | 10-1/2″ × 9″ |

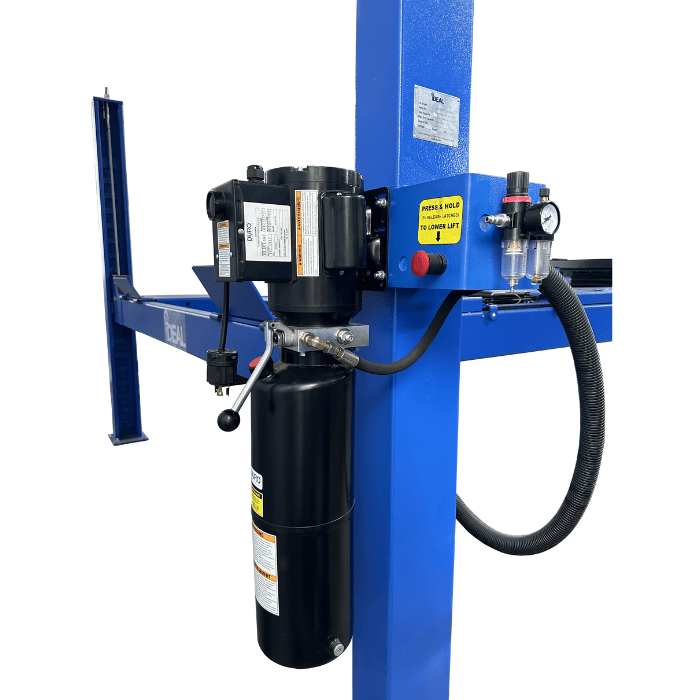

| Power Requirement | 220V. 20 Amp. 1 PH |
| Shipping Weight | 3,810 lbs |
| Minimum Bay Size | 16′ × 25′ |
| Included Equipment | Turntables, rollback spacers, wheel chocks, slip plates, internal airline kit |
| Shipping Dimensions | 208"L x 27"W x 49.5"H |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
iDEAL FP14KAC-X Frequently Asked Questions
What makes the FP14KAC-X an alignment lift?

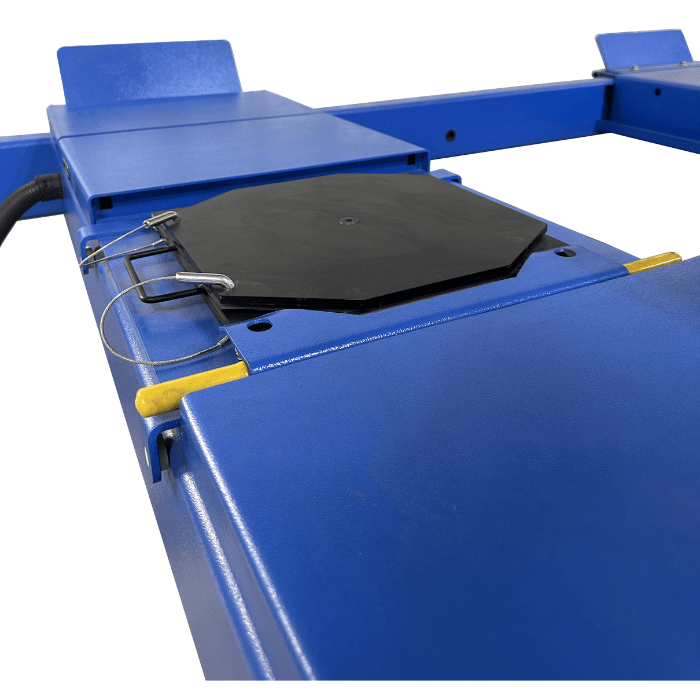

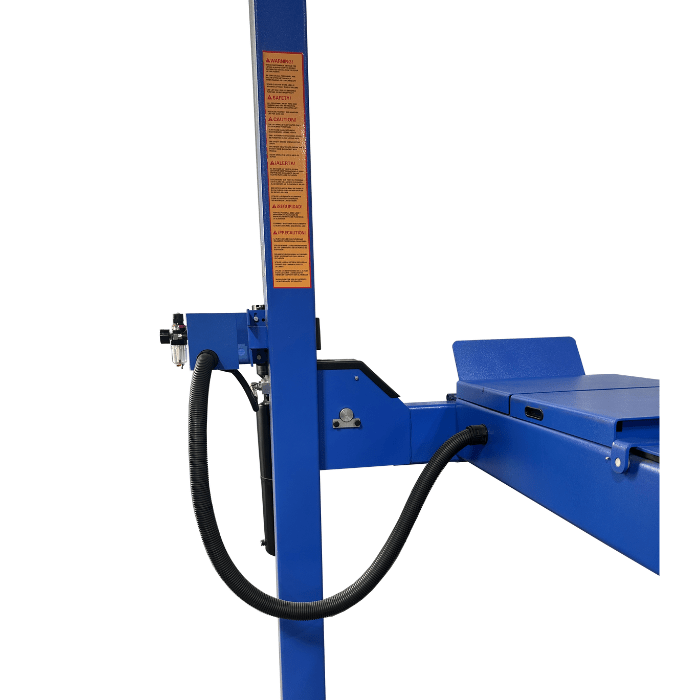

It ships alignment-ready: full-width slip plates, turntables with multiple positions, rollback spacers, and a closed-front design for unobstructed access. Four-wheel alignments cover wheelbases from 103" to 157", and the internal airline kit is already plumbed for air tools at height.
What vehicles can it handle?

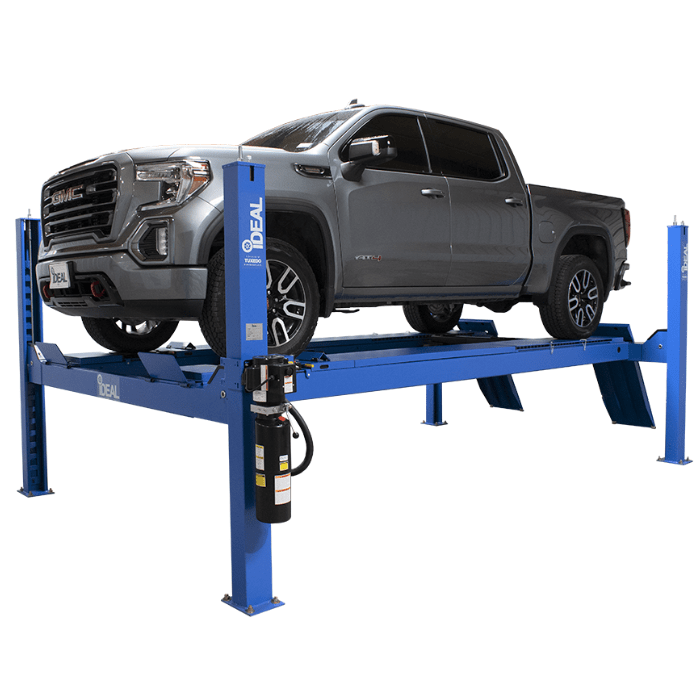

A 14,000 lb 4 post car lift with a 182-1/2" max wheelbase takes everything from compacts to 1-ton duallys and fleet trucks. The 79-1/2" max rise and 69-5/8" under-runway clearance give technicians full standing access for suspension and steering work.
FP14KAC-X or FP14KC-X -- which iDEAL 14K is right?
Same 14,000 lb structure. This FP14KAC-X includes the complete alignment package -- the right call if alignments are revenue. The FP14KC-X is the general service and storage version for less. Want a turn-key alignment bay? The alignment lift + wheel aligner combo kit bundles this lift with an aligner and dual rolling jacks.
Can I do wheels-free service on it?

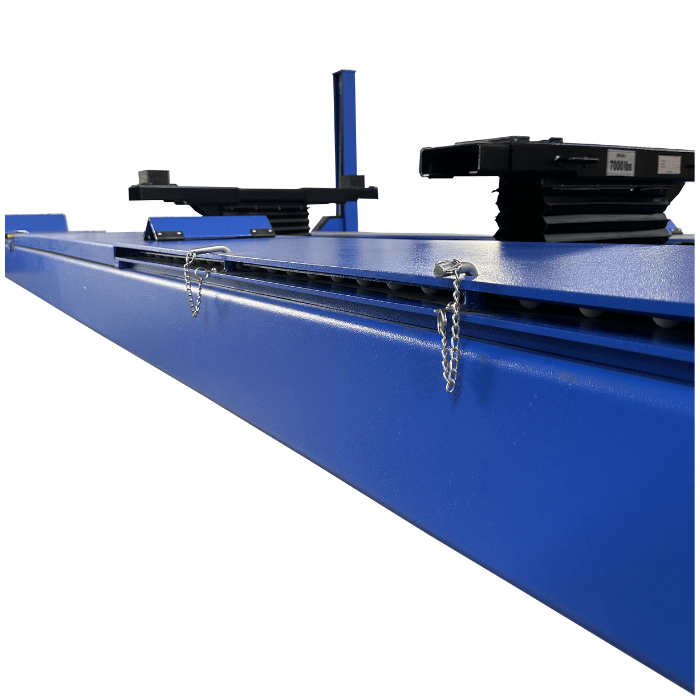

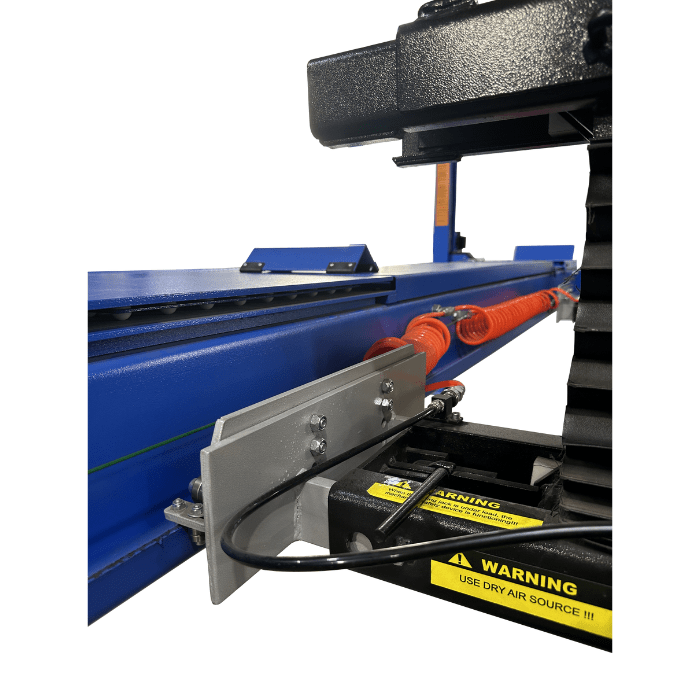

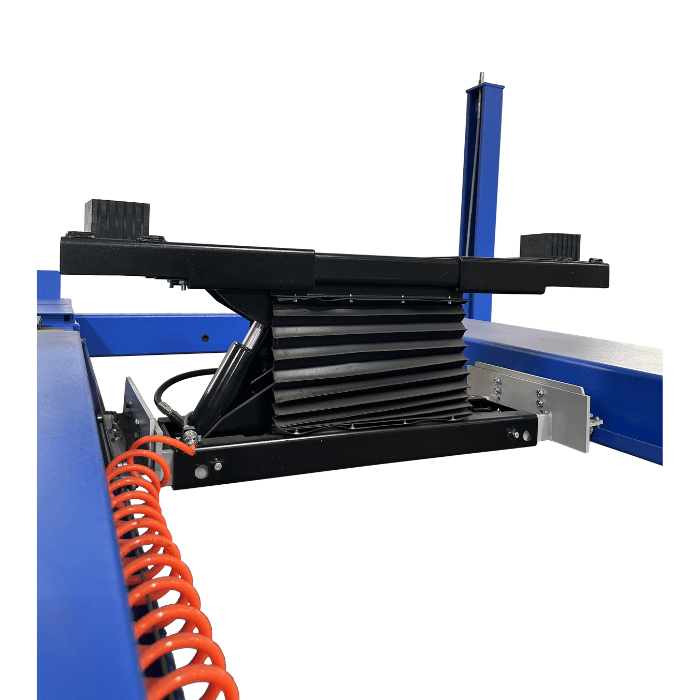

Yes -- add a rolling jack that rides the runways: the iDEAL RAJ-7K-H (7,000 lb) or the heavier RAJ-8K-H (8,000 lb). That's how alignment shops lift axles for caster/camber adjustments without leaving the runway.
How much space does it need?
iDEAL specifies a 16' x 25' minimum bay. The posts stand 92-1/2", so plan on 98" (8'2") of ceiling, and note the 252-1/2" overall length with ramps. A 24" runway extension kit is available for extra-long wheelbases.
Do I need to bolt it to the floor?
4-posts are free-standing by design, on concrete at least 4" thick at 3,000 PSI. For an alignment lift, a flat, properly cured slab matters doubly -- levelness affects your readings -- so verify before ordering and anchor per the manual.
Is the iDEAL FP14KAC-X worth it?
Alignment-capable 14K 4-posts are a niche where most brands charge heavily -- this one includes turntables, slip plates, spacers, and an airline kit under a 5-year structural warranty. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still weighing lift types.
