Tuxedo RAJ-8K-H high-mount rolling air jack with 8,000 lb capacity for professional lifts

Tuxedo 8,000 lb Rolling Jack (High Mount) - Air / Hyd | RAJ-8K-H

SKU RAJ-8K-H
$2,275.00

Notify me when back in stock

Served in the military? Click here — we’ll thank you with a personalized discount.
Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

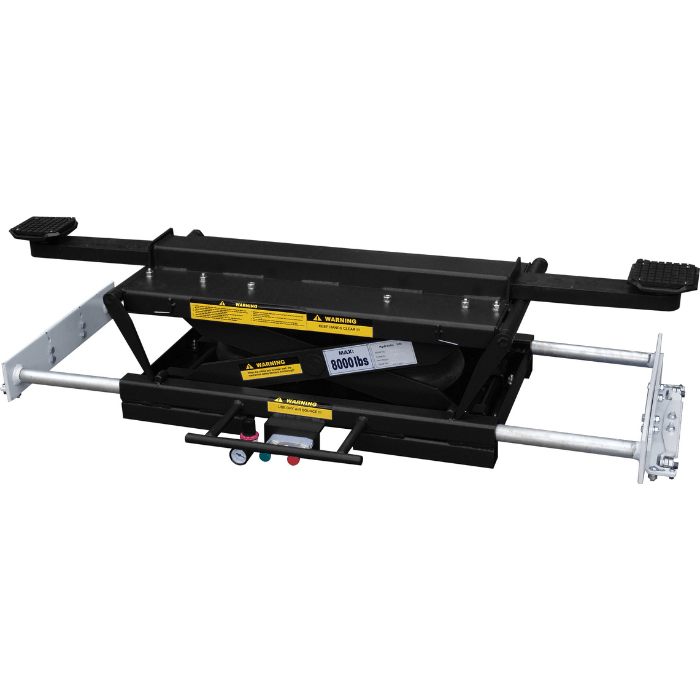

Tuxedo RAJ-8K-H – 8,000 lb High-Mount Rolling Air Jack

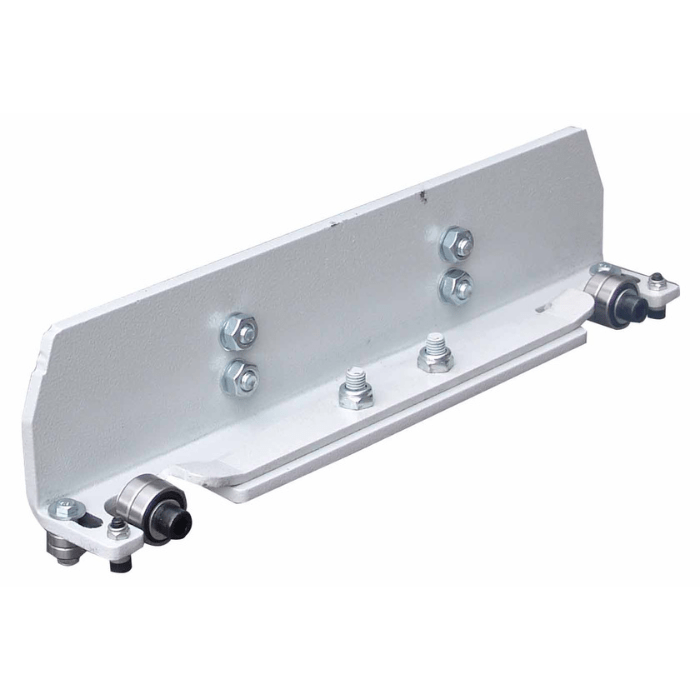

The Tuxedo RAJ‑8K‑H Rolling Air Jack is engineered for heavy-duty duty cycles in professional garages and alignment bays. With an 8,000 lb lifting capacity and pneumatic air/hydraulic operation, this scissor-style bridge jack effortlessly lifts axles for maintenance, brake work, and wheel alignment. Its high-mount roller body bracket is tailored for lifts with low-positioned jack rails, ensuring smooth engagement and avoiding contact with the floor when fully lowered.

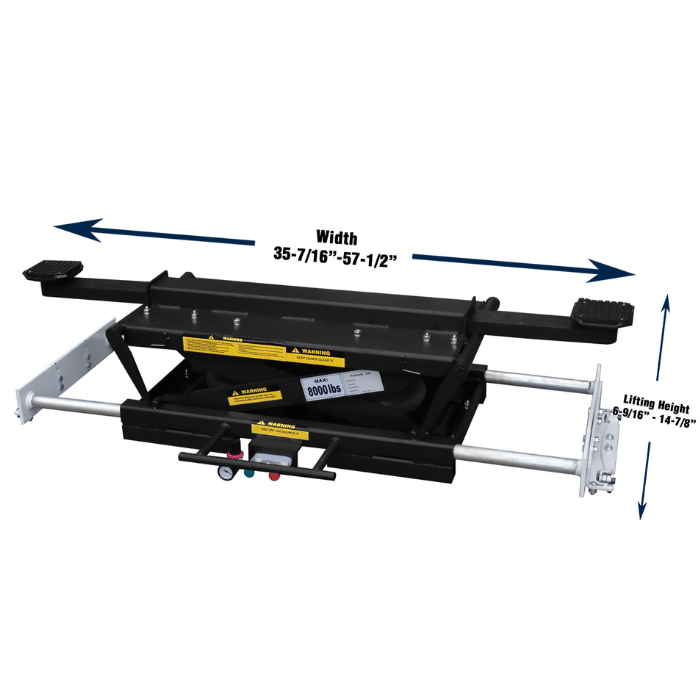

Built for adaptability, the RAJ‑8K‑H boasts a universal roller body design with spring-loaded precision bearings and adjustable side guide wheels to fit low, medium, or high runways. Its telescoping support arms (38⅜″–60″) and lifting arms (35‑7/16″–57½″) accommodate a wide variety of lift widths, while lift height ranges from 6 9⁄16″ to 14 ⁷⁄₈″—expandable via included height adapters (1‑5⁄16″ and 5″). Double air bags, a pressure regulator, locking height position, and rugged powder-coat finish combine to make the RAJ‑8K‑H both safe and serviceable.

Overview

Tuxedo RAJ-8K-H – 8,000 lb High-Mount Rolling Air Jack



The Tuxedo RAJ‑8K‑H Rolling Air Jack is engineered for heavy-duty duty cycles in professional garages and alignment bays. With an 8,000 lb lifting capacity and pneumatic air/hydraulic operation, this scissor-style bridge jack effortlessly lifts axles for maintenance, brake work, and wheel alignment. Its high-mount roller body bracket is tailored for lifts with low-positioned jack rails, ensuring smooth engagement and avoiding contact with the floor when fully lowered.

Built for adaptability, the RAJ‑8K‑H boasts a universal roller body design with spring-loaded precision bearings and adjustable side guide wheels to fit low, medium, or high runways. Its telescoping support arms (38⅜″–60″) and lifting arms (35‑7/16″–57½″) accommodate a wide variety of lift widths, while lift height ranges from 6 9⁄16″ to 14 ⁷⁄₈″—expandable via included height adapters (1‑5⁄16″ and 5″). Double air bags, a pressure regulator, locking height position, and rugged powder-coat finish combine to make the RAJ‑8K‑H both safe and serviceable.
Manual
Warranty

Warranty

  • Structural Warranty — 5 Years:
    • Columns, uprights, legs, arms, carriages, swivel pins, overhead beam, tracks, cross rails, top rail beam.
  • Limited Parts Warranty — 1 Year: Covers lifts and wheel-service equipment under normal use (customer pays freight on warranty parts).
  • Not Covered:
    • Routine-maintenance items and normal-wear parts (cables, slider blocks, chains, rubber pads, pulleys).
    • Replacement of lift / tire-changer cylinders after 30 days (seal kit provided instead).
    • On-site labor or equipment damaged by improper installation or use.
  • Claim Requirements:
    • Inspect freight on arrival; note any damage on the carrier’s receipt (freight damage is not a warranty issue).
    • Report missing parts within 72 hours.
    • Provide photos or videos if requested for evaluation.
    • Replacement parts ship as soon as available; immediate availability not guaranteed.
  • Additional Terms: Warranty is non-transferable; liability excludes incidental or consequential damages as permitted by law.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.

⛟Shipping and Returns

Shipping

  • Freight shipping to commercial addresses in the lower 48 states and Canada.
  • Orders placed Mon–Fri are processed the same day and typically depart within 24-48 hours.
  • Standard transit time is 7-10 days; tariff-related port delays may extend delivery.
  • All freight ships with a scheduled delivery appointment.
  • Forklift or loading-dock equipment is mandatory for off-loading — customer unloads and covers any re-delivery fees.
  • Liftgate service available for $90 on eligible items (e.g. tire changers); not available for vehicle lifts.
  • Inspect freight for damage before signing the Bill of Lading.

Returns

  • Returns are handled case-by-case; contact us for authorization.
  • 30-day return window; items must be unused and in original packaging.
  • 15 % restocking fee applies.
  • Customer pays return freight to our TX facility; original shipping is non-refundable.
  • Non-Returnable Items:
    • Custom-built M1M paint booths.
    • Products beyond 30 days or showing signs of use, damage, or misuse.
  • Return Process:
    • Email us with order #, product, and reason for return.
    • Receive a Return Merchandise Authorization (RMA) and instructions.
    • Ship item per RMA and provide tracking info.
    • Refund / exchange processed within 3 business days of receipt.
  • Refund Processing Times:
    • Credit card: 7-14 business days.
    • PayPal: up to 48 hours.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.
