Rear view of the Ekko EK18RR-196Li lithium-powered reach truck with electronic power steering and ergonomic operator platform

Ekko 4,000 lb Stand-Up Reach Truck – 196" Max Lift Height | EK18RR-196Li

by Ekko Lifts
SKU EK18RR-196Li
Save $4,001.00
$53,000.00
$48,999.00

Notify me when back in stock

Served in the military? Click here — we’d love to thank you with a personalized discount.
Ekko Lifts forklifts trust badges Ekko Lifts forklifts trust badges

Need High-Reach Performance? Upgrade to the Ekko 4,000 lb EK18RR-196Li Electric Reach Truck for Tight Aisles



When you’re trying to stack pallets in a tight warehouse aisle, nothing’s more frustrating than an Electric Reach Truck that can’t lift high enough or feels like it’s fighting you every turn. Too many reach trucks stall out mid‑lift, lack the maneuverability you need in narrow spaces, or require constant maintenance that eats into your uptime. That’s exactly why the Ekko 4,000 lb Stand‑Up Reach Truck – 196″ Max Lift Height was engineered: to give you reliable, high‑reach performance when you need it most.

This Ekko Reach Truck blends the best of a forklift, reach truck, and walkie stacker into one agile package. With a German AC drive motor and Electronic Power Steering (EPS), you get smooth power delivery and effortless directional changes, even at full height. The 48V/350Ah lithium battery system keeps you running longer between charges, so you’re not stopping mid‑shift for a recharge.

Built from heavy‑gauge steel with precision robotic welding, it stands up to daily warehouse demands—impact, directional changes, and all. And with a 3‑year limited warranty backing it, you can invest in a Reach Truck with 196″ lift confidence that it’ll keep performing. Say goodbye to frequent downtime and hello to peak productivity.

Looking for a different lift height or turning radius? Explore all reach trucks.

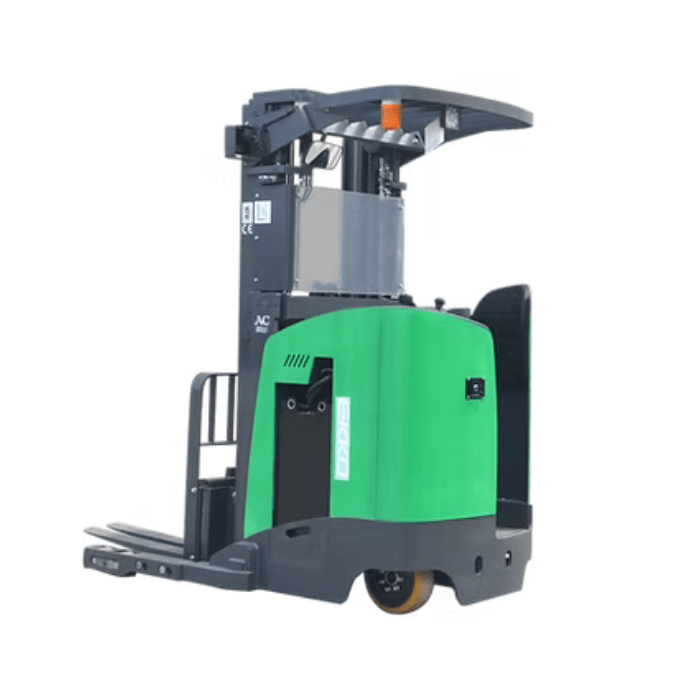

Back-side perspective of Ekko 196-inch lift reach truck featuring battery compartment and German AC motor assembly

Benefits of the Ekko Electric EK18RR-196Li Reach Truck

Efficient Narrow Aisle Operation | Glide through tight warehouse aisles

High Lift Height Capability | Reach up to 196″ for vertical storage

Reduced Operator Fatigue | EPS and ergonomic controls keep you fresh

Longer Run Times | 48V lithium battery powers full shifts

Lower Maintenance Costs | German AC motor needs less upkeep

Durable Build Quality | Robotic‑welded steel stands up to daily use

Key Features of the Ekko EK18RR-196Li Electric Reach Truck:

  • Triple Mast Design: The three‑stage mast gives you a higher reach without sacrificing stability. You’ll get up to a 196″ lift height so you can stack more product vertically. It’s perfect for tight aisles where extra overhead space is a premium.
  • Electronic Power Steering (EPS): EPS reduces the effort needed to turn, so you’re not wrestling the wheel on every move. That means less operator fatigue over an 8‑hour shift. Plus, it improves control when handling loads at height.
  • German AC Drive Motor: Designed for continuous duty, this motor delivers smooth, consistent power. You’ll notice quick acceleration and reliable performance, even under heavy loads. It also cuts down on maintenance compared to older DC systems.
  • 48V/350Ah Lithium Battery System: Lithium tech gives you longer run times and faster charging compared to lead‑acid alternatives. You’ll spend more time working and less time charging. The consistent power curve keeps lift speeds steady from start to finish.
  • Ergonomic Handle & Controls: All controls are within easy reach of your hand for intuitive operation. The angled handle and responsive buttons reduce strain on your wrist and arm. That translates into better productivity and fewer aches at the end of the day.
  • Robust Steel Construction: Built with high‑grade steel and robotic welding, this machine stands up to the daily rigors of warehousing. You can trust it won’t flex or buckle under impact. It’s engineered to last, reducing replacement costs over time.

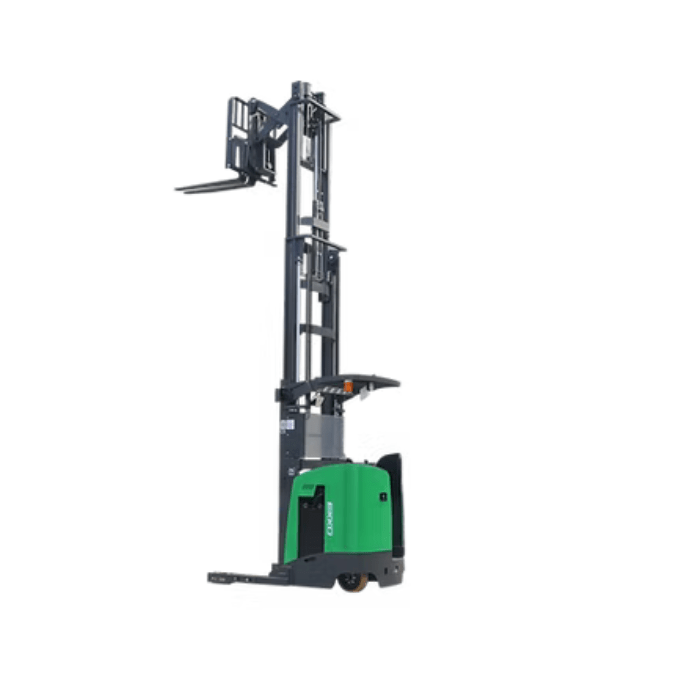

Green Ekko stand-up reach truck with triple-stage mast fully extended, showcasing its 4,000 lb lifting capacity and slim frame design

Ekko EK18RR-196Li 4,000 lb Electric Reach Truck Specifications
Manufacturer Ekko Lifts
Model EK18RR‑196Li
Lift Type Electric Reach Truck
Load Capacity 4,000 lb
Load Center Distance 24 in
Maximum Lift Height 196 in (16.33 ft)
Reach Distance 22.44 in
Free Lift Height 53.15 in
Lowered Mast Height 96.42 in
Overall Length (Extended) 102.28 in
Overall Width 54.72 in
Fork Dimensions (T/W/L) 1.58 / 4.72 / 45.3 in
Fork Adjust Width 7.9 – 35.04 in
Turning Radius 75 in
Steering Electronic Power Steering (EPS)
Drive Motor German AC, 48V / 6000 W
Lifting Motor 48V / 11,000 W
Battery 48V / 350 Ah Lithium
Charger 440V 3‑phase; 48VDC/200A
Wheels Polyurethane
Construction Robotic‑welded steel
Warranty Frame, Forks & Mast – 3 yr / 6,000 hr
Electric Drive & Hydraulic Components – 1 yr / 2,000 hr
Battery – 1 yr / 2,000 hr
Standard Parts – 1 yr / 2,000 hr
Wearable Items – 30 days
Overview

Need High-Reach Performance? Upgrade to the Ekko 4,000 lb EK18RR-196Li Electric Reach Truck for Tight Aisles



When you’re trying to stack pallets in a tight warehouse aisle, nothing’s more frustrating than an Electric Reach Truck that can’t lift high enough or feels like it’s fighting you every turn. Too many reach trucks stall out mid‑lift, lack the maneuverability you need in narrow spaces, or require constant maintenance that eats into your uptime. That’s exactly why the Ekko 4,000 lb Stand‑Up Reach Truck – 196″ Max Lift Height was engineered: to give you reliable, high‑reach performance when you need it most.

This Ekko Reach Truck blends the best of a forklift, reach truck, and walkie stacker into one agile package. With a German AC drive motor and Electronic Power Steering (EPS), you get smooth power delivery and effortless directional changes, even at full height. The 48V/350Ah lithium battery system keeps you running longer between charges, so you’re not stopping mid‑shift for a recharge.

Built from heavy‑gauge steel with precision robotic welding, it stands up to daily warehouse demands—impact, directional changes, and all. And with a 3‑year limited warranty backing it, you can invest in a Reach Truck with 196″ lift confidence that it’ll keep performing. Say goodbye to frequent downtime and hello to peak productivity.

Looking for a different lift height or turning radius? Explore all reach trucks.

 Back-side perspective of Ekko 196-inch lift reach truck featuring battery compartment and German AC motor assembly

Benefits of the Ekko Electric EK18RR-196Li Reach Truck

Efficient Narrow Aisle Operation | Glide through tight warehouse aisles

High Lift Height Capability | Reach up to 196″ for vertical storage

Reduced Operator Fatigue | EPS and ergonomic controls keep you fresh

Longer Run Times | 48V lithium battery powers full shifts

Lower Maintenance Costs | German AC motor needs less upkeep

Durable Build Quality | Robotic‑welded steel stands up to daily use

Key Features of the Ekko EK18RR-196Li Electric Reach Truck:

  • Triple Mast Design: The three‑stage mast gives you a higher reach without sacrificing stability. You’ll get up to a 196″ lift height so you can stack more product vertically. It’s perfect for tight aisles where extra overhead space is a premium.
  • Electronic Power Steering (EPS): EPS reduces the effort needed to turn, so you’re not wrestling the wheel on every move. That means less operator fatigue over an 8‑hour shift. Plus, it improves control when handling loads at height.
  • German AC Drive Motor: Designed for continuous duty, this motor delivers smooth, consistent power. You’ll notice quick acceleration and reliable performance, even under heavy loads. It also cuts down on maintenance compared to older DC systems.
  • 48V/350Ah Lithium Battery System: Lithium tech gives you longer run times and faster charging compared to lead‑acid alternatives. You’ll spend more time working and less time charging. The consistent power curve keeps lift speeds steady from start to finish.
  • Ergonomic Handle & Controls: All controls are within easy reach of your hand for intuitive operation. The angled handle and responsive buttons reduce strain on your wrist and arm. That translates into better productivity and fewer aches at the end of the day.
  • Robust Steel Construction: Built with high‑grade steel and robotic welding, this machine stands up to the daily rigors of warehousing. You can trust it won’t flex or buckle under impact. It’s engineered to last, reducing replacement costs over time.
 Green Ekko stand-up reach truck with triple-stage mast fully extended, showcasing its 4,000 lb lifting capacity and slim frame design

Ekko EK18RR-196Li 4,000 lb Electric Reach Truck Specifications
Manufacturer Ekko Lifts
Model EK18RR‑196Li
Lift Type Electric Reach Truck
Load Capacity 4,000 lb
Load Center Distance 24 in
Maximum Lift Height 196 in (16.33 ft)
Reach Distance 22.44 in
Free Lift Height 53.15 in
Lowered Mast Height 96.42 in
Overall Length (Extended) 102.28 in
Overall Width 54.72 in
Fork Dimensions (T/W/L) 1.58 / 4.72 / 45.3 in
Fork Adjust Width 7.9 – 35.04 in
Turning Radius 75 in
Steering Electronic Power Steering (EPS)
Drive Motor German AC, 48V / 6000 W
Lifting Motor 48V / 11,000 W
Battery 48V / 350 Ah Lithium
Charger 440V 3‑phase; 48VDC/200A
Wheels Polyurethane
Construction Robotic‑welded steel
Warranty Frame, Forks & Mast – 3 yr / 6,000 hr
Electric Drive & Hydraulic Components – 1 yr / 2,000 hr
Battery – 1 yr / 2,000 hr
Standard Parts – 1 yr / 2,000 hr
Wearable Items – 30 days
