AMGO Commercial 4-Post Lift – 40,000 lb Capacity, Extra-Long Runways | PRO-40E

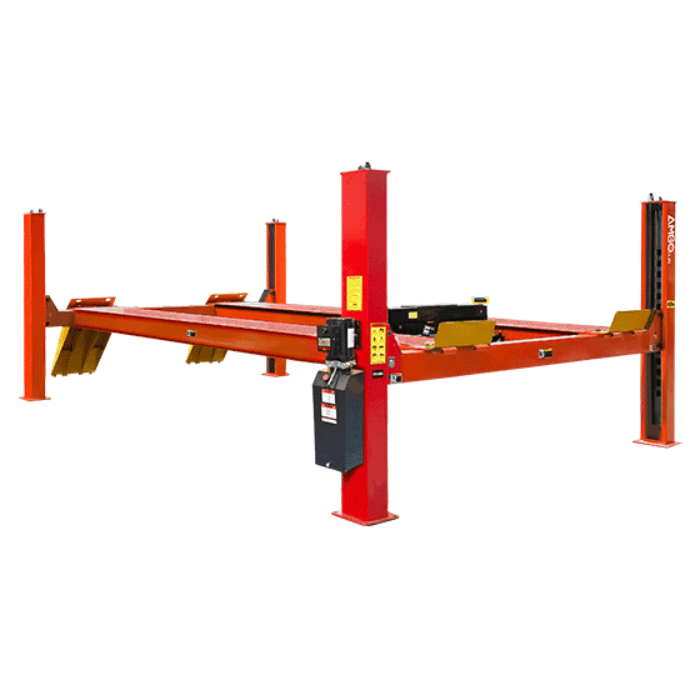

Built for Extra-Long Heavyweights: AMGO PRO-40E 40,000 lb 4-Post Lift with Extended Runways
If you’re running a shop that services the largest and heaviest vehicles, a standard lift just won’t cut it. The AMGO PRO-40E 4 post lift solves that problem by delivering a massive 40,000 lb lifting capacity with extra-long runways designed for buses, extended chassis trucks, and industrial vehicles. Many shops struggle with lifts that are too short or lack the strength to handle their biggest jobs. Causing delays, safety concerns, and lost revenue. The PRO-40E eliminates those issues with a professional-grade design that’s built for maximum strength, safety, and versatility. Extra-long runways at 40K capacity is exactly the combination commercial fleet shops handling medium-duty trucks need but rarely find. Standard 40K runway lengths leave full-length medium-duty vehicles overhanging the lift.
This commercial vehicle lift is part of AMGO’s Super Duty series, combining raw power with smart engineering. It’s equipped with dual mechanical safety locks, a cable-slack protection system, and an air-driven lock release, giving you rock-solid security with every raise. The non-skid diamond platforms keep vehicles stable, while the adjustable runways allow you to handle a variety of large vehicle types without swapping equipment. The ETL-certified power unit ensures smooth, reliable performance day after day, even in high-volume shops. Extended runway sections handle full-length Class A motorhomes, medium-duty fleet trucks, and the longest 4-post-capable commercial vehicles. Reinforced base plates handle the additional structural load.
Whether you’re working on municipal buses, heavy-duty trucks, or specialized fleet vehicles, the PRO-40E offers the capacity and reach you need. With its 425-inch overall length (including ramps) and up to 58 7/8" width between runways, it’s built for extra-long wheelbases without sacrificing stability. This isn’t just a lift. It’s a productivity upgrade that helps you handle more jobs, more safely, and more efficiently. For shops handling the longest commercial vehicles in the medium-duty class, the PRO-40E delivers real 40K capacity AND real runway dimensions without forcing a compromise between the two.
Benefits of the AMGO PRO-40E 4-Post Lift
Key Features of the AMGO PRO-40E 4-Post Lift You'll Love:
• 40,000 lb Lifting Capacity: This 40000 lb 4 post lift handles the heaviest commercial vehicles with ease, including buses and industrial trucks. The extra capacity means fewer limitations, allowing your shop to work on a wider range of vehicles without turning away business.
• Extended-Length Runways: Measuring over 425 inches with ramps, the runways accommodate extra-long wheelbases and specialty vehicles. This extra reach eliminates the need for multiple lift setups, streamlining workflow and saving valuable shop time.
• Dual Mechanical Safety Locks with Cable-Slack Protection: Two independent safety systems. Mechanical locks and a cable-slack protection system. Work together to ensure vehicles remain secure at all times. These safeguards give technicians the confidence to work under heavy loads without worry.
• Adjustable Runways: The runway width adjusts between 49 1/16" and 58 7/8", making the PRO-40E versatile enough for various vehicle sizes. This flexibility means your lift can handle everything from large trucks to specialized service vehicles.
• ETL-Certified AMGO Power Unit: Powered by a 2.0 HP, 220V single-phase motor, the ETL-certified unit provides consistent, smooth lifting performance. It’s designed for durability and minimal maintenance, keeping your lift operational for years to come.
Minimum Garage Requirements
✔ Ceiling Height: At least 97" (8'1") recommended ✔ Floor Space: 425" L x 161" W (35'5" x 13'5") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase ✔ Post Height: 91" (7'7") (measure before ordering)
✔ Ceiling Height: At least 97" (8'1") recommended
✔ Floor Space: 425" L x 161" W (35'5" x 13'5")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase
✔ Post Height: 91" (7'7") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO PRO-40E 40,000 lb 4-Post Lift Specifications |
|
| Manufacturer | AMGO |
| Model | PRO-40E |
| Lifting Capacity | 40,000 lbs |
| Lifting Time | 183 seconds |
| Overall Length (Including Ramps) | 425 3/16" |
| Overall Length (No Ramps) | 374 9/16" |
| Overall Width | 161 7/16" |
| Width Between Columns | 143 7/8" |
| Max. Lifting Height | 74 13/16" |
| Max. Lock Height to Top of Runway | 71 11/16" |
| Overall Height | 91 13/16" |
| Minimum Height | 10 7/16" |
| Max. Underneath Height | 65 7/8" |
| Max. Lock Underneath Runway | 62 3/4" |
| Drive-Thru Clearance | 129 7/8" |
| Width Between Runways | 49 1/16"-58 7/8" |
| Outside Edge of Runways | 104 15/16"-114 13/16" |
| Gross Weight | 9,306 lbs |
| Motor | 2.0 HP, 220V / 60Hz, Single Phase |
| Shipping Dimensions | Length: 9560 mm (376.5") Width: 720 mm (28.5") Height: 1000 mm (39.5") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
AMGO PRO-40E Frequently Asked Questions
What does the "E" add over the standard PRO-40?
Five feet of runway: 425-3/16" overall (vs 366-1/8") with 374-9/16" before the ramps. That's motorhome, transit-bus, and articulated-chassis territory. The PRO-40 covers standard-length heavy fleets for less.
What vehicles is the PRO-40E built for?
The longest and heaviest in the AMGO line: a 40,000 lb 4 post lift for full-length transit buses, loaded fire apparatus, motorhomes, and long ag equipment. The 129-7/8" drive-thru and runways adjustable to 58-7/8" apart handle the widest chassis.
Will it fit in my building?
The columns stand 91-13/16", so 97" (8'1") of ceiling covers lifting -- measure your tallest raised vehicle too. Length is the constraint: 425" overall means a 36-foot bay plus approach.
Can I do wheels-free service on it?
Yes -- pair it with the RJ-20A 20,000 lb pneumatic rolling jack for lifting heavy axles, with the 40106A airline kit plumbing air along the runway.
What power does it need?
A 2.0 HP, 220V single-phase, ETL-certified power unit -- no three-phase service even at 40,000 lbs. Need the extended length at lower capacity? The PRO-30E saves money at 30,000 lbs.
Do I need to bolt it to the floor?
At 40,000 lbs, yes -- anchor per the manual, and have your slab engineering verified for heavy-fleet duty before ordering (4" at 3,000 PSI is the bare minimum spec).
Is the AMGO PRO-40E worth it?
The biggest 4-post AMGO builds, on single-phase power, with 5-year structure / 3-year hydraulics / 2-year electrical coverage. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
