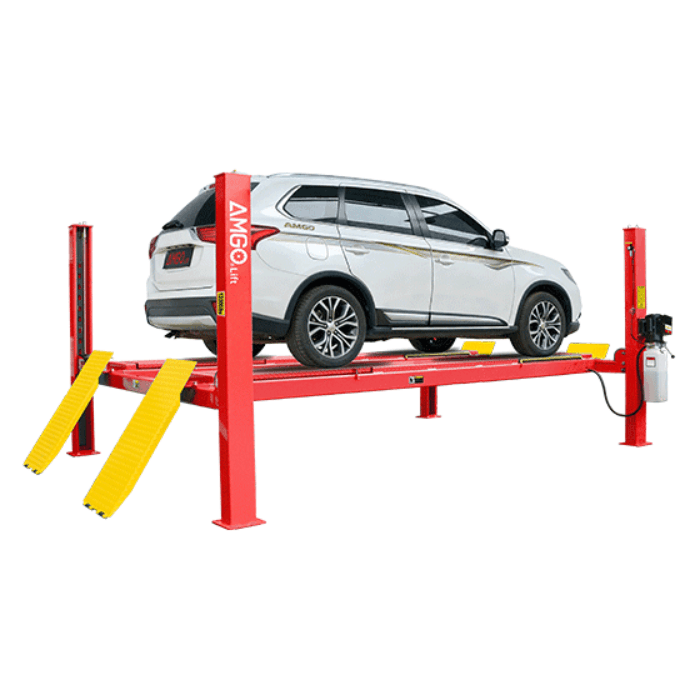

AMGO 4-Post Alignment Lift – 12,000 lb Capacity | PRO-12ASX
Alignment-Ready Power: AMGO PRO-12ASX 12,000 lb 4-Post Lift for Fast, Precise Service
Finding the right 4 post lift that can handle heavy-duty vehicles, precise wheel alignments, and daily shop use can be a real challenge. Many lifts lack the strength, stability, or alignment features needed to keep up with high-volume work. The AMGO PRO-12ASX solves that problem with the perfect mix of power, safety, and precision. Designed for busy shops, dealerships, and service centers, this lift provides a 12,000 lb lifting capacity, adjustable platform width, and alignment-ready features that make it an all-in-one solution for both general service and precision wheel work. The SX configuration adds extra-long runway sections for accommodating wider wheelbases during alignment work. That matters more for shops handling extended-cab pickups and lifted SUVs.
Built with commercial-grade construction, the PRO-12ASX uses aircraft-grade cables, heavy-duty hydraulic cylinders, and a mechanical self-locking safety device with an air-driven lock release. This means every lift is stable, smooth, and secure. Whether you’re raising a compact sedan or a full-size pickup. Its 4 post car lift design delivers unmatched stability for alignment procedures, while the non-skid diamond platforms give technicians the traction they need for safe positioning. Turn plate cutouts and slip plates handle alignment workflow, while the SX runway extension accommodates long-wheelbase trucks that won't fit standard 12K alignment lifts.
Efficiency is a major focus of the AMGO PRO-12ASX. With a quick 45-second lifting time, adjustable turnplate pockets, and integrated slip plates, you can adapt quickly to different wheelbases and complete more jobs in less time. The stepless adjustable platform width ensures compatibility with a variety of vehicles, making it one of the most versatile amgo 4 post lifts in its class. If you need a 4 post alignment lift that’s ready to work as hard as you do, this is the one. For alignment shops that handle a steady mix of full-size trucks and crew-cab work vehicles, the PRO-12ASX is sized for the wheelbases standard alignment lifts strain to accommodate.
If you need higher capacity, see heavy-duty 4-post lifts here.
Benefits of the AMGO PRO-12ASX 4-Post Alignment Lift
Key Features of the AMGO PRO-12ASX 4-Post Alignment Lift You'll Love:
• 12,000 lb Lifting Capacity: . Built to handle everything from sedans to light trucks, this lift provides the strength you need for heavy-duty shop work. Its robust design ensures long-term durability, even under continuous use. 12K capacity at the alignment-ready configuration handles crew cabs, lifted trucks, and most light commercial vehicles requiring alignment service.
• Alignment-Ready Design: . Integrated slip plates and adjustable turnplate pockets allow you to perform precision wheel alignments on multiple wheelbases without extra equipment. This speeds up service times and improves accuracy. SX runway extension accommodates long-wheelbase trucks that won't fit standard 12K alignment lift dimensions.
• AMGO ETL-Certified Power Unit: . Comes standard with a high-quality power unit that meets rigorous safety and performance standards. This ensures consistent lifting performance and peace of mind during every job. Adjustable turn plate pockets eliminate setup time and accommodate different vehicle wheelbases during alignment cycling.
• Advanced Safety Systems: . Mechanical self-locking safety device with air-driven lock release, plus multiple safety locks and a cable-slack protection system, all work together to prevent accidents and protect both vehicles and operators. Stepless width adjustment fits varied vehicle track widths without swapping platform configurations between service cycles.
• Aircraft-Grade Cables & Heavy-Duty Hydraulics: . Uses premium-grade cables and hydraulic cylinders with quality oil seals and a compensation valve for smooth, stable lifts that hold up over years of service. Aircraft-grade cables provide redundant equalization, critical for the precise platform stability alignment measurement requires.
• Stepless Adjustable Platform Width: . Quickly adjust platform spacing to accommodate different vehicle track widths, giving your shop maximum flexibility without compromising efficiency. Dual safety systems engage automatically if primary mechanism fails. The redundancy commercial alignment shops need.
Minimum Garage Requirements
✔ Ceiling Height: At least 92" (7'8") recommended ✔ Floor Space: 232" L x 132" W (19'4" x 11'0") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase ✔ Post Height: 86" (7'2") (measure before ordering)
✔ Ceiling Height: At least 92" (7'8") recommended
✔ Floor Space: 232" L x 132" W (19'4" x 11'0")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 2.0 HP, 220V / 60Hz, Single Phase
✔ Post Height: 86" (7'2") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO PRO-12ASX 12,000 lb 4-Post Alignment Lift Specifications |
|
| Manufacturer | AMGO |
| Model | PRO-12ASX |
| Type | Commercial Grade Four Post Alignment Lift |
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45 seconds |
| Overall Length (Including Ramps) [A] | 232 11/16" |
| Overall Length (No Ramps) [B] | 196 3/4" |
| Overall Width [C] | 132 1/8" |
| Width Between Columns [D] | 118 1/8" |
| Max. Lifting Height [E] | 76" |
| Max. Lock Height (Top of Runway) | 72 7/8" |
| Overall Height [F] | 86" |
| Minimum Height [G] | 8 5/8" |
| Max. Underneath Height [H] | 68 1/2" |
| Max. Lock Underneath Runway | 65 3/8" |
| Drive-Thru Clearance [I] | 104 1/8" |
| Width Between Runways [J] | 43 1/4" (Adjustable Min. 3 3/8". Max. 53 3/4") |
| Outside Edge of Runways [K] | 83 5/16" (Adjustable Min. 43 3/8". Max. 93 3/4") |
| Min. Four-Wheel Align | 81 7/8" |
| Max. Four-Wheel Align | 151 9/16" |
| Max. Two-Wheel Align | 157 1/2" |
| Gross Weight | 2,804 lbs |
| Motor | 2.0 HP, 220V / 60Hz, Single Phase |
| Shipping Dimensions | Length: 5100 mm (204") Width: 560 mm (22") Height: 1520 mm (60") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
