Power, Access, Safety: Tuxedo FP14K 14,000 lb 4-Post Lift for Busy Shops

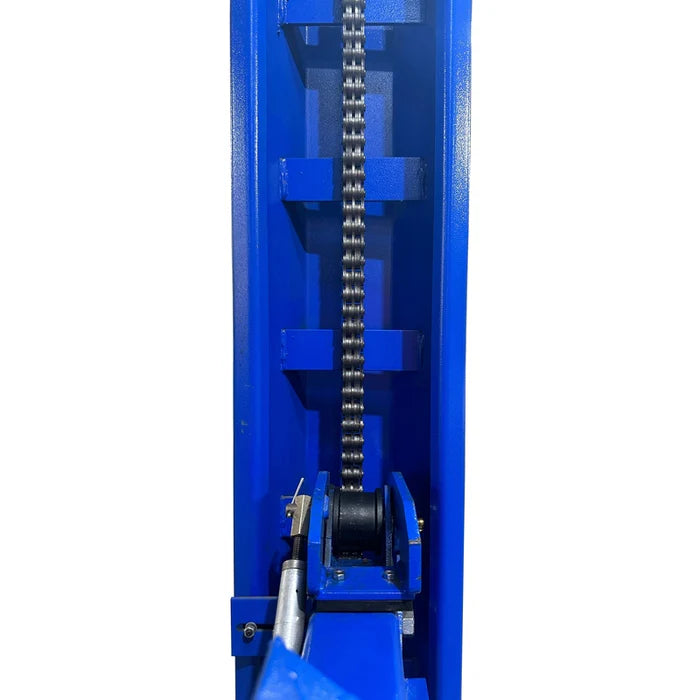

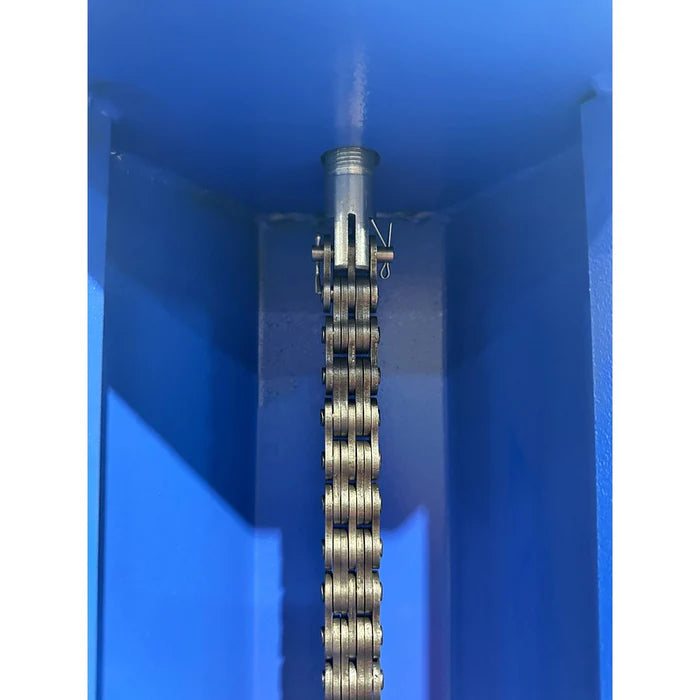

Finding a reliable 4 post lift that can handle both everyday cars and heavy-duty commercial vehicles isn’t easy. Many shops deal with lifts that max out too early, forcing them to turn away trucks and larger SUVs. Others compromise on workspace, leaving technicians frustrated with poor clearance and cramped conditions. These problems slow down productivity, limit profitability, and make servicing larger vehicles a challenge. Chain-driven 14K commercial 4-post lifts use chain equalization instead of cable systems, which is the structural simplification commercial shops want for long-term mechanical reliability. Chains last longer than cables under heavy commercial cycling.
The Tuxedo FP14K 4 post lift solves these issues with serious lifting power and smart design. With a 14,000 lb capacity, reinforced steel posts, and a wide stance, it’s built to handle everything from passenger cars to full-size work trucks. A clear-floor design provides open access underneath, while a generous 60″ under-track clearance gives technicians the room they need to move freely, use transmission jacks, or roll tool carts without obstruction. 14,000 lb structural rating with chain-driven equalization handles crew cabs, dually pickups, work vans, and most light commercial vehicles. Reinforced runways and base plates rated for daily commercial cycling.
Designed with both performance and safety in mind, this 14000 lb 4 post lift includes automatic safety locks, adjustable runways, and extended 30″ ramps that make drive-on and drive-off simple. Whether you’re running a busy repair shop, servicing fleets, or looking for dependable storage, the Tuxedo FP14K 4 post car lift offers the strength, stability, and convenience to keep your shop moving at full speed. For commercial shops where lift uptime matters more than headline capacity numbers, the FP14K's chain-driven design is the long-term-reliability choice in the 14K commercial category.
Benefits of the Tuxedo FP14K 4-Post Lift
Key Features of the Tuxedo FP14K 4-Post Lift You'll Love:
• 14,000 lb Capacity: This heavy-duty lift gives you the strength to handle commercial vehicles, large trucks, and SUVs without worry. Its high capacity ensures your shop isn’t limited to smaller cars, opening the door to more profitable service opportunities. You’ll gain confidence knowing the FP14K won’t strain under heavy loads.

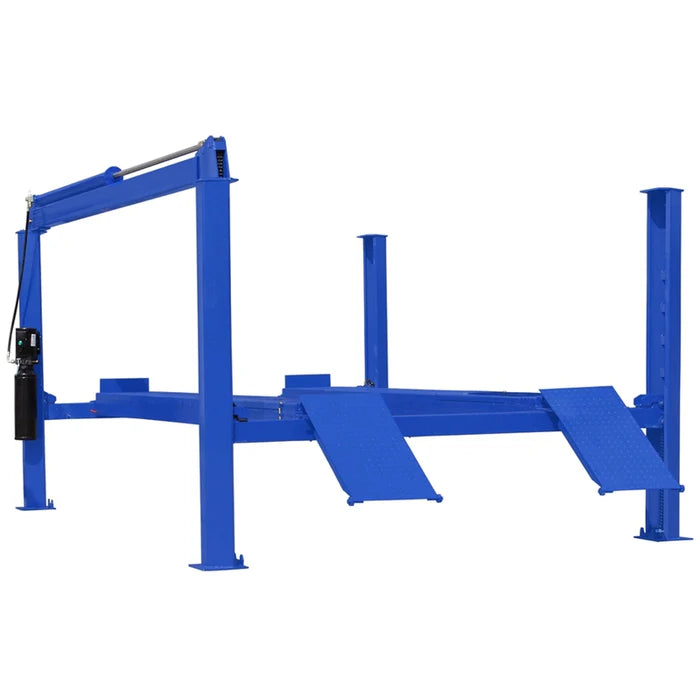

• Clear Floor Design: Unlike lifts with obstructions, the FP14K uses a clear-floor design to maximize under-vehicle access. This means technicians can roll equipment freely without fighting crossbars or low plates. The result is smoother workflow, easier tool use, and better ergonomics for the crew.

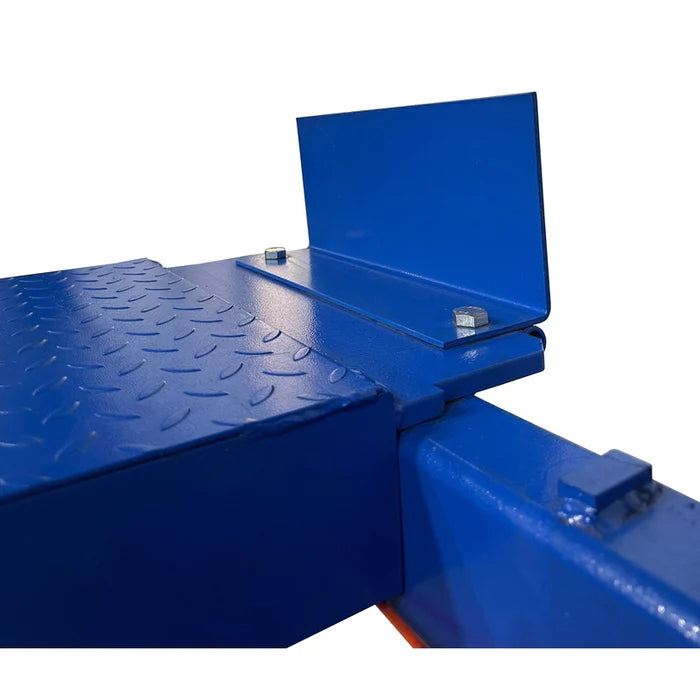

• Adjustable Runway Width: Not all vehicles are the same, and that’s where adjustable runways shine. With flexibility from compact cars to extended wheelbases, the FP14K adapts to your service needs. This versatility helps shops avoid downtime and maximize each service bay.

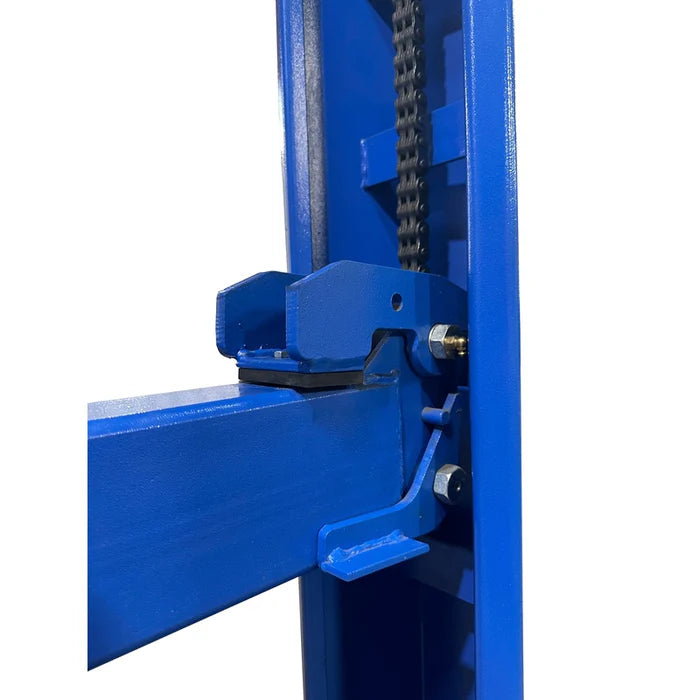

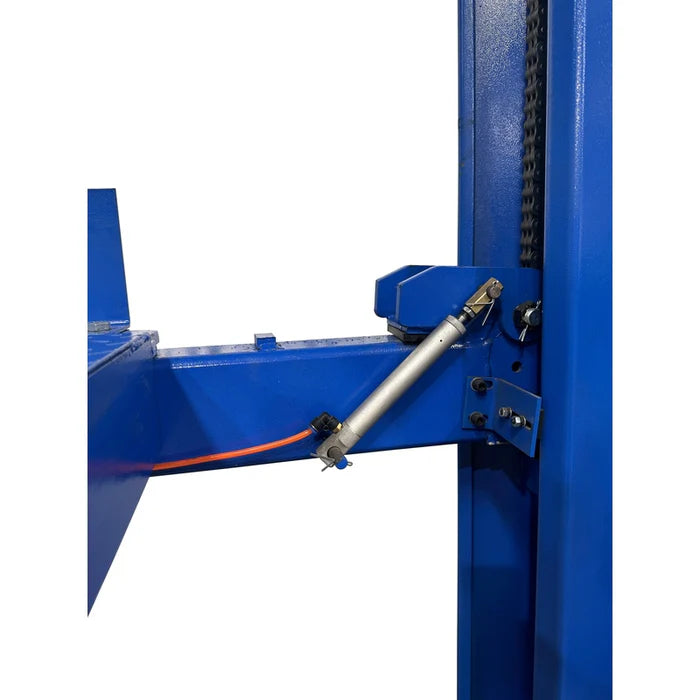

• Safety Lock System: A multi-position lock system engages automatically as the lift rises, providing security at multiple working heights. This feature ensures operators can work with confidence, knowing the lift is secured. It also makes long-term storage of vehicles safe and worry-free.

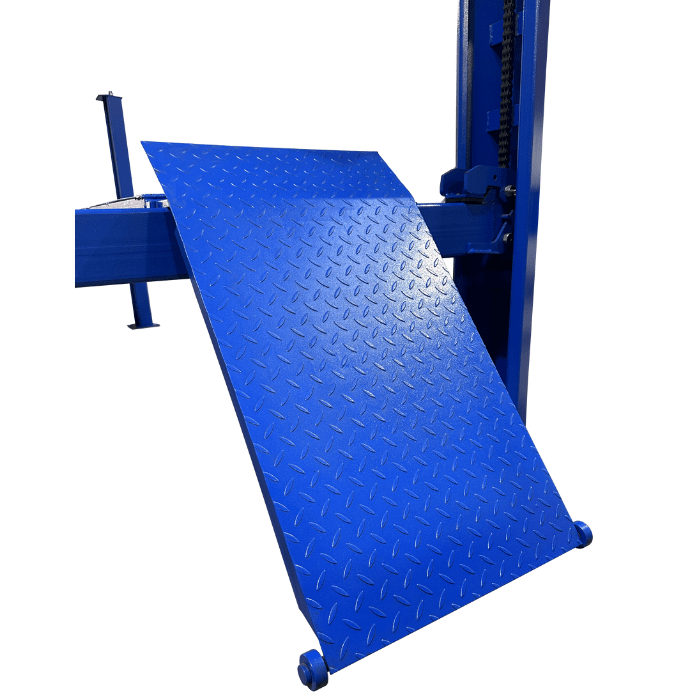

• Extended Ramp Design: The 30″ long ramps simplify the process of driving vehicles onto the lift. The extended surface reduces steep angles, making it easier for low-clearance cars and heavy trucks alike. Your team saves time and avoids the hassle of positioning vehicles multiple times.
Minimum Garage Requirements
✔ Ceiling Height: At least 91" (7'7") recommended ✔ Floor Space: 237" L x 123" W (19'9" x 10'3") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: see specifications below ✔ Post Height: 85" (7'1") (measure before ordering)
✔ Ceiling Height: At least 91" (7'7") recommended
✔ Floor Space: 237" L x 123" W (19'9" x 10'3")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: see specifications below
✔ Post Height: 85" (7'1") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Tuxedo FP14K 14,000 lb 4-Post Lift Specifications |
|
| Manufacturer | Tuxedo |
| Model | FP14K |
| Capacity | 14,000 lbs |
| Overall Length w/ Ramp | 237″ |
| Overall Width (Outside Base Plates) | 123″ |
| Lifting Height | 65-1/4″ |
| Width Between Posts | 108″ |
| Width Between Runways | 0″ to 41″ |
| Width of Runways | 20-1/4″ |
| Column Height | 85″ |
| Max. Wheelbase (2 wheel) | 192″ |
| Max. Wheelbase (4 wheel) | N/A |
| Ramp Length | 30″ |
| Max. Clearance Under Track | 60″ |
| Cable Diameter | N/A |

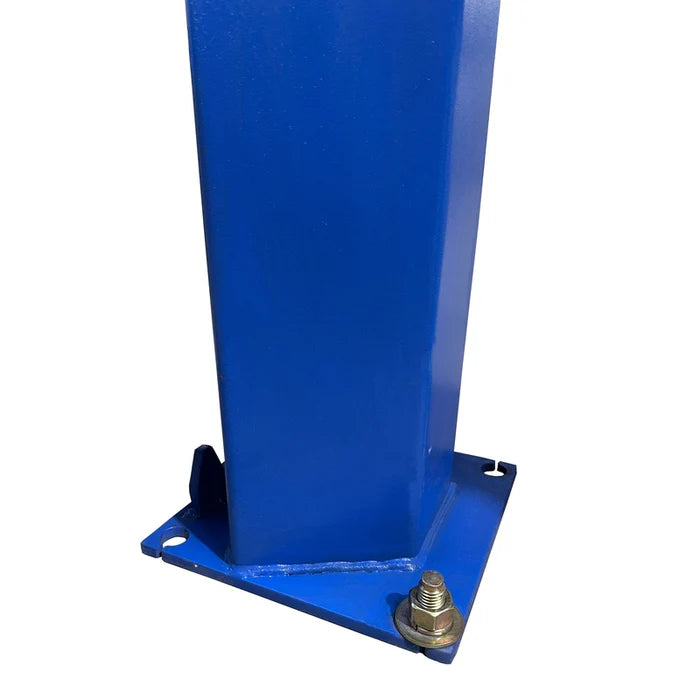

| Base Plate Dimensions | 10.5″ × 10.5″ |
| Ship Weight | 2,615 lbs |

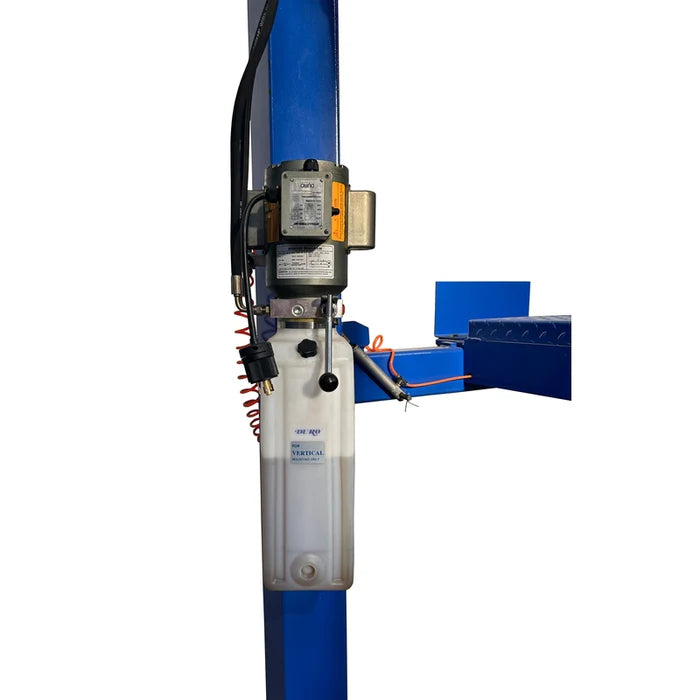

| Power | 220V. 20 AMP. 1PH |
| Shipping Dimensions | 208" x 48" x 36" |
| Warranty | 5 Years Structure, 1 Year Parts |
