Tuxedo 47" Tire Changer with Left Side Press Arm | TC-950-WPA
The 47 in Tire Changer with a Factory Left-Side Press Arm for Stiff Low-Profile and Run-Flat Tires

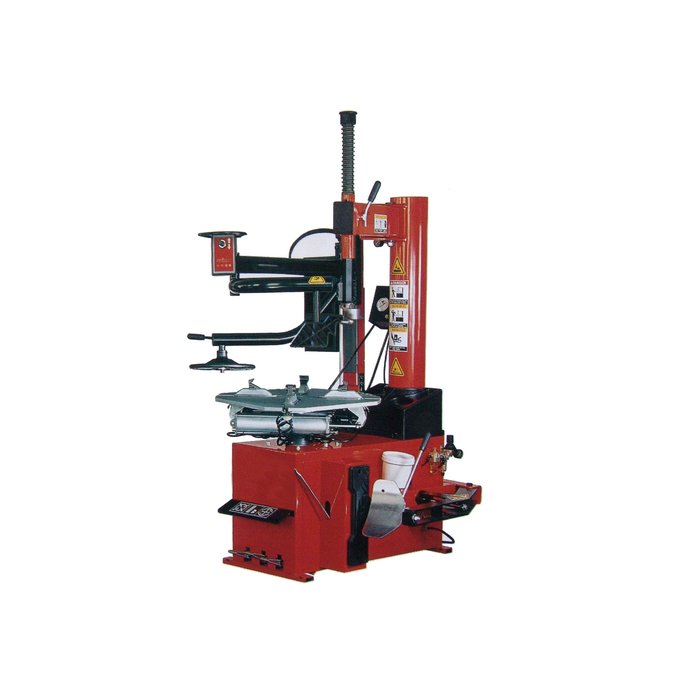

The Tuxedo TC-950-WPA is the TC-950 swing-arm tire changer with the pneumatic left-side press arm mounted from the factory. Same 47 inch max wheel diameter, same 3 to 15 inch wheel width range, same 15 to 28 inch inside and 13 to 24 inch outside rim clamp range, plus the press arm you actually need when the bay is running low-profile sport-truck, run-flat and stiff-sidewall performance tires all day.

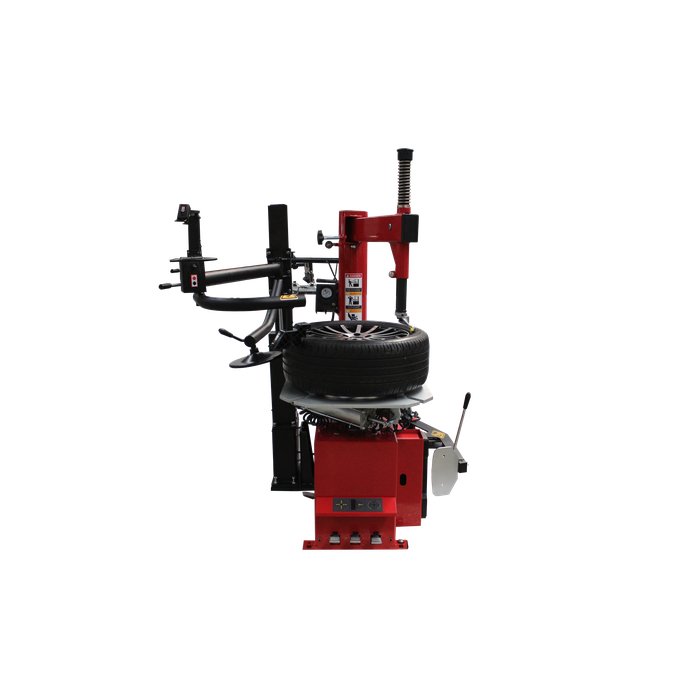

The left-side press arm holds the bead down in the drop-well while the demount head walks the tire off the rim. That single feature is the difference between wrestling a stubborn 275/35R20 for ten minutes and finishing it in one clean spin. Four pneumatic clamps with double-acting cylinders lock the wheel from the outside, and the machine never touches the rim, so alloy and matte-black finishes stay scratch-free.
A side-mounted bead breaker with a powerful pneumatic cylinder pops the toughest beads on run-flats and light-truck tires. Bead-seating inflation jets are integrated into the clamping jaws for stubborn low-profile mounts. Runs on a 110V single-phase 15 A outlet with pressure limiter, water separator and oiler standard. Ships with plastic clamp protectors and two sets of duck head inserts. Backed by Tuxedo one-year parts warranty.
Key Features of the TC-950-WPA That Matter in a Real Tire Bay:

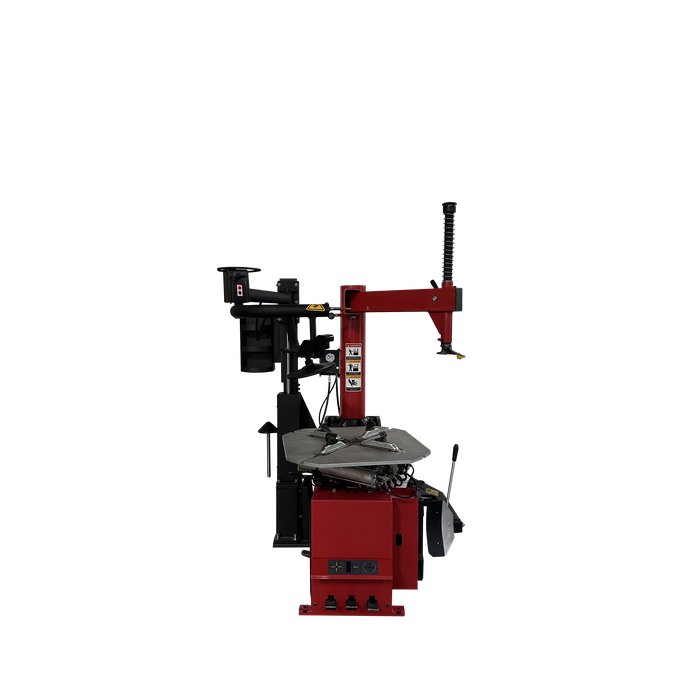

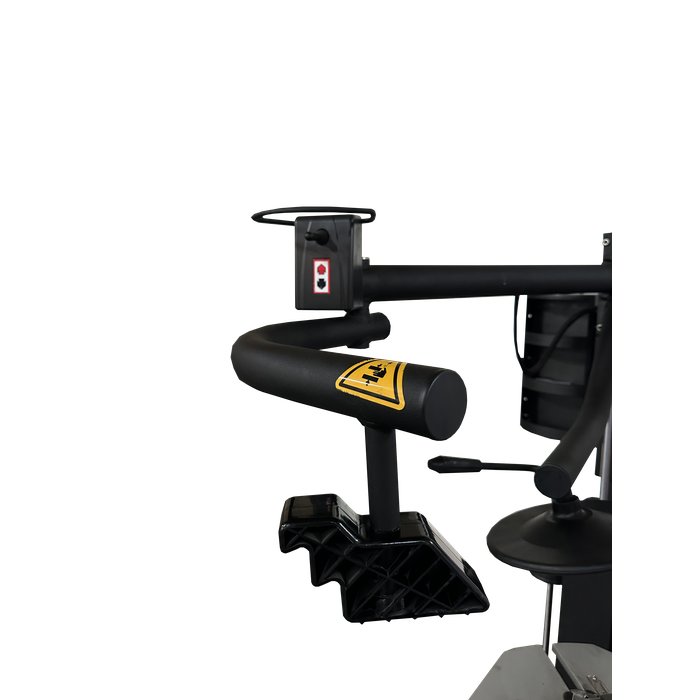

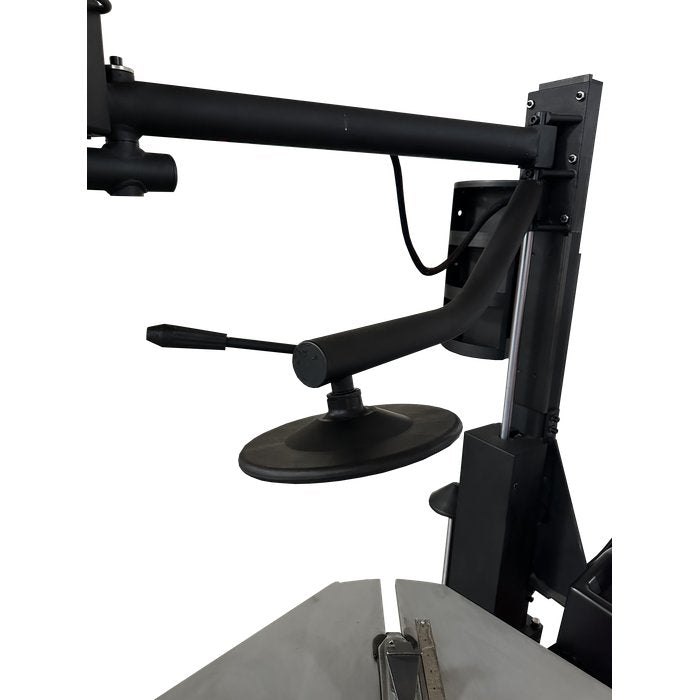

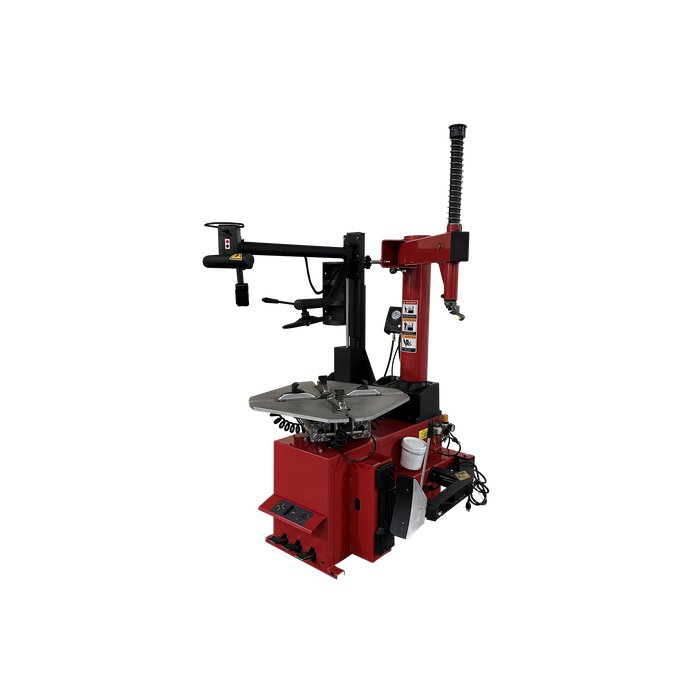

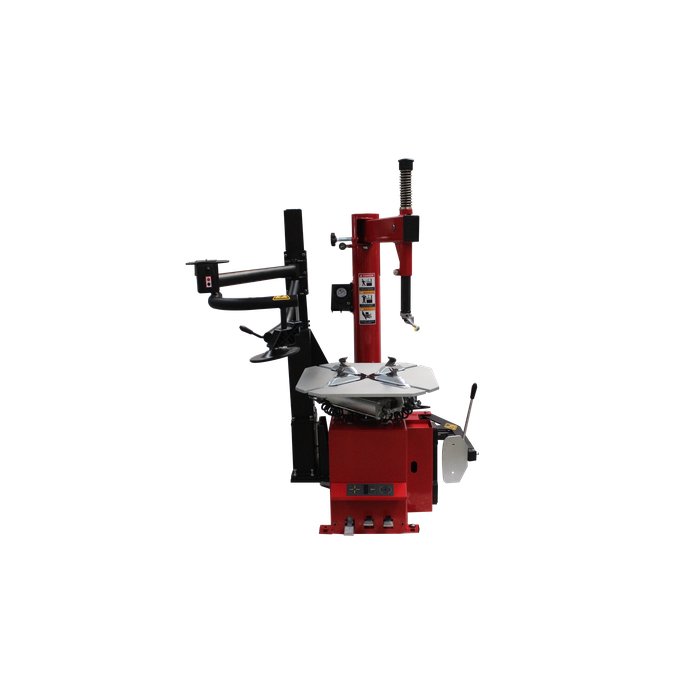

- Left-Side Press Arm Included from Factory: The pneumatic press arm holds the bead down in the drop-well while the demount head walks the tire off. Turns stubborn low-profile and run-flat mounts into one-spin jobs.
- Handles Tires to 47 in Diameter: Full 47 inch max wheel diameter and 3 to 15 inch wheel-width range covers everything from compact car alloys to lifted-truck 24 inch offsets on the same machine.
- Swing-Arm Design with Zero Rim Contact: Machine never touches the rim during mount or demount. Plastic clamp protectors and demount-head protectors keep alloy and painted finishes scratch-free.

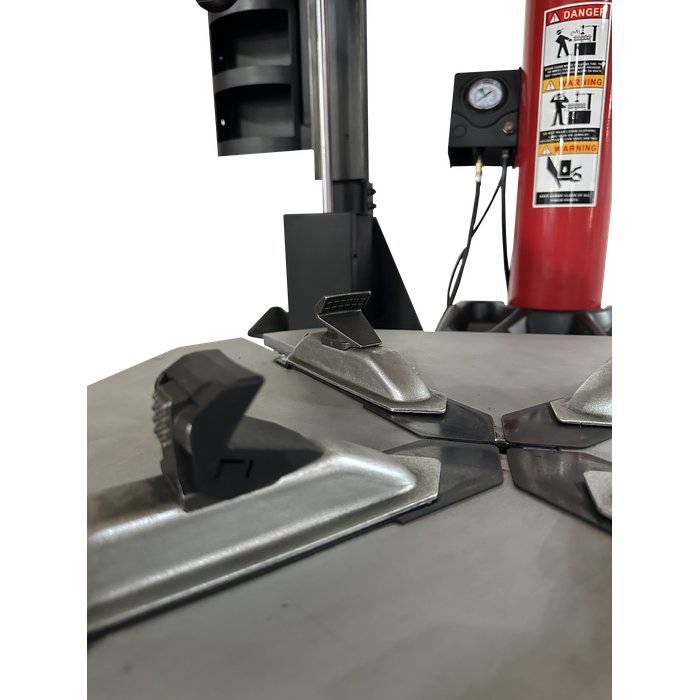

- Four Pneumatic Clamps + Double-Acting Cylinders: Four adjustable pneumatic clamps with double-acting cylinders lock the wheel from the outside. Inside clamp range 15 to 28 in, outside 13 to 24 in for the whole passenger-and-light-truck fleet.
- Integrated Bead-Seating Inflation Jets: Bead-seating jets are built into the clamping jaws. Seat and inflate stubborn low-profile tires without a separate bead-blaster tank or inflation cannon.

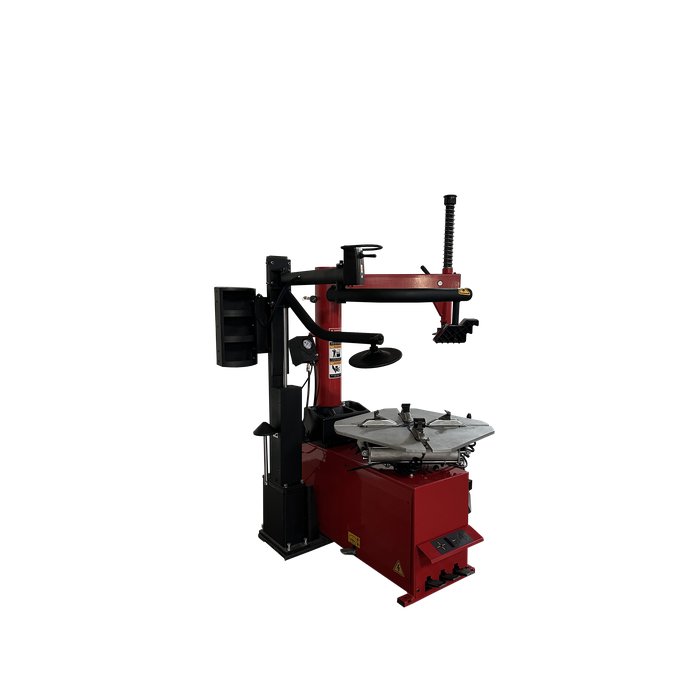

- Powerful Side-Mounted Bead Breaker: Side-mounted bead breaker pops the toughest beads on light-truck tires and run-flats without pounding them with a tire iron.

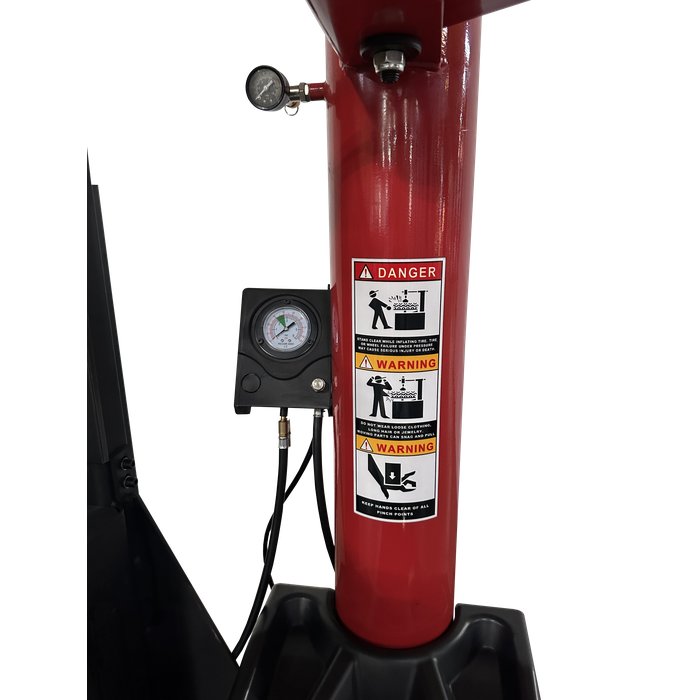

- Complete Air Prep Included: Pressure regulator, water separator, oiler and lubricator are all standard. Your air is clean, dry and correctly regulated at the machine.
- Pairs with WB-953 for a Combo: Match with the Tuxedo WB-953 wheel balancer via the CK-TC950WPA-WB953 combo package for a complete tire-and-wheel service bay in one purchase.
TC-950-WPA 47" Tire Changer with Press Arm Specifications | |
| Manufacturer | Tuxedo Distributors, LLC |
| Model | TC-950-WPA |
| Configuration | Swing-arm tire changer with factory-mounted left-side press arm |
| Primary Application | Passenger car, SUV, light-truck and low-profile / run-flat tire service |
| Max Wheel Diameter | 47 in |
| Wheel Width Range | 3 in to 15 in |
| Inside Rim Clamp Range | 15 in to 28 in |
| Outside Rim Clamp Range | 13 in to 24 in |
| Clamps | Four adjustable pneumatic, double-acting cylinders |
| Press Arm | Left-side pneumatic press arm, factory-installed (WPA) |
| Wheel Protection | Plastic clamp protectors, demount-head protectors, no rim contact |
| Bead Breaker | Side-mounted, powerful pneumatic |
| Bead Seating Jets | Integrated into clamping jaws |
| Mount / Demount Shaft | Large-diameter hex, extra rigidity |
| Power Supply | 110V, 15 A, 1-Phase |
| Working Air Pressure | 125 psi |
| Air Prep | Pressure regulator, water separator, oiler and lubricator standard |
| Included Accessories | Plastic clamp protectors + 2 sets of duck head inserts |
| Optional Accessories | TS-ATSB accessory shelf, TC-MC-AN motorcycle/ATV adapters, CK-TC950WPA-WB953 combo with WB-953 balancer |
| Pallet Dimensions | 37 in L x 51 in W x 60 in H |
| Shipping Weight | 880 lb |
| Warranty | Tuxedo 1-year (12 months) parts warranty against all product defects |
