Tuxedo 47" Tire Changer | TC-950
The 47 in Swing-Arm Tire Changer That Handles the Whole Bay from Passenger Car to Light Truck

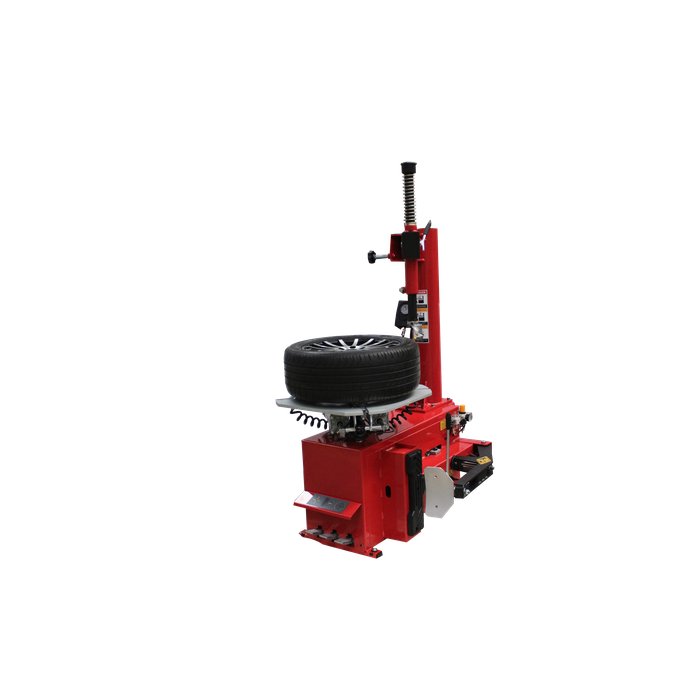

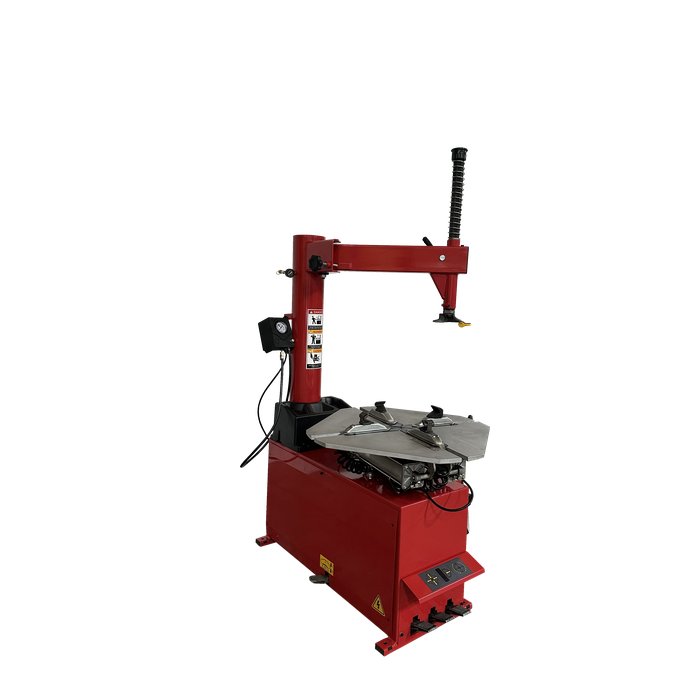

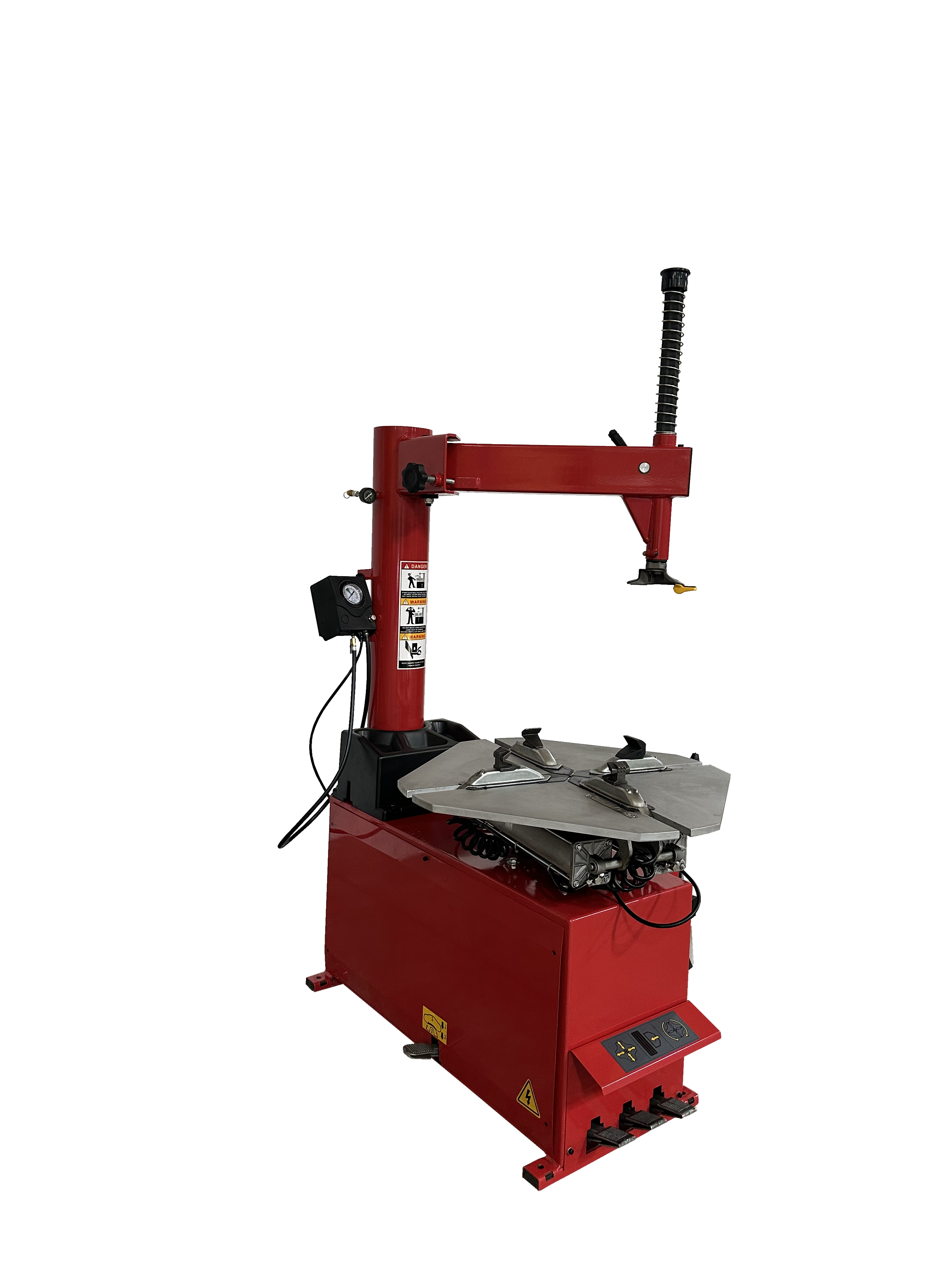

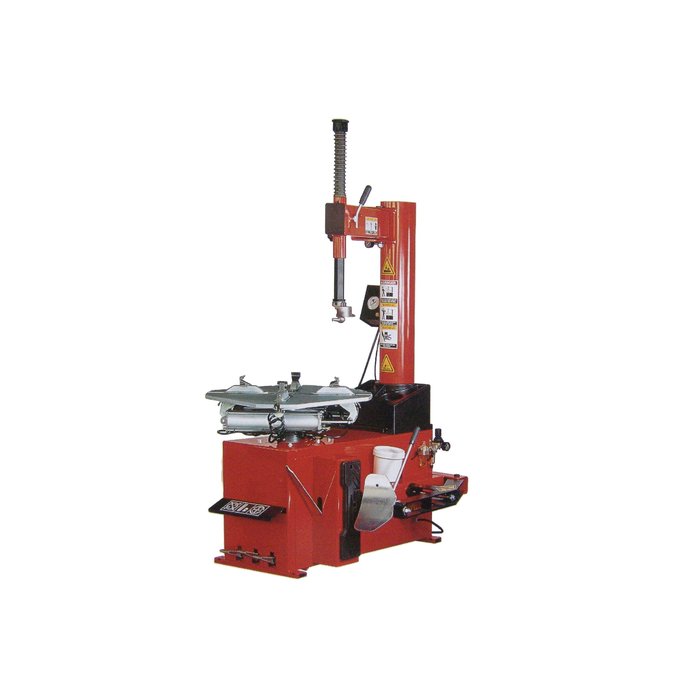

The Tuxedo TC-950 is a professional swing-arm tire changer sized for a full-service tire and wheel bay. Its 47 inch maximum wheel diameter and 3 to 15 inch wheel-width range mean one machine handles the whole floor, from a compact-car 15 inch alloy to a light-truck 22 inch aftermarket wheel or a lifted-truck 24 inch offset. Inside rim clamp range is 15 to 28 inches, outside range is 13 to 24 inches.
The machine never contacts the rim. Twin pneumatic clamping cylinders hold the wheel from the bottom, and the demount head runs off a large-diameter hex shaft with plastic protectors so alloy finishes stay perfect. Bead-seating inflation jets are integrated right into the clamping jaws, so you seat and inflate stubborn low-profile tires without a separate cannon or bead-blaster tank.
A side-mounted bead breaker with a powerful pneumatic cylinder pops the toughest beads without hammering. Ships with pressure limiter, water separator and oiler standard. Runs on a 110V single-phase 15 A outlet so it drops into any bay without electrical work. Includes plastic clamp protectors and two sets of duck head inserts. Backed by Tuxedo one-year parts warranty against all product defects. If your shop regularly mounts stiff low-profile sport-truck tires, step up to the TC-950-WPA with the left-side press arm.
Key Features of the TC-950 That Matter in a Real Tire Bay:
- Handles Tires to 47 in Diameter: Full 47 inch max wheel diameter and 3 to 15 inch wheel-width range handles compact-car alloys, light-truck 22 inch aftermarket wheels and lifted-truck 24 inch offsets on the same machine.

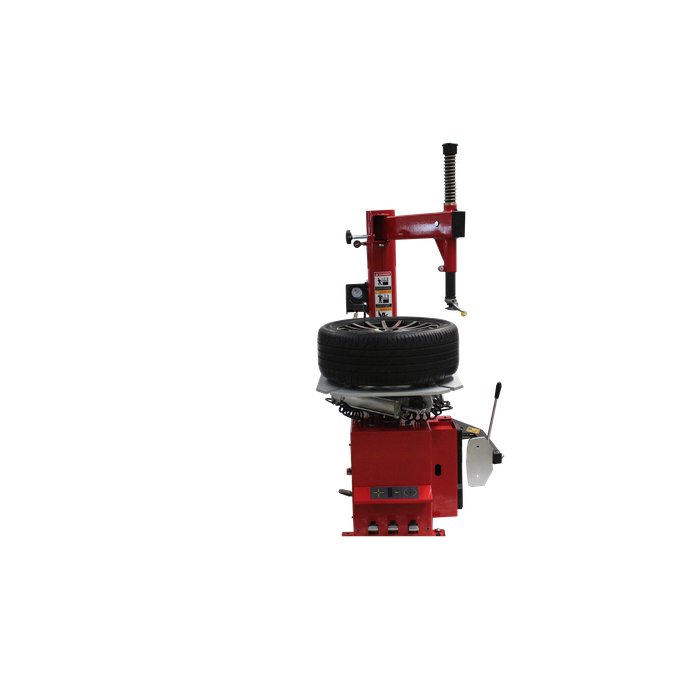

- Swing-Arm Design with Zero Rim Contact: Machine never touches the rim during mount or demount. Plastic clamp protectors and demount-head protectors keep alloy and painted finishes scratch-free.

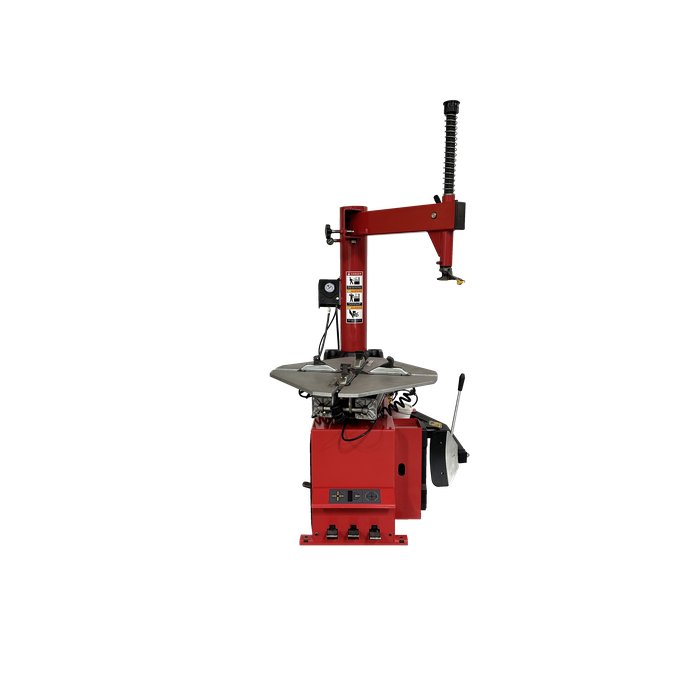

- Twin Pneumatic Clamping Cylinders: Two heavy-duty pneumatic cylinders hold the wheel rock-solid on the toughest rims. Inside clamp range 15 to 28 in, outside 13 to 24 in for the whole passenger-and-light-truck fleet.

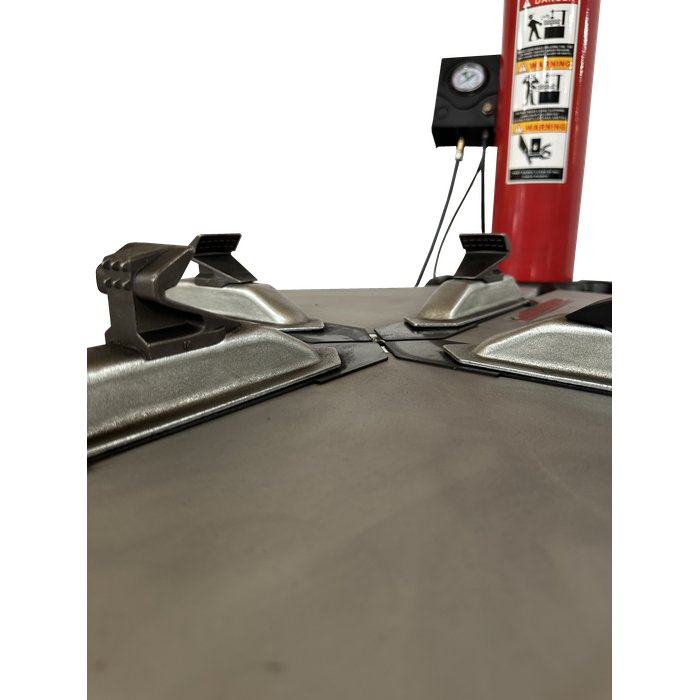

- Integrated Bead-Seating Inflation Jets: Bead-seating inflation jets are built right into the clamping jaws. Seat and inflate stubborn low-profile tires without a separate bead-blaster tank or inflation cannon.

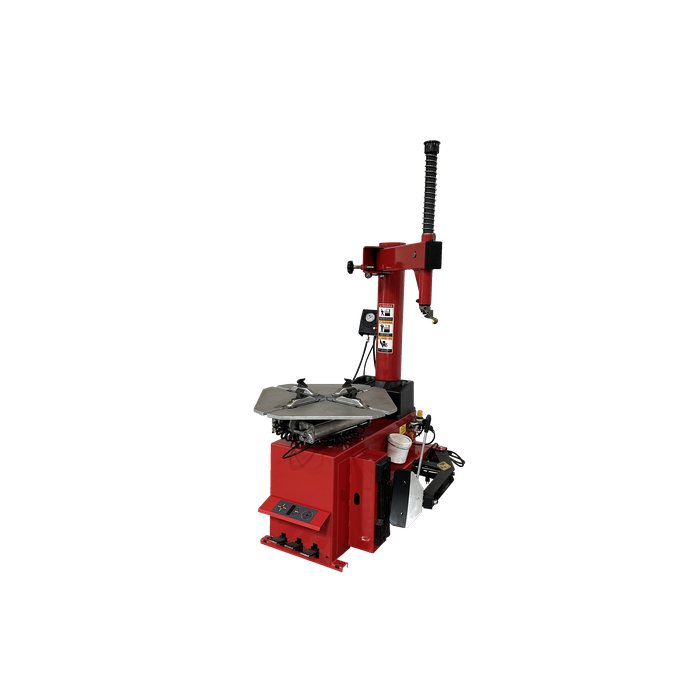

- Powerful Side-Mounted Bead Breaker: Side-mounted bead breaker pops stubborn beads on light-truck tires and run-flats without pounding them with a tire iron.

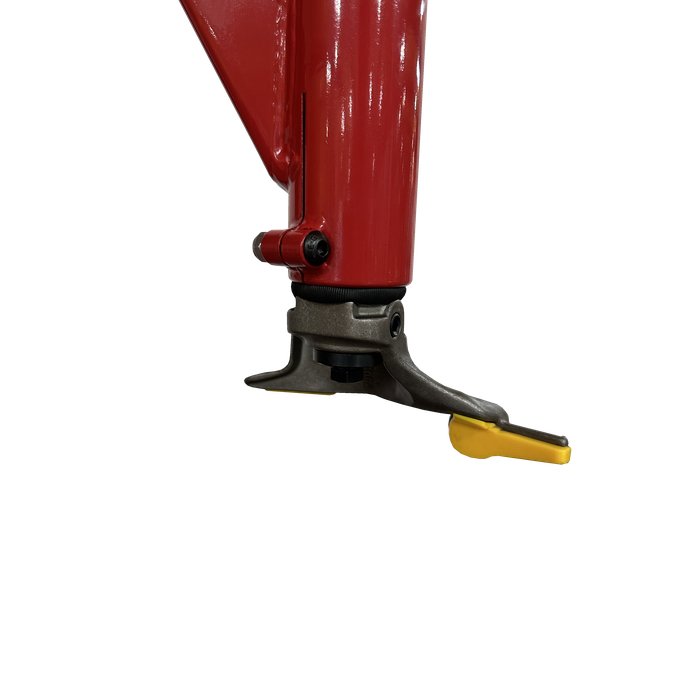

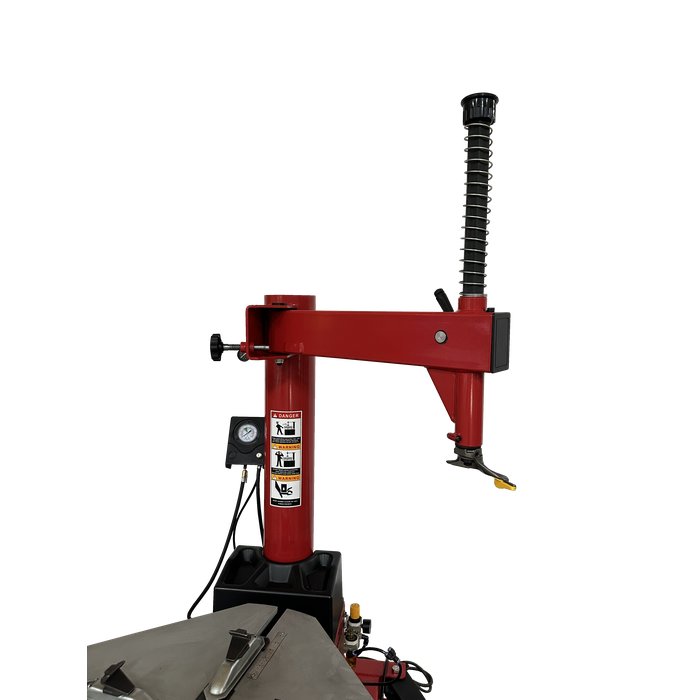

- Large-Diameter Hex Mount / Demount Shaft: Large hex shaft gives the demount head serious rigidity so it does not deflect under load. Consistent bead break and mount every time.

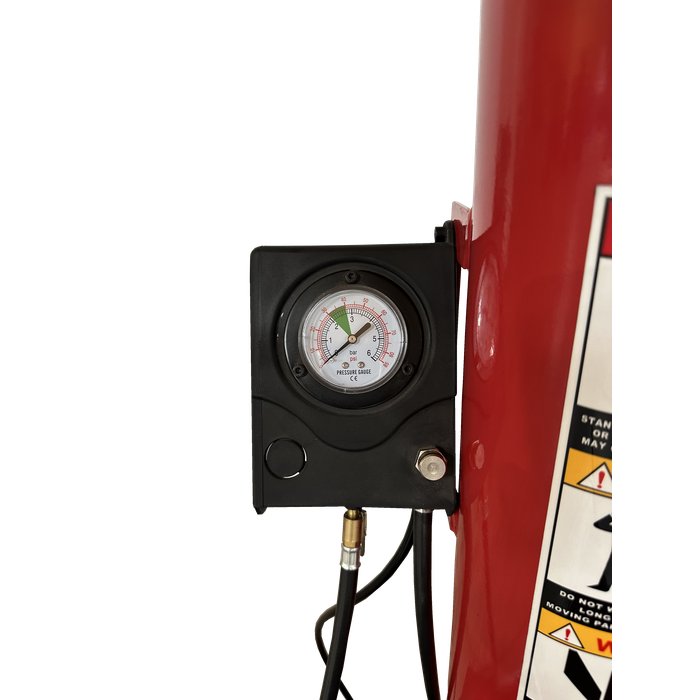

- Complete Air Prep Included: Pressure limiter, water separator and oiler are all standard. Your air is clean and correctly regulated at the machine without a separate wall setup.
- Upgrade-Ready to the WPA Press Arm: If your bay regularly mounts stiff low-profile sport-truck or performance tires, step up to the TC-950-WPA with the pneumatic left-side press arm from the factory.
TC-950 47" Tire Changer Specifications | |
| Manufacturer | Tuxedo Distributors, LLC |
| Model | TC-950 |
| Configuration | Swing-arm tire changer with pneumatic clamping |
| Primary Application | Passenger car, SUV and light-truck tire and wheel service |
| Max Wheel Diameter | 47 in |
| Wheel Width Range | 3 in to 15 in |
| Inside Rim Clamp Range | 15 in to 28 in |
| Outside Rim Clamp Range | 13 in to 24 in |
| Clamps | Four adjustable, twin pneumatic double-acting cylinders |
| Wheel Protection | Plastic clamp protectors, demount-head protectors, no rim contact |
| Bead Breaker | Side-mounted, powerful pneumatic |
| Bead Seating Jets | Integrated into clamping jaws |
| Mount / Demount Shaft | Large-diameter hex, extra rigidity |
| Power Supply | 110V, 15 A, 1-Phase |
| Working Air Pressure | 125 psi |
| Air Prep | Pressure limiter, water separator and oiler standard |
| Included Accessories | Plastic clamp protectors + 2 sets of duck head inserts |
| Optional Accessories | TC-950-WPA-1 left-side press arm, TS-ATSB accessory shelf, TC-MC-AN motorcycle/ATV adapters |
| Pallet Dimensions | 37 in L x 48 in W x 41 in H |
| Shipping Weight | 640 lb |
| Warranty | Tuxedo 1-year (12 months) parts warranty against all product defects |
